Ramblas Ebike – Technical Specifications

General Information

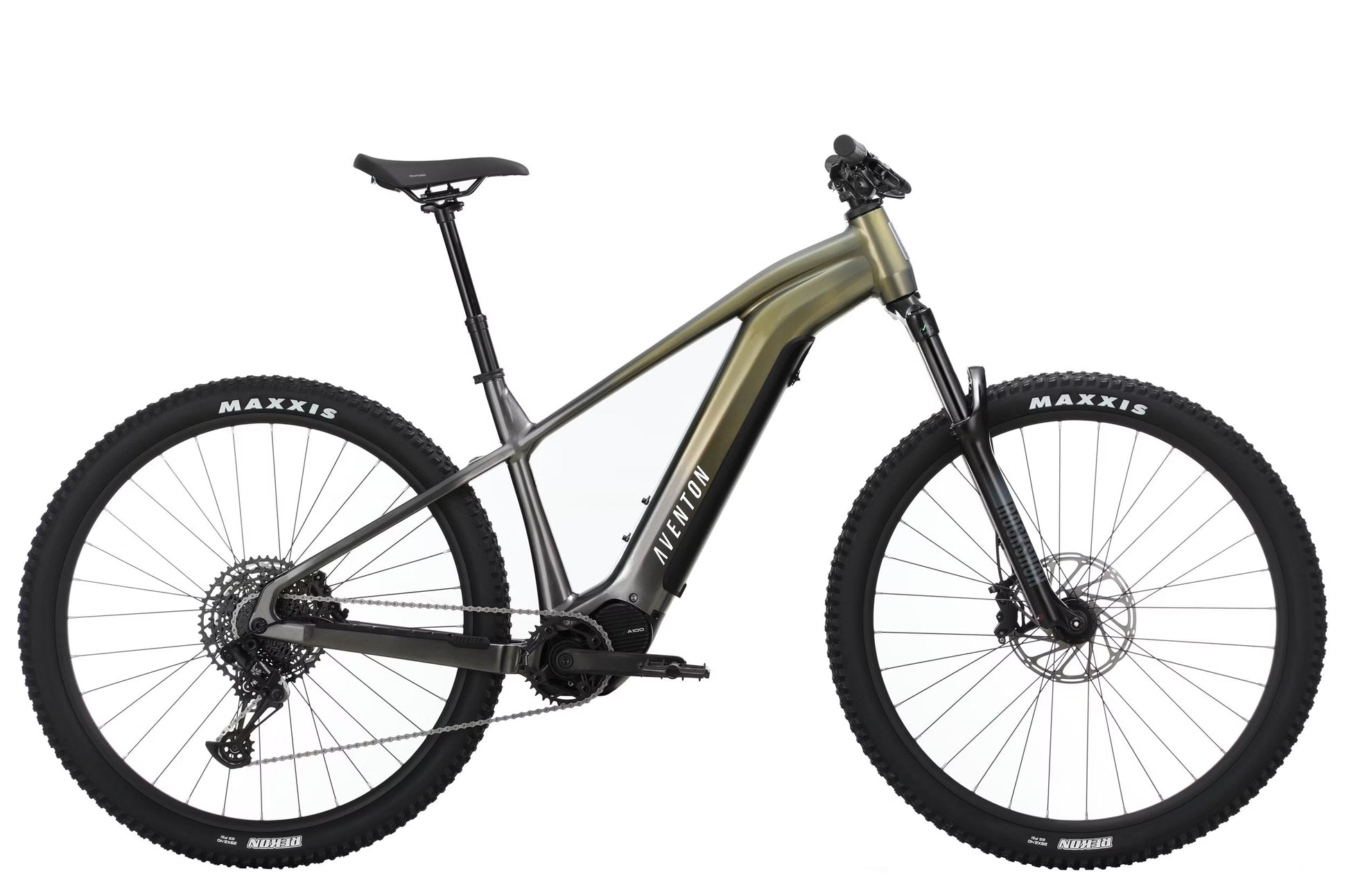

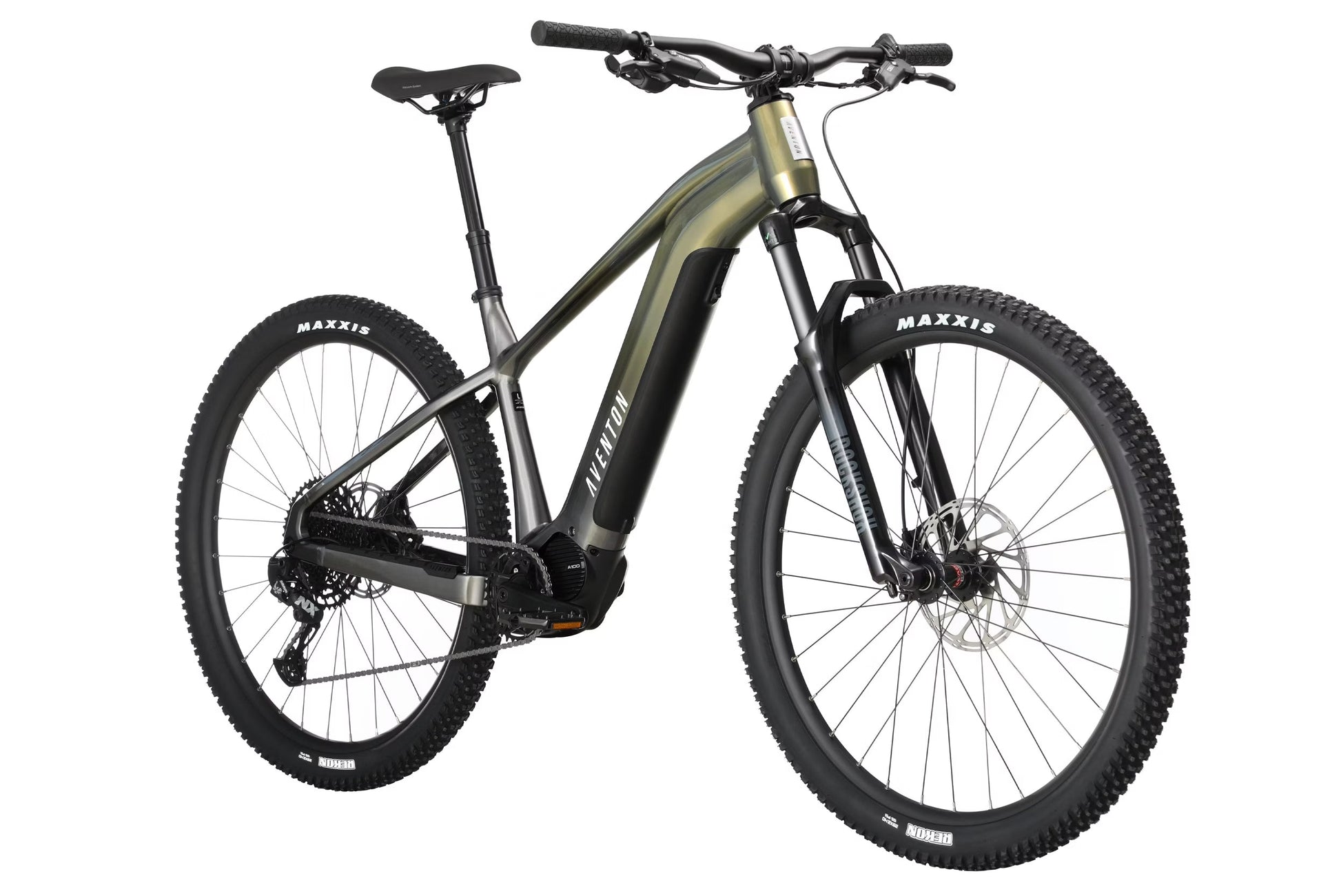

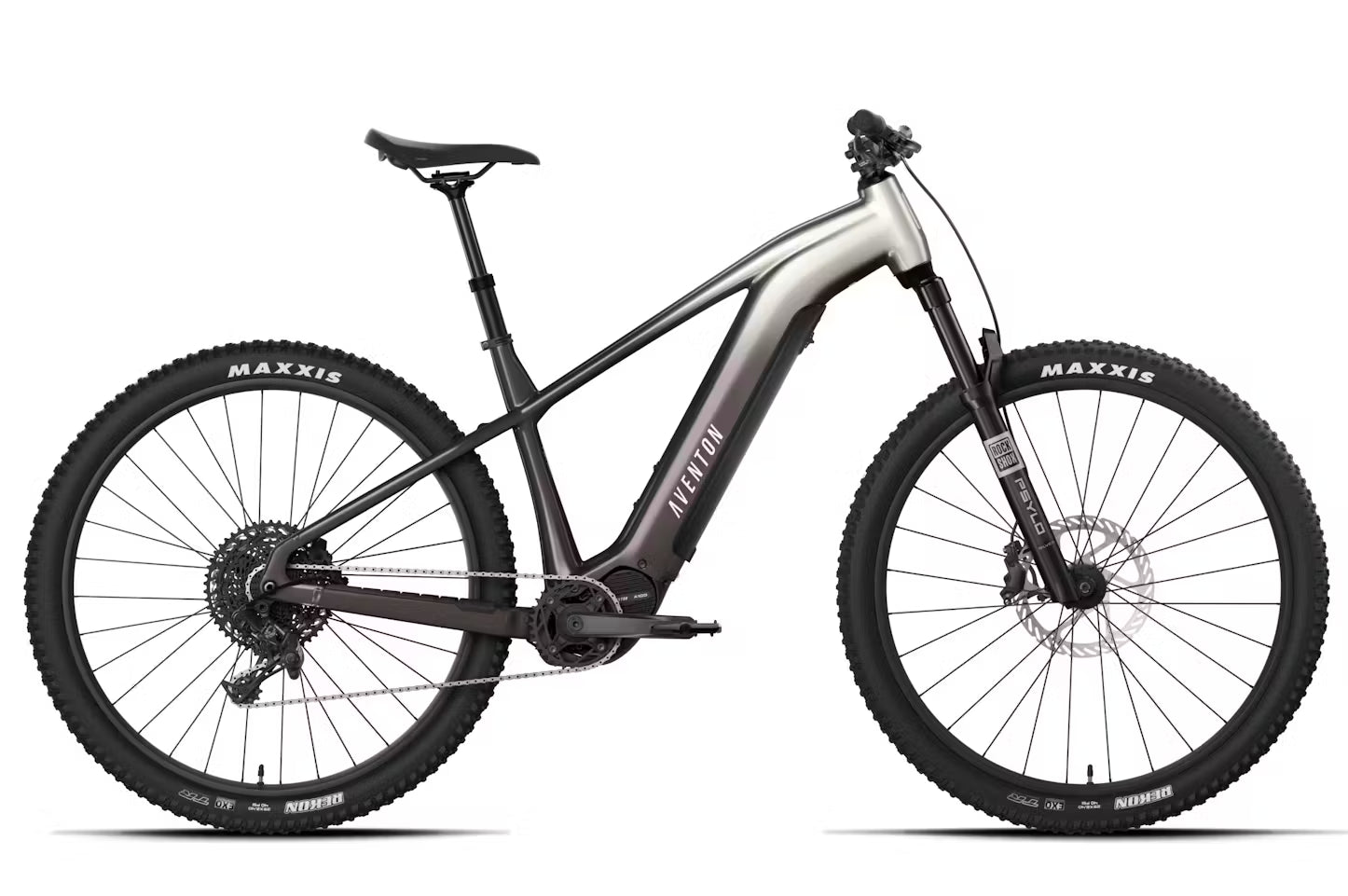

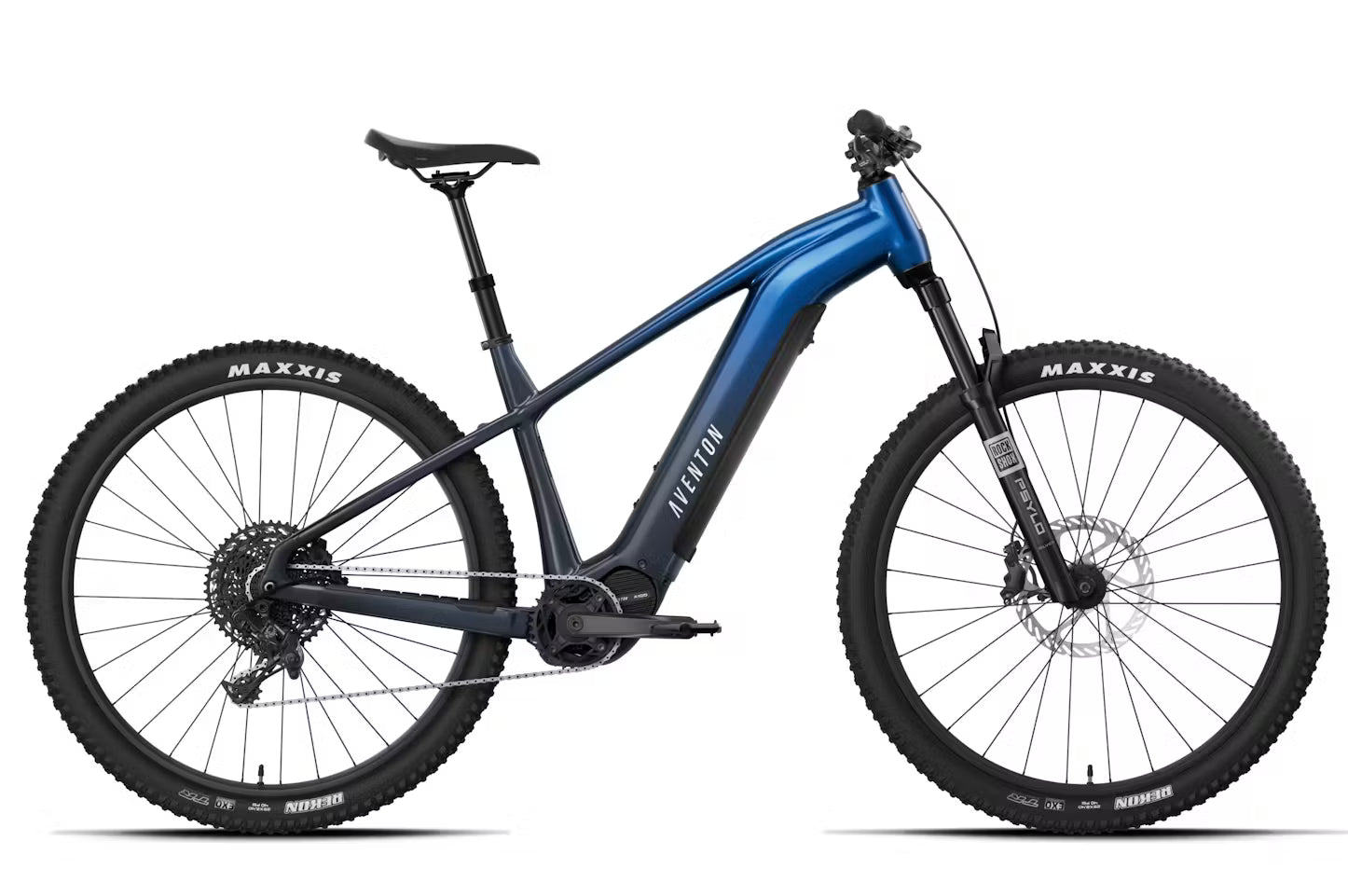

• Model: Ramblas Ebike

• Use Case: Mountain Biking, Urban Riding

• Weight: 54 lbs (Size Large, without pedals)

• Rider Height Range: 5'1" – 6'5"

• Total Weight Capacity: 300 lbs

• Folding: No

• Range: Up to 90 miles

• Pedal Assist Levels: 3 (with Ride Tune Customization)

• Class: Class 1 (Pedal Assist only, no throttle)

• Water Resistance:

  • Bike: IPX6

  • Motor: IP67

• Safety Certifications: UL 2849 / UL 2271 / TUV

• Warranty: 2 Years

• Returns: 14-Day Return Policy

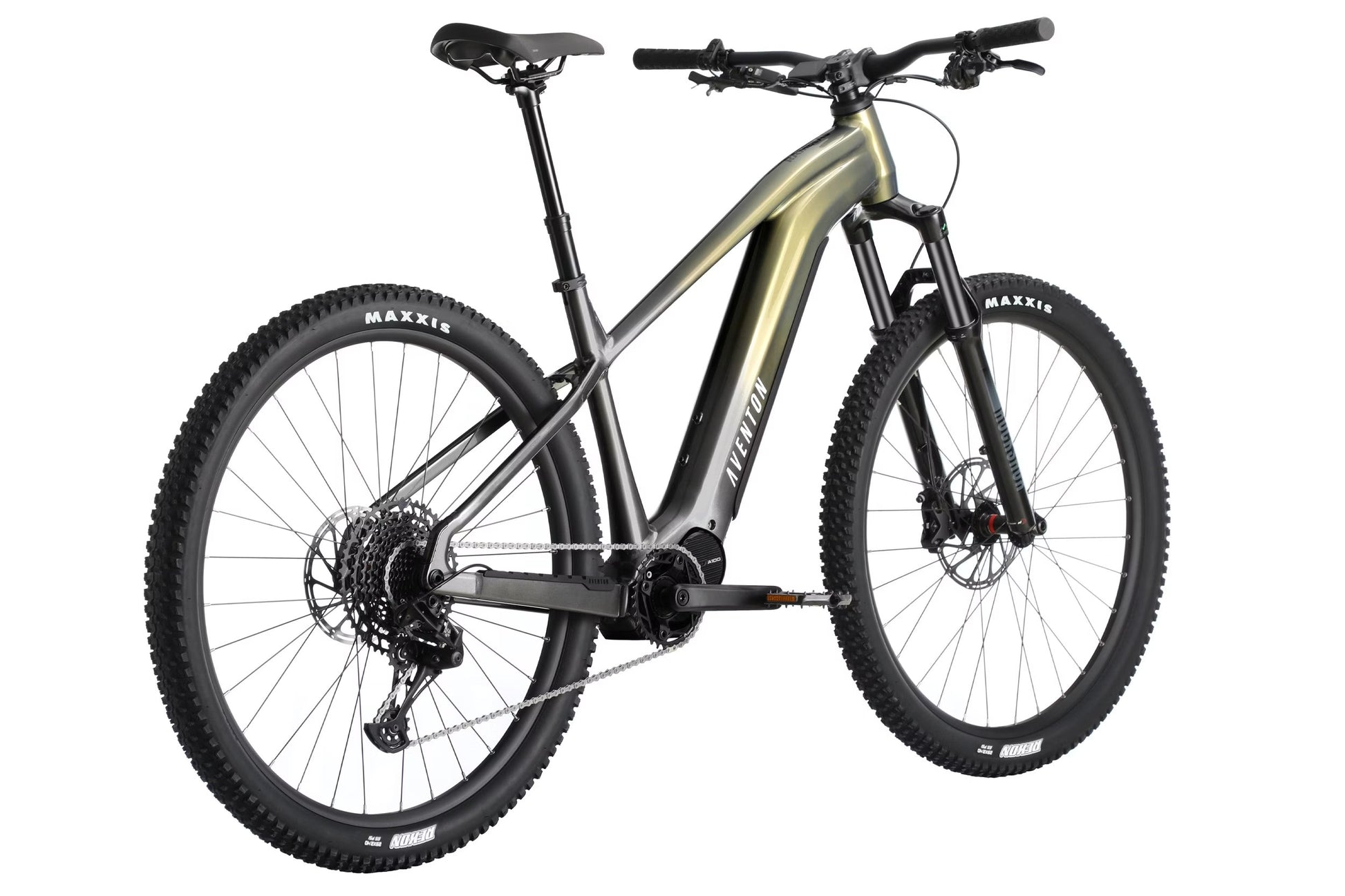

Frameset

• Frame Style: Step-Over

• Frame Material: 6061 Single-Butted Aluminum Alloy

• Fork Options:

  • BOREALIS: RockShox 35 Silver R, 130mm coil travel, 44mm offset, 15x110mm QR axle, 1.5" tapered steerer

  • AURORA: RockShox Psylo Silver R, 130mm coil travel, 35mm stanchions, rebound adjust, BOOST 15x110mm, 1.5" tapered steerer

Wheelset & Tires

• Hubs:

  • Front: 15x110mm, 32H

  • Rear: 12x148mm, 32H

• Rims: Double-wall aluminum, 32H

• Spokes: 13G Black Stainless Steel

• Tires:

  • Size S: Maxxis Rekon 27.5 x 2.4

  • Size M–XL: Maxxis Rekon 29 x 2.4

• Tubes: Butyl rubber with Presta valves

Ebike System

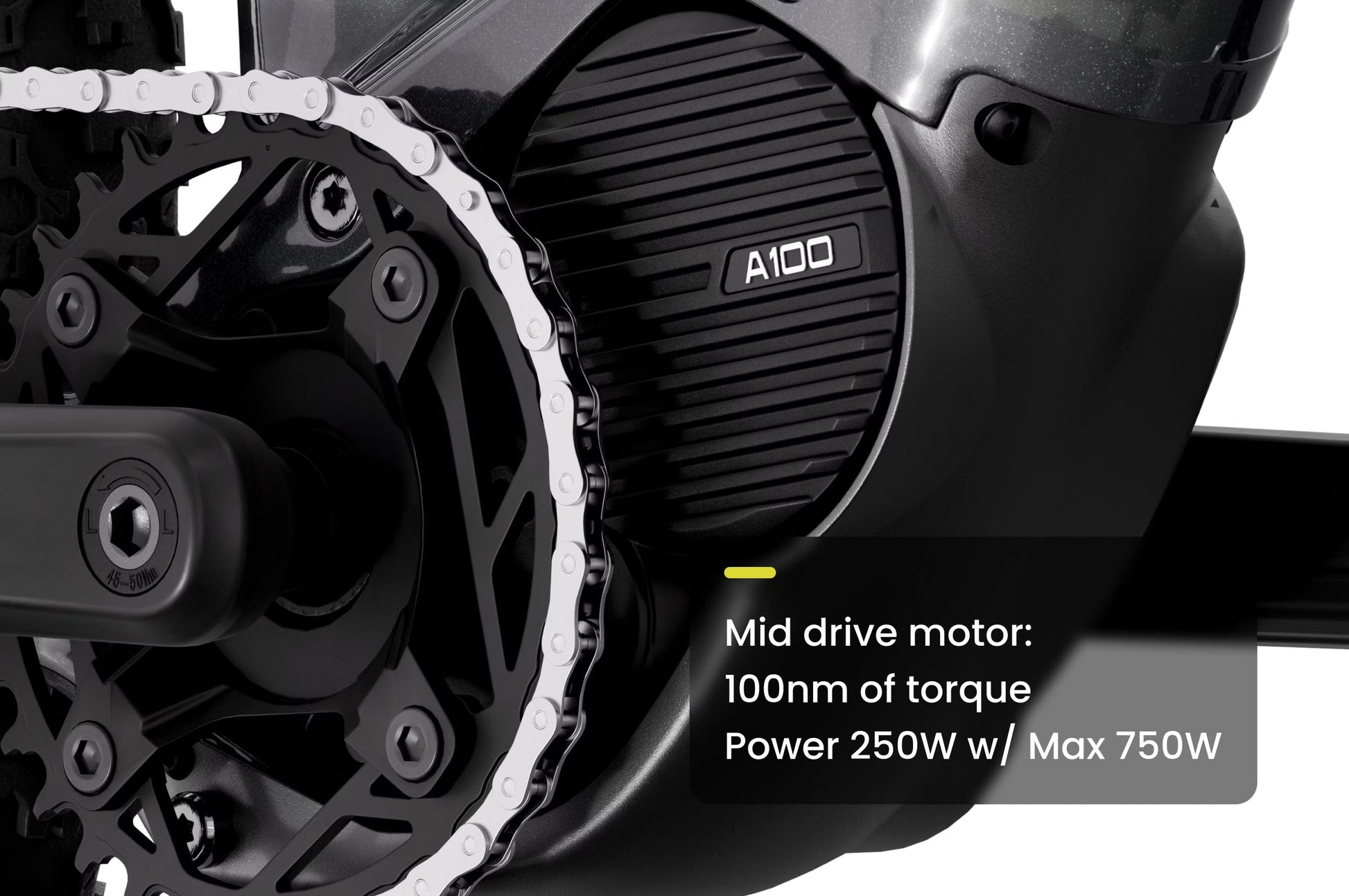

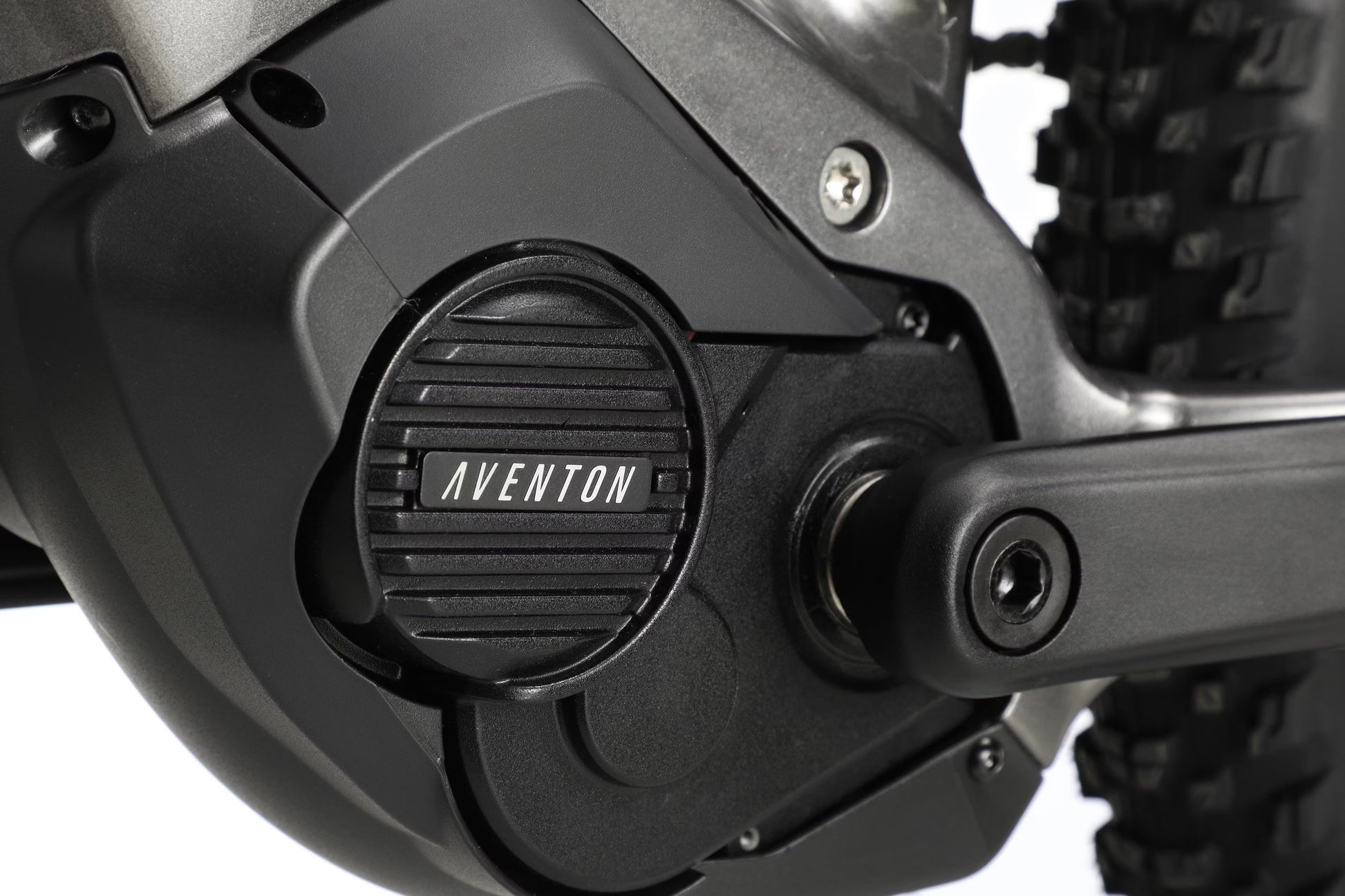

• Motor: Aventon A100 mid-drive

  • 36V, 250W sustained / 750W peak

  • 100Nm torque

  • IP67 water resistance

• Battery: 708Wh, 36V, LG 21700 cells

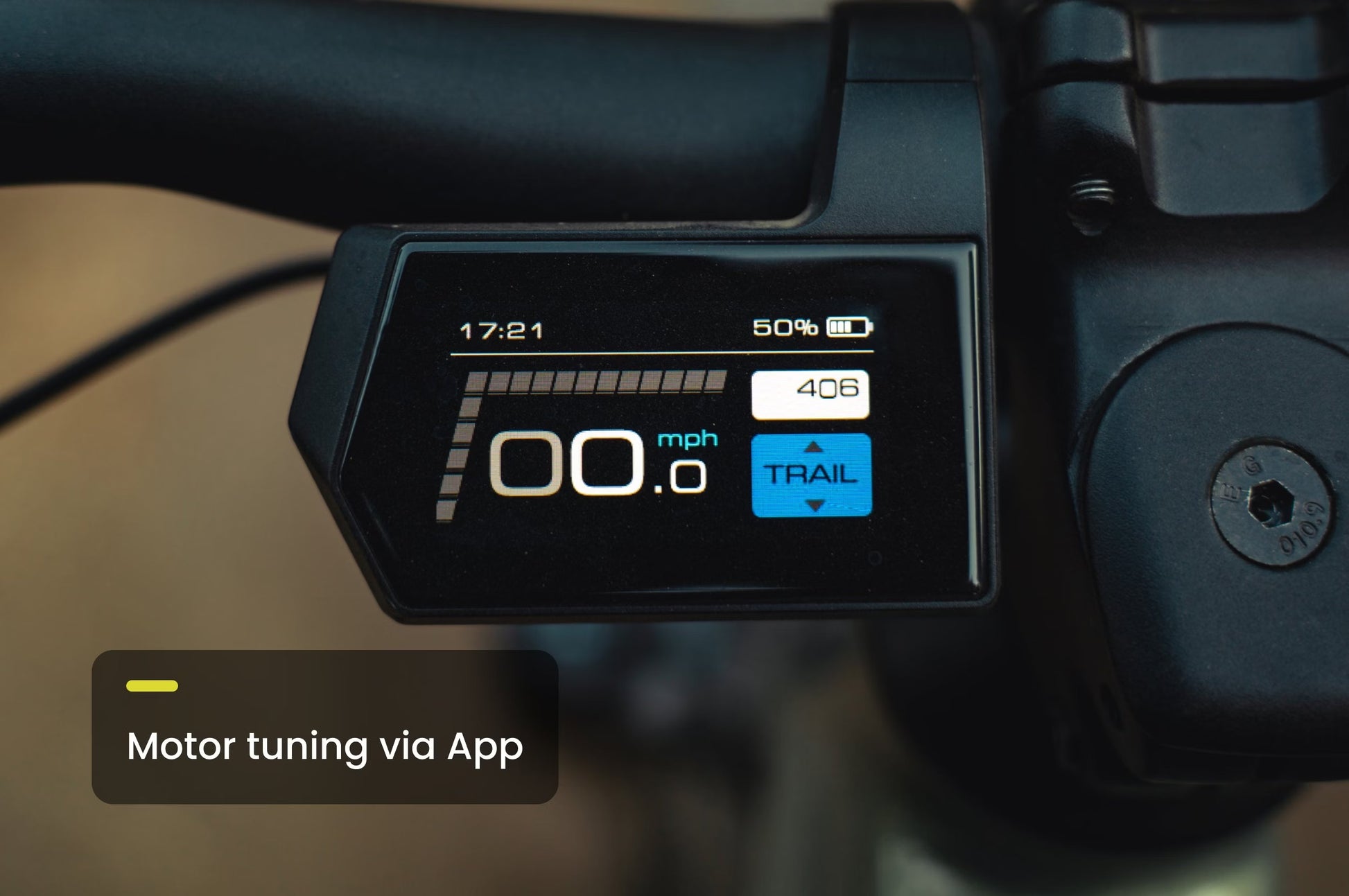

• Display: LCD Smart "Easy Read"

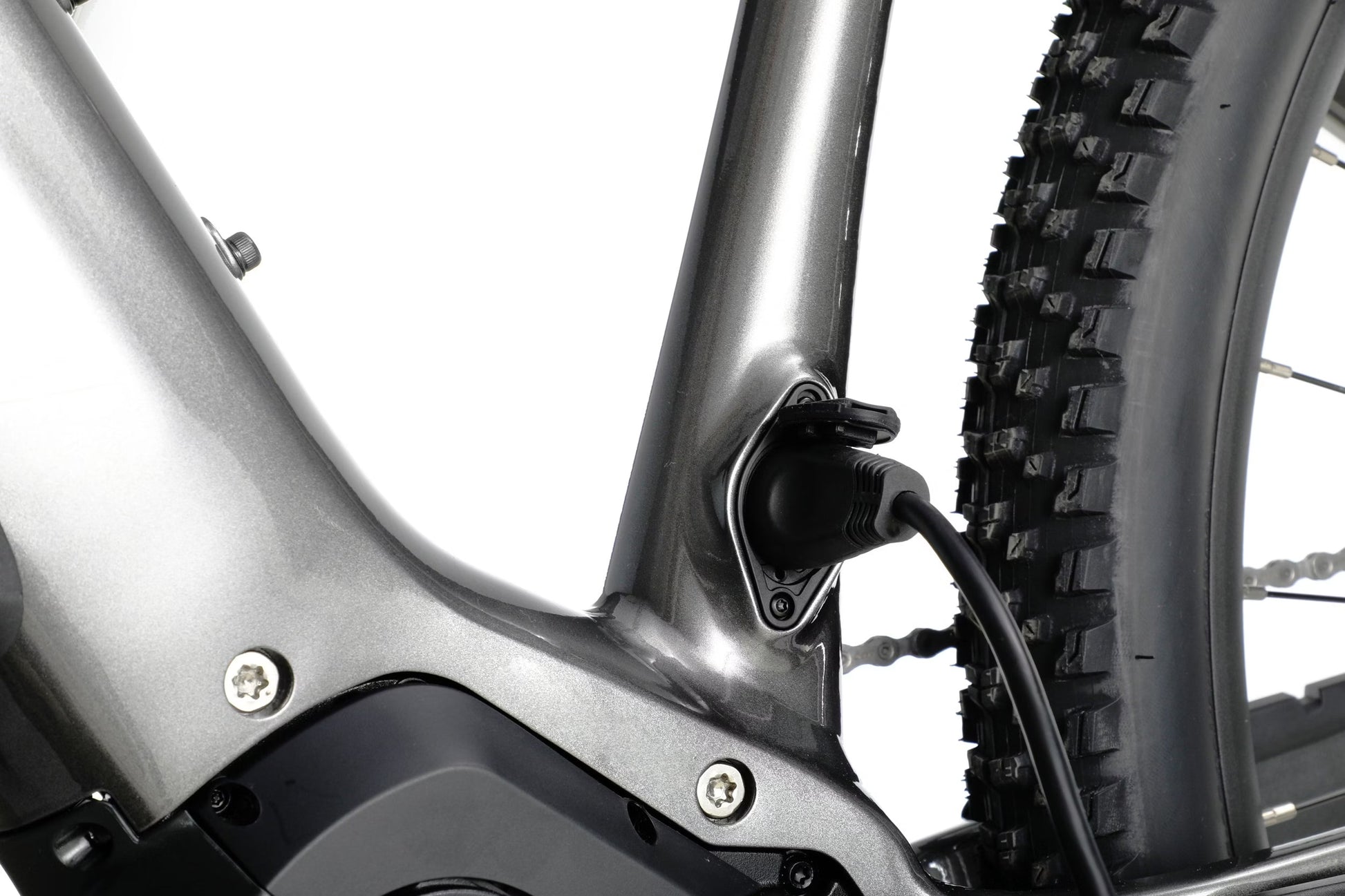

• Charger: 42V 4A fast charger

Braking System

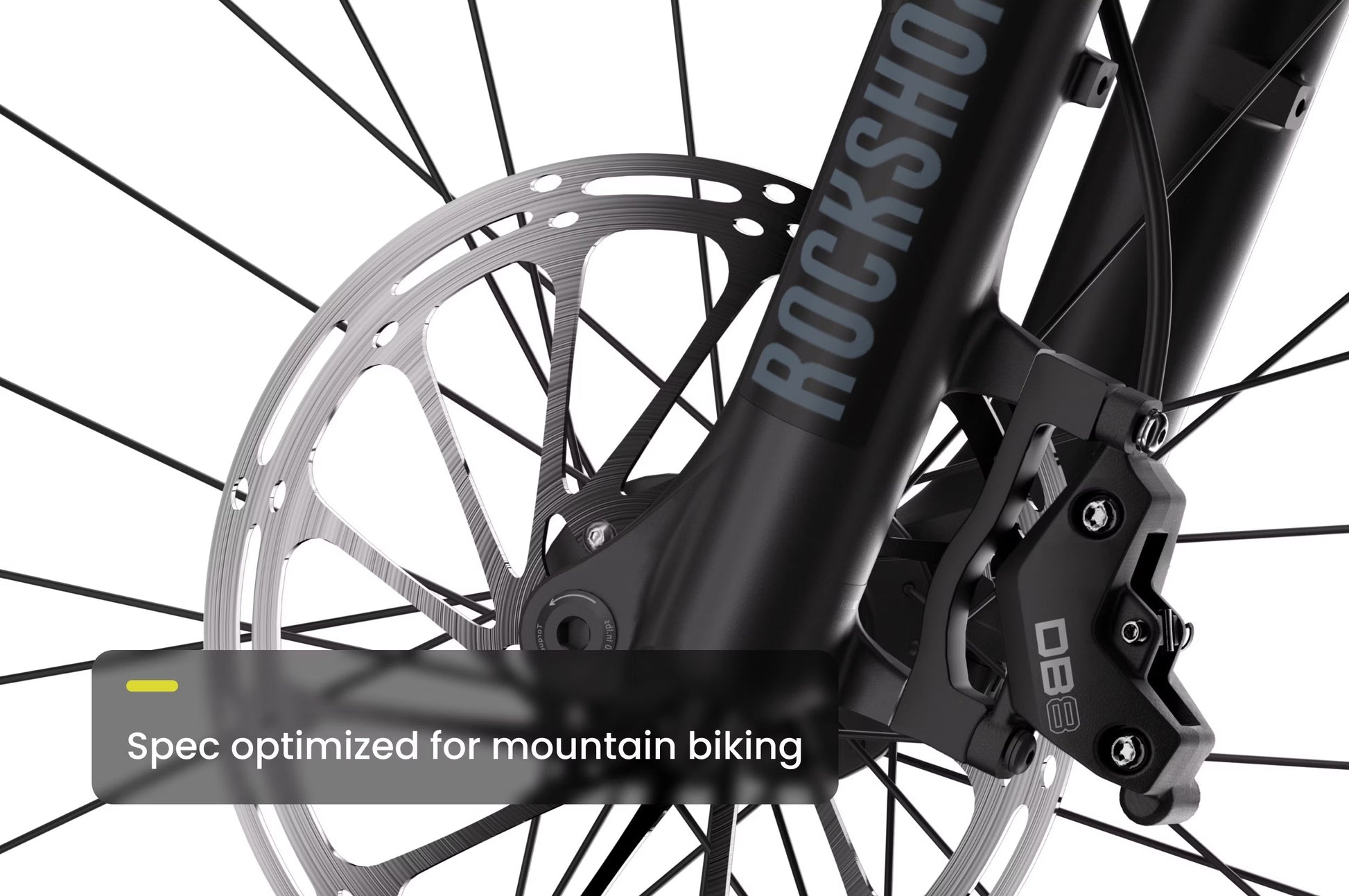

• Front Brake: SRAM DB8 4-piston hydraulic disc, 200mm rotor (6-bolt)

• Rear Brake: SRAM DB8 4-piston hydraulic disc, 180mm rotor (6-bolt)

Drivetrain

• Drivetrain Type: 1x12

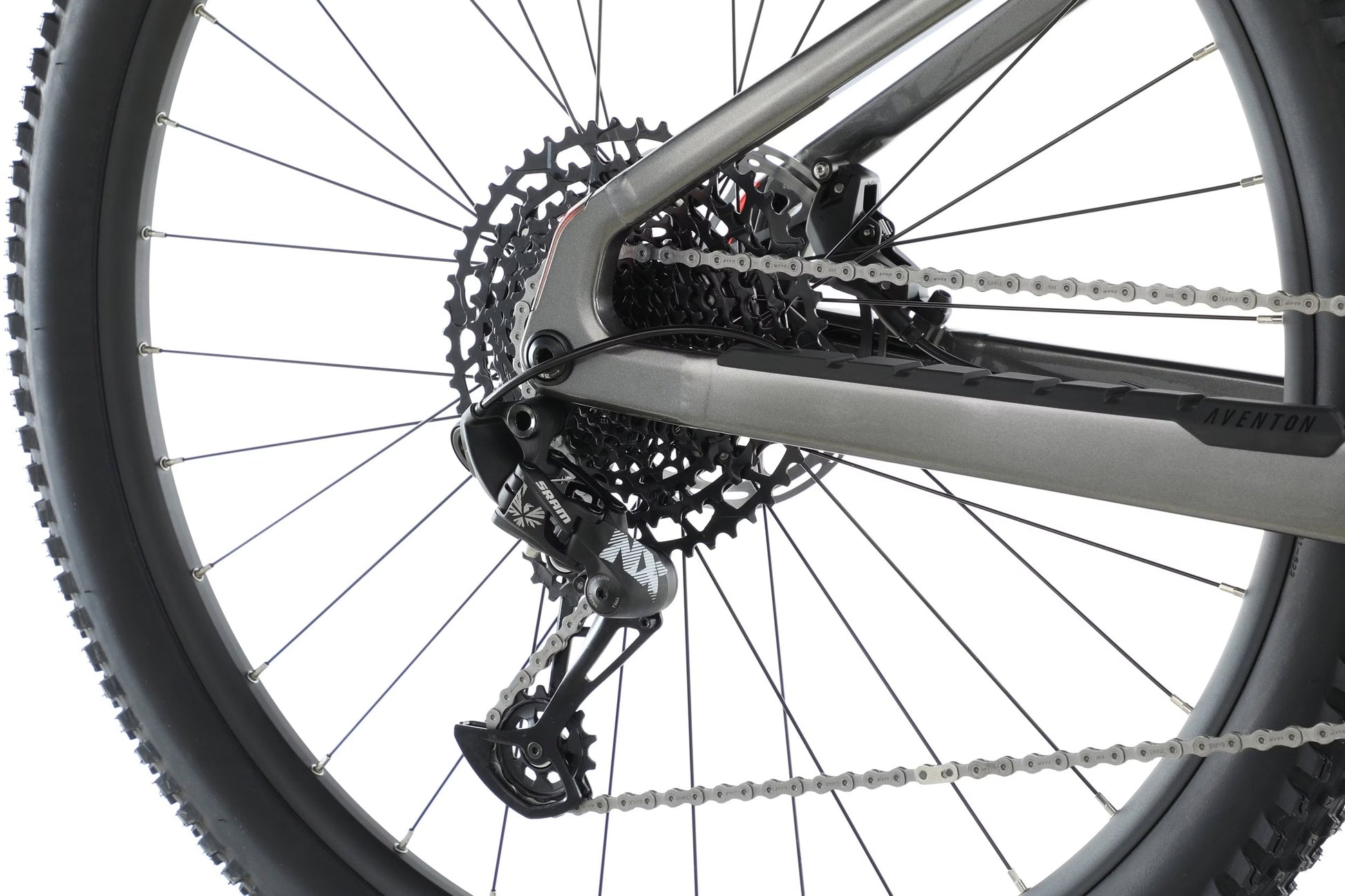

• Rear Derailleur: SRAM NX Eagle

• Shift Lever: SRAM NX Eagle Single Click

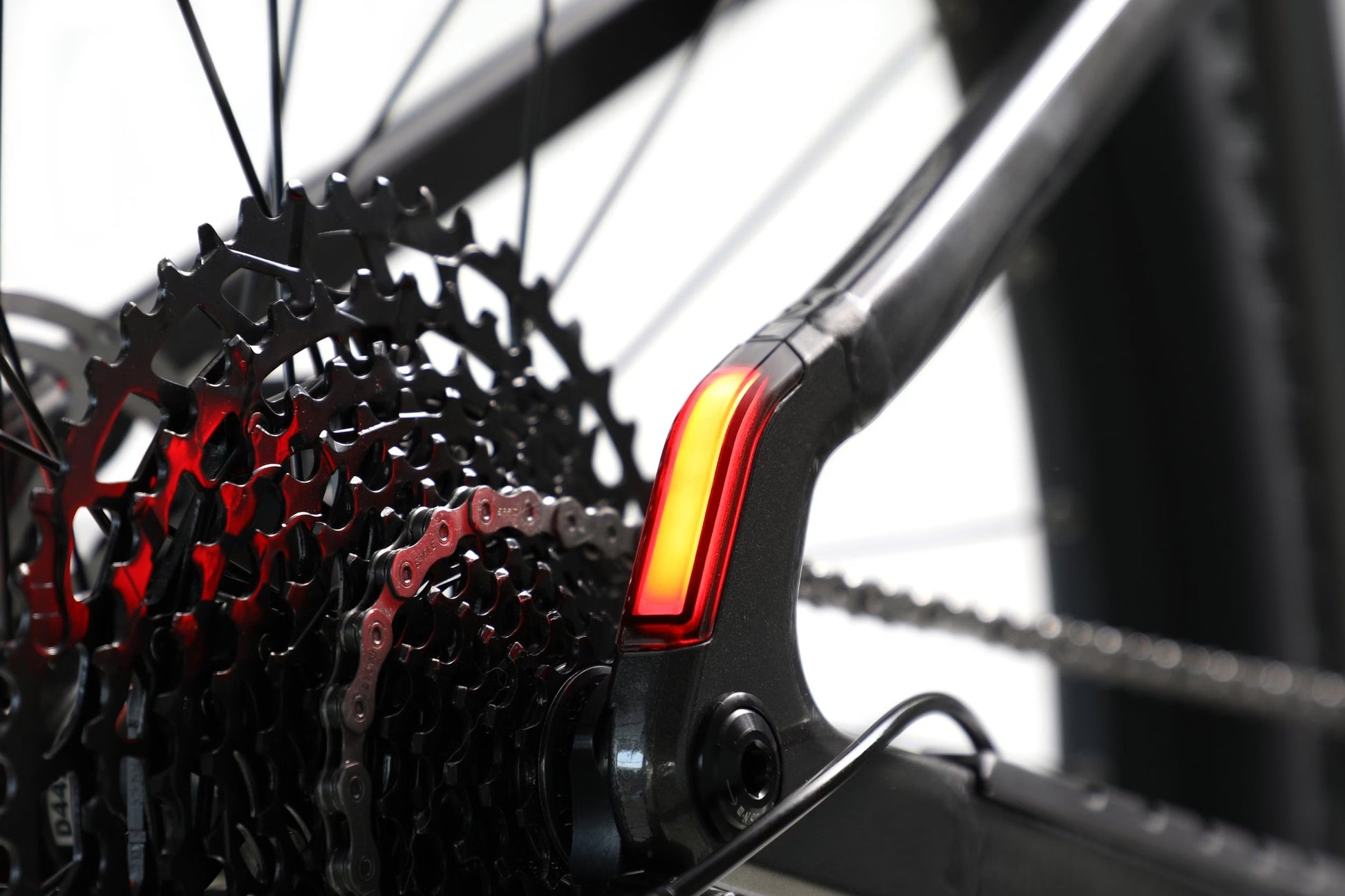

• Cassette: SRAM SX Eagle, 11–50T

• Chainring: SRAM NX 34T

• Pedals: 9/16" Alloy Platform

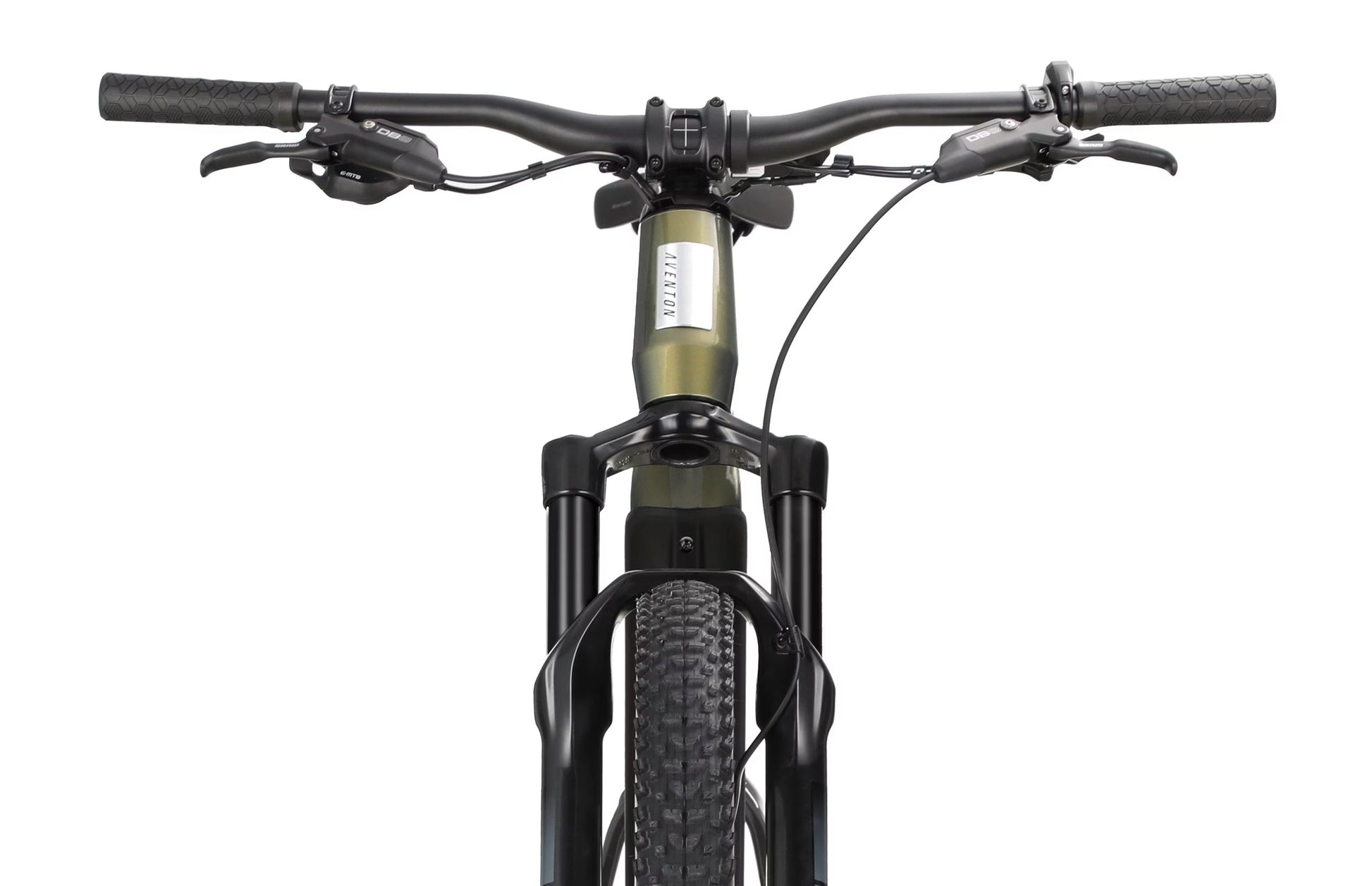

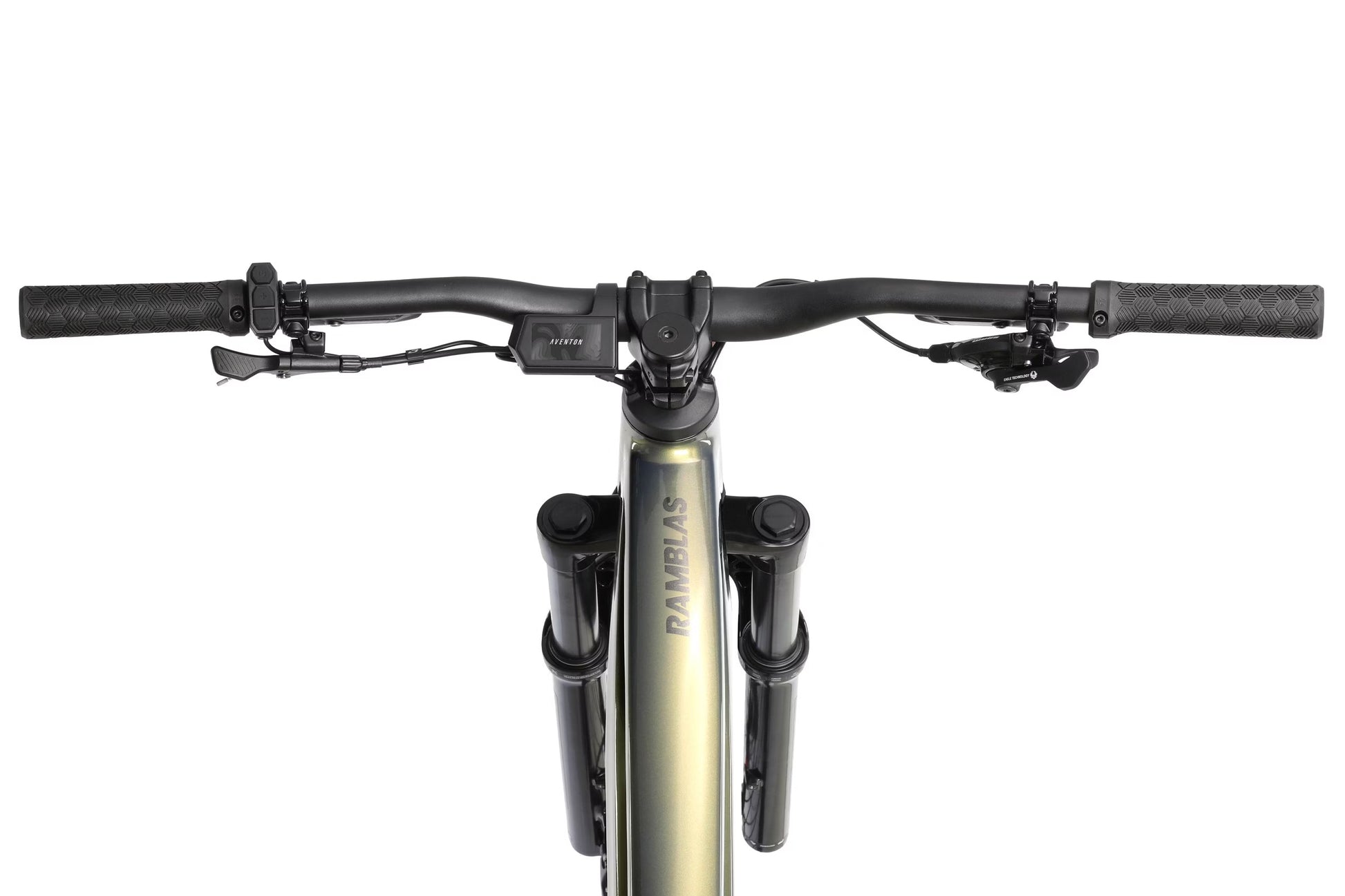

Cockpit

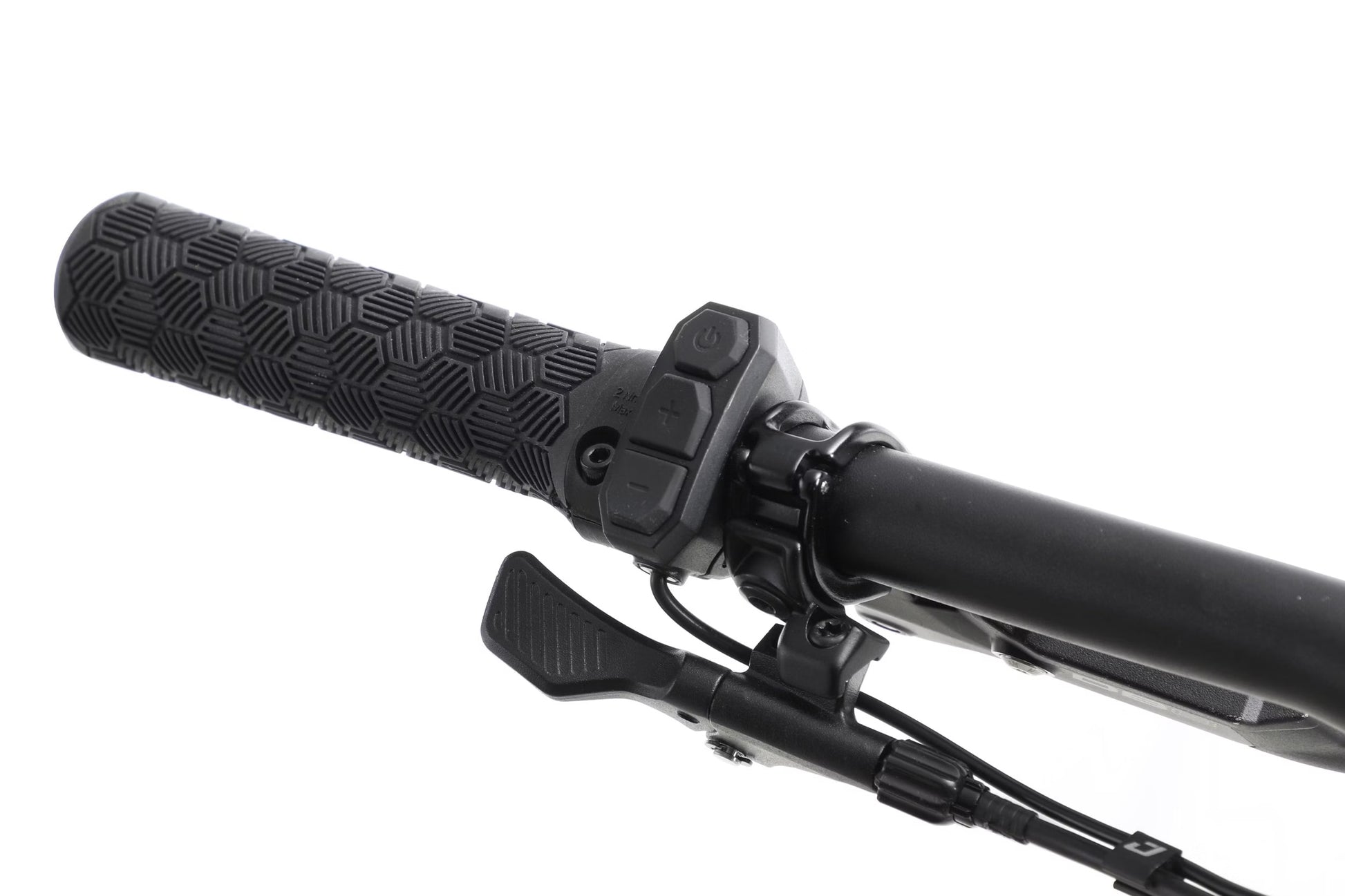

• Handlebars:

  • Diameter: 35mm

  • Width: 720mm (Size S), 760mm (Size M–XL)

  • Rise: 9°

• Stem: 40mm length, 35mm clamp

• Grips: Lock-on style

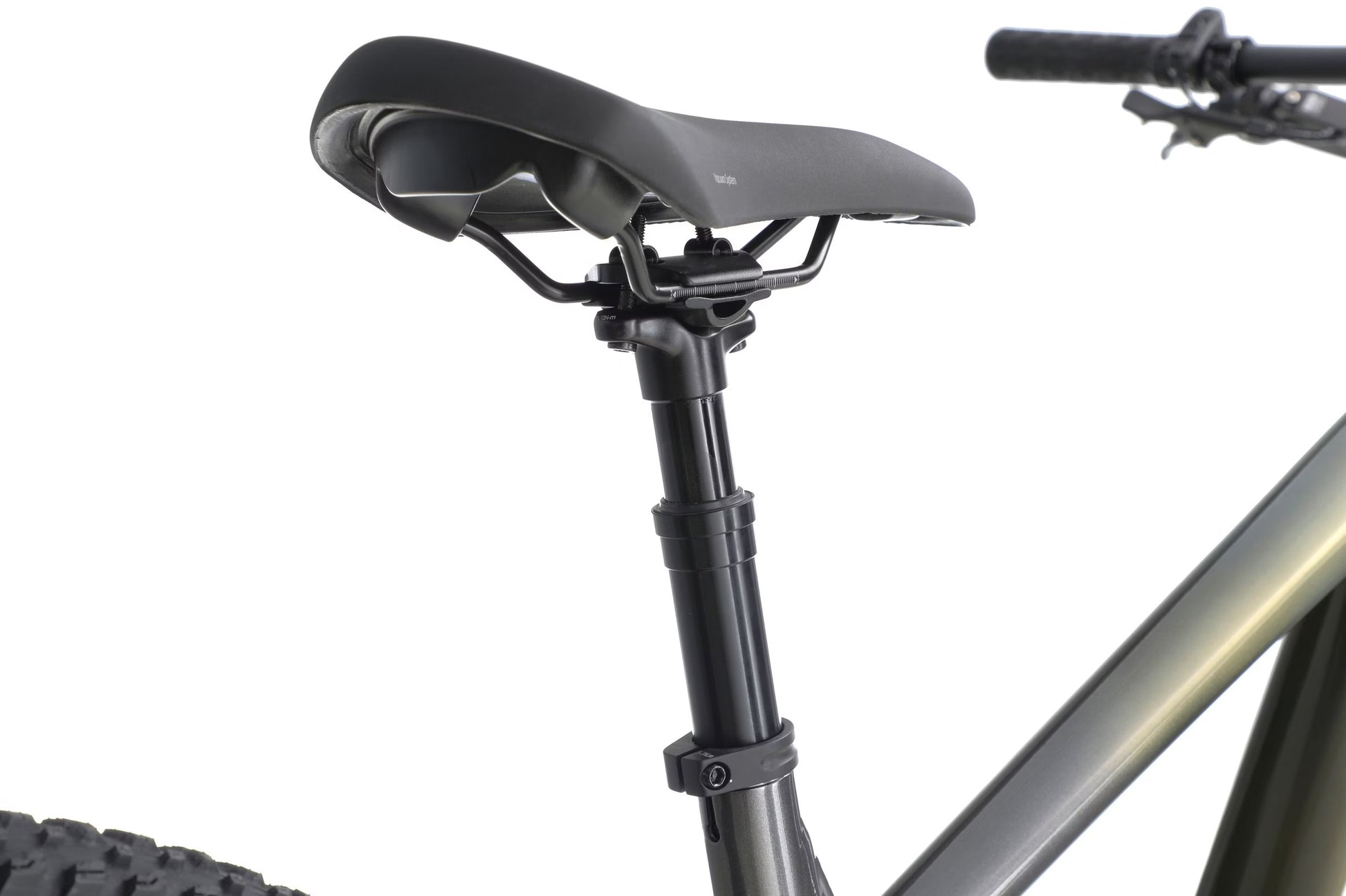

• Seatpost: Dropper post

  • Travel: 125mm (Size S), 150mm (Size M–XL)

  • Diameter: 31.6mm

  • Length: 395mm

• Seatpost Clamp: 34.9mm

Included Accessories

• Kickstand: Included (in accessory box)

• Front Headlight: Included (in accessory box)

• Fenders: Compatible (not included)

Suspension

• Travel: 130mm (front suspension fork)
