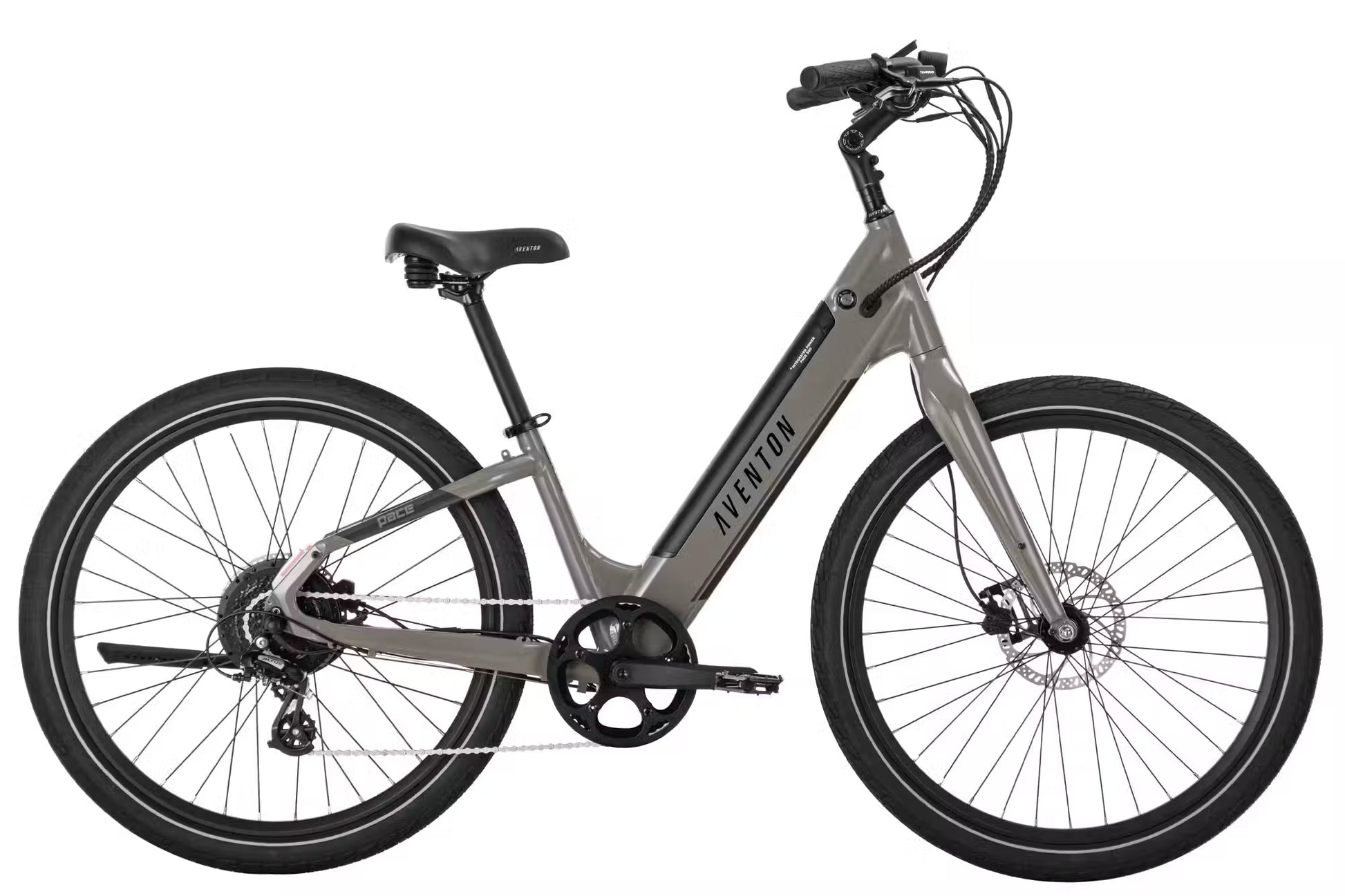

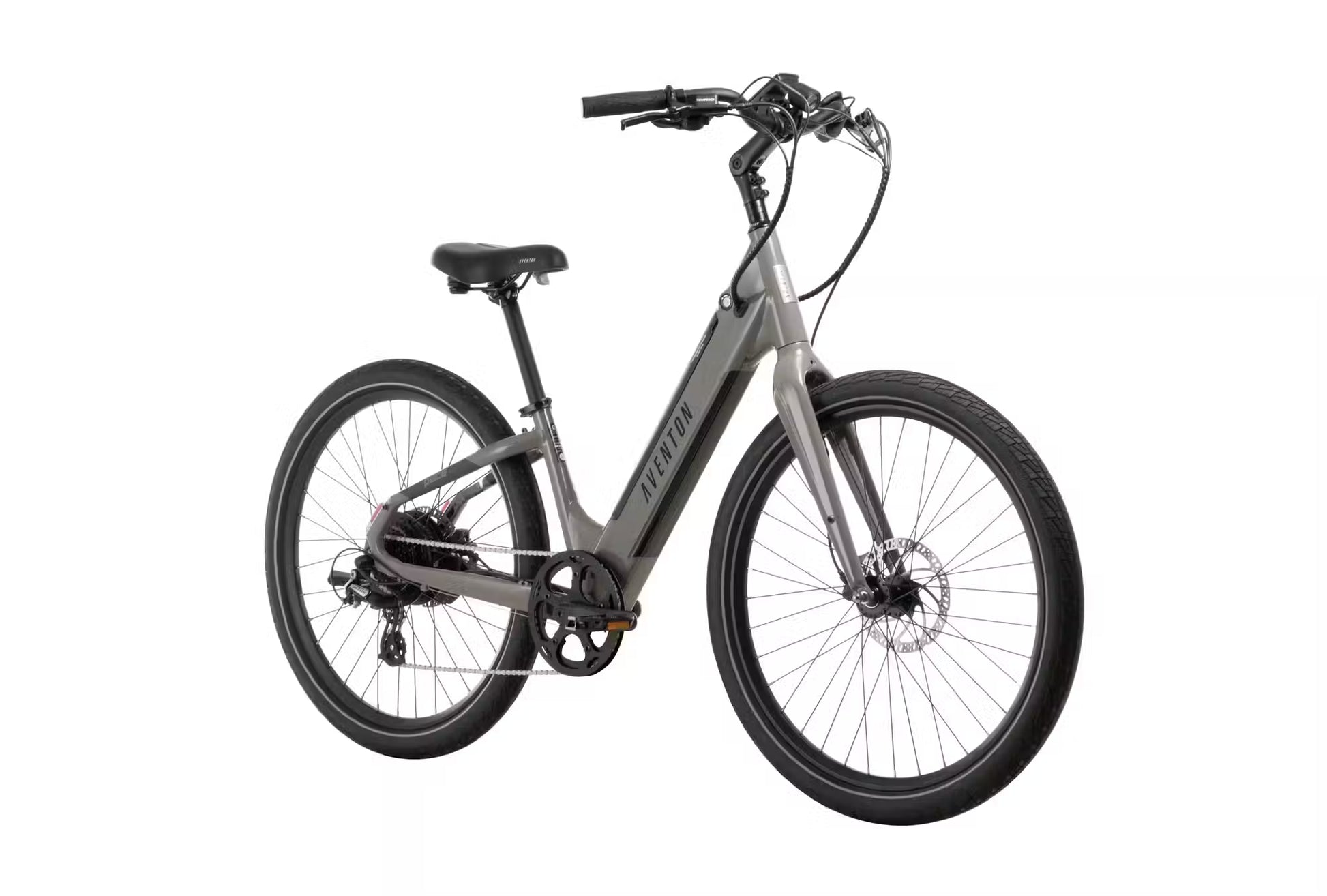

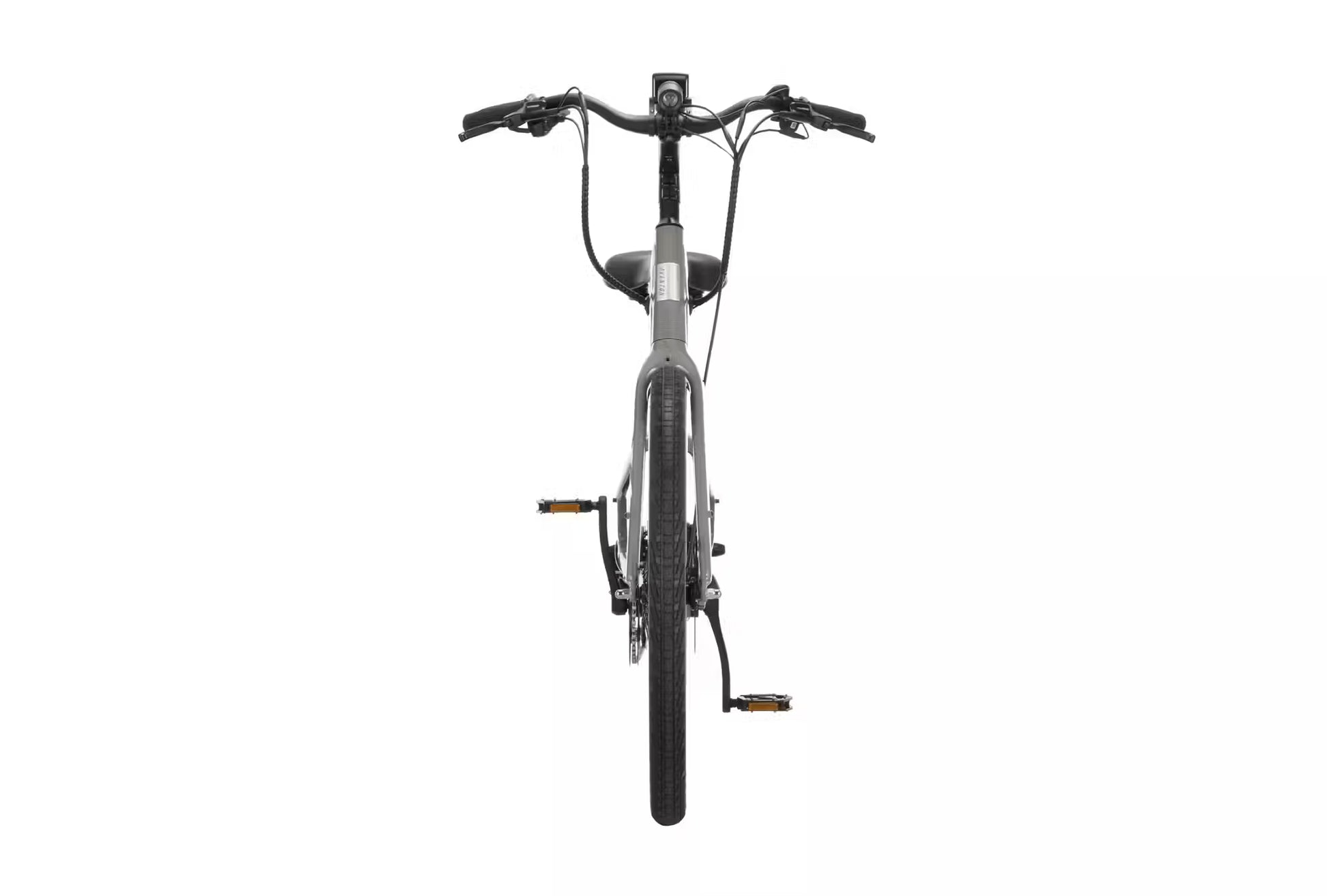

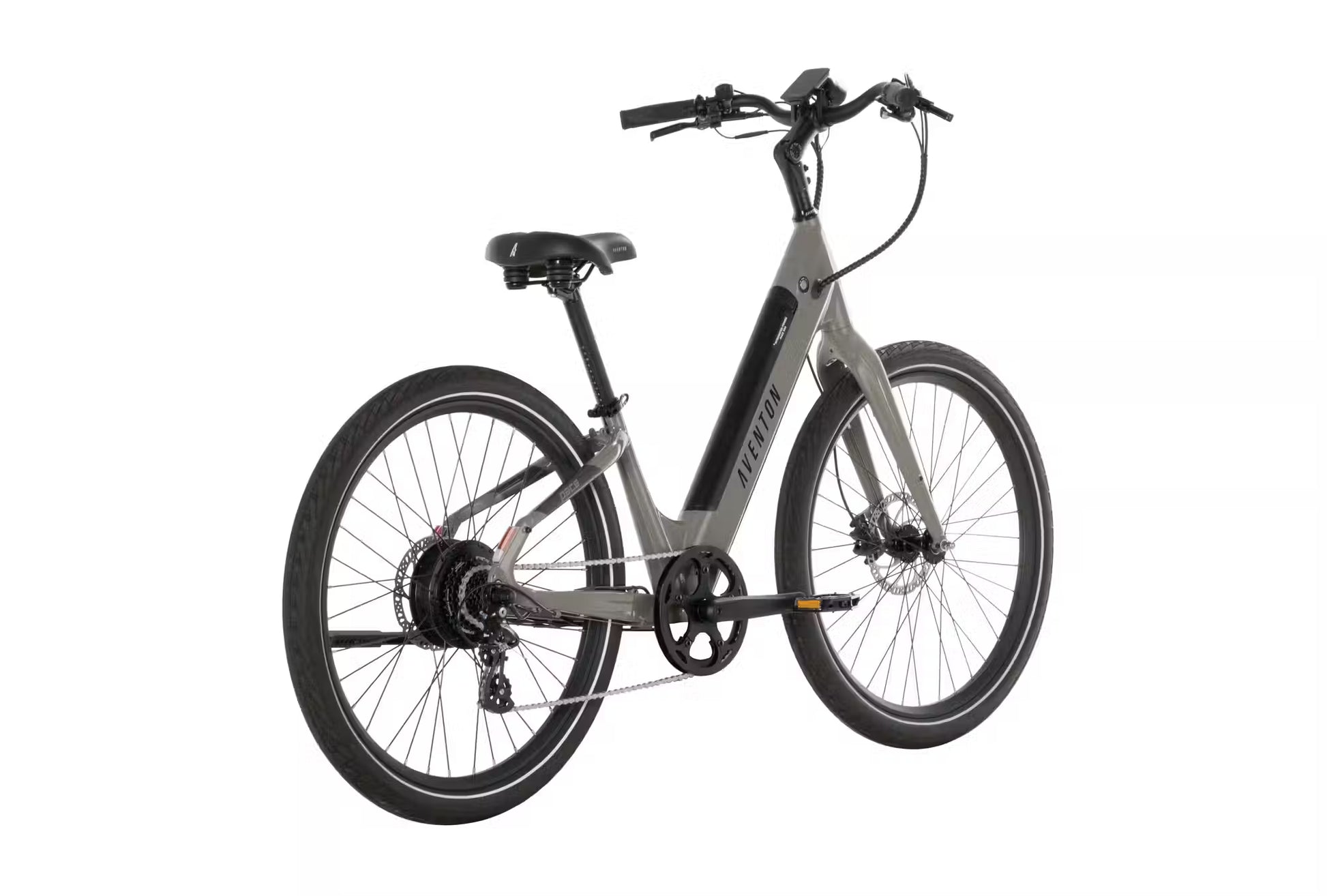

Aventon Pace 500.3 Step Thru

 Technical Specifications — Aventon Pace 500.3 Step-Through Ebike

General Info

• Model: Pace 500.3 Step-Through Ebike

• Pedal Assist Levels: 4

• Range: Up to 60 miles

• Total Weight Limit: 300 lbs

• Dimensions (Bike Box): 150cm x 27cm x 86cm

• Ideal Use: Cruising

• Folding: No

• Rider Height Range: 4'11" – 6'1"

• Weight: 54 lbs

• Safety Certifications: UL 2849 / UL 2271

Frameset

• Frame Style: Step-Through

• Frame Material: Single-Butted Aluminum Alloy

• Fork: AE-E08 PACE V2 AL fork

Wheelset

• Rims: Double Wall Aluminum 36h (Front & Rear)

• Tubes: Butyl Rubber, Schrader Valve

• Hubs: 36H Disc Nutted Front, Nutted Rear

• Tires: 27.5" x 2.1", Puncture Resistant with Reflective Sidewalls

Ebike System

• Throttle: Aventon LH Handlebar Mounted

• Display: LCD Smart "Easy Read"

• Battery: 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant

• Sensors: Double Sided Bottom Bracket Torque Sensor

• Charger: 48V, 3 Amp Fast Charger

• Lights: Front and Rear Integrated

• Speed Class: Class 2

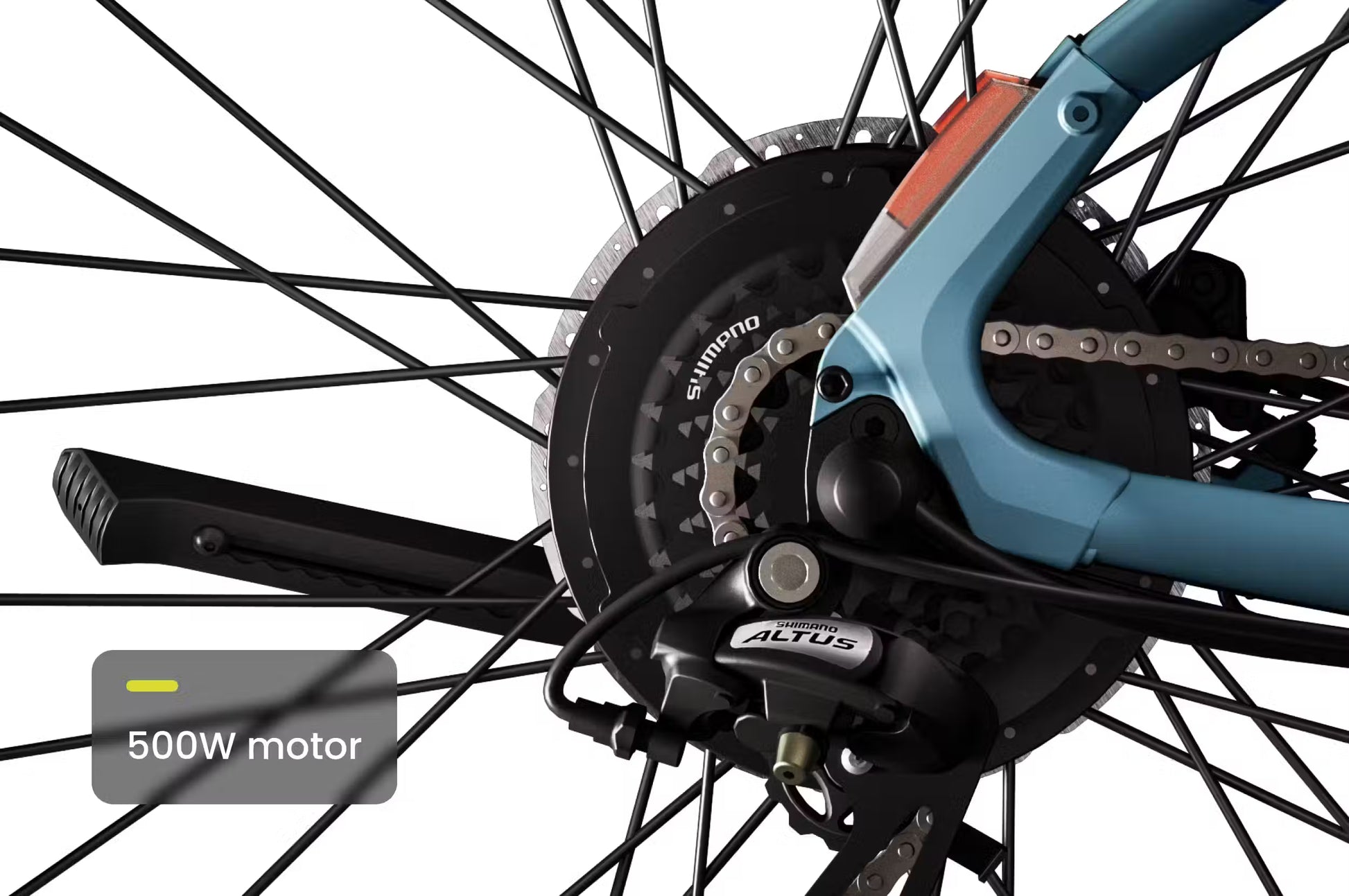

• Motor: 48V, 500w sustained, 864w peak brushless hub motor

Brakes

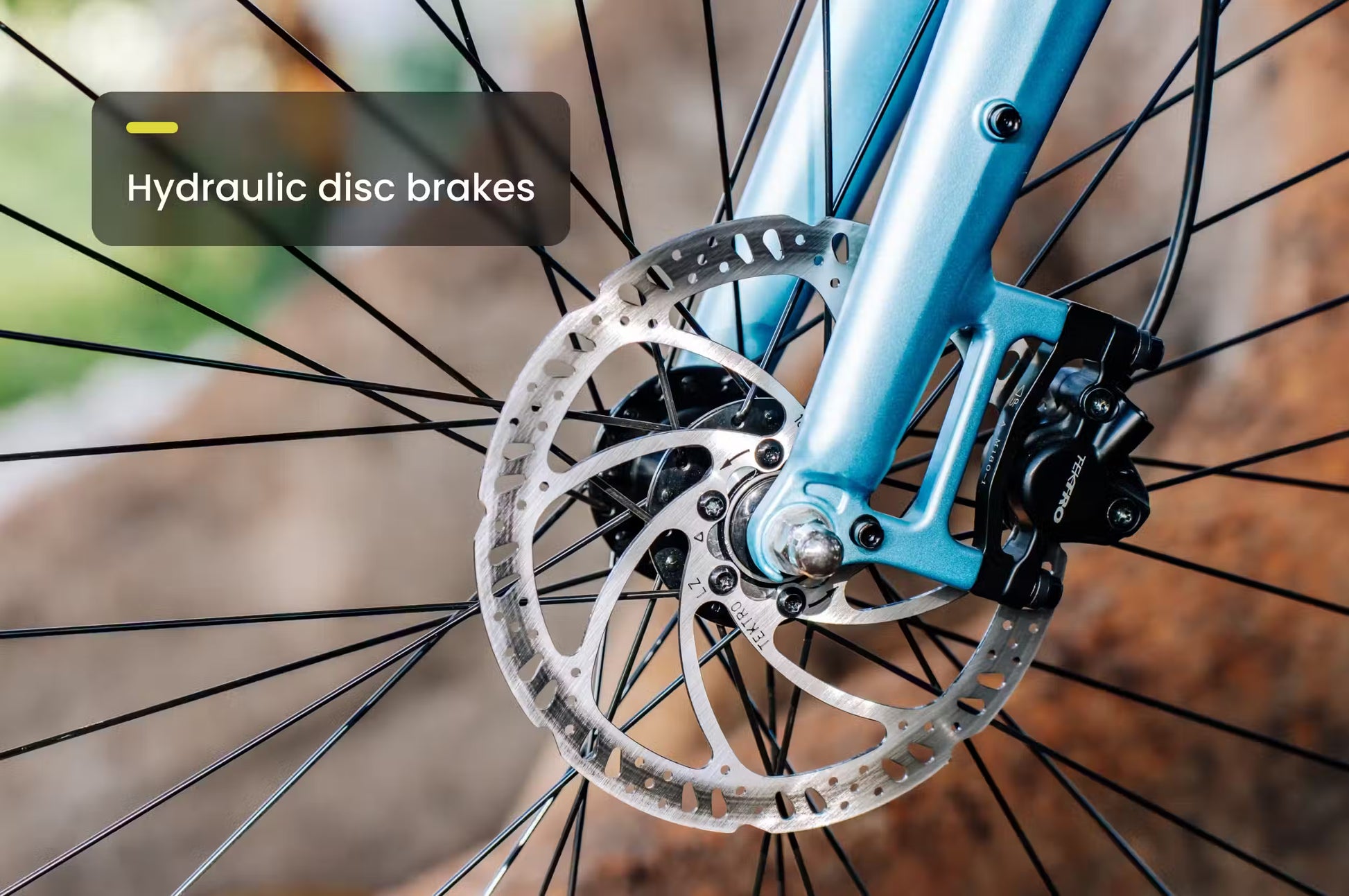

• Type: Hydraulic

Drivetrain

• Bottom Bracket: Square Taper, Sealed, Torque Sensor

• Pedals: 9/16" Alloy Platform

• Crankset: 170mm with 48T chainring

• Cassette: 12-32T, 8 Speed

• Rear Derailleur: Shimano 8 speed

• Shift Lever: 8 Speed Trigger

• Chain: 122 Link, 8 Speed

Cockpit

• Saddle: Aventon Saddle

• Seatpost: Forged Alloy, 30.9mm, 2-Bolt Clamp

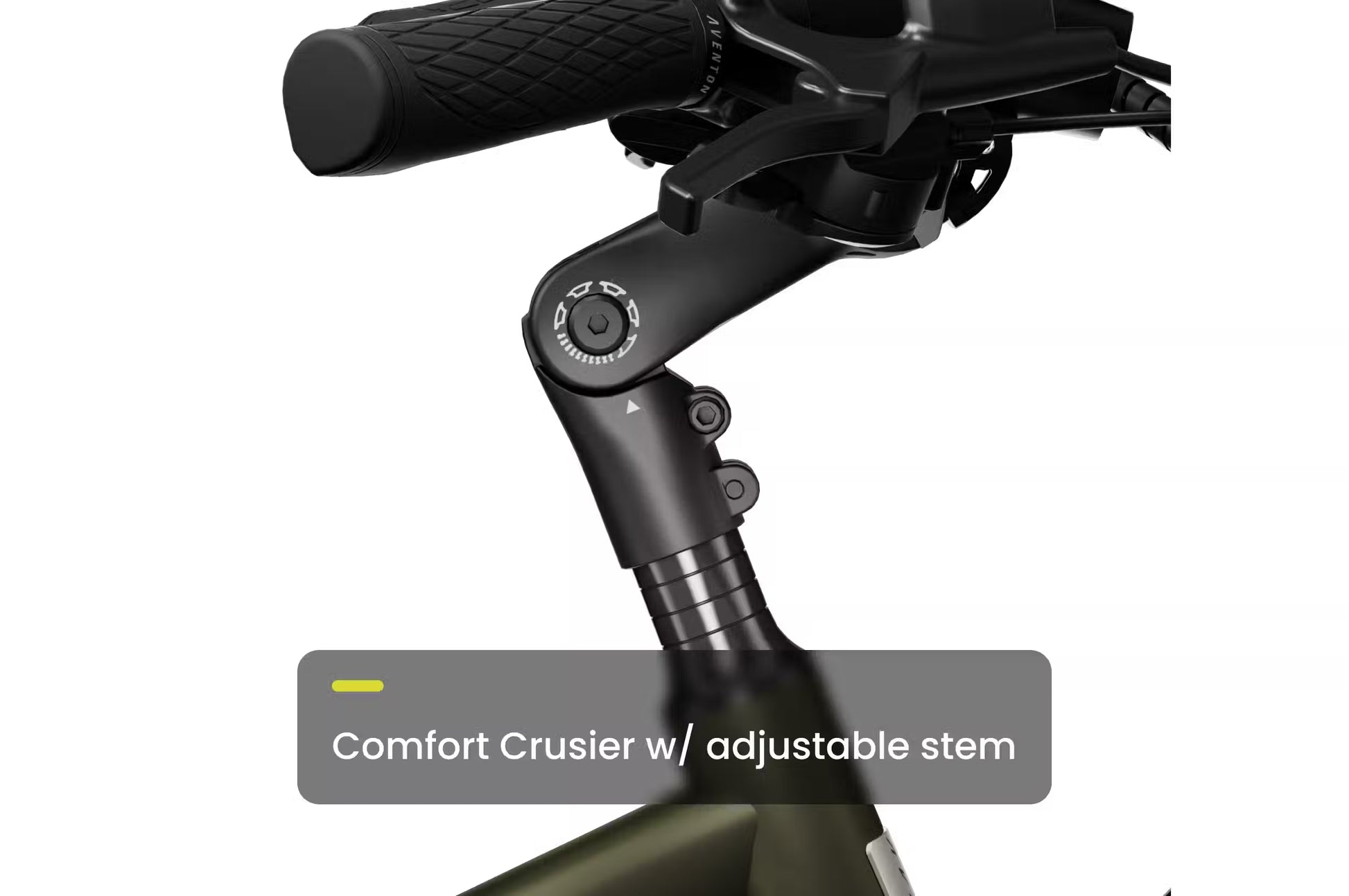

• Stem: Threadless, 31.8mm, 90mm

• Seat Clamp: 34.9mm Quick Release

• Handlebars: Aluminum 31.8mm, Sweptback

• Headset: Sealed Bearing Headset

• Grips: Ergonomic Comfort

Included Accessories

• Kickstand: Rear mount, included

• Rear Rack: Compatible

• Fenders: Compatible

Miscellaneous

• Suspension: None
