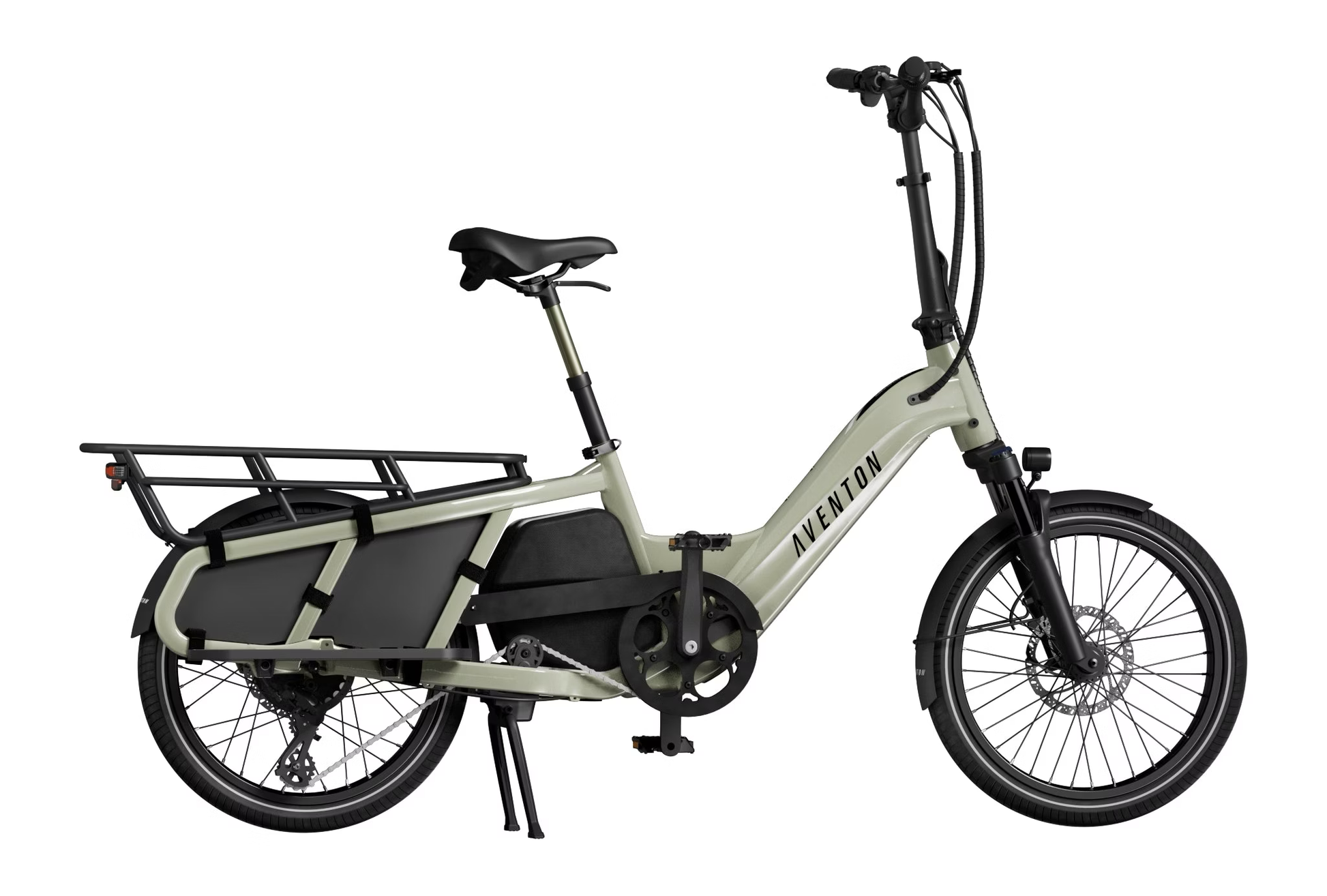

Aventon Abound

Abound Ebike – Technical Specifications

General Information

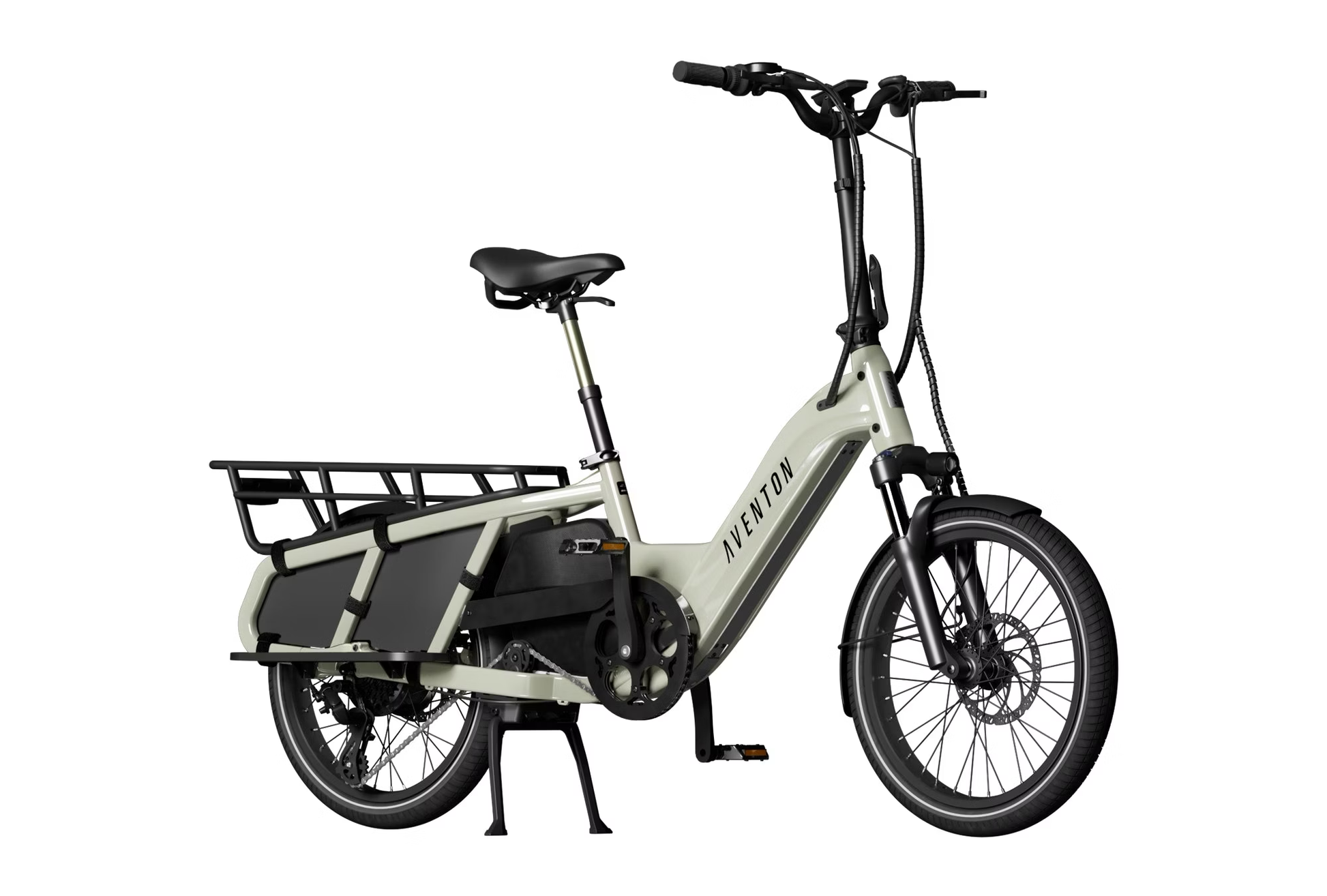

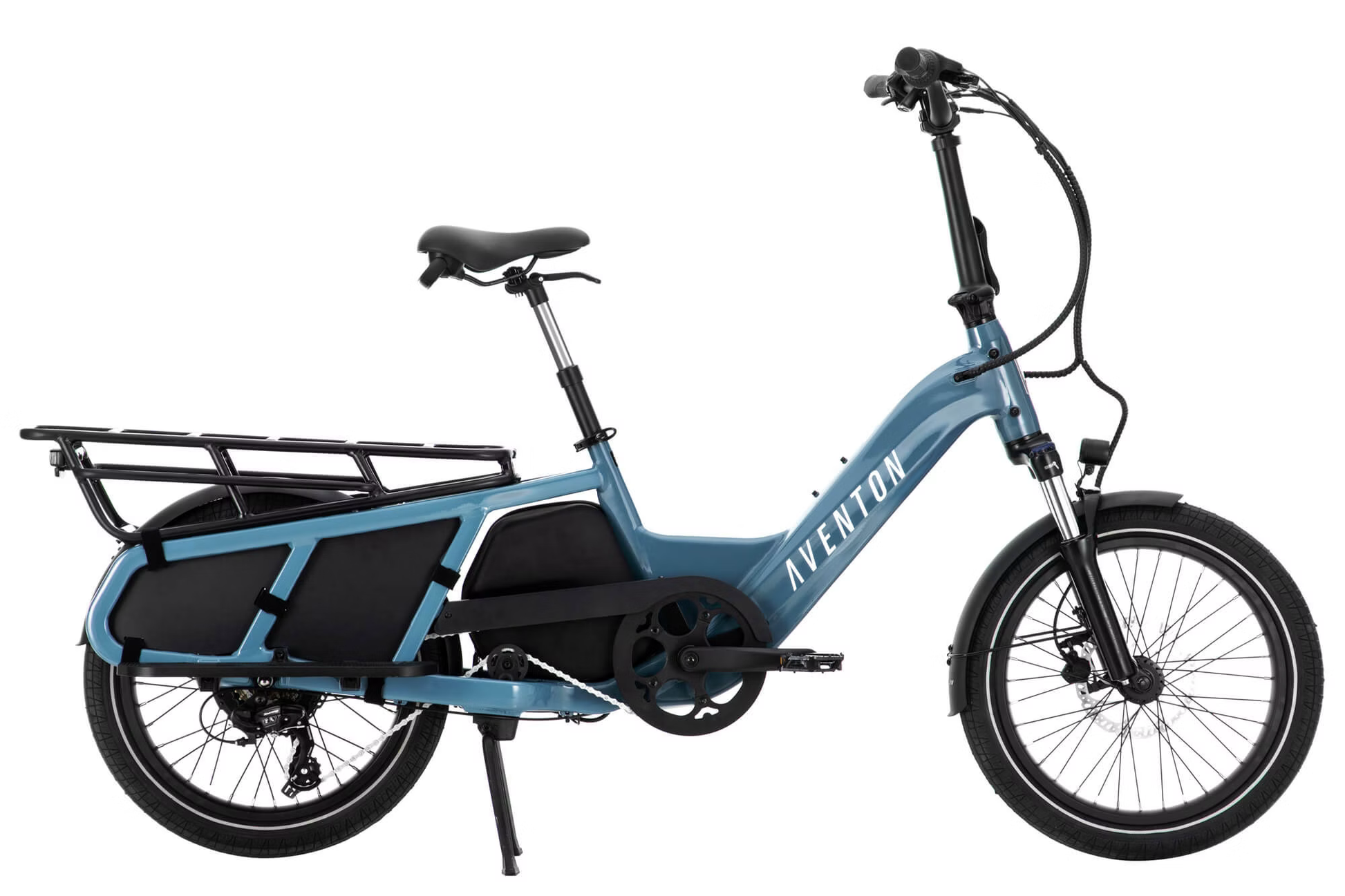

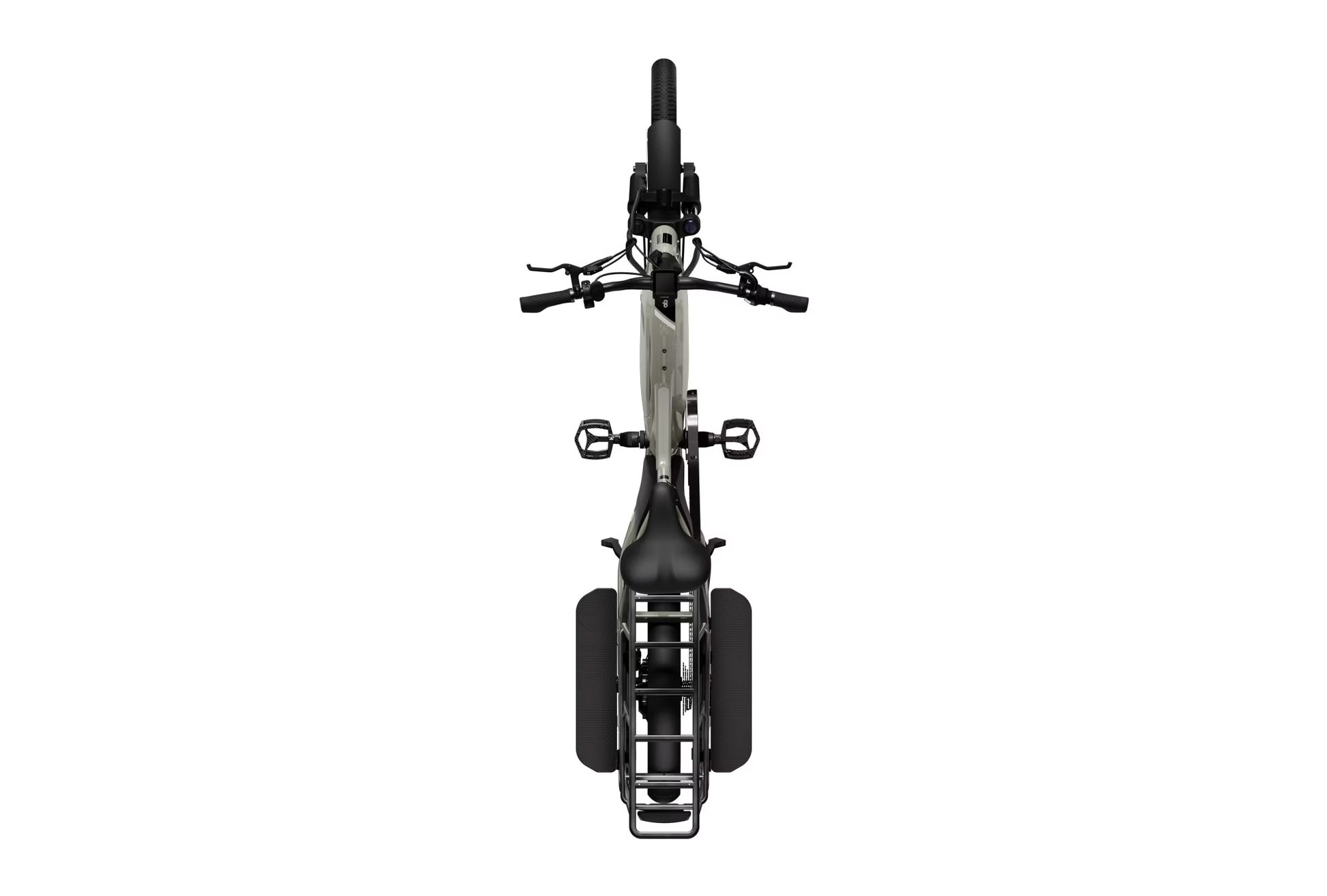

• Model: Abound Ebike

• Use Case: Cargo & Utility

• Range: Up to 50 miles

• Pedal Assist Levels: 4

• Class: Class 2 (Throttle + Pedal Assist, 20 mph limit)

• Total Weight Capacity: 440 lbs

• Bike Weight: 82 lbs

• Rider Height Range: 4'11" – 6'3"

• Folding: No

• Water Resistance: IPX6

• Safety Certifications: UL 2849 / UL 2271 / TUV

• Returns: 14-Day Return Policy

• Warranty: 2 Years

Frameset

• Frame Style: Step-Through

• Frame Material: Double-Butted Aluminum Alloy

• Fork: Suspension fork with 50mm travel, lockout included

• Footboards: Aluminum

Wheelset & Tires

• Rims: Double-wall aluminum, 36h front & rear

• Hubs: 36H Disc, nutted front and rear

• Tires: 20 x 2.4"

• Tubes: Butyl rubber, Schrader valve

• Spokes:

  • Front: Black stainless 13G

  • Rear: Iron 12G

Ebike System

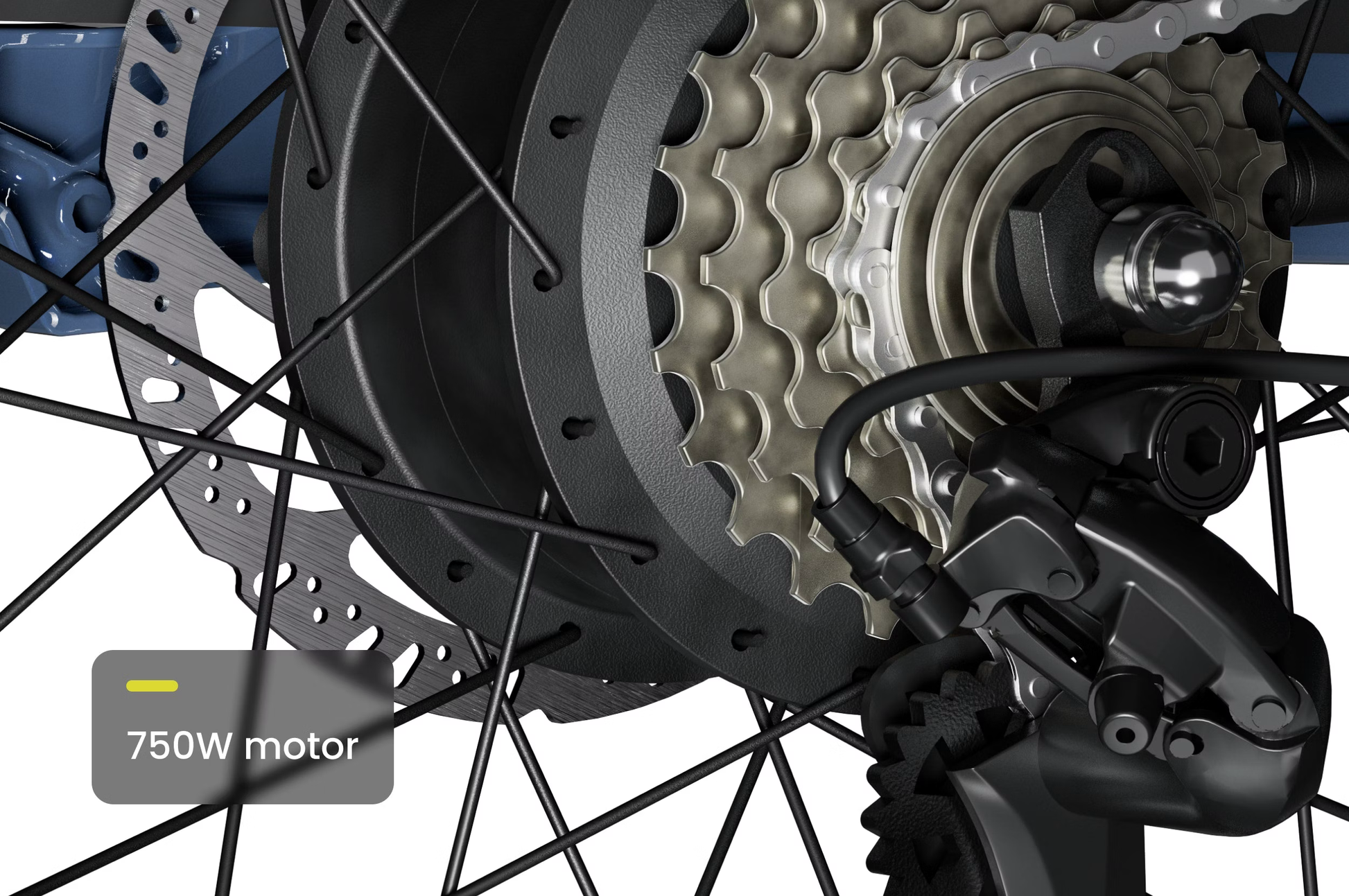

• Motor: 48V, 750W sustained / 1200W peak, brushless rear hub motor

• Speed Class: Class 2 (20 mph max)

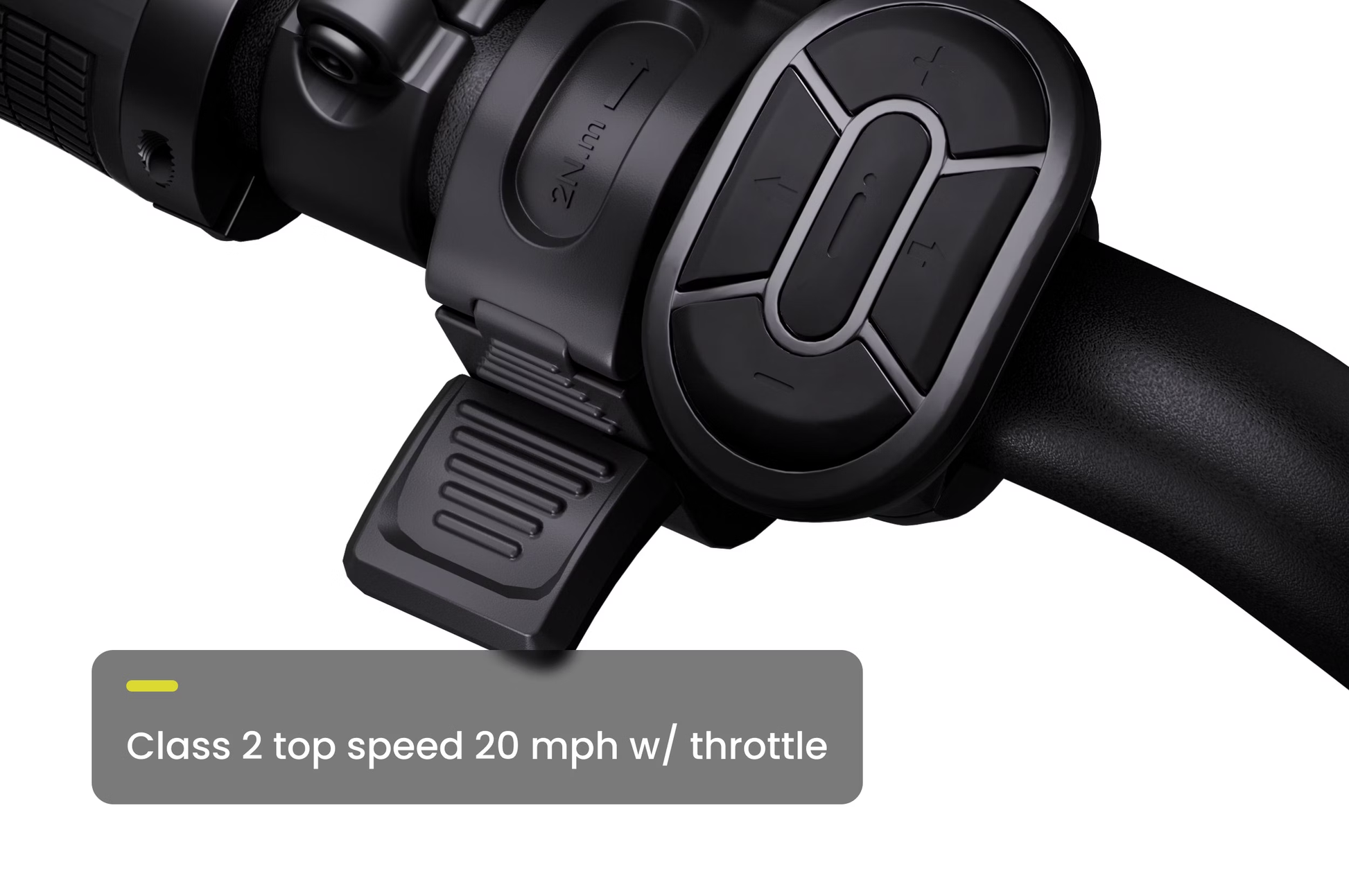

• Throttle: Aventon LH handlebar-mounted

• Display: LCD Smart "Easy Read"

• Sensors: Dual-sided bottom bracket torque sensor

• Battery:

  • 48V, 14.4Ah (678.2Wh)

  • Samsung 2100 cells

  • Certified: UL, UN38.3, MSDS

• Charger: 48V, 3A fast charger

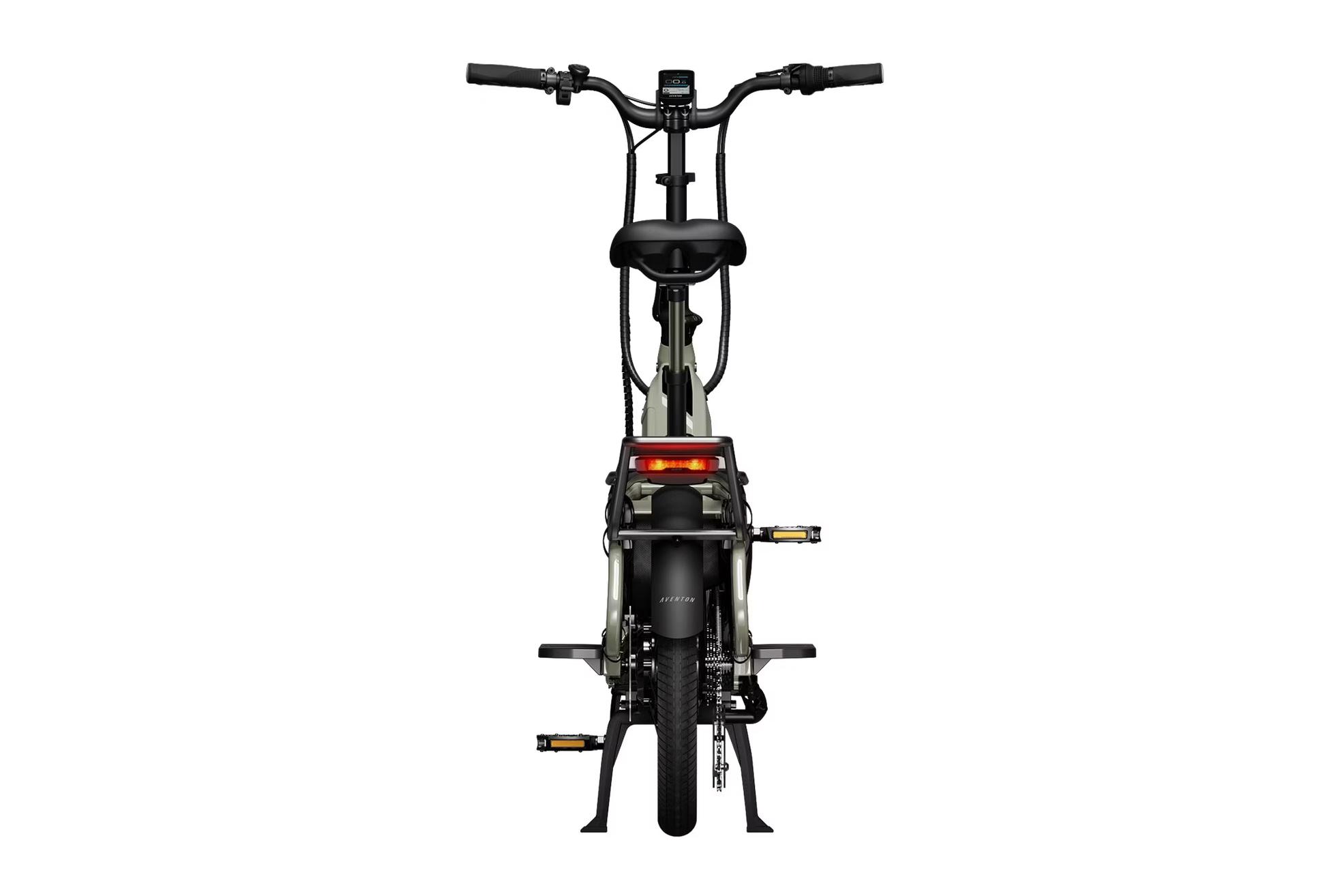

• Integrated Lights: Front and rear

Braking System

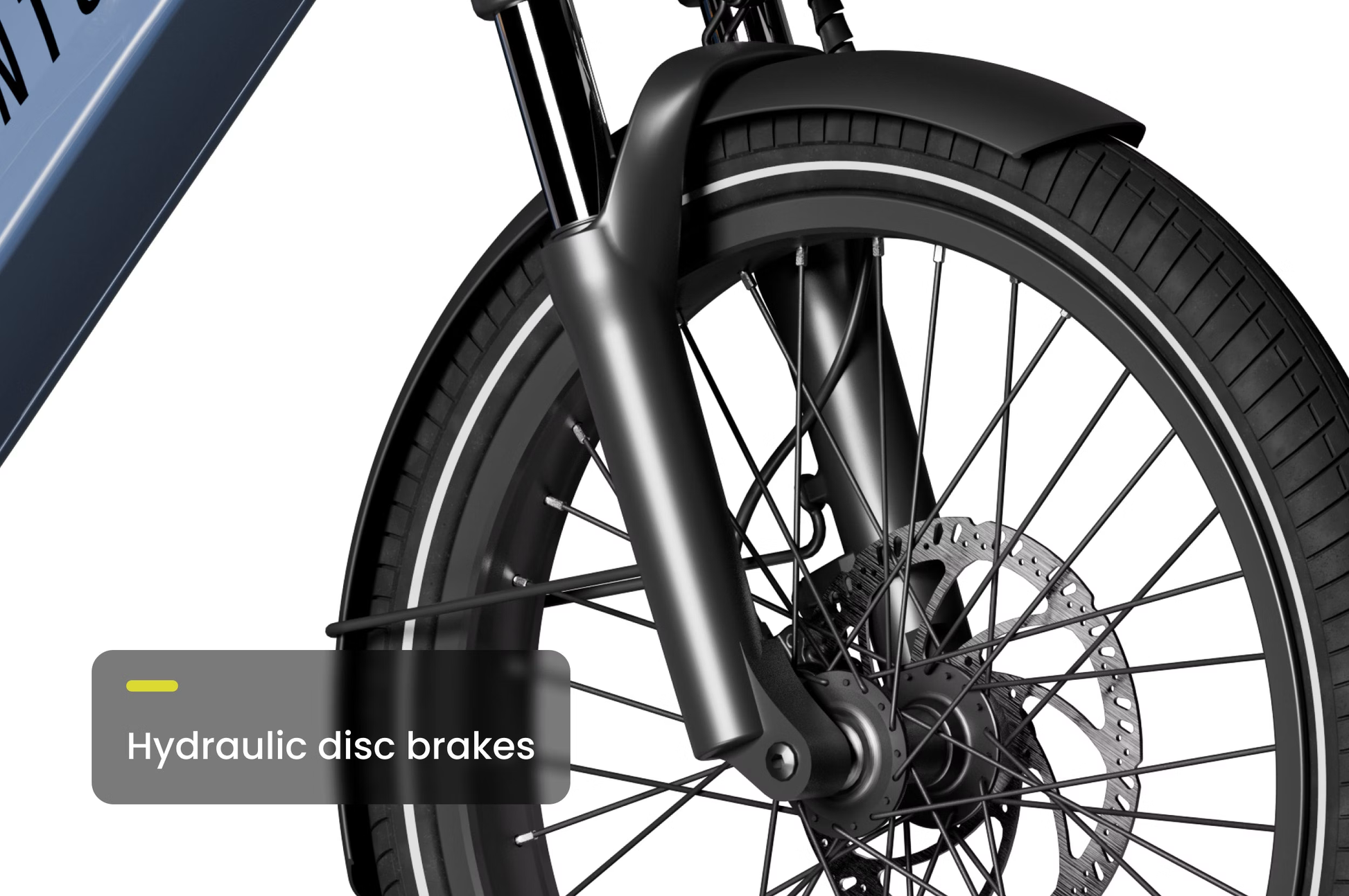

• Brake Type: Hydraulic disc brakes (exact model not specified)

Drivetrain

• Drivetrain Type: 1x7

• Rear Derailleur: Shimano 7-speed

• Shifter: 7-speed twist shift

• Cassette: 14–28T

• Crankset: 170mm crank arms with 52T chainring

• Chain: 148-link, 7-speed

• Bottom Bracket: Square taper, sealed with torque sensor

• Pedals: 9/16" alloy platform

Cockpit

• Handlebars: Aluminum, 700mm width, 31.8mm diameter

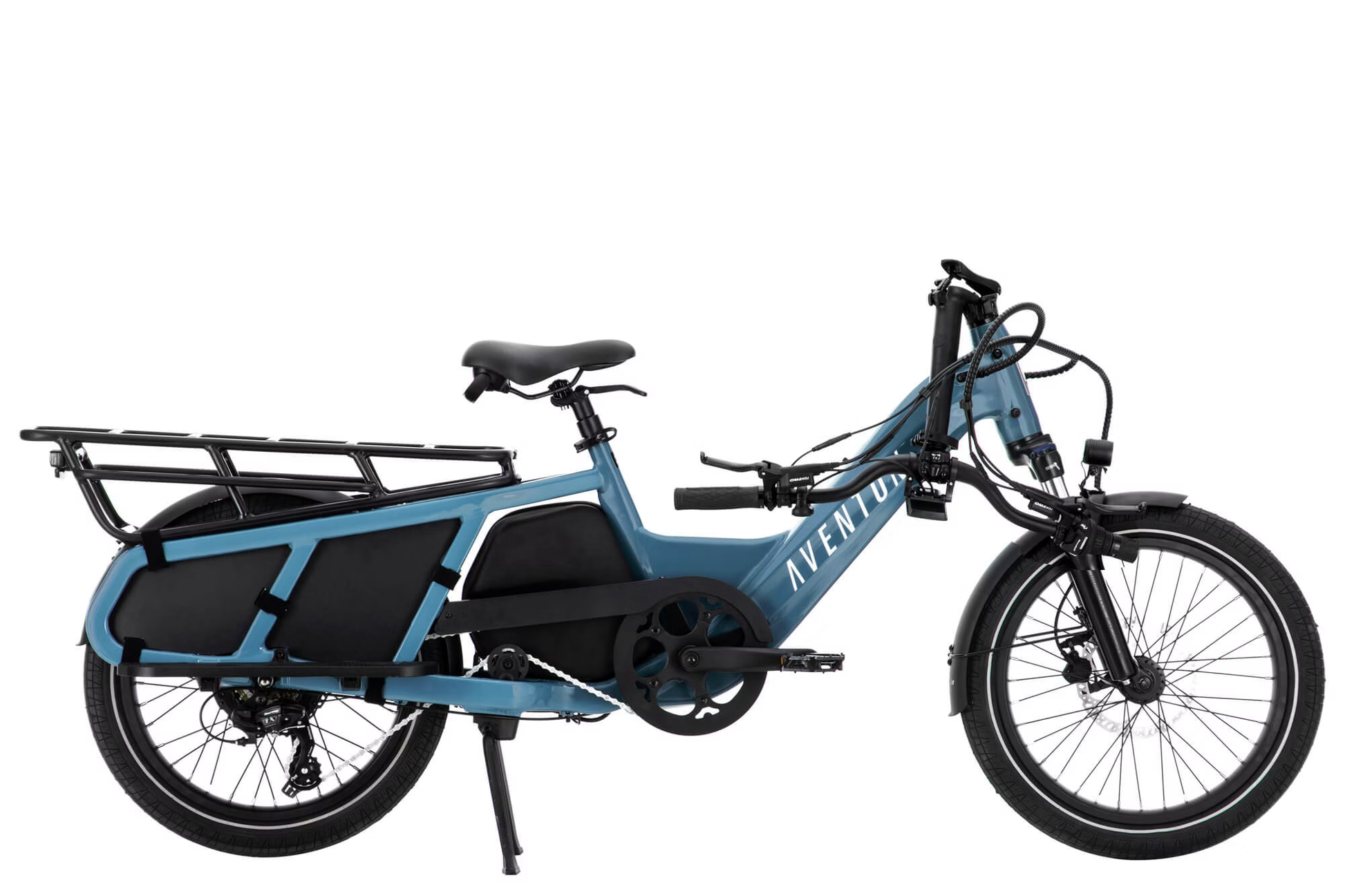

• Stem: Folding, height adjustable, 31.8mm clamp, 9° rise

• Grips: Ergonomic comfort grips

• Headset: Sealed bearing

• Seatpost: Dropper, 30.9mm diameter, 440mm length

• Saddle: Aventon-branded

• Seat Clamp: 34.9mm quick-release

Included Accessories

• Kickstand: Center mount

• Rear Rack: Included (supports up to 143 lbs)

• Fenders: Included

• Storage Bag: Waterproof polyester/EVA

Dimensions

• Box Size: 167cm x 37cm x 73cm

• Suspension: Front only (50mm travel fork)
