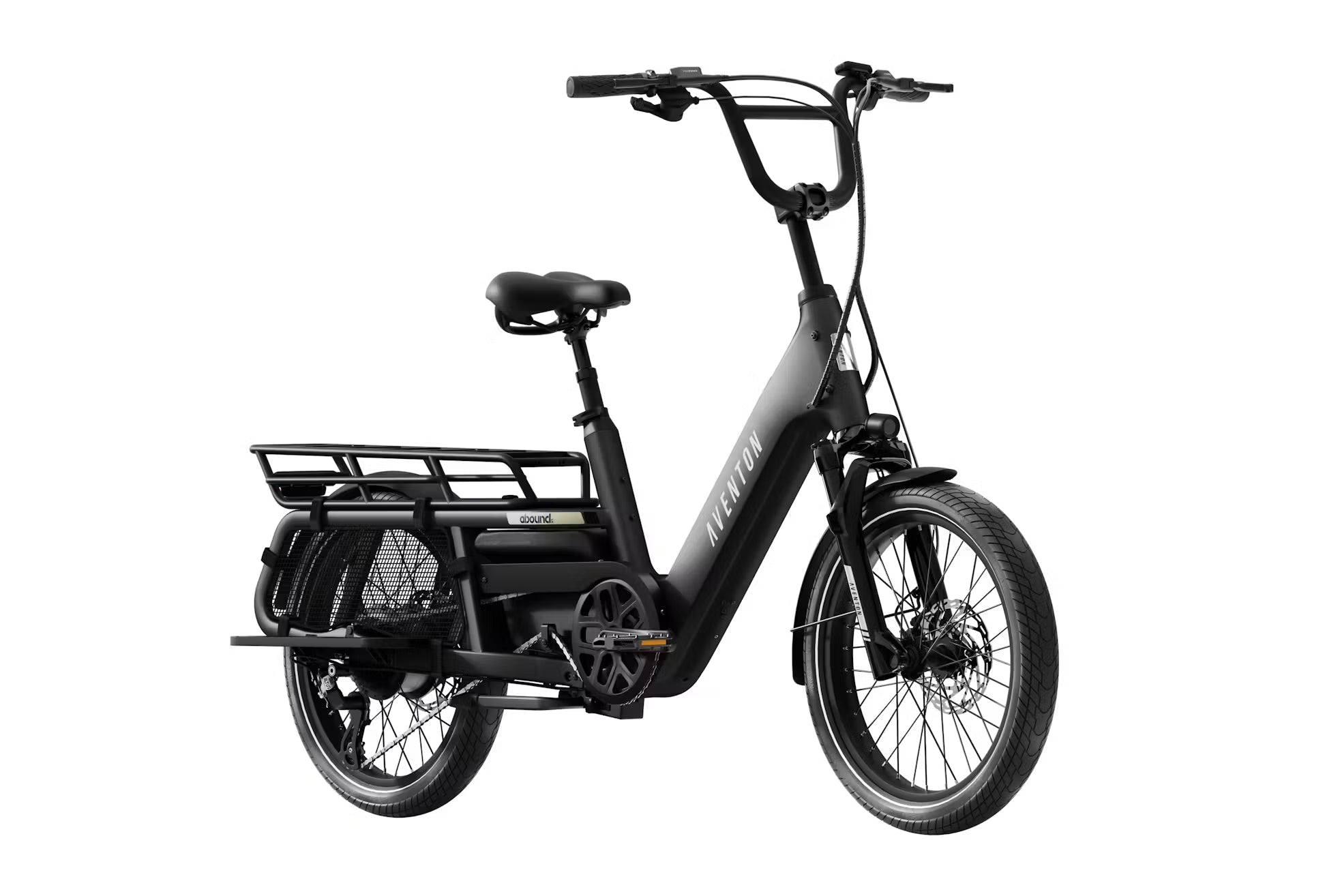

Aventon Abound LR

Abound LR Ebike – Technical Specifications

General Overview

• Model: Abound LR Ebike

• Weight: 88 lbs

• Total Weight Limit: 440 lbs

• Rider Height Range: 4'11" – 6'3"

• Ebike Class: Class 2 (Throttle + Pedal Assist)

• Range: Up to 60 miles

• Water Resistance: IPX6

• Battery Safety: UL 2271 Certified

• System Safety: UL 2849 / TUV Certified

• Ideal Use: Cargo & Utility

• Carry Capacity: Up to 2 Passengers

• Pedal Assist: 3 Levels with Ride Tune Customization

Frameset

• Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy, Internal Battery

• Frame Style: Step-Through

• Fork: 51mm Travel, Adjustable Lockout, Black Stanchions, 15x110 Spacing, Threaded Steerer Tube

• Rear Spacing: 175mm

• Fork Spacing: 110mm

Wheels & Tires

• Front Wheel: 20", Double-Wall Aluminum, 36-Hole, 13-Gauge, Thru Axle (20x110), Schrader Valve

• Rear Wheel: 20", Double-Wall Aluminum, 36-Hole, 12-Gauge, Hub Drive Motor, Nutted Axle, Schrader Valve

• Tires: 20 x 3.0 Innova IA-2131 Urban Tires with Reflective Sidewalls

Ebike System

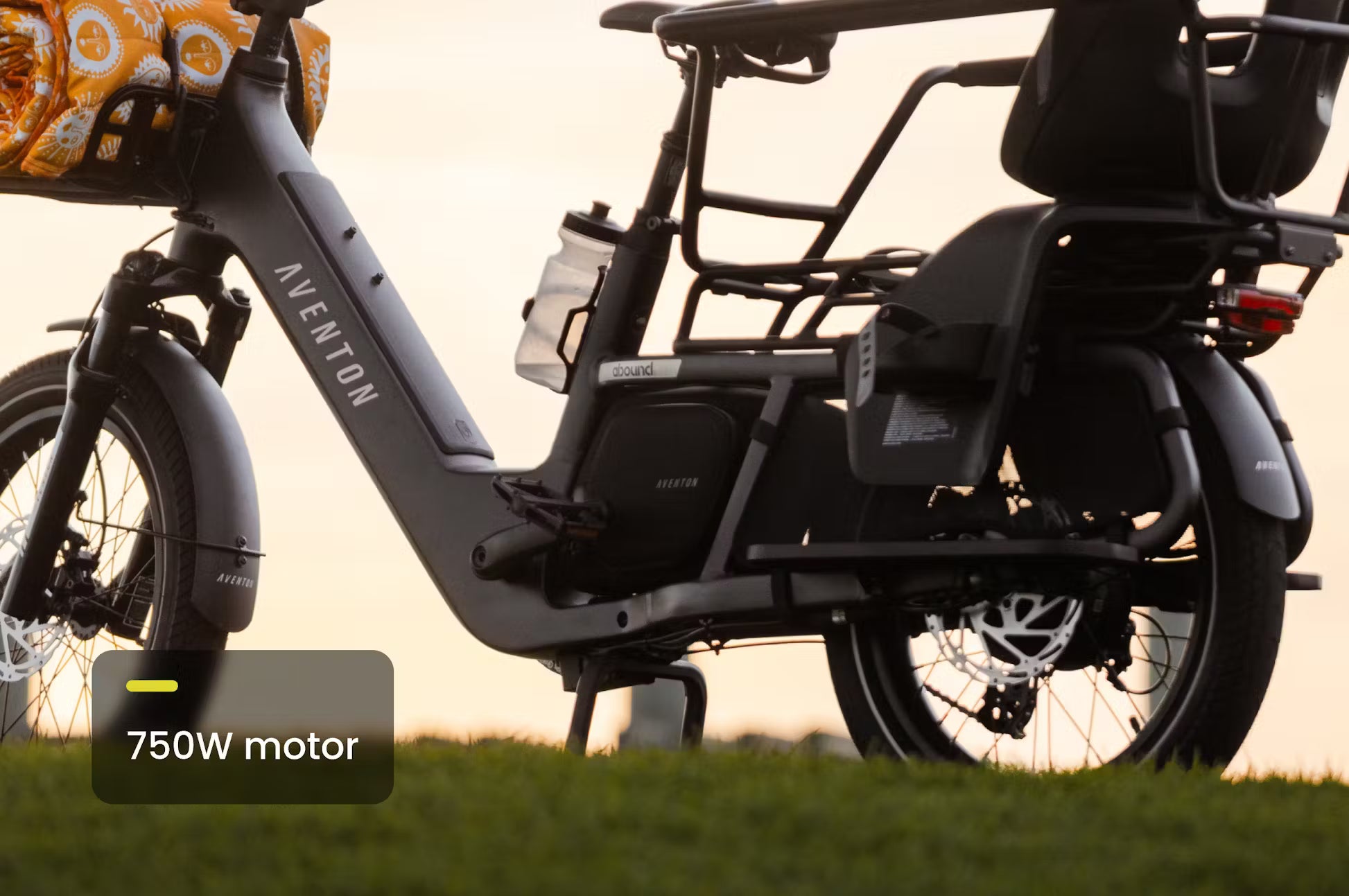

• Motor: Shengyi 36V 750W Hub Drive, 6 Speed Sensors (1188W Peak)

• Torque: 80Nm

• Battery: 36V, 20Ah (733Wh), LG 21700 Cells, Removable Internal Pack

• Battery Weight: 8.7 lbs

• Controller: 36V / 33A

• Display: Aventon BC147

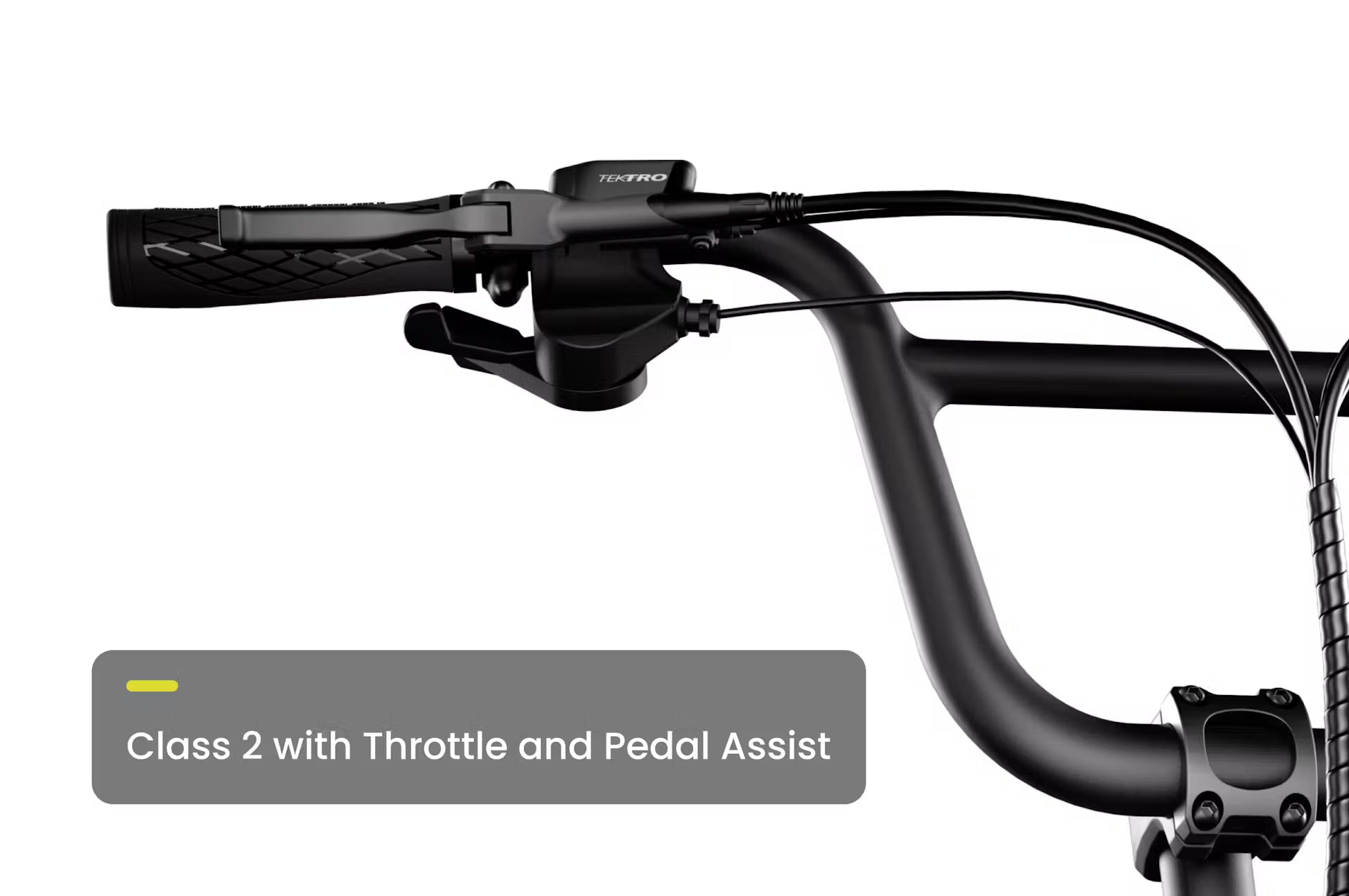

• Throttle: Aventon LH Handlebar-Mounted

• Sensors: Dual-Sided Bottom Bracket Torque Sensor

• Charger: 36V Output (42V / 4A)

• Charging Time: Approx. 5 Hours (0% to 100%)

• Lights: Integrated Front and Rear Lights with Turn Signals

• Top Speed: Class 2 (Up to 20 MPH)

Brakes

• Front Brake: Tektro HD-E3520 Hydraulic Disc with EJ1 Quick Disconnect

• Rear Brake: Tektro HD-E3520 Hydraulic Disc with EJ1 Quick Disconnect

• Front Rotor: 180mm (6-Bolt)

• Rear Rotor: 203mm (6-Bolt)

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310 (8-Speed)

• Shifter: Shimano SL-M315-8R (Trigger)

• Cassette: Shimano CS-HG200-8, 12–32T

• Chainring: 52 Tooth

• Crankset: 3-Piece, 165mm Arms

• Chain: 154L (7/8-Speed Compatible)

• Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor

• Pedals: 9/16" Composite Platform

Cockpit & Comfort

• Saddle: Aventon x Selle Royal with Integrated Grab Handle

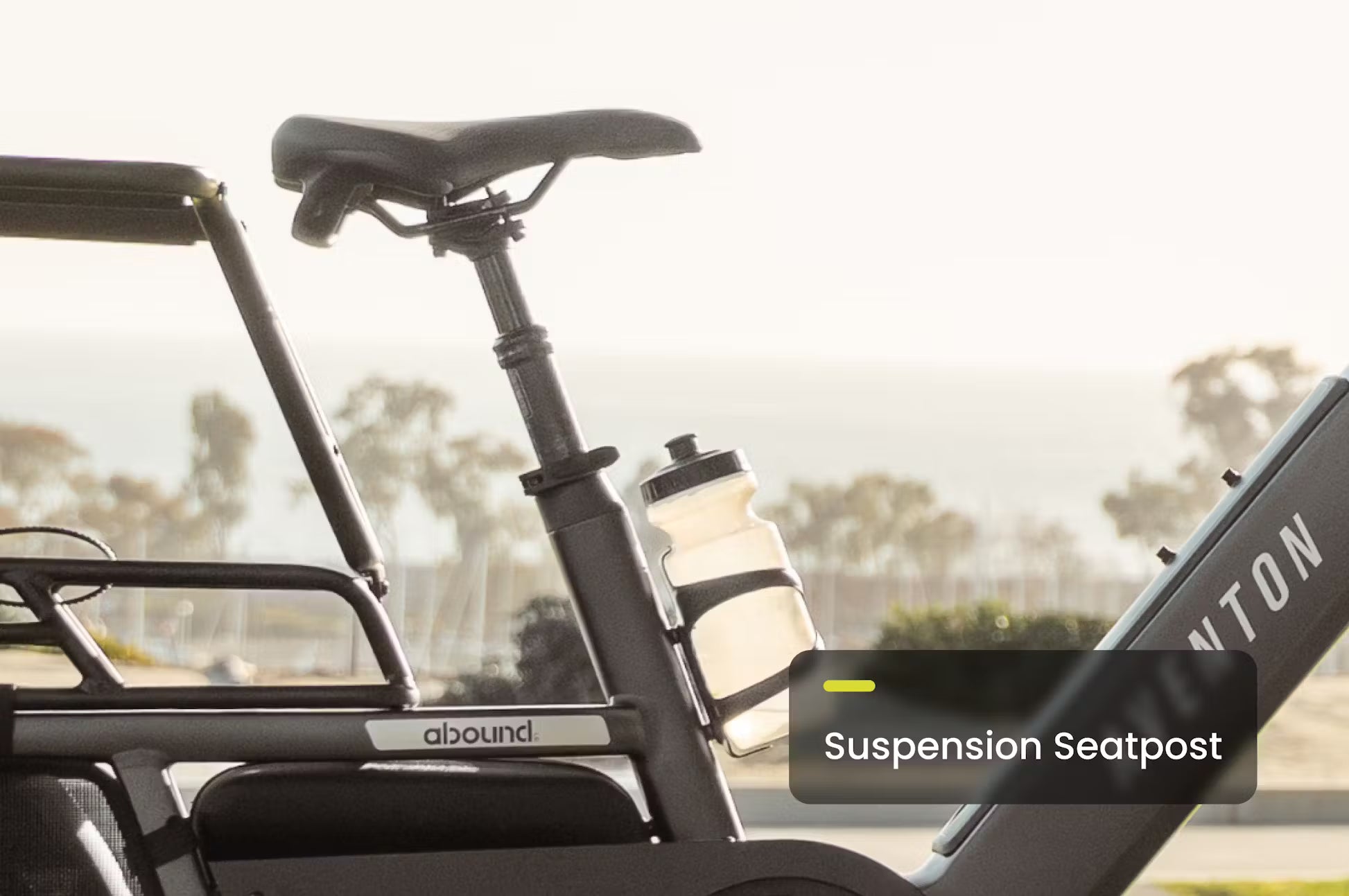

• Seatpost: Aventon Suspension, Ø30.9mm x 350mm, 50mm Travel

• Seat Clamp: 34.9mm

• Handlebars: 720mm Wide BMX-Style Aluminum, 31.8mm Clamp

• Grips: Aventon Ergonomic Lock-On Comfort Grips

• Headset: H886HW Peilin (28.6mm x 56mm x 56mm, 6-Piece Set)

Included Accessories

• Fenders: Included

• Rear Rack: Included

• Rear Rack Capacity: Up to 143 lbs
