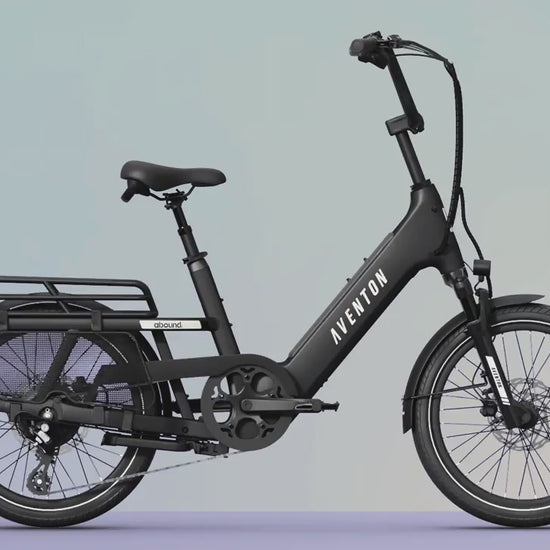

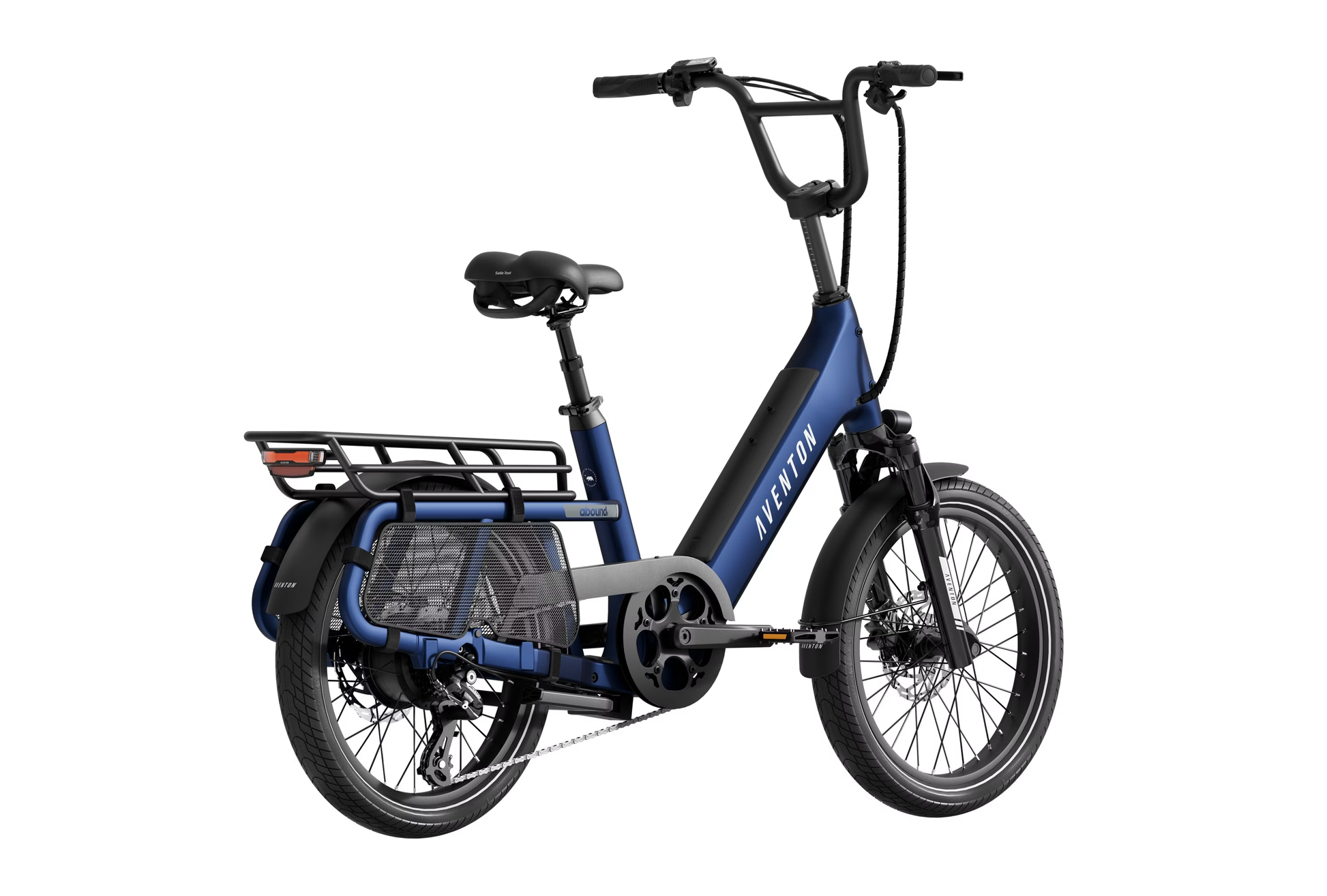

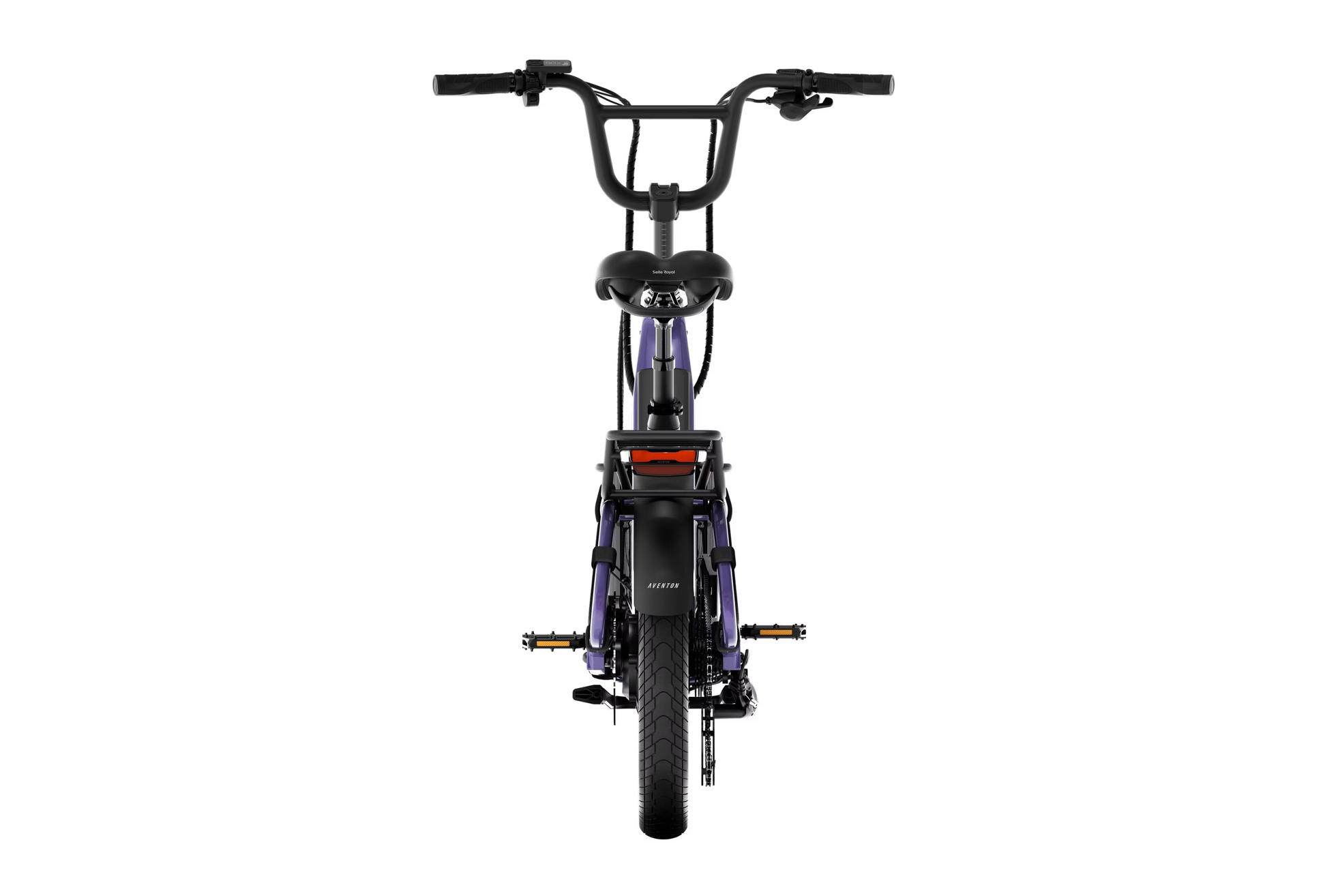

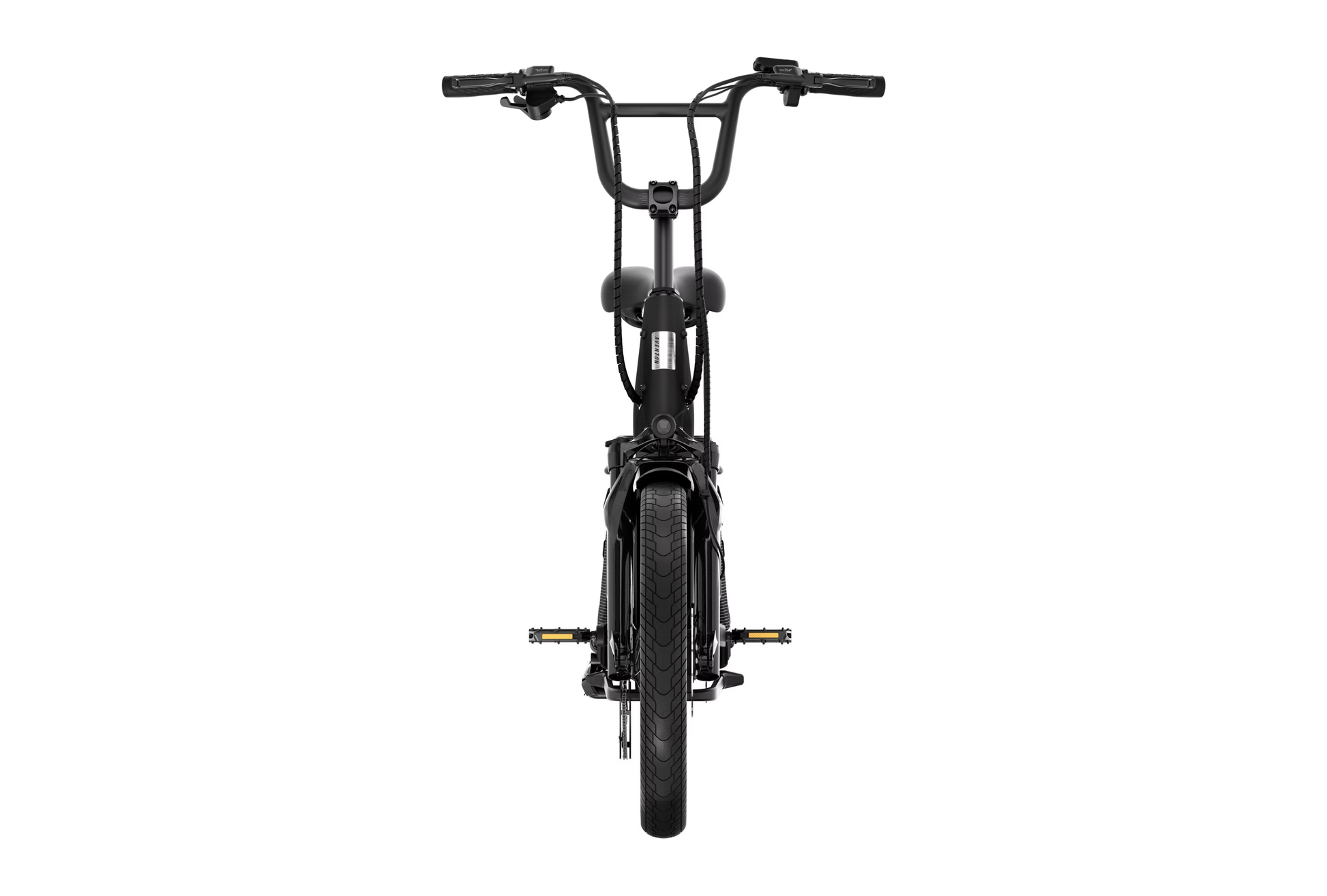

Aventon Abound SR

Abound SR Ebike – Technical Specifications

Overview

• Model: Abound SR Ebike

• Ideal Use: Cargo & Utility

• Ebike Class: Class 2 (Throttle + Pedal Assist)

• Range: Up to 60 miles

• Water Resistance: IPX6

• Folding: No

• Weight: 80 lbs

• Total Weight Limit: 440 lbs

• Passenger Capacity: Carry a Single Passenger

• Rider Height: 4'11" – 6'3"

• Safety Certifications: UL 2849 / TUV Certified

• Battery Safety: Certified to UL 2271

Frame & Fork

• Frame: 6061 Aluminum Alloy, Internal Battery, One-piece Diecast Front Triangle

• Fork: 50mm Travel, Adjustable Lockout, Threaded Steerer Tube, 15x110 spacing, Black Stanchions

• Frame Style: Step-Through

Wheels & Tires

• Wheels: 20-inch, Double-Wall Aluminum, 36-Hole, 12-Gauge, Black

• Tires: 20 x 3.0 Urban Tires with Reflective Sidewalls

Ebike System

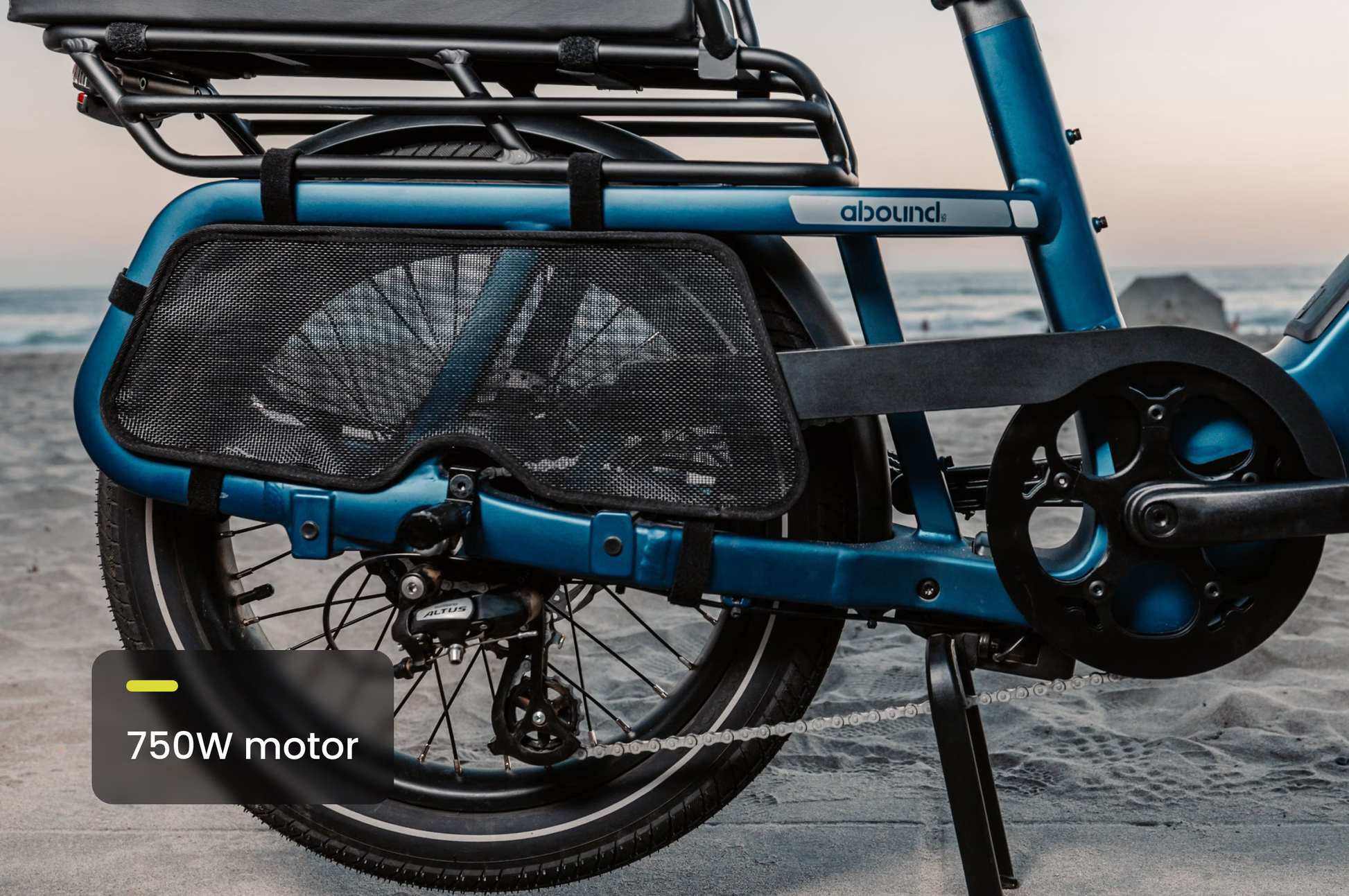

• Motor: Shengyi 36V 750W Hub Drive (1188W Peak), 80Nm Torque

• Battery: Aventon 36V 20Ah (733Wh), LG 21700 Cells

• Pedal Assist: 3 Levels (Ride Tune Customization Available)

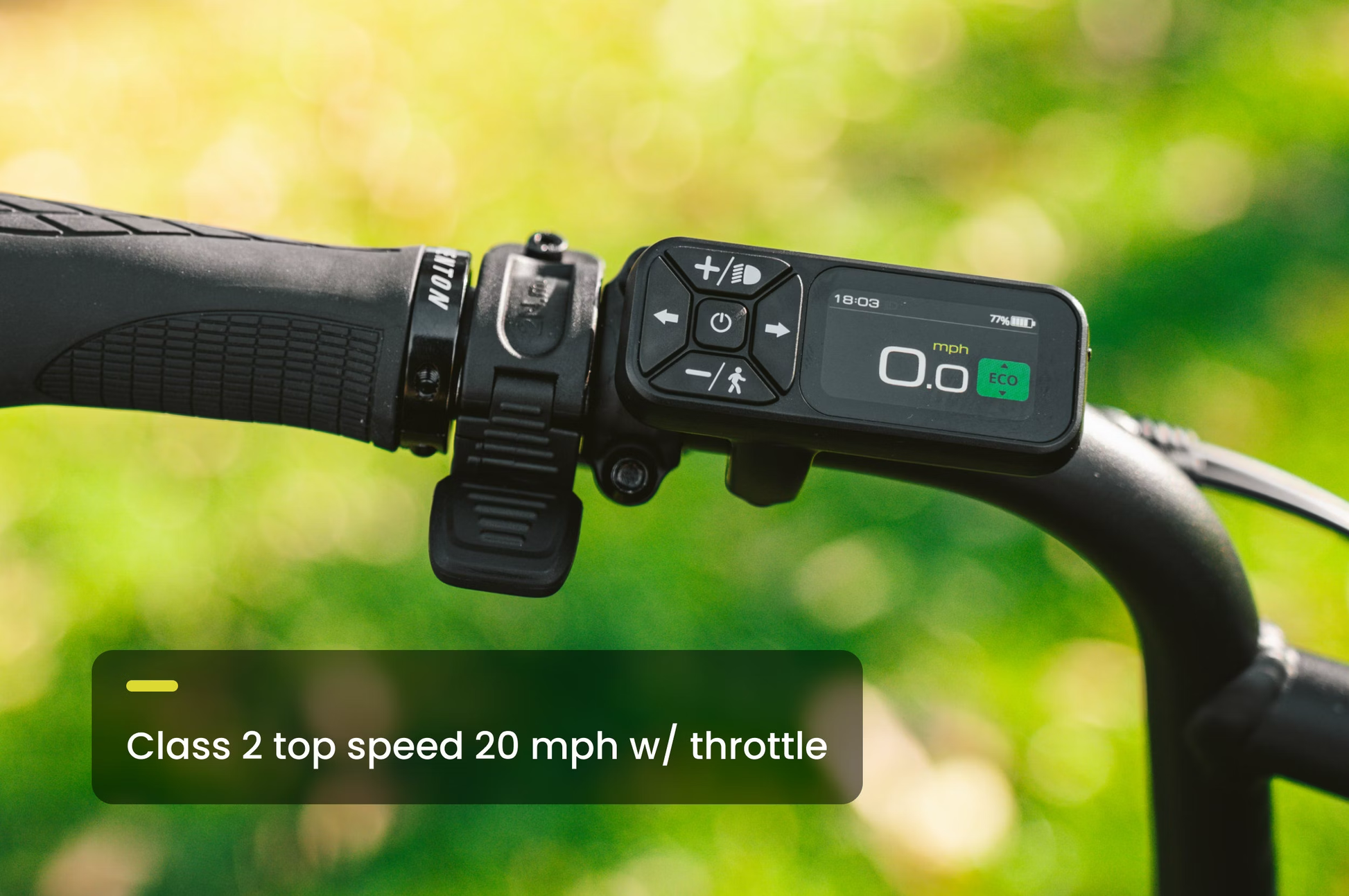

• Throttle: Aventon LH Handlebar-Mounted

• Sensors: Double-Sided Bottom Bracket Torque Sensor

• Display: Aventon BC147

• Charger: Aventon 4A 42V

• ECU: Aventon Module with CAN Bus, GPS, Bluetooth, Cellular Connectivity

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310 (8-Speed)

• Shift Lever: Shimano SL-M315-8R

• Cassette: Shimano CS-HG200-8, 12-32T

• Chainring: 52 Tooth, 130 BCD

• Crankset: 3-Piece, 165mm Arms

• Chain: 122 Link (8-Speed)

• Pedals: 9/16" Composite Platform

Brakes

• Front Brake: Tektro HD-E3520 Hydraulic Disc w/ 180mm Rotor

• Rear Brake: Tektro HD-E3520 Hydraulic Disc w/ 203mm Rotor

Cockpit

• Handlebars: BMX Style, 680mm Width, 31.8mm Clamp

• Stem: Quill Stem, 40mm Length, 140mm Vertical Adjustment

• Grips: Lock-On Ergonomic

• Saddle: Aventon by SelleRoyal

• Seatpost: Aventon Suspension, 30.9mm Diameter, 50mm Travel

• Seat Clamp: 34.9mm Quick Release

Included Accessories

• Rear Rack (143 lbs Capacity)

• Rear Wheel Mesh Guards

• Kickstand with E-Lock
