Aventon Aventure 2 Step Through

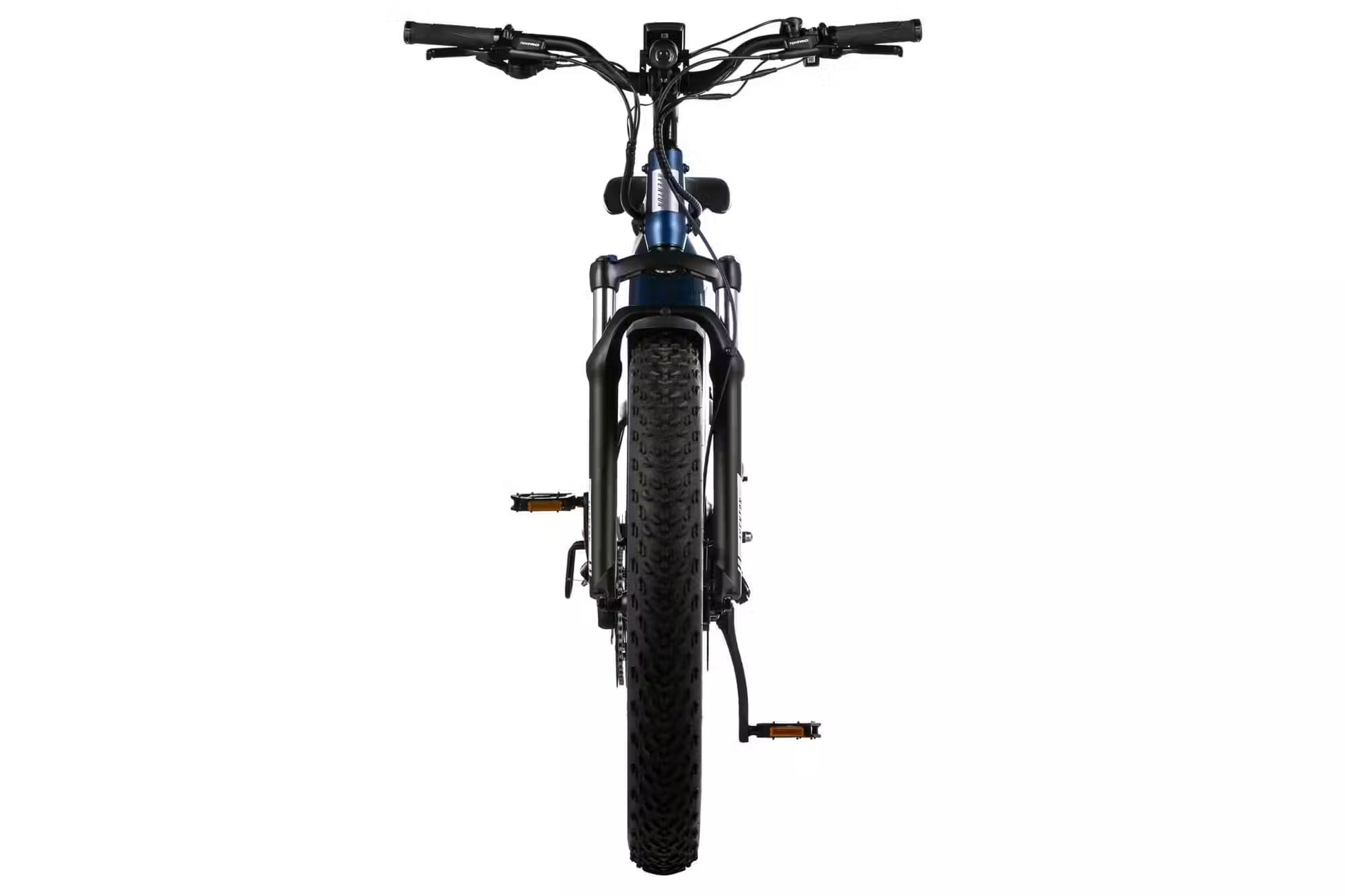

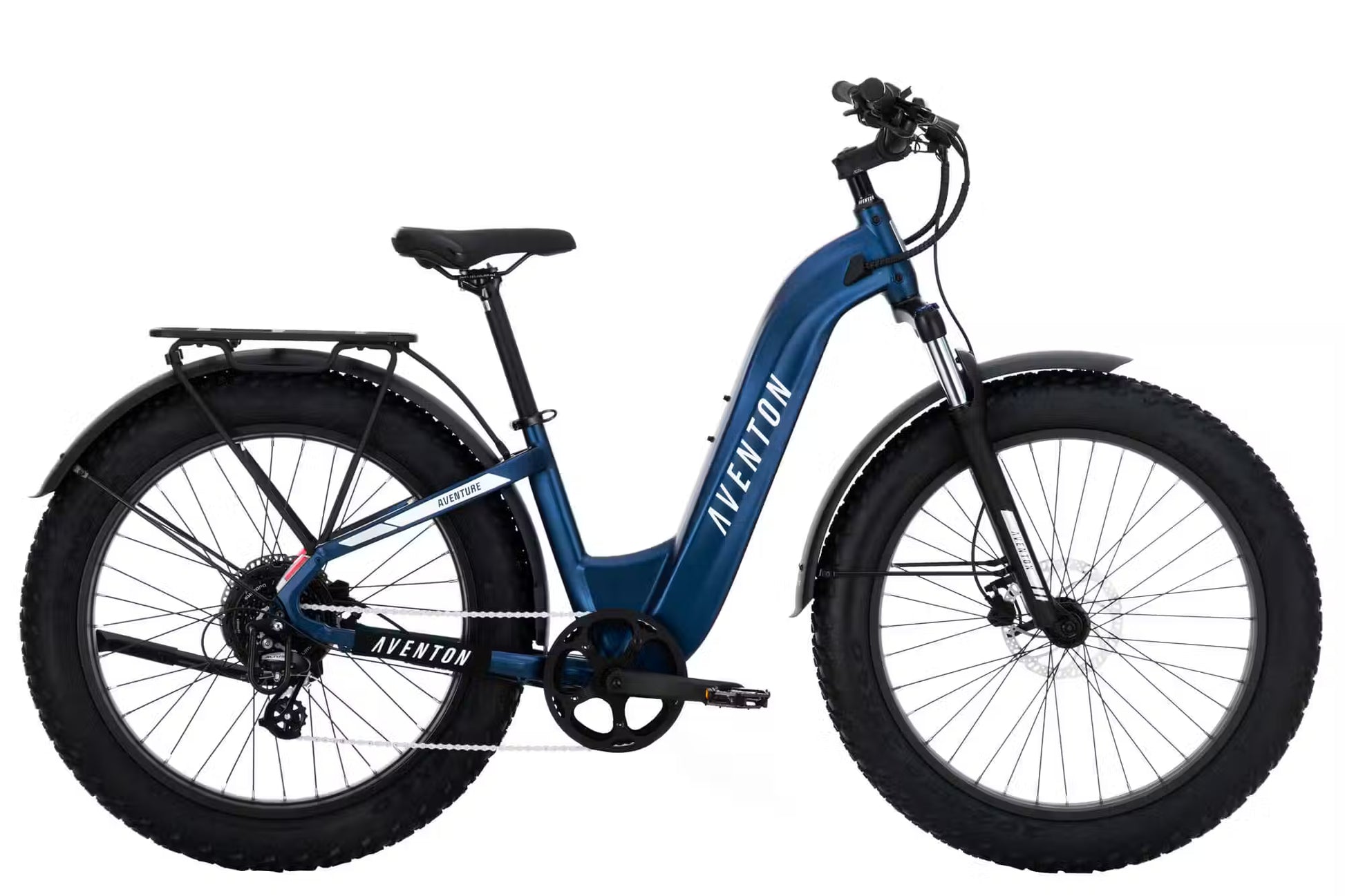

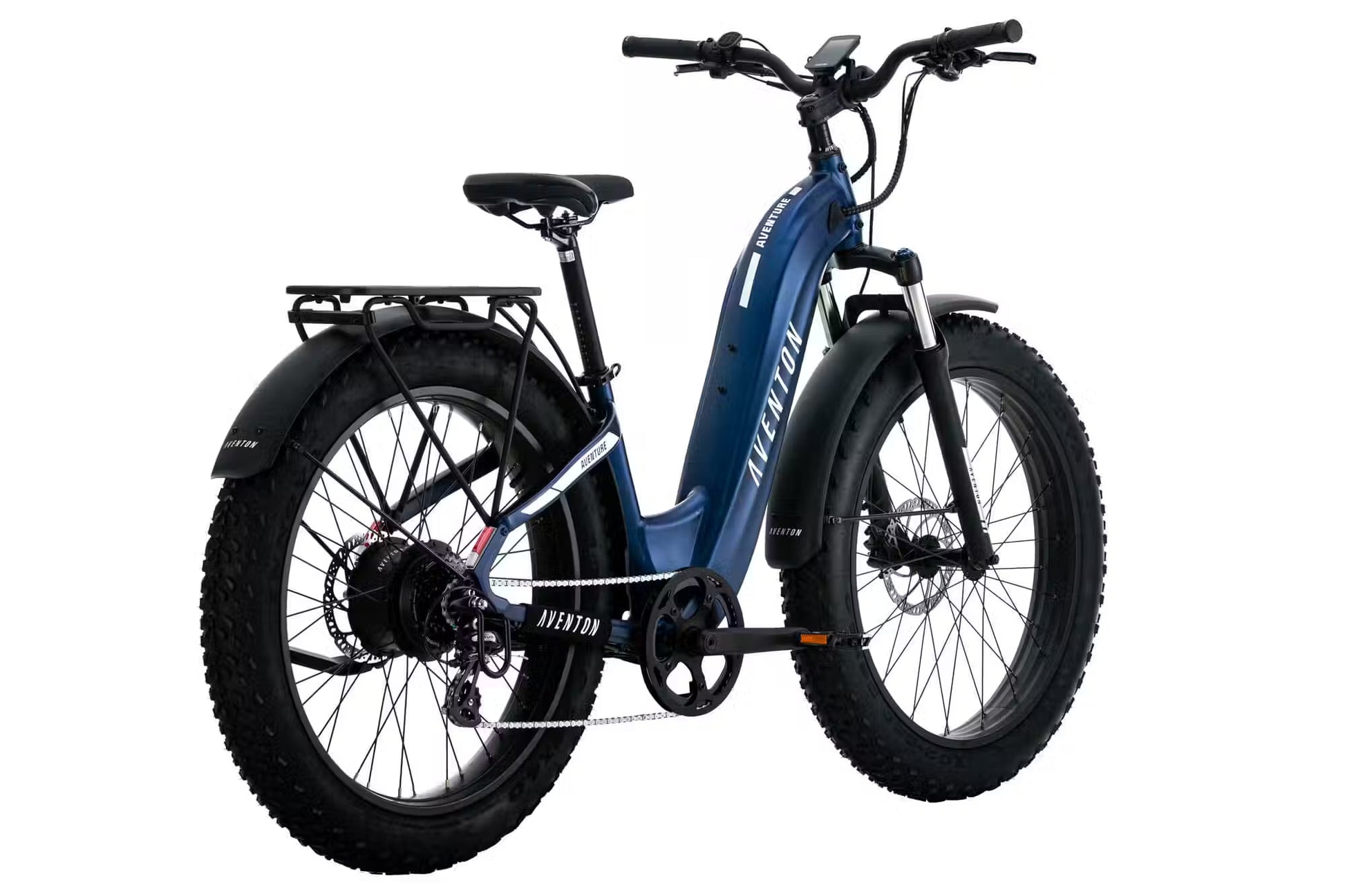

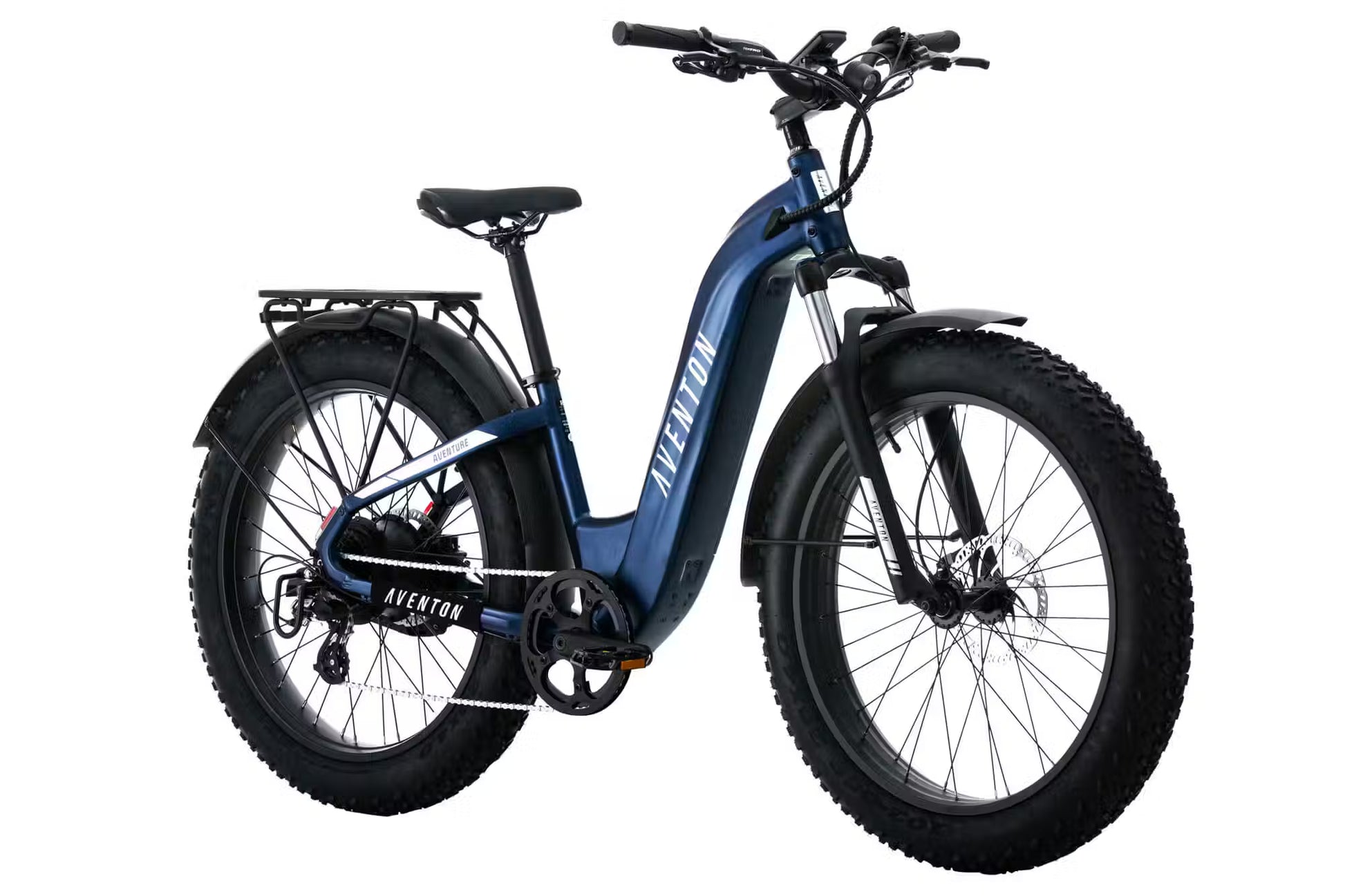

Aventon Aventure 2 Step-Through Ebike

General Info

• Model: Aventure 2 Step-Through

• Weight: 77 lbs

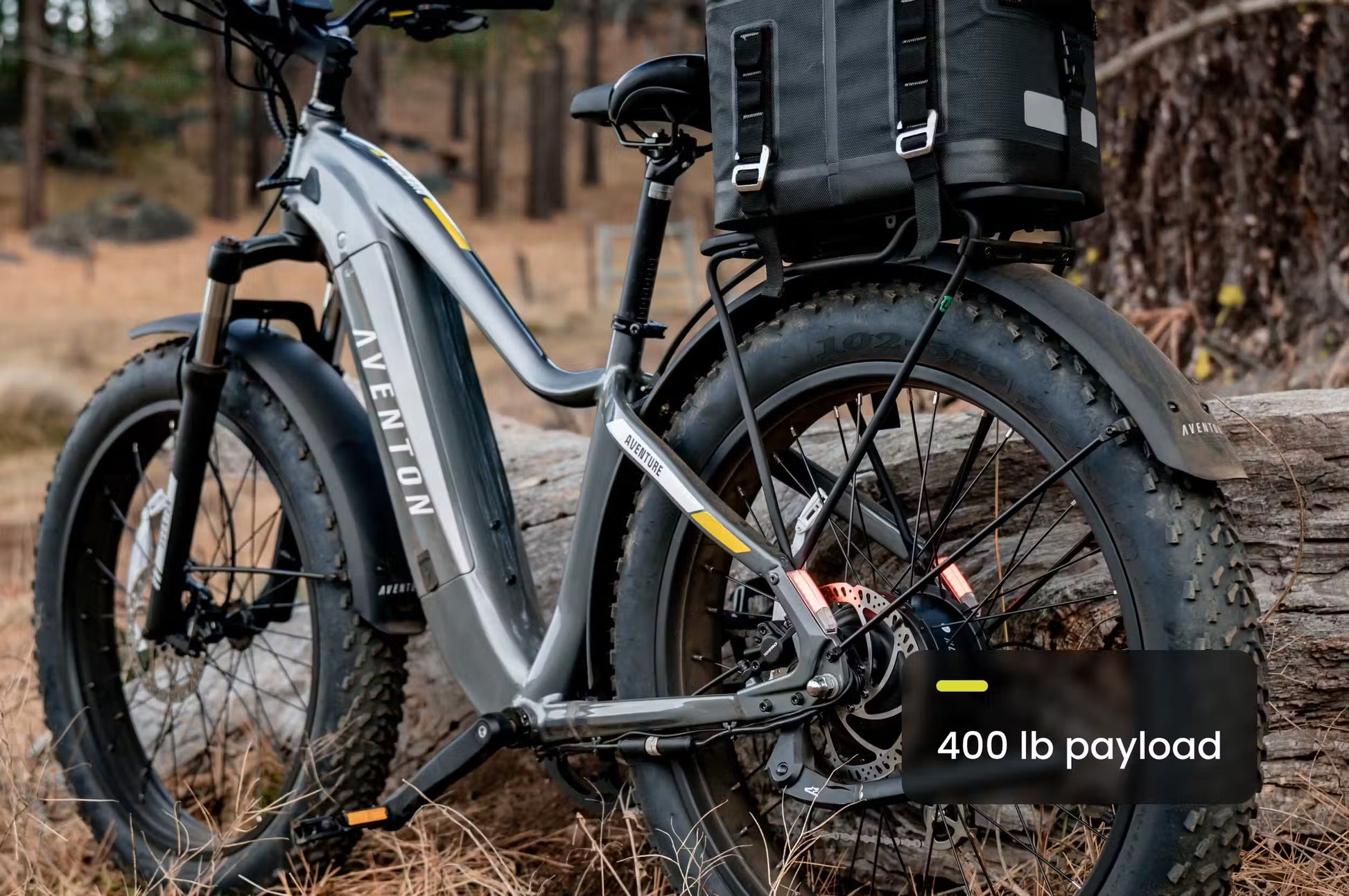

• Total Weight Limit: 400 lbs

• Rider Height Range: 4'11" – 6'1"

• Ideal Use: All-Terrain

• Folding: No

• Safety Certifications:

  • UL 2849 (Electrical System Safety)

  • UL 2271 (Battery Safety)

  • TÜV Certified

Frameset

• Frame Style: Step-Through

• Frame Material: Single-Butted Aluminum Alloy

• Fork: Suspension fork with 80 mm travel & lockout

Wheelset

• Rims: Double Wall Aluminum, 36h (front & rear)

• Spokes: Black Stainless Steel — 13G Front / 12G Rear

• Tires: 26 x 4" Fat Tires

• Tubes: Butyl Rubber with Schrader Valves

• Hubs: 36h Disc, Nutted Front and Rear

Ebike System

• Pedal Assist: 4 Levels

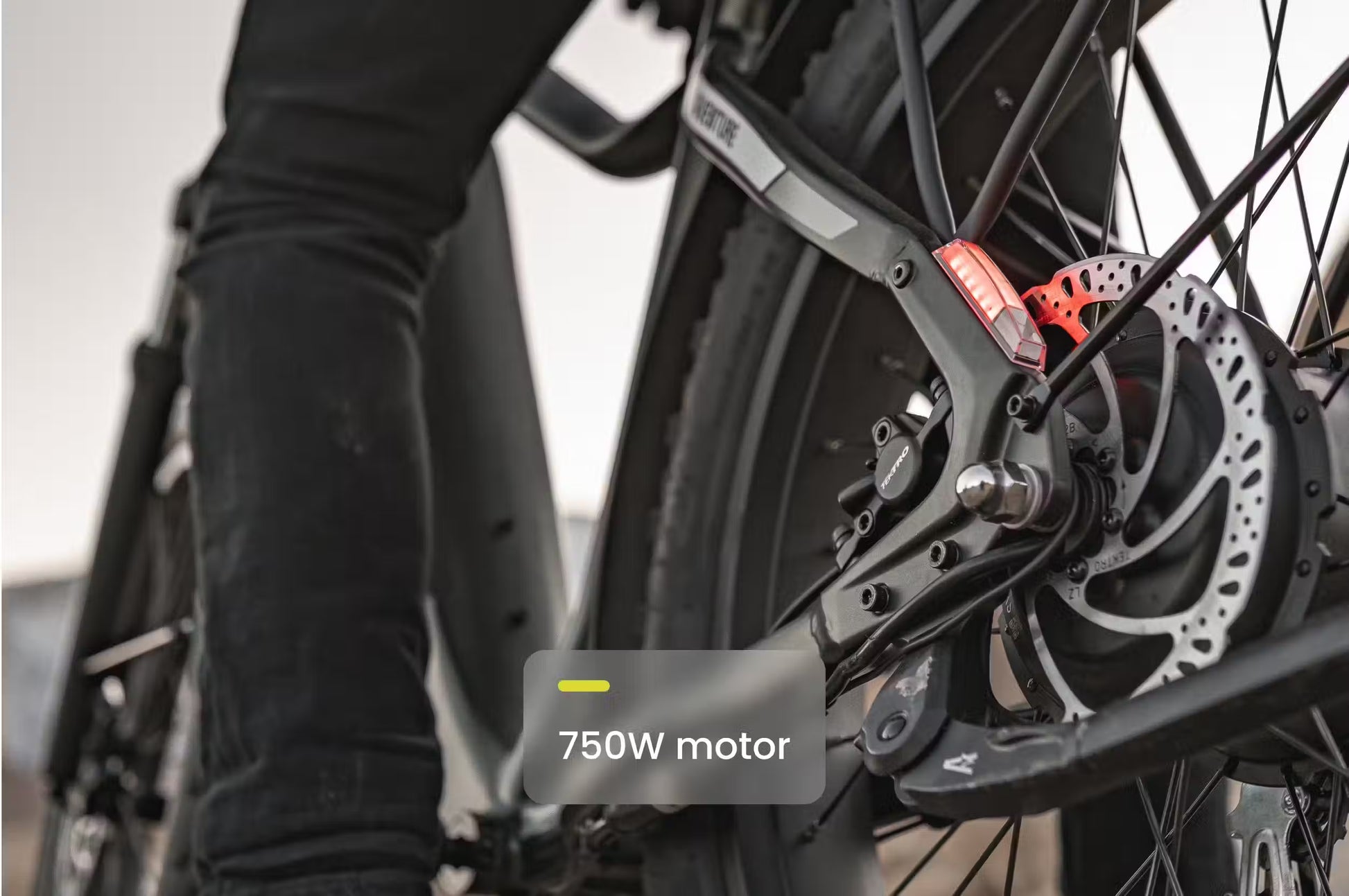

• Motor:

  • 48V, 750W sustained

  • 1130W peak

  • Rear hub drive, brushless

• Battery:

  • 48V, 15Ah (720Wh)

  • LG Cells

  • UL 2849 compliant

• Display: LCD Smart "Easy Read"

• Throttle: Aventon LH Handlebar Mounted

• Speed Class: Class 2

• Sensors: Double-Sided Bottom Bracket Torque Sensor

• Charger: 48V, 3 Amp Fast Charger

• Range: Up to 60 miles

• Lights: Integrated (front & rear)

Brakes

• Type: Hydraulic Disc Brakes

Drivetrain

• Crankset: 170 mm arms with 48T chainring

• Bottom Bracket: Square Taper, Sealed, Torque Sensor

• Rear Derailleur: Shimano 8-speed

• Cassette: 12-32T, 8-speed

• Shift Lever: 8-speed Trigger

• Chain: 122 Link, 8-speed

• Pedals: 9/16" Alloy Platform

Cockpit

• Saddle: Aventon by Velo

• Seatpost: Forged Alloy, 30.9mm, 2-bolt clamp

• Seat Clamp: 34.9mm Quick Release

• Stem: Threadless, 31.8mm, 8° Rise

• Handlebars: Aluminum, 31.8mm diameter, 680mm width

• Headset: Sealed Bearing

• Grips: Ergonomic Comfort

Included Accessories

• Kickstand: Rear-mount, included

• Rear Rack: Included

• Fenders: Included
