Aventon Aventure 3 Step Over

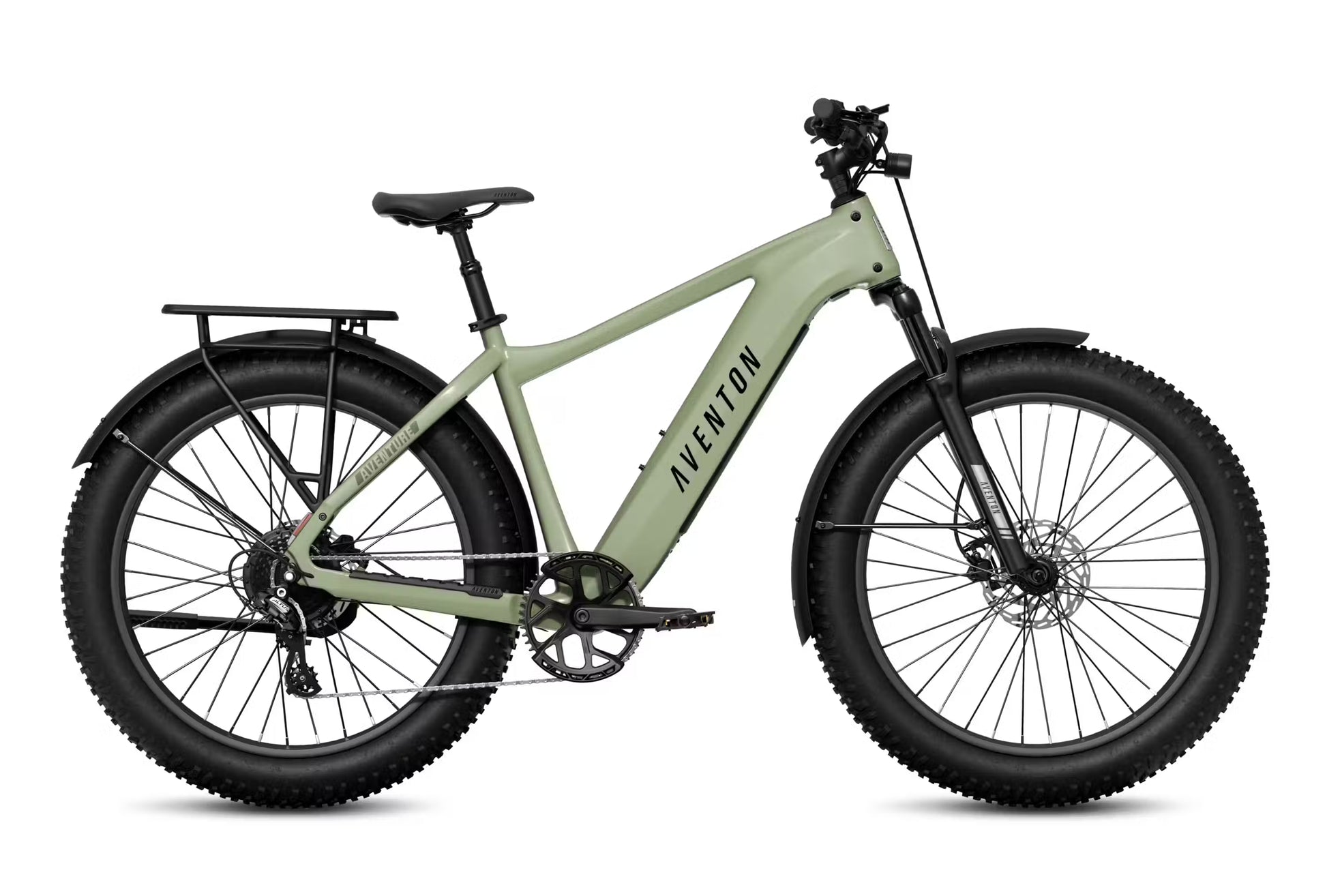

 Aventon Aventure 3 Ebike – Step-Over Frame

General Info

• Model: Aventure 3 Ebike

• Weight: 76 lbs

• Total Weight Limit: 400 lbs

• Rider Height: Regular 5'3"–5'10", Large 5'10"–6'4"

• Ebike Class: Class 2

• Water Resistance: IPX6

• Range: Up to 65 miles

• Battery Safety Certification: UL 2271

• Bike Safety Certification: UL 2849

• Ideal Use: All-Terrain

Frameset

• Frame: 6061 Aluminum, Gravity Cast Front Triangle

• Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout

• Frame Style: Step-Over

• Rear Spacing: 190mm

• Fork Spacing: 135mm

Wheelset

• Front Wheel: 26", 36 hole, 13g spokes, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve

• Rear Wheel: 26", 36 hole, 12g spokes, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve

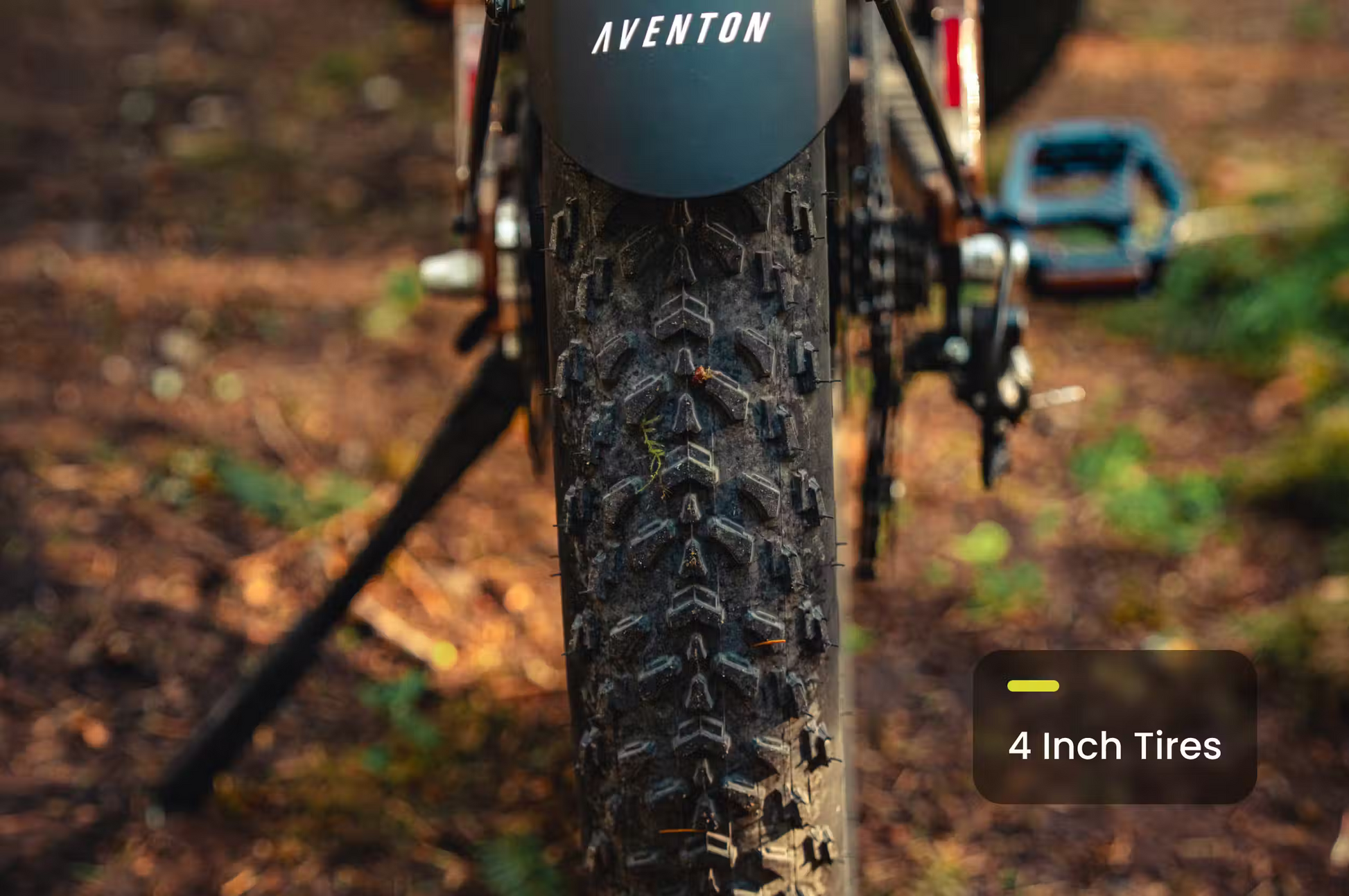

• Tires: Inova 26x4.0, puncture resistant

Ebike System

• Speed Class: Class 2

• Motor: 36V, 750W hub drive (1188W peak), 80Nm torque

• Battery: Removable Internal Lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells

• Battery Weight: 8.7 lbs

• Display: Aventon BC280

• Controller: 36V/33A

• Charger: 36V (output: 42V/4A)

• Charging Time (0% to 100%): 5 hours

• Throttle: Aventon LH Handlebar Mounted

• Sensors: Double Sided Bottom Bracket Torque Sensor

• Lights: Integrated front and rear

Brakes

• Front Brake: Tektro HD-E3520 hydraulic disc w/ EJ1 quick disconnect

• Rear Brake: Tektro HD-E3520 hydraulic disc w/ EJ1 quick disconnect

• Front Rotor: Tektro 180mm, 6-bolt

• Rear Rotor: Tektro 180mm, 6-bolt

Drivetrain

• Rear Derailleur: Shimano Altus 8-Speed

• Shifter: Shimano 8-Speed Trigger

• Chain: 7/8 Speed, 118 links

• Cassette: Shimano CS-HG200-8, 12-32T, 8 Speed

• Chainring: 48T

• Crankset: 3-piece, 170mm crank arms

• Bottom Bracket: 100x177mm, Square Taper, Double Sided Torque Sensor

• Pedals: 9/16" Alloy Platform

Cockpit

• Saddle: Aventon Saddle

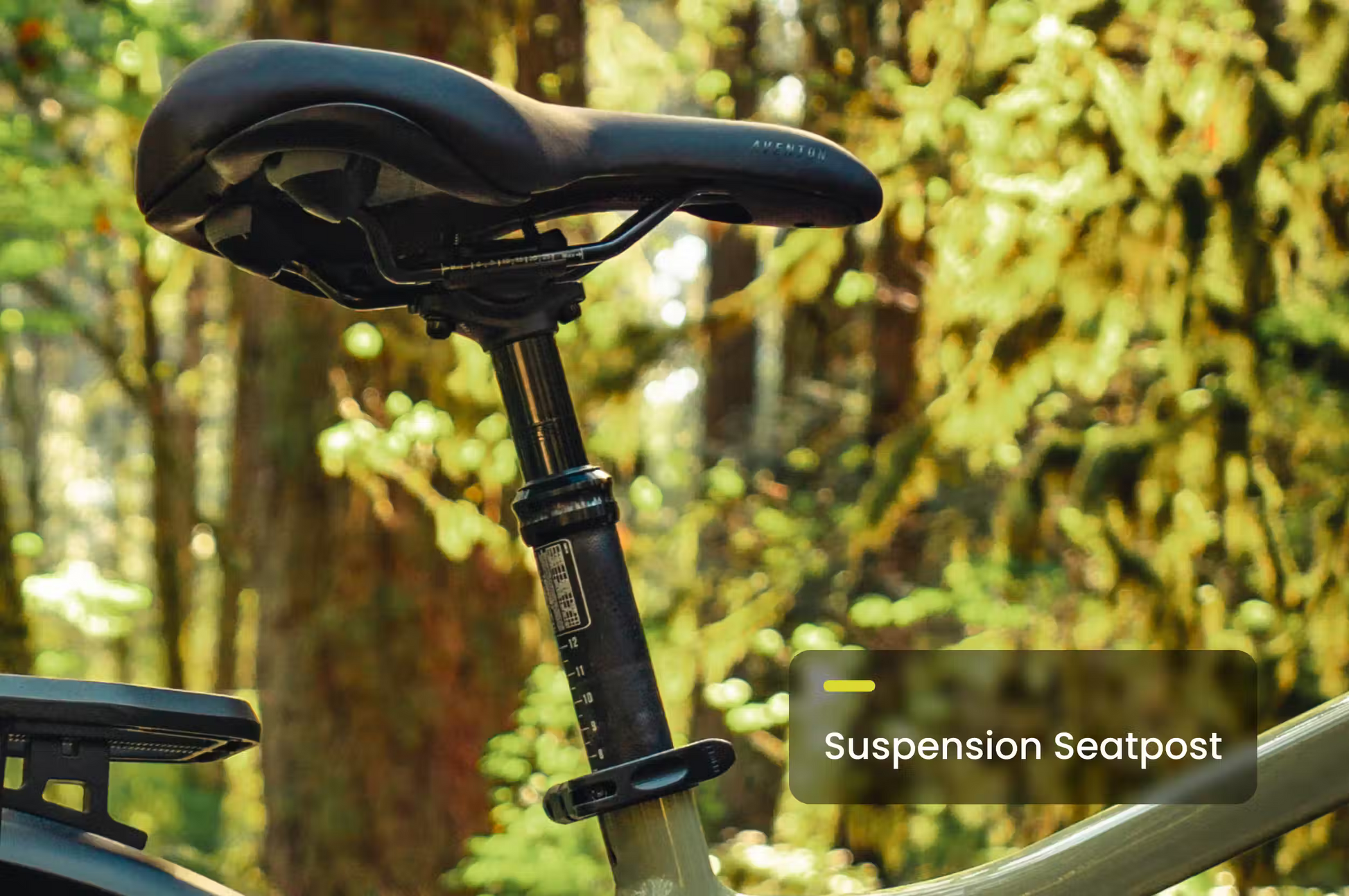

• Seatpost: Aventon Suspension Seatpost, 30.9mm x 350mm, 50mm travel

• Seatpost Clamp: 34.9mm

• Handlebars: Aluminum, 31.8mm diameter, 680mm width

• Grips: Aventon Lock-On Grips

• Headset: Sealed bearing, H887 Peilin, 28.6mm x 56mm x 56mm, H18.6mm (7pcs)

Included Accessories

• Kickstand: Included (rear mount)

• Rear Rack: Included

• Fenders: Included
