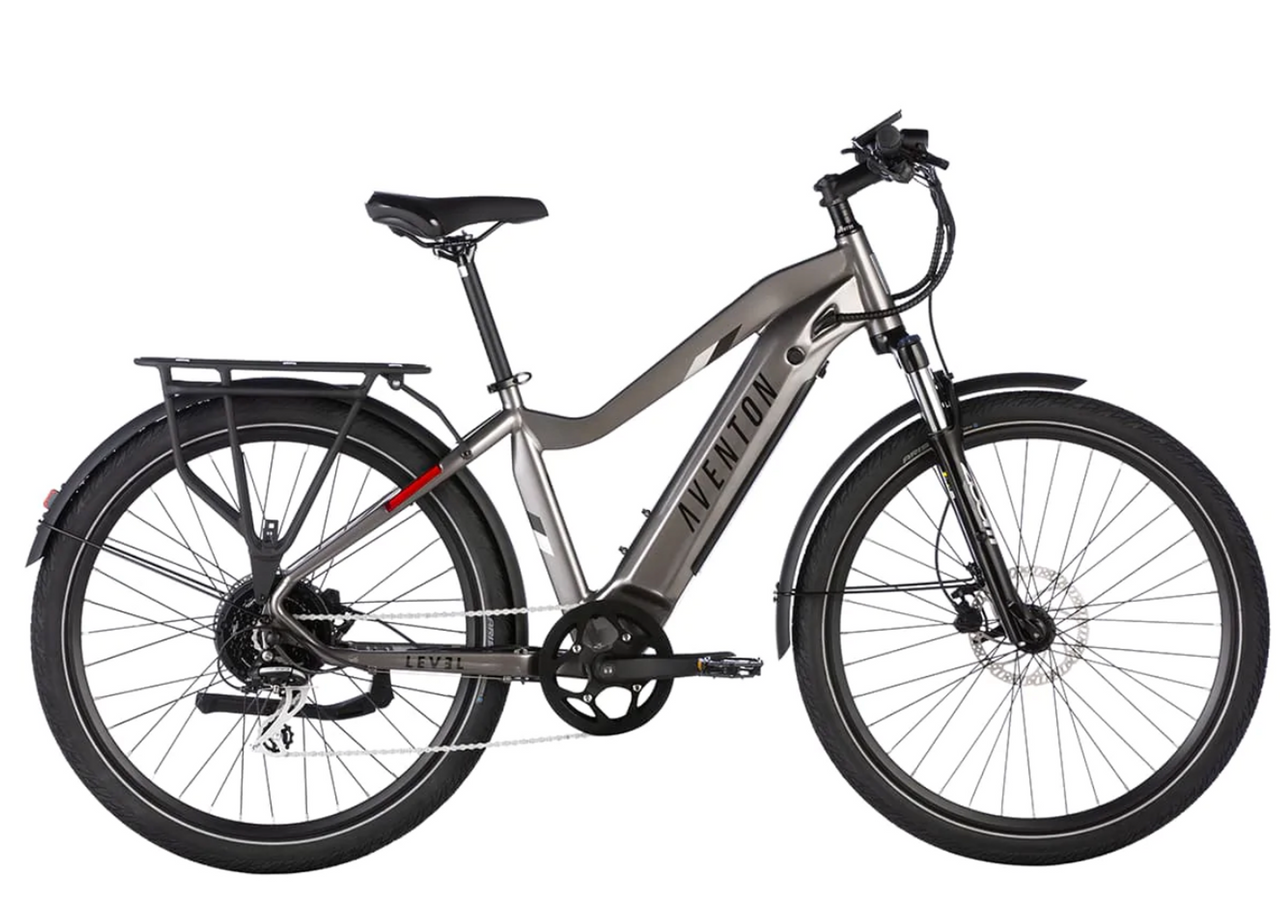

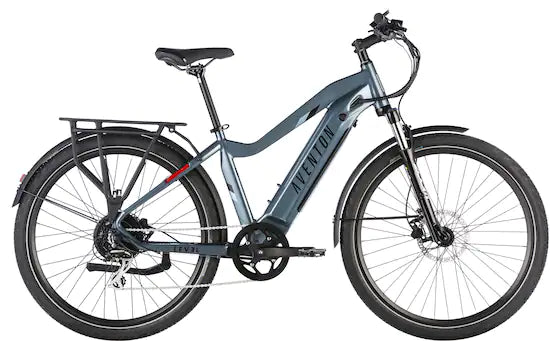

Aventon Level 2 Step Over

Level 2 Ebike Step-Over – Technical Specification

General Info

• Model: Level 2 Ebike

• Frame Style: Step-Over

• Ideal Use: Commuting

• Folding: No

• Pedal Assist: 5 levels

• Range: Up to 60 miles

• Weight: 62 lbs

• Total Weight Limit: 300 lbs

• Rider Height: 5'3" – 6'4"

• Speed Class: Class 2 (Pedal Assist + Throttle, 20 mph max)

• Safety Certifications: UL and TUV Certified – UL 2849 / UL 2271

Frameset

• Frame: Double-Butted Aluminum Alloy

• Fork: Coil Spring Suspension, 65mm Travel, Thru-Axle, Lockout

Wheelset

• Rims: Double Wall Aluminum, 36 Hole (Front & Rear)

• Spokes: Black Stainless Steel – 13G (Front) / 12G (Rear)

• Tubes: Butyl Rubber, Schrader Valve

• Hubs: 36H Disc – Thru-Axle Front / Nutted Rear

• Tires: 27.5 x 2.1 Hybrid Tires with Reflective Sidewalls

Ebike System

• Motor: 48V, 500W Sustained, 864W Peak, Brushless Hub Motor

• Throttle: Aventon LH Handlebar Mounted

• Display: LCD Smart “Easy Read”

• Battery: 48V, 14Ah (672Wh), LG Cell, UL 2849 Compliant

• Charger: 48V, 3A Fast Charger

• Charging Time: Approx. 4–5 Hours

• Sensors: Double-Sided Bottom Bracket Torque Sensor

• Lights: Integrated Front & Rear

Brakes

• Type: Hydraulic Disc Brakes (Front & Rear)

Drivetrain

• Crankset: 170mm with 46T Chainring

• Bottom Bracket: Square Taper, Sealed, with Torque Sensor

• Rear Derailleur: Shimano 8-Speed

• Cassette: 12-32T, 8-Speed

• Shift Lever: 8-Speed Trigger

• Chain: 122-Link, 8-Speed

• Pedals: 9/16" Alloy Platform

Cockpit

• Saddle: Aventon by Velo

• Seatpost: Aluminum Alloy, 27.2mm, 2-Bolt Clamp

• Seat Clamp: 31.8mm Quick Release

• Stem: Threadless, 31.8mm, 7° Rise

• Handlebars: Aluminum, 680mm Width, 31.8mm Diameter

• Grips: Ergonomic Comfort

• Headset: Sealed Bearing

Included Accessories

• Kickstand: Rear Mount

• Fenders: Included

• Rear Rack: Included
