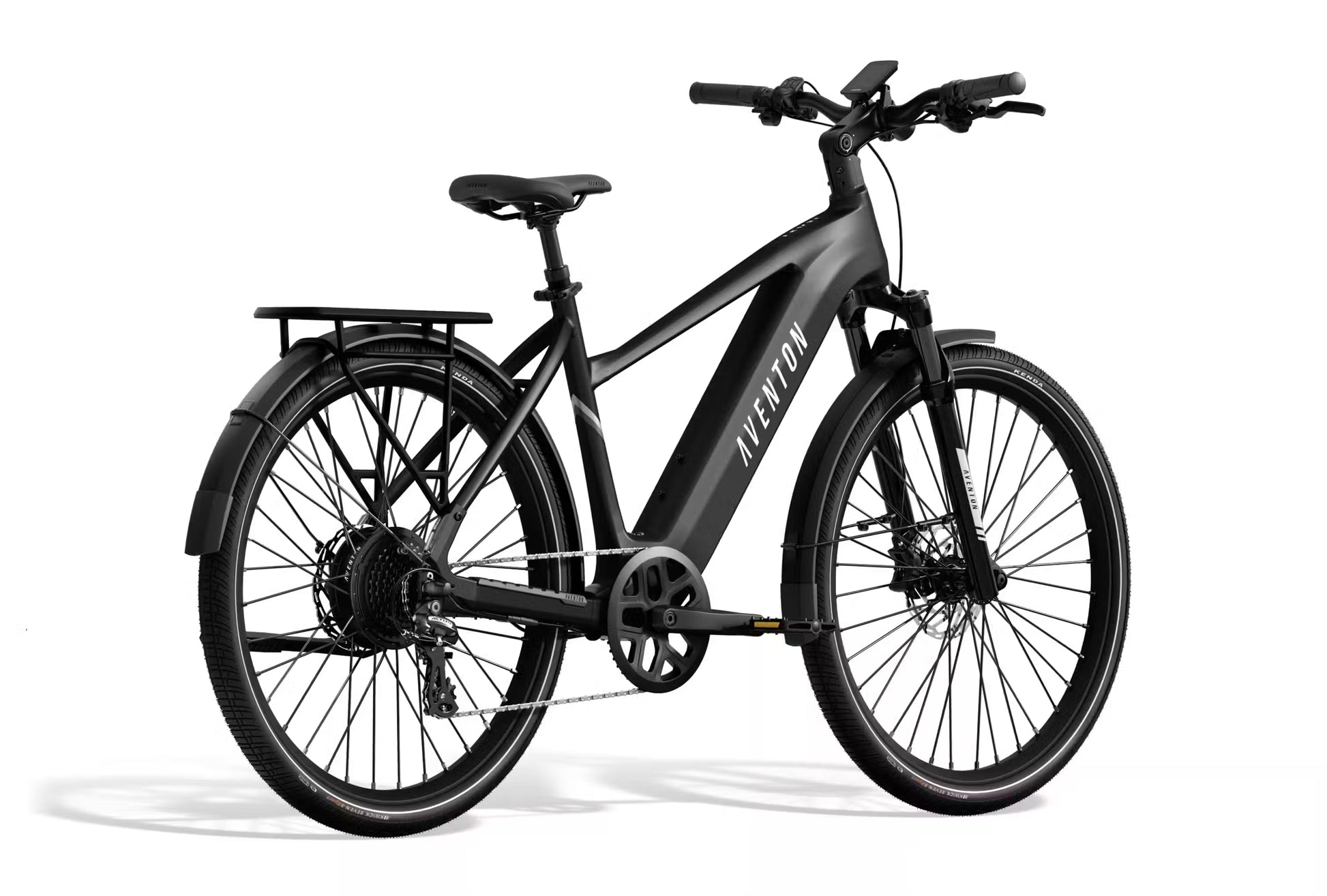

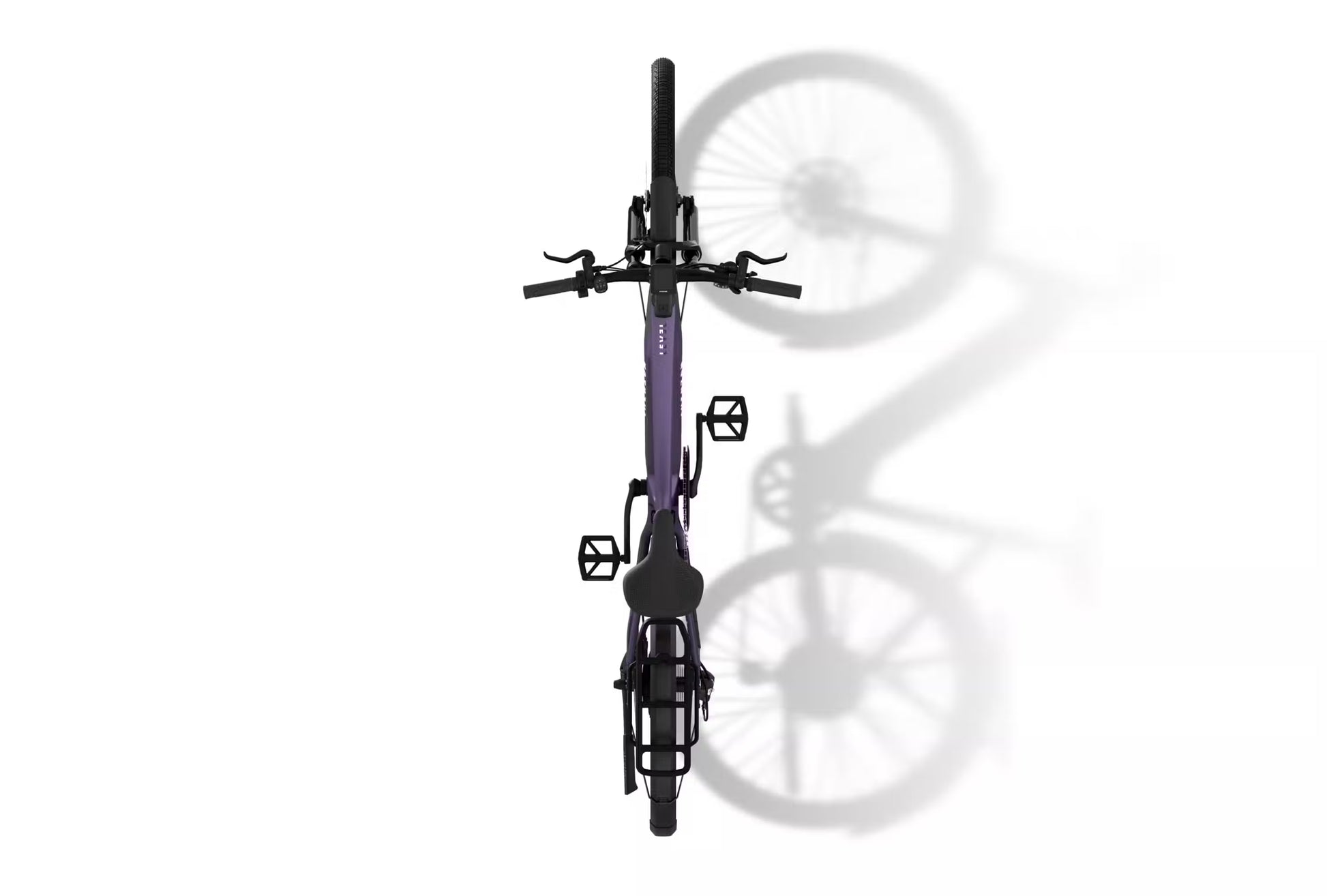

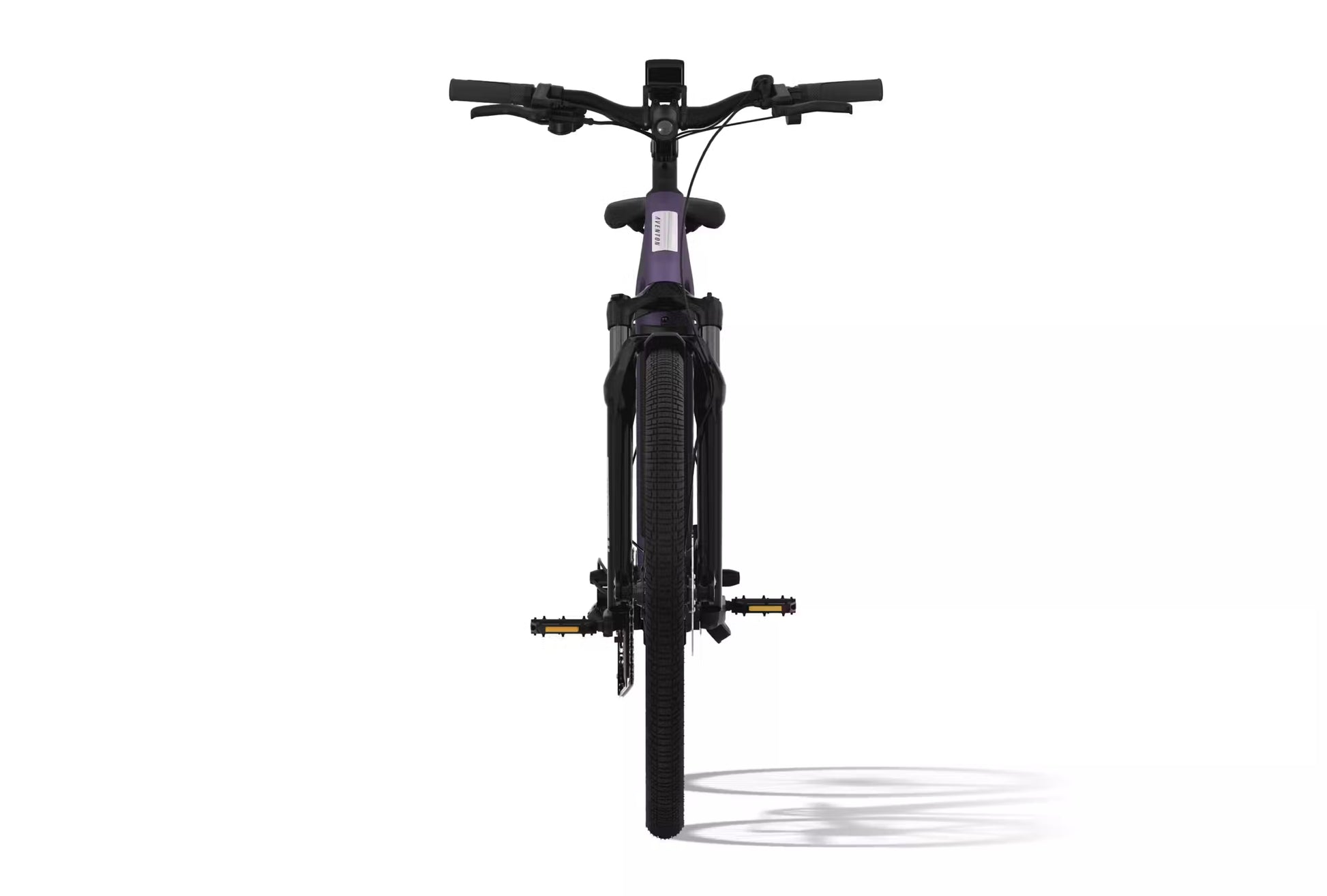

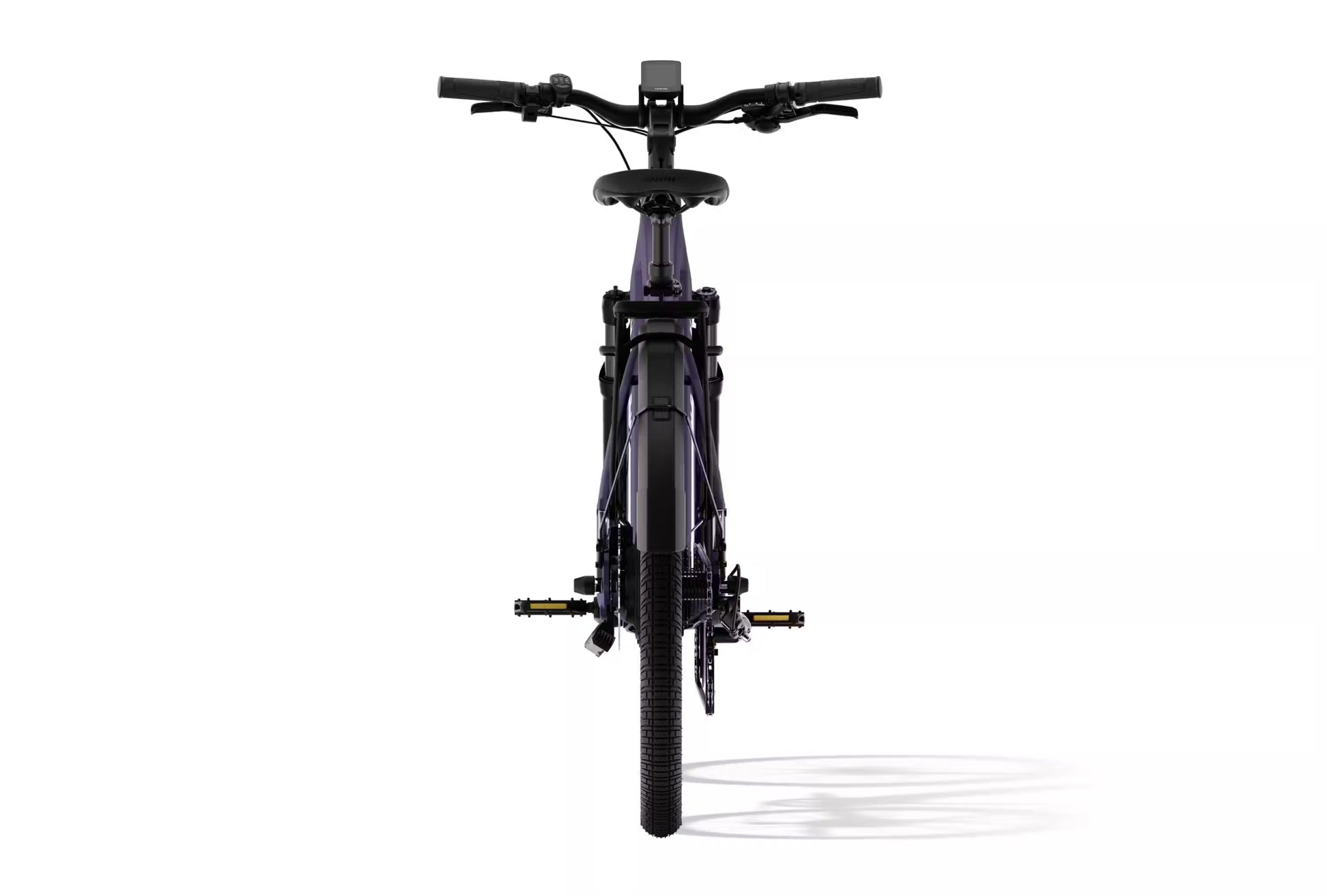

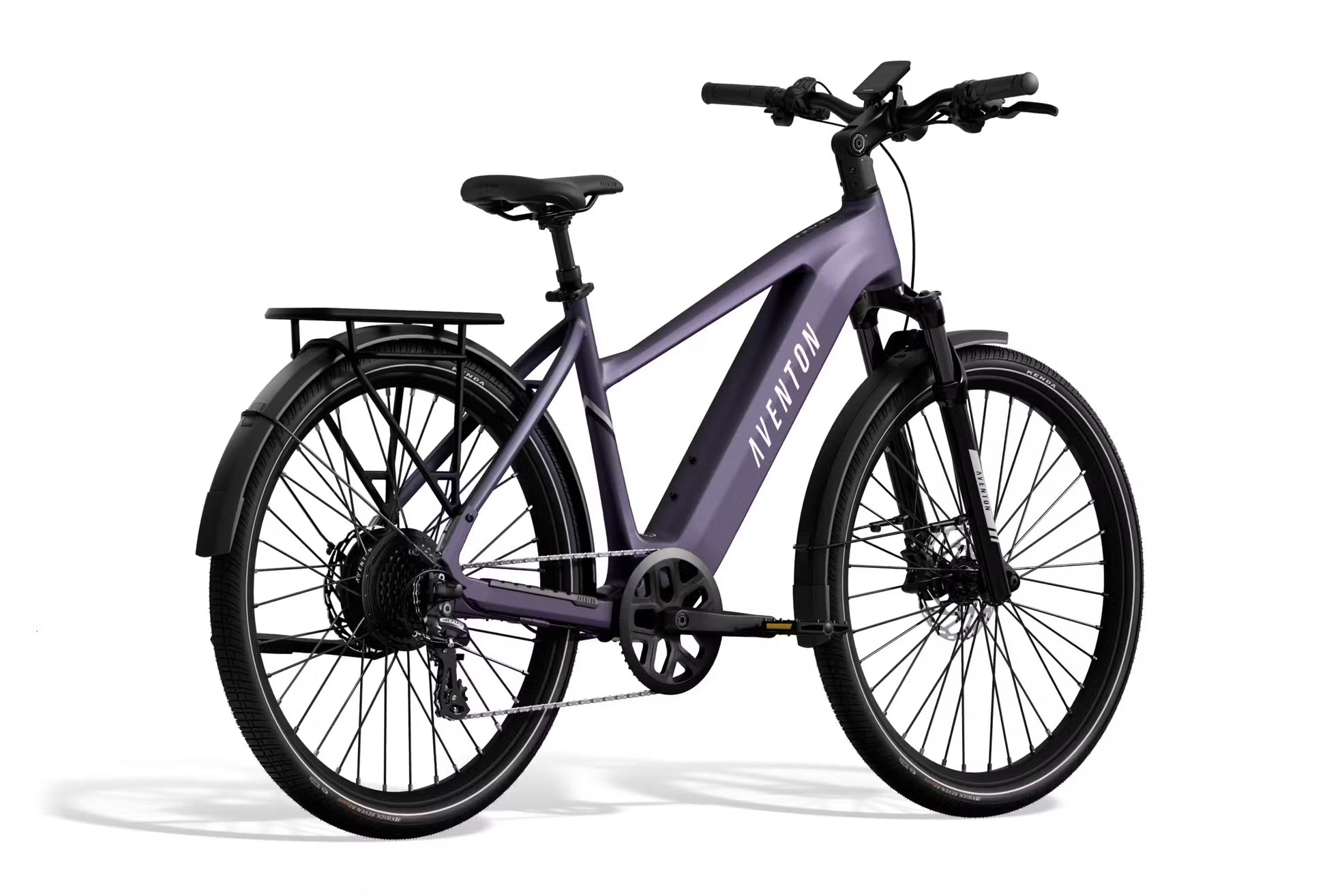

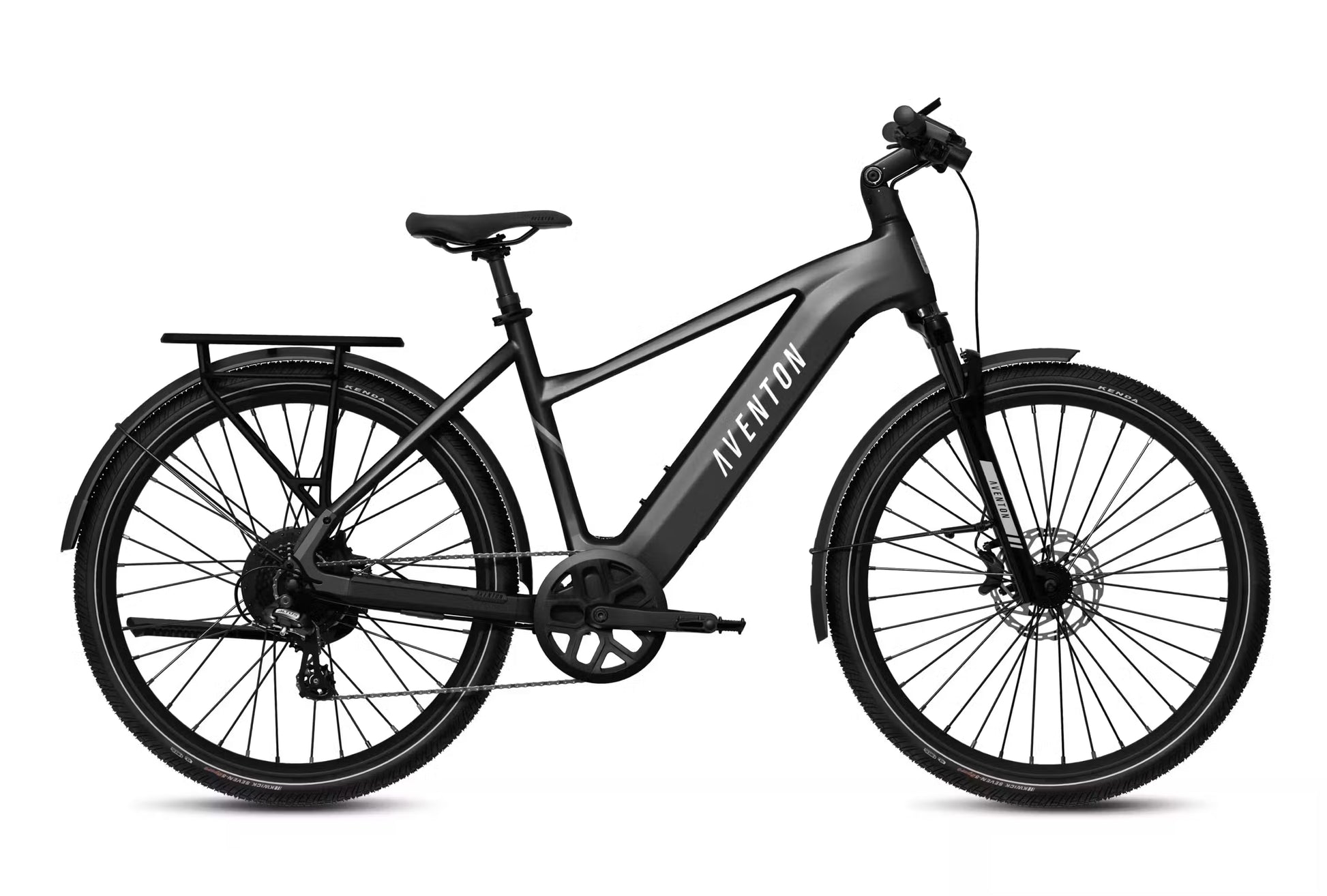

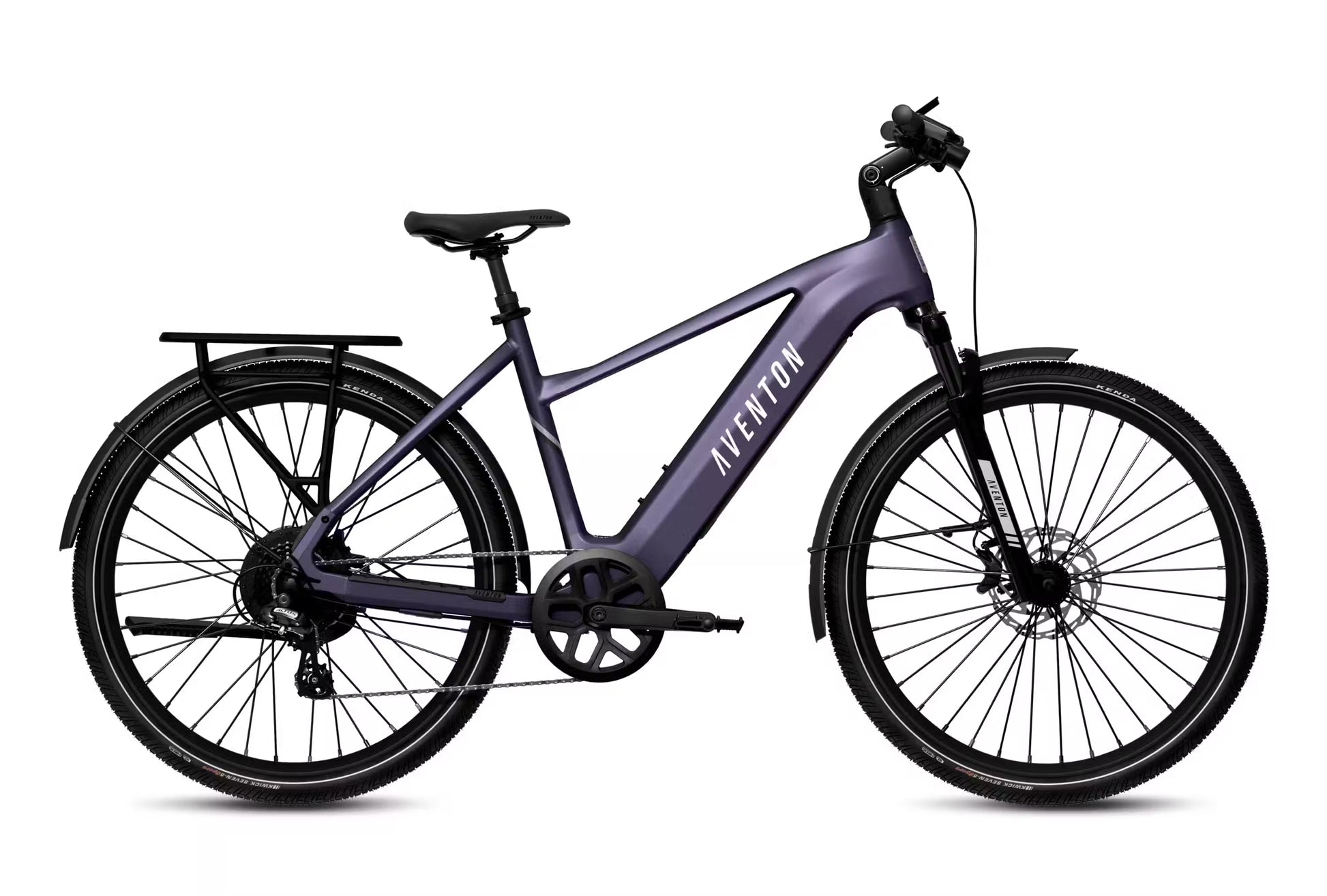

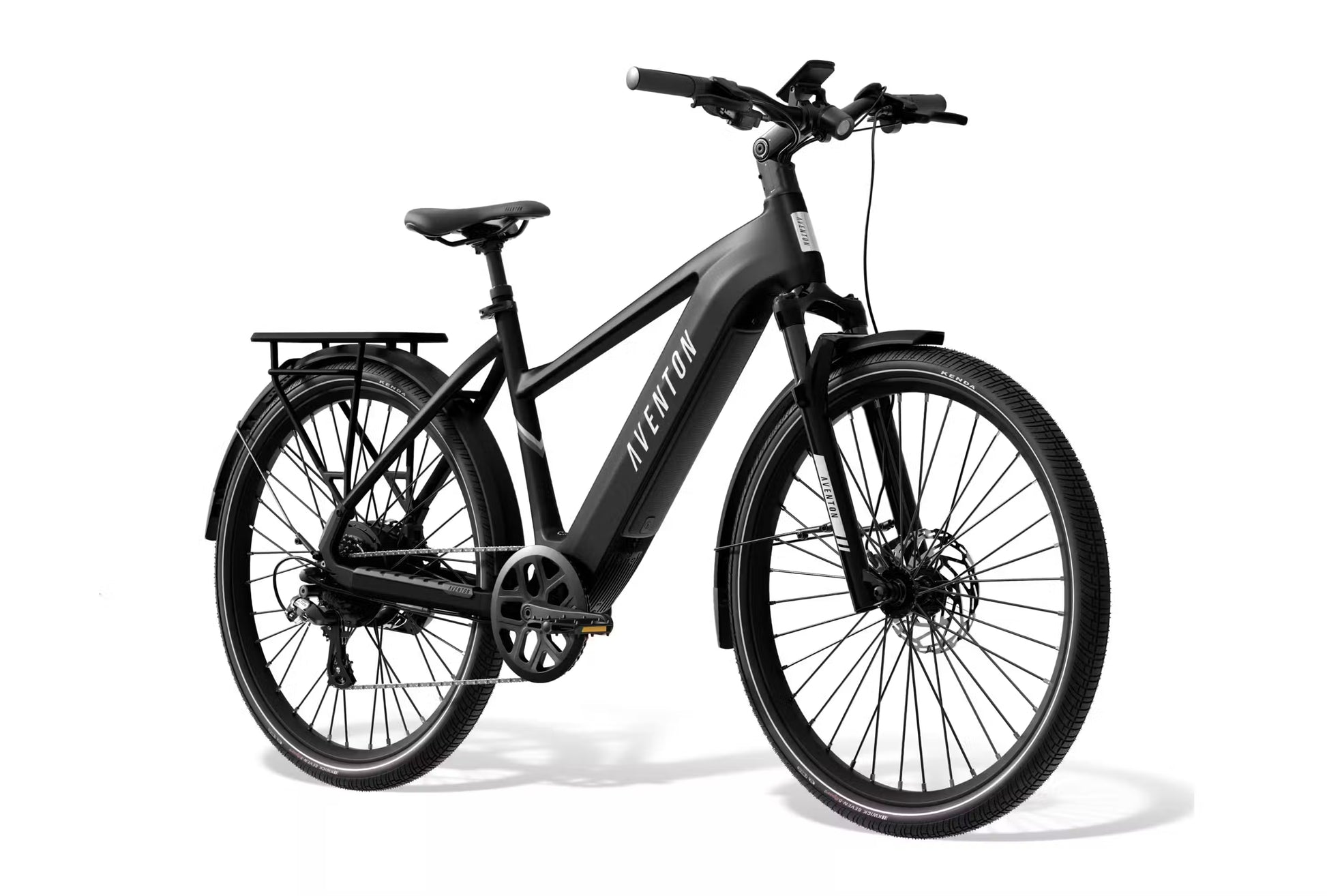

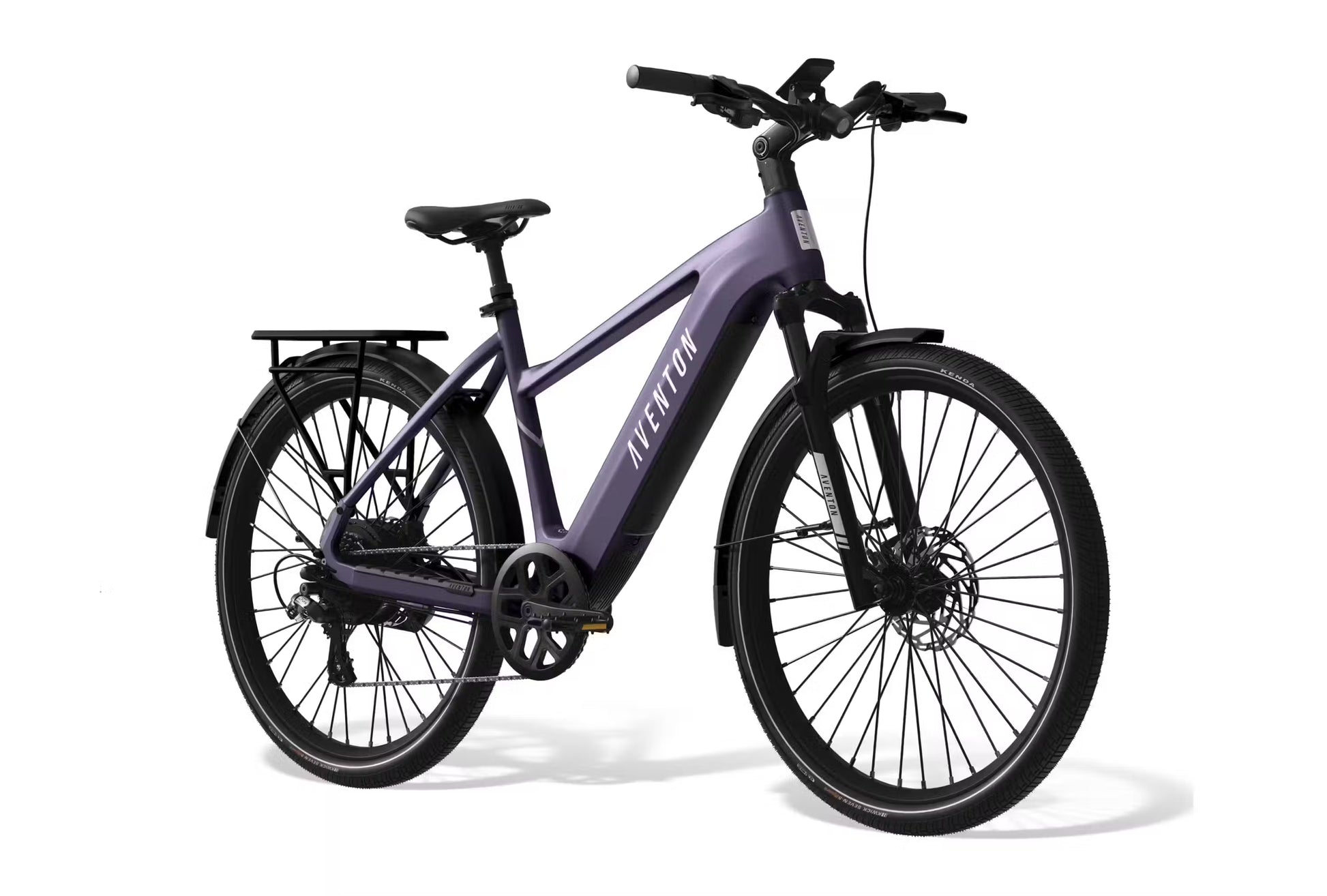

Aventon Level 3 Step Over

Level 3 Ebike – Technical Specification

Key Technical Highlights

General

• Model Weight: 67 lbs – Hefty, but expected for a high-capacity commuter ebike.

• Weight Limit: 300 lbs – Suitable for a wide range of riders, including gear/load.

• Water Resistance: IPX6 – Excellent for rainy commutes (high-pressure water jets).

• Rider Height Range: 5'3" – 6'4" – Broad fit.

• Class: Class 2 – Pedal assist + throttle up to 20 mph.

Motor & Battery

• Motor: 36V, 500W sustained (864W peak), 60Nm torque – Ideal for urban hills and daily commuting.

• Battery: 36V, 20Ah (733Wh), UL 2271 certified – Good range (up to 70 miles) with solid safety certification.

• Charge Time: 5 hours with 4A charger – Reasonable for the capacity.

Ride Performance

• Pedal Assist: 3 levels, with Ride Tune customization – Allows for personalized performance tuning.

• Torque Sensor: Bottom bracket, double-sided – Smooth, natural ride feel compared to cadence sensors.

• Suspension Fork: 80mm travel, with lockout – Comfortable for city bumps, light trail use.

Wheels & Tires

• 27.5 x 2.2" Kenda Kwick Seven-5 Sport – Balanced for speed and comfort.

• Double wall aluminum rims – Durable for daily commuting.

Brakes

• Hydraulic Disc Brakes: Magura AT-2 or Tektro HD-E3520 – Reliable, strong stopping power.

• 180mm Rotors – Oversized for heat dissipation on longer or steeper rides.

Drivetrain

• Shimano 8-Speed (Altus) – Entry-mid level, dependable for commuting.

• 48T chainring with 12–32T cassette – Slightly geared toward speed, good for flat to moderate terrain.

Comfort & Accessories

• Suspension Seatpost: 50mm travel – Adds comfort on uneven roads.

• Included: Full fenders, rear rack (60 lbs capacity) – Fully commute-ready.

• Lights: Front & rear integrated – Safe for night rides.

What It's Best For

• Urban & Suburban Commuting – Comfortable, long-range, and traffic-friendly.

• Errand Running – Rear rack, fenders, and throttle help carry loads and stay clean.

• Hilly Terrain – 60Nm of torque and torque sensing make inclines manageable.

Things to Consider

• Weight: At 67 lbs, it’s not easy to lift up stairs or transport without a ramp or ebike-specific rack.

• Motor Voltage (36V): Efficient for range, but slightly less powerful than 48V systems in aggressive terrain.

• Throttle Top Speed: Class 2, so you're capped at 20 mph (unless unlocked, if allowed locally).
