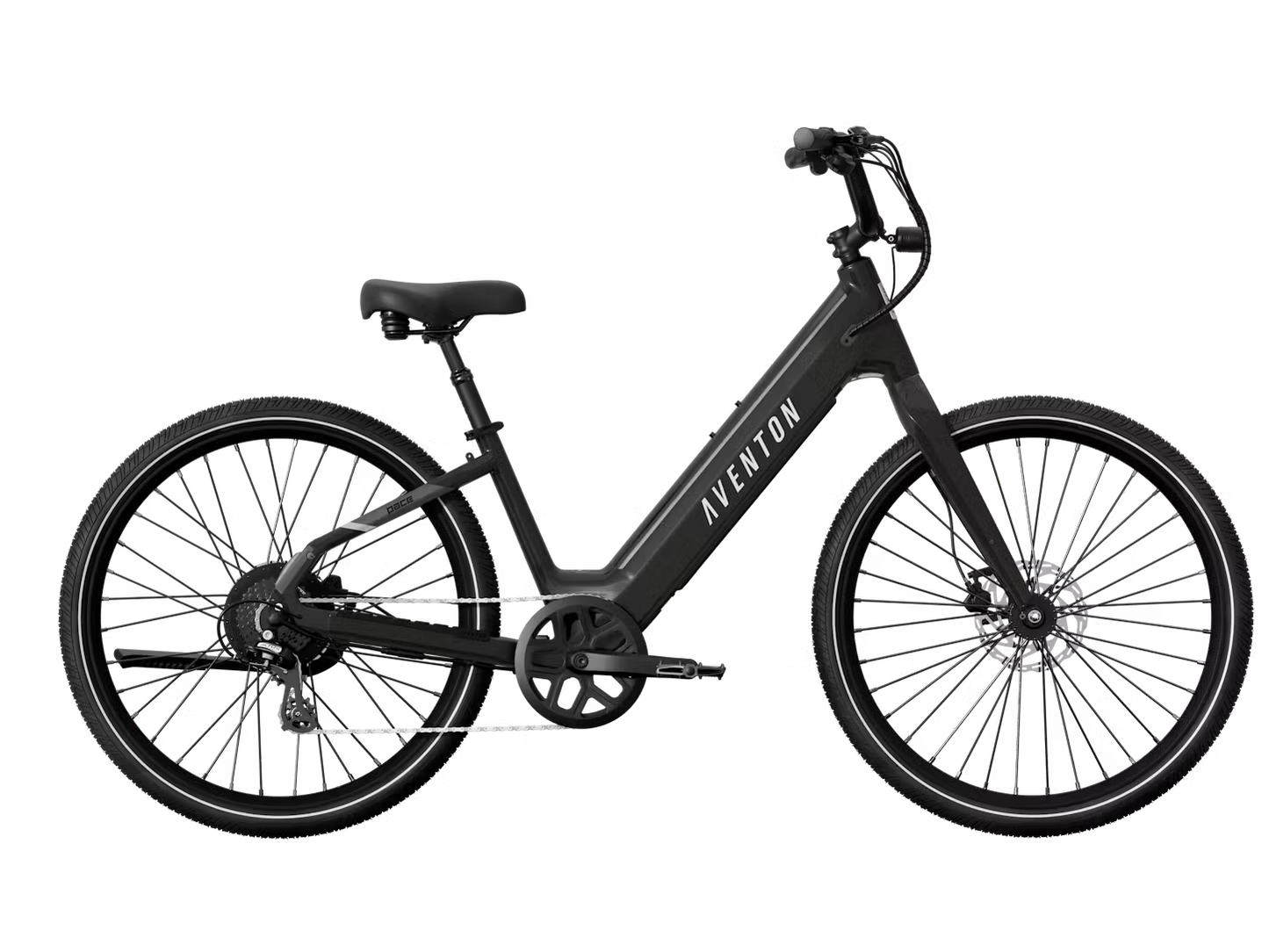

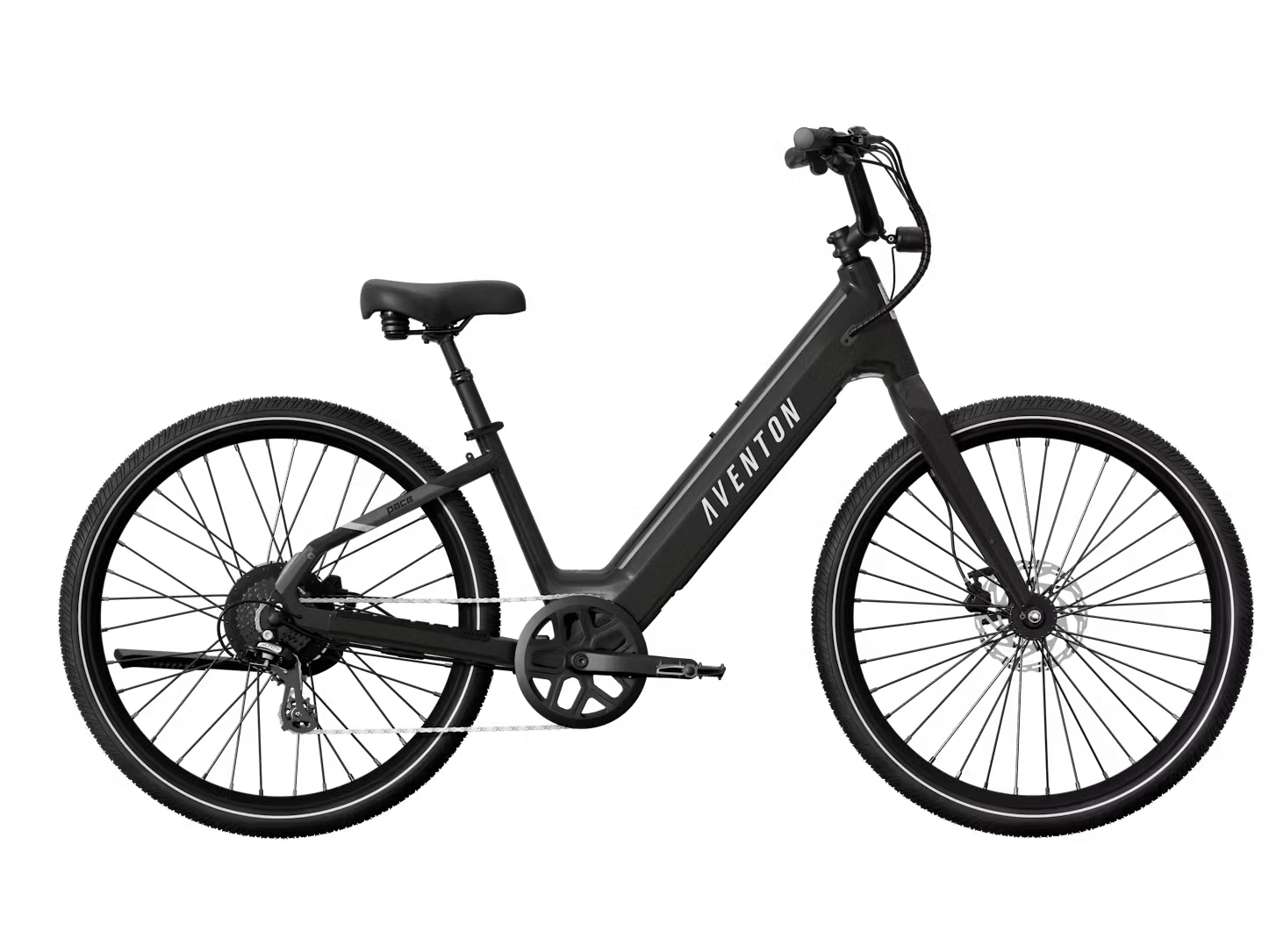

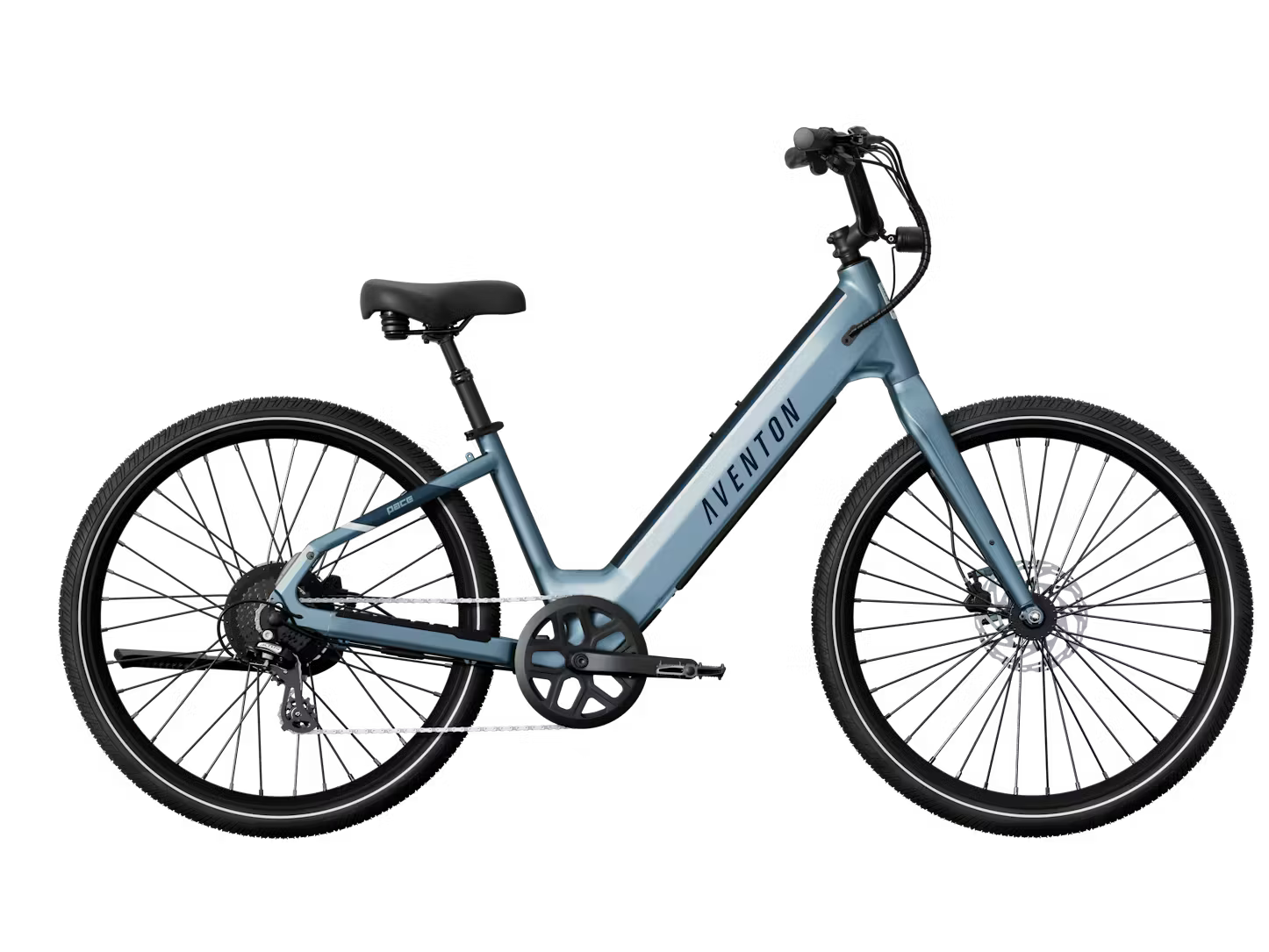

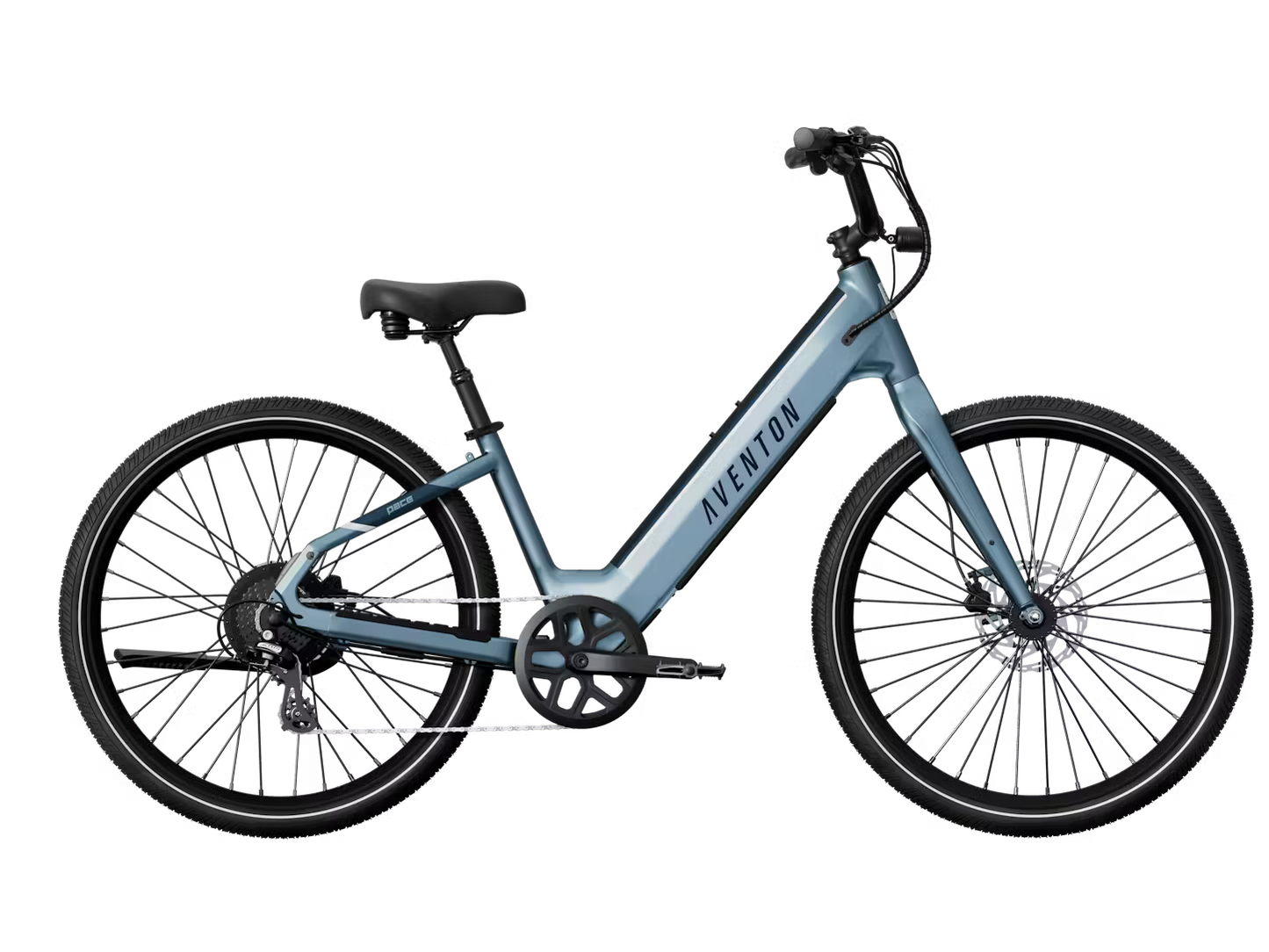

Aventon Pace 4 Step Through

Aventon Pace 4 Step-Through Ebike

General Info

• Model: Pace 4 Step-Through

• Weight: 58.2 lbs

• Total Weight Limit: 300 lbs

• Rider Height Range:

  • Regular: 4'11" – 5'7"

  • Large: 5'7" – 6'1"

• Water Resistance: IPX6

• Range: Up to 70 miles

• Ebike Class:

  • Class 2 by default

  • Convertible to Class 3 (depending on local laws)

• Ideal Use: Cruising

• Certifications:

  • Battery: UL 2271

  • Electrical System: UL 2849

Frameset

• Frame Material: 6061 Aluminum with Gravity Cast Front Triangle

• Fork: Rigid Aluminum Fork

• Rear Spacing: 142mm

• Fork Spacing: 100mm

• Frame Style: Step-Through

Wheelset

• Wheels: 27.5", 36-hole

• Tires: 27.5" x 2.1"

• Valves: Schrader

• Axles: Nutted

• Rear Hub: Hub drive motor integrated

Ebike System

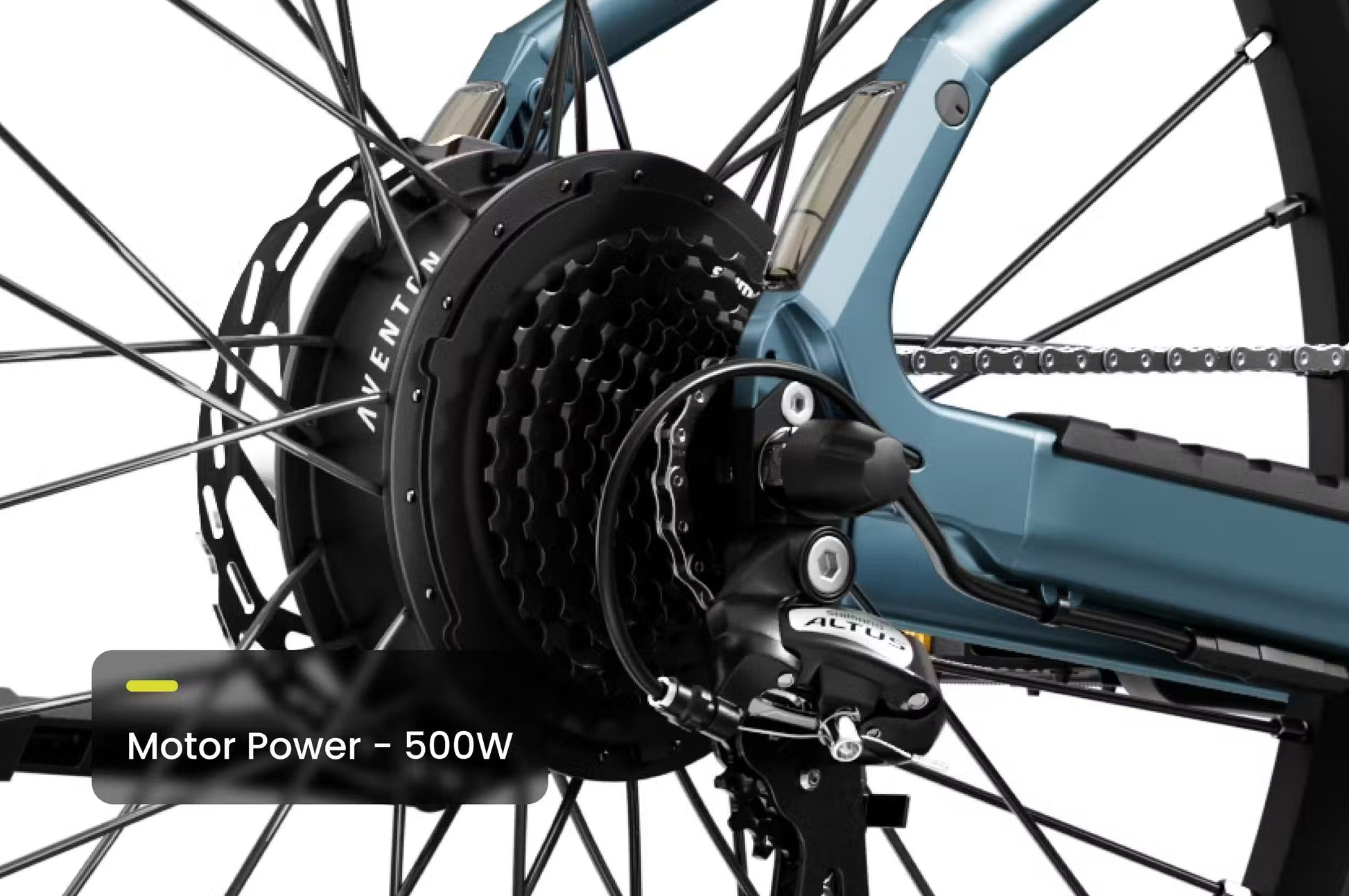

• Motor: 36V, 500W rear hub motor

• Peak Torque: 60Nm

• Display: Aventon BC147

• Battery:

  • 36V, 20Ah (733Wh)

  • LG 21700 cells

  • Removable Internal

  • Weight: 8.7 lbs

• Controller: 36V, 24A

• Throttle: Left-hand handlebar mounted

• Pedal Assist: 4 levels (torque sensor)

• Charger:

  • 42V / 4A output

  • Charge time: ~5 hours (0%–100%)

• Lights: Integrated front & rear

Brakes

• Front & Rear Brakes:

  • Tektro Hydraulic Disc Brakes with e-cutoff

• Brake Rotors:

  • 180mm, 6-bolt front and rear

Drivetrain

• Rear Derailleur: Shimano Altus 8-speed

• Shifter: Shimano 8-speed trigger

• Chain: 122L, 7/8 speed

• Cassette: 12–32T, 8-speed (Shimano CS-HG200-8)

• Crankset: 3-piece, 170mm arms with 48T chainring

• Bottom Bracket:

  • Square taper

  • 83mm x 158.5mm sealed

  • Double-sided torque sensor

• Pedals: 9/16" composite platform

Cockpit

• Saddle: Aventon Saddle

• Seatpost:

  • Aventon Suspension Seatpost

  • Ø30.9mm diameter, 350mm length, 50mm travel

• Seat Clamp: 34.9mm

• Handlebars:

  • BMX Style Aluminum

  • 31.8mm diameter, 720mm width

• Stem:

  • 31.8mm x 50mm

  • +15° rise

• Grips: Aventon Ergonomic Comfort Lock-on

• Headset: Sealed bearing

Included Accessories

• Kickstand: Rear mount (included)
