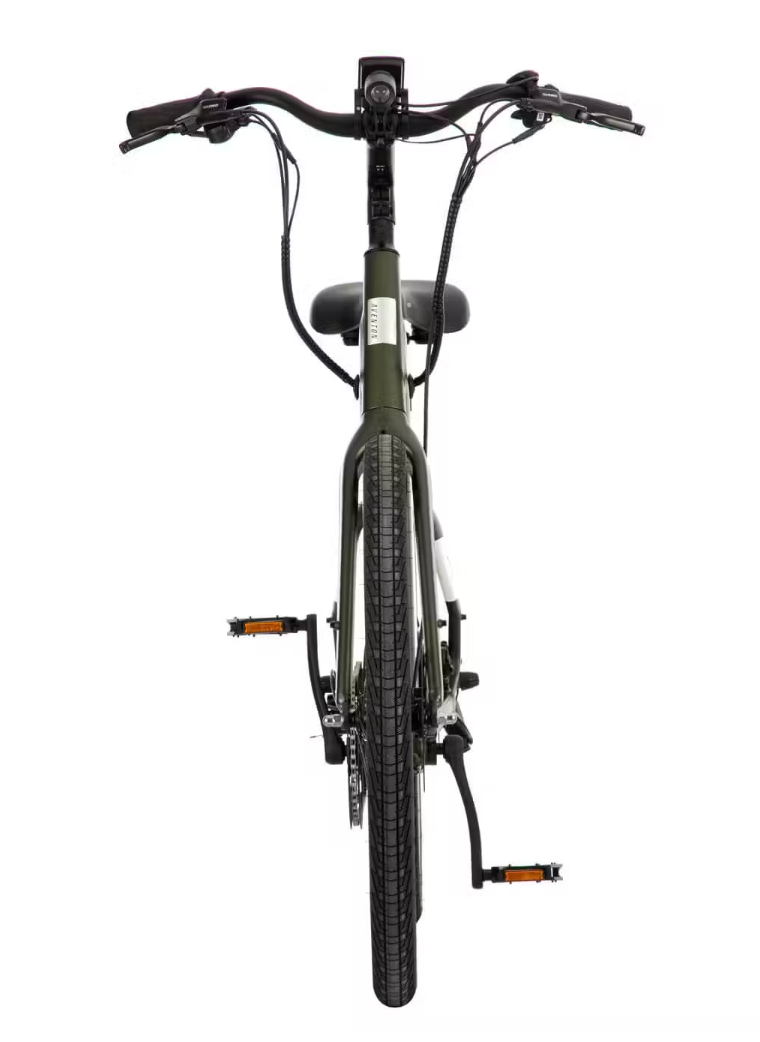

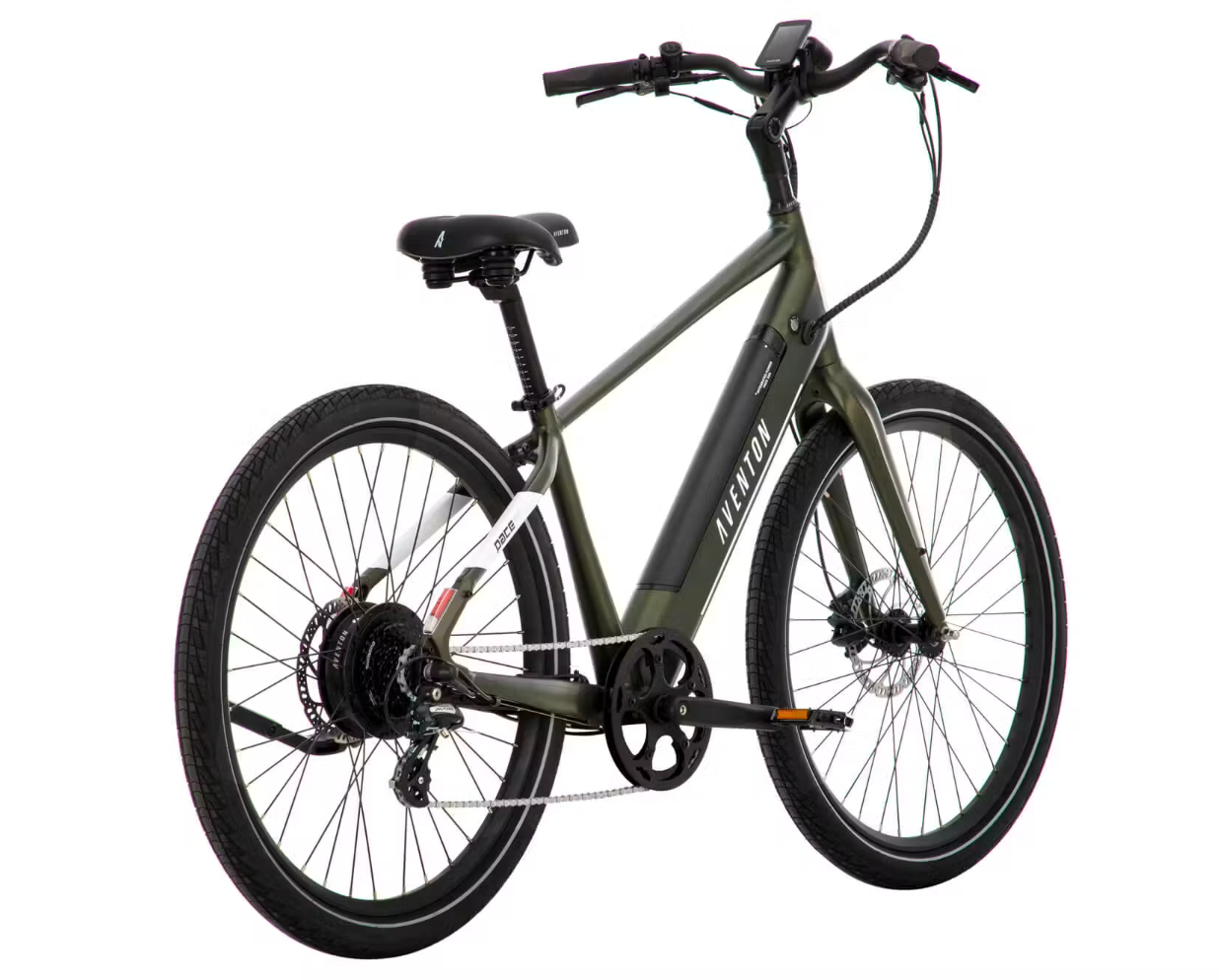

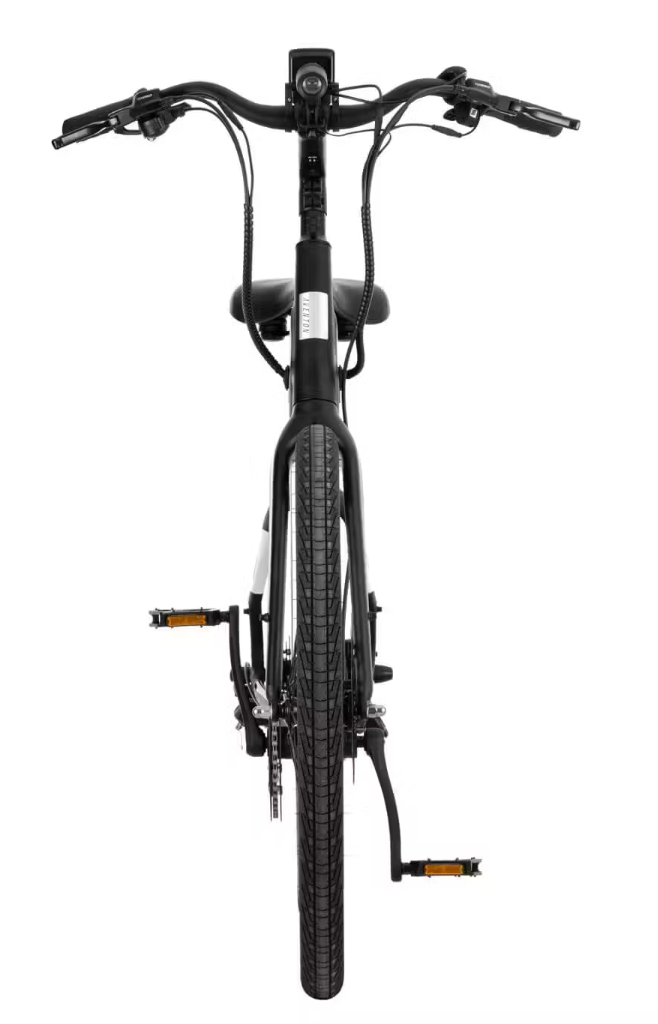

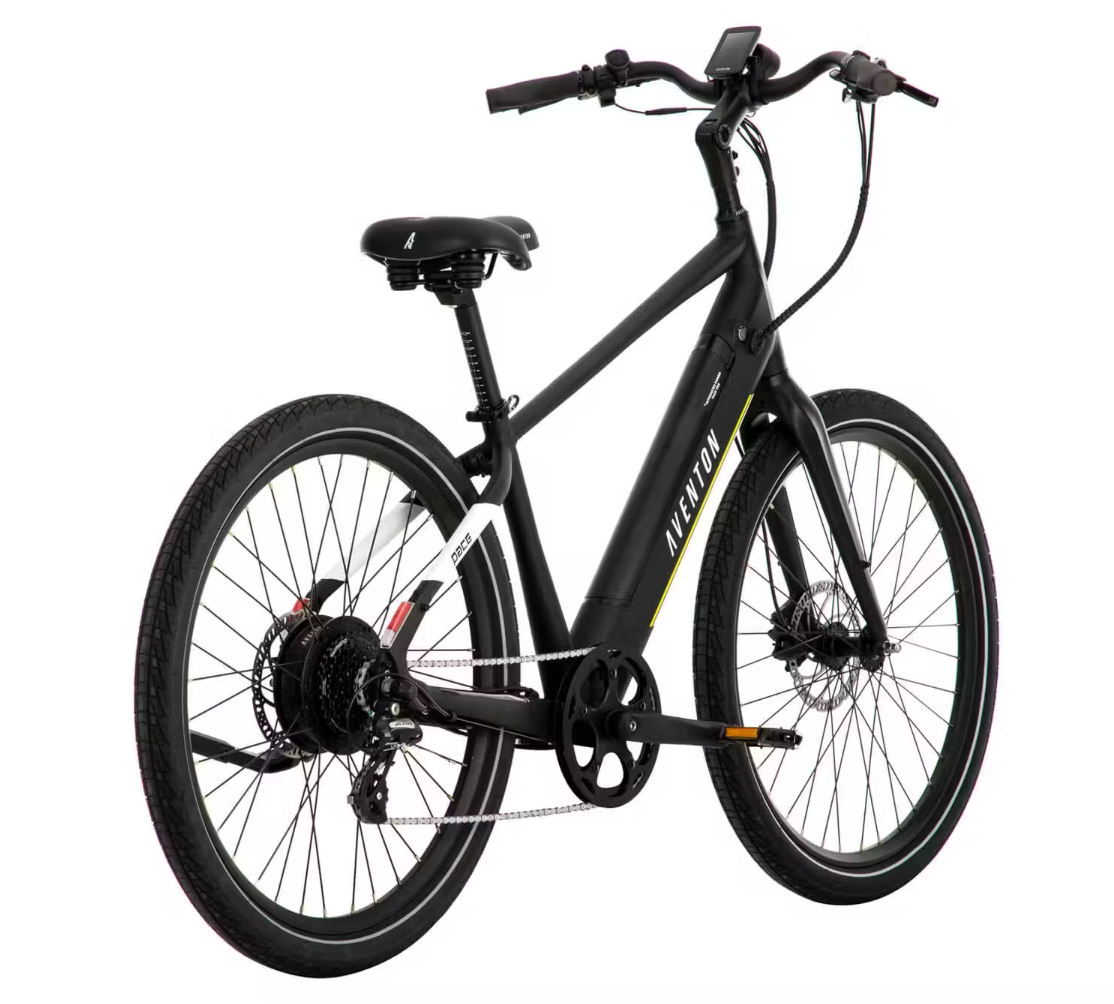

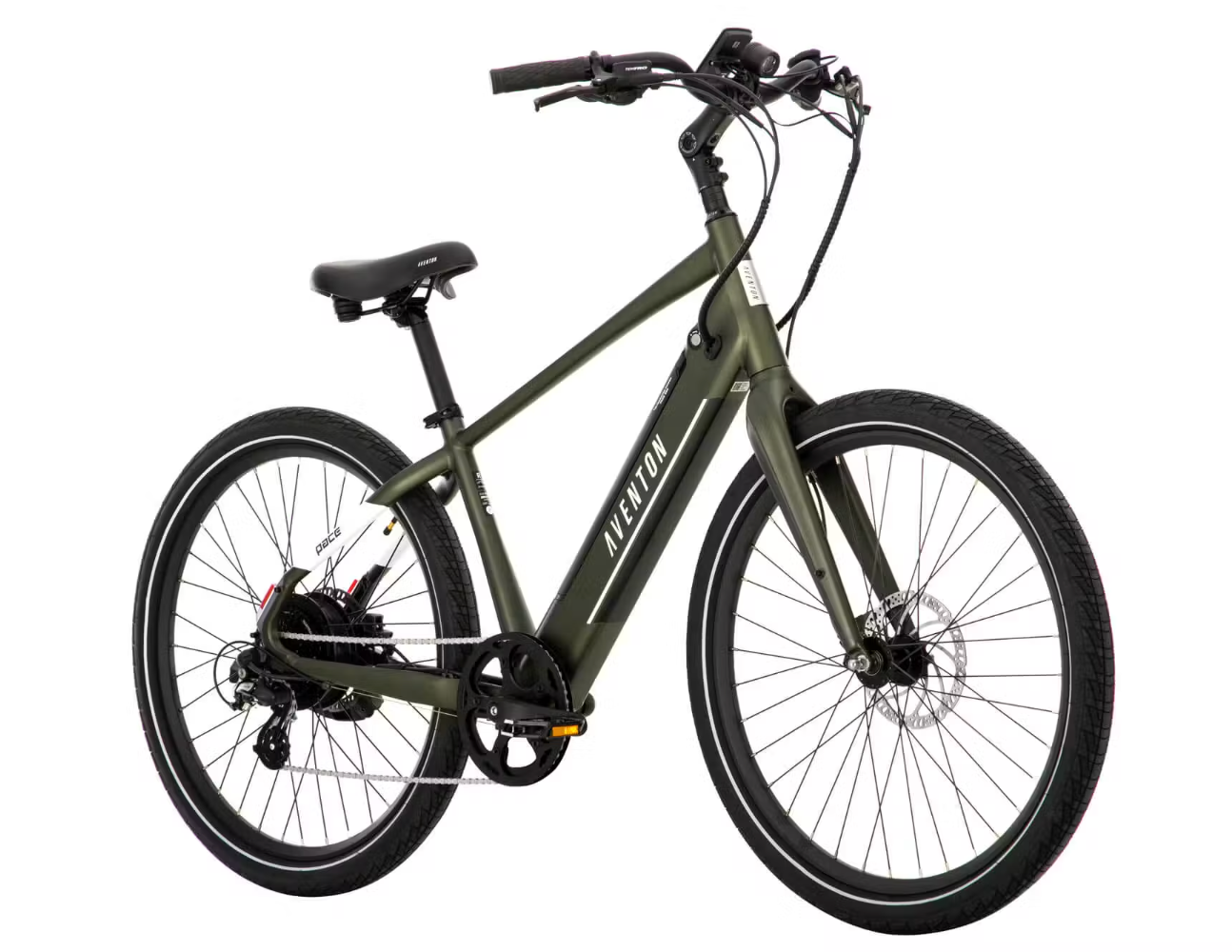

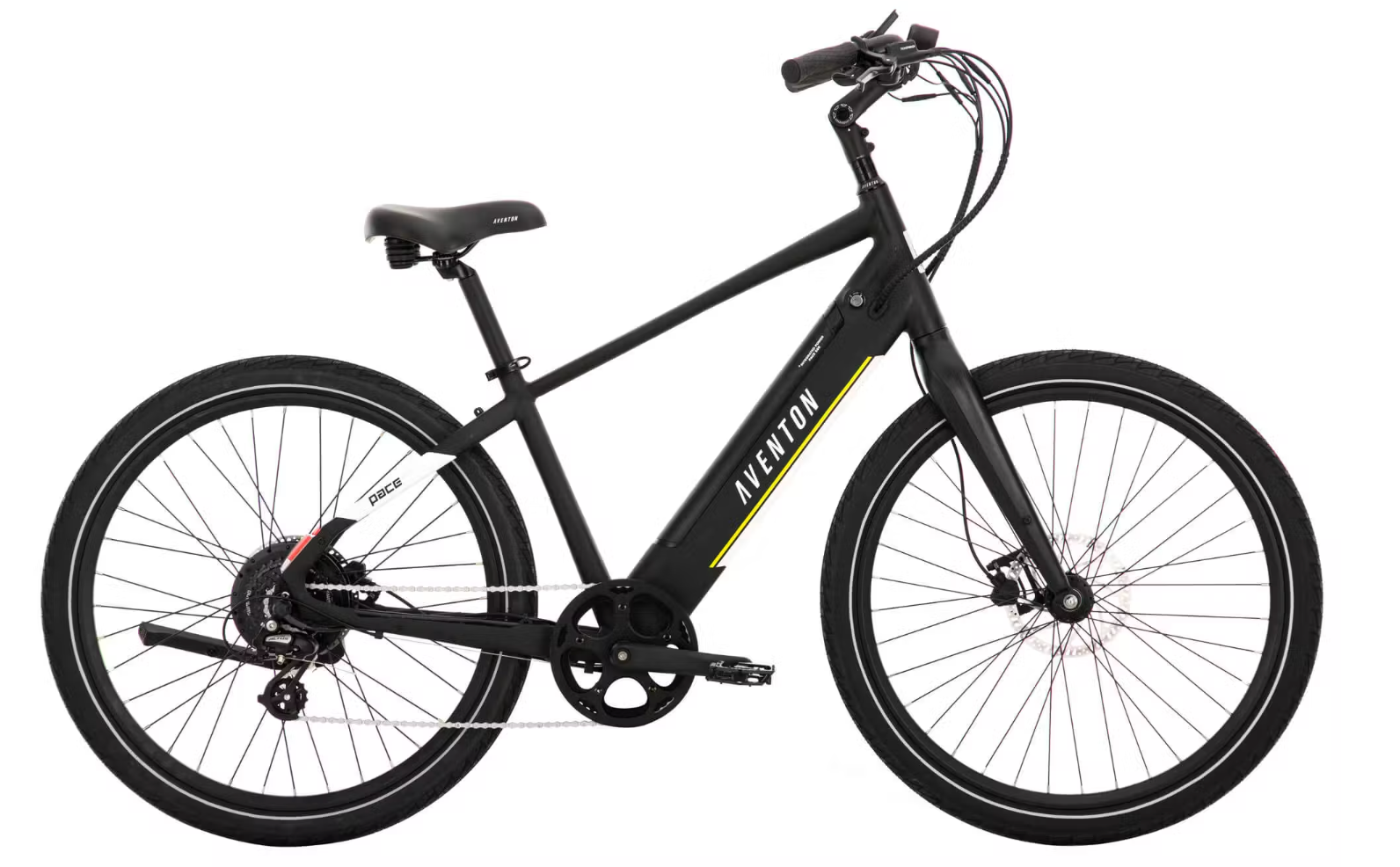

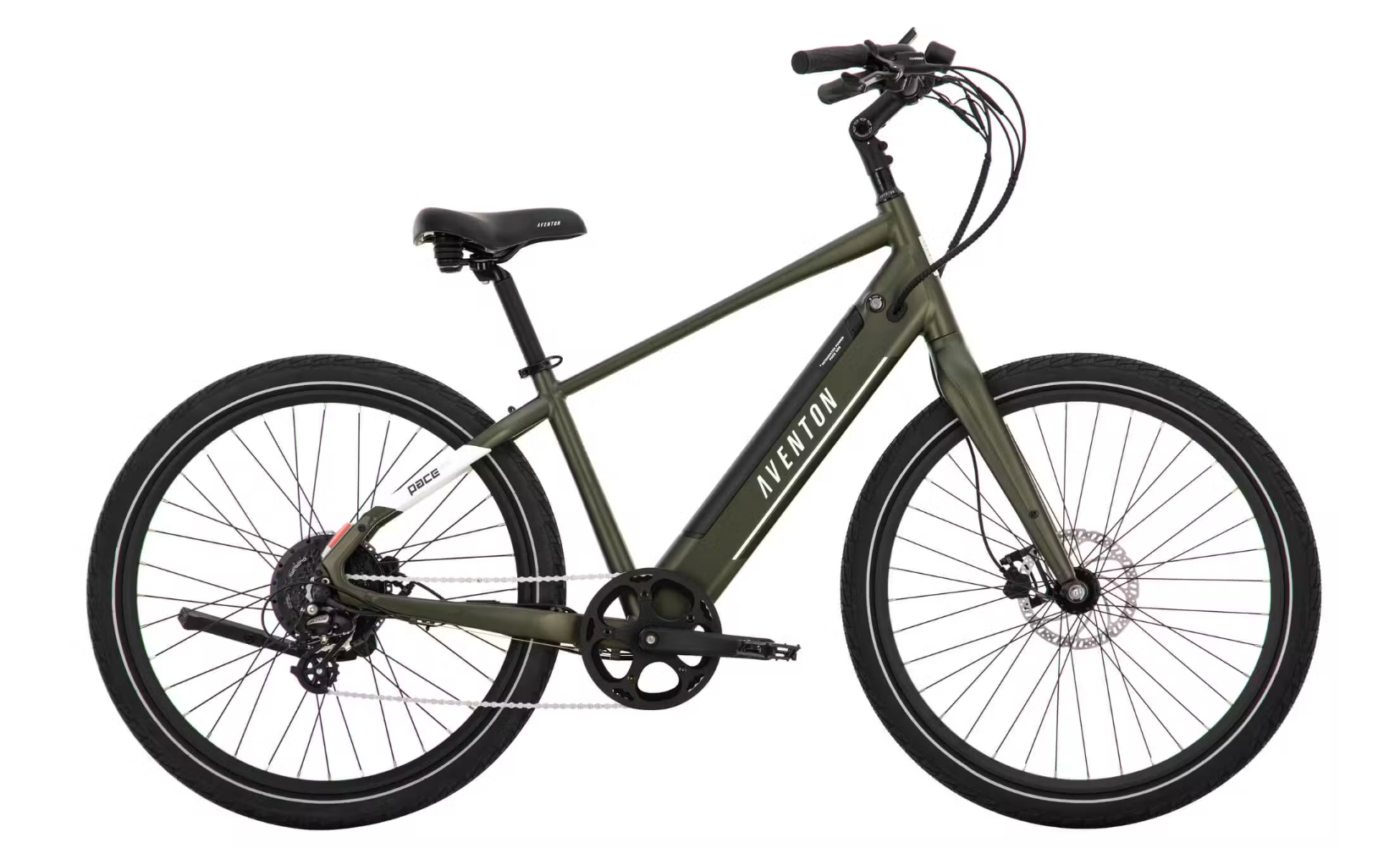

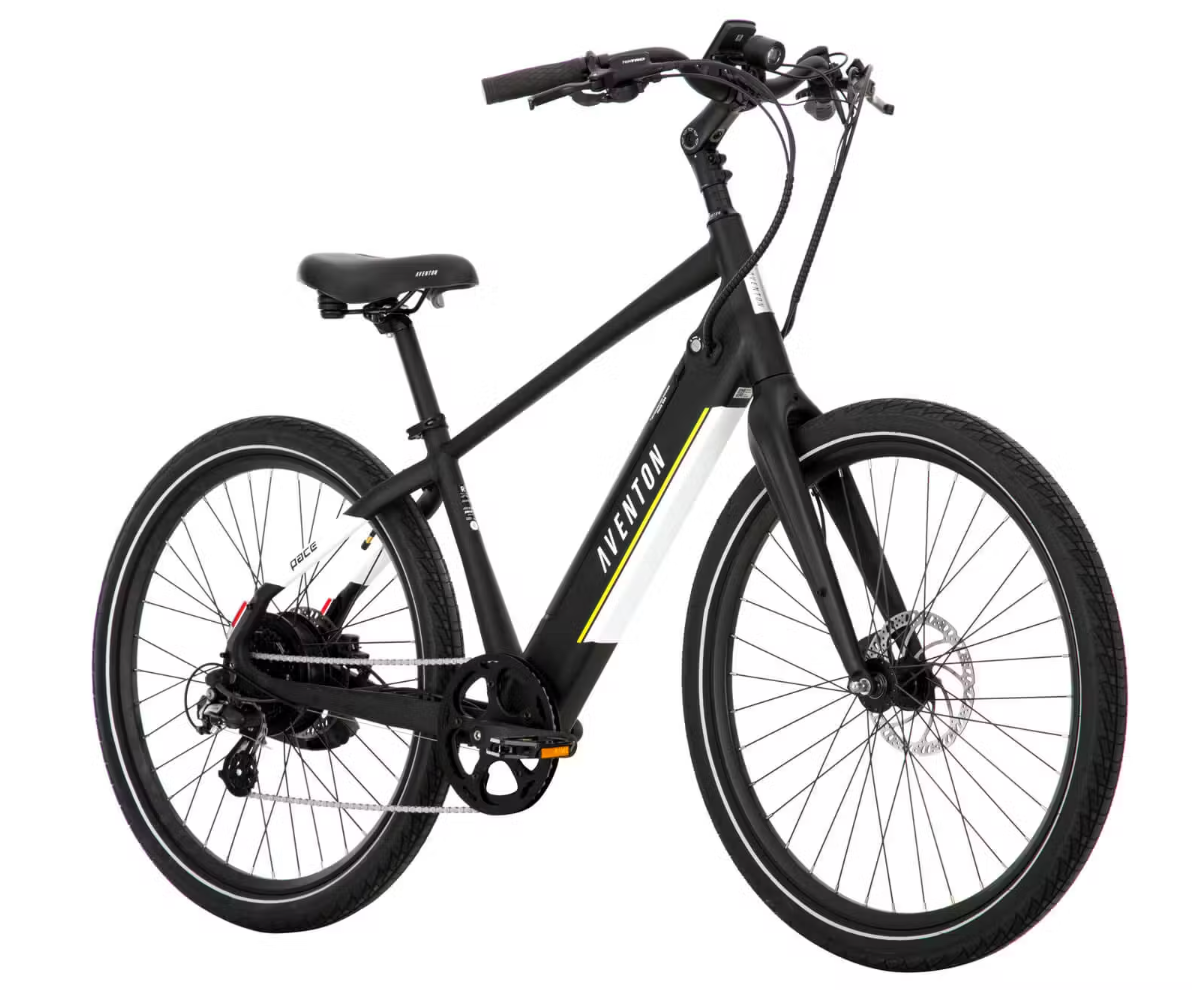

Aventon Pace 500.3 Step Over

Aventon Pace 500.3 Ebike – Step-Over Frame

General Info

• Model: Pace 500.3 Ebike (Step-Over)

• Pedal Assist: 4 levels

• Range: Up to 60 miles

• Weight: 52 lbs

• Total Weight Limit: 300 lbs

• Rider Height: 5'3" – 6'4"

• Ideal Use: Cruising

• Folding: No

• Safety Certifications: UL 2849 / UL 2271 (UL and TUV Certified)

• Box Dimensions: 150cm x 27cm x 86cm

Frameset

• Frame Style: Step-Over

• Frame Material: Single-Butted Aluminum Alloy

• Fork: AE-E08 PACE V2 AL fork

Wheelset

• Rims: Double Wall Aluminum, 36h front and rear

• Tubes: Butyl Rubber, Schrader Valve

• Hubs: 36h Disc, Nutted front and rear

• Tires: 27.5 x 2.1, Puncture Resistant with Reflective Sidewalls

Ebike System

• Throttle: Aventon LH Handlebar Mounted

• Display: LCD Smart "Easy Read"

• Battery: 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant

• Sensor: Double Sided Bottom Bracket Torque Sensor

• Charger: 48V, 3 Amp Fast Charger

• Lights: Integrated front and rear

• Speed Class: Class 2

• Motor: 48V, 500w sustained, 864w peak brushless hub motor

Brakes

• Type: Hydraulic

Drivetrain

• Bottom Bracket: Square Taper, Sealed, Torque Sensor

• Crankset: 170mm with 48T

• Pedals: 9/16" Alloy Platform

• Cassette: 12-32T, 8 Speed

• Rear Derailleur: Shimano 8 Speed

• Shift Lever: 8 Speed Trigger

• Chain: 122 Link, 8 Speed

Cockpit

• Saddle: Aventon Saddle

• Seatpost: Forged Alloy, 30.9mm, 2-Bolt Clamp

• Seat Clamp: 34.9mm Quick Release

• Stem: Threadless, 31.8mm, 90mm

• Handlebars: Aluminum, 31.8mm Sweptback

• Headset: Sealed Bearing

• Grips: Ergonomic Comfort

Included Accessories

• Kickstand: Rear mount, included

• Fenders: Compatible

• Rear Rack: Compatible

Miscellaneous

• Suspension: None
