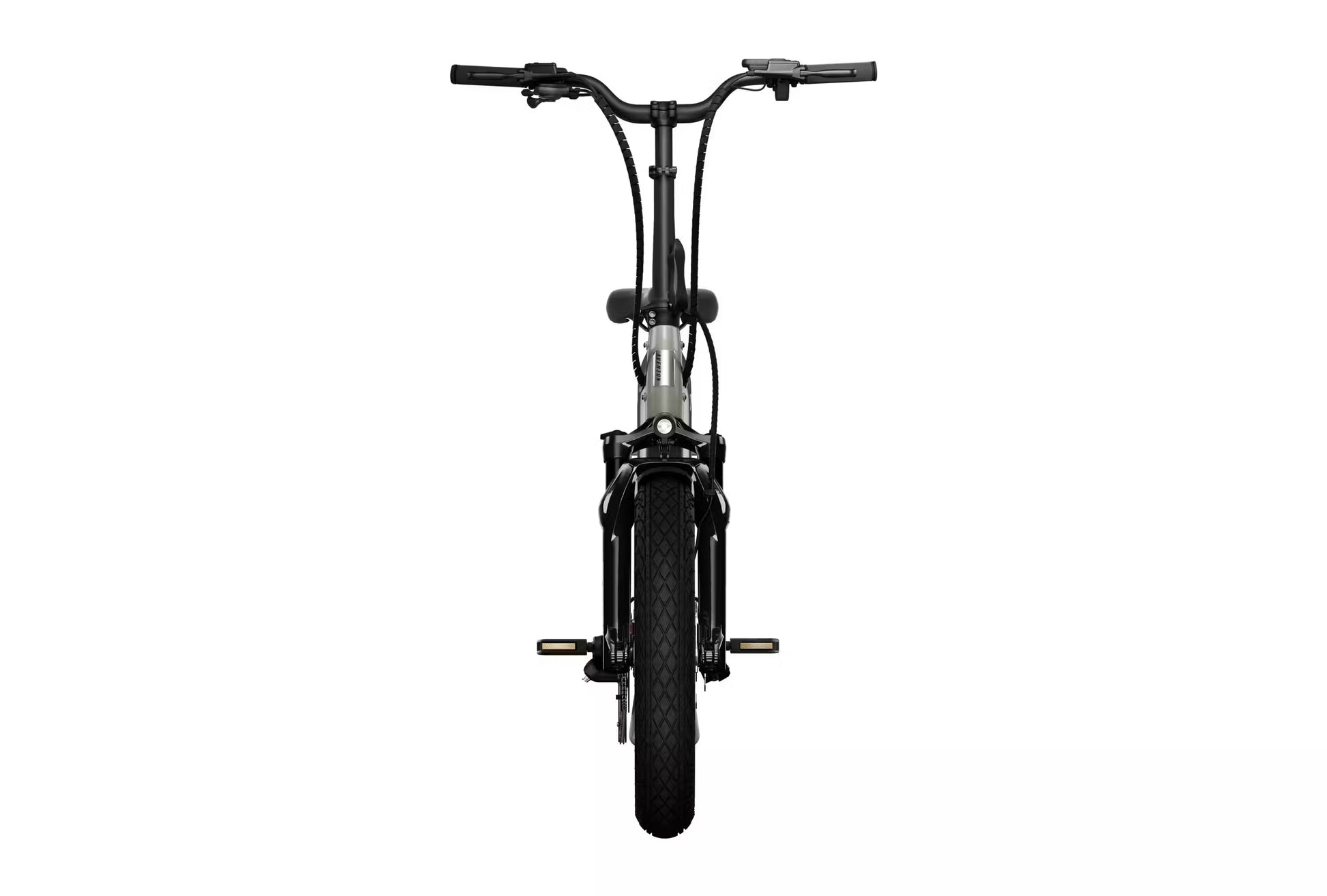

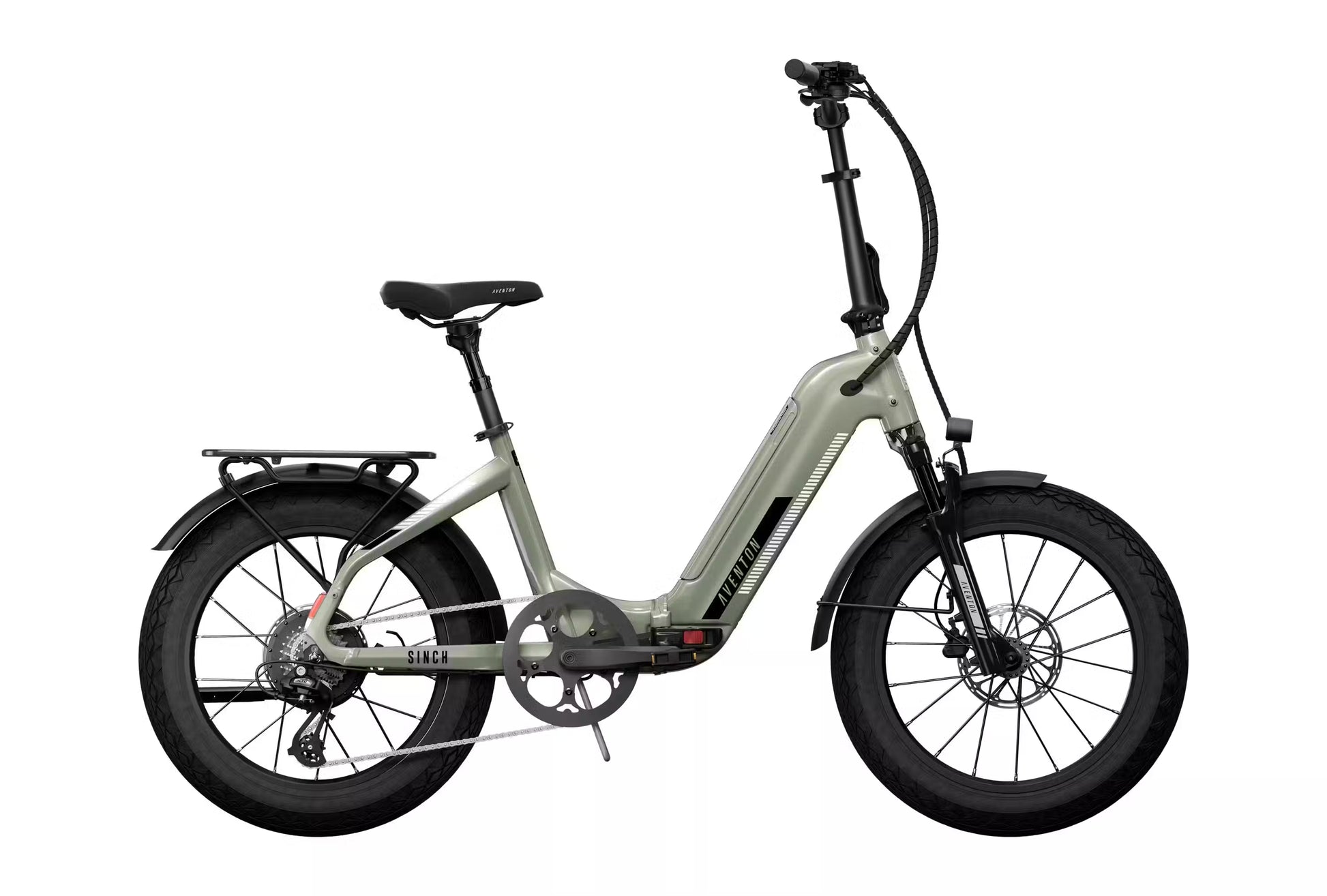

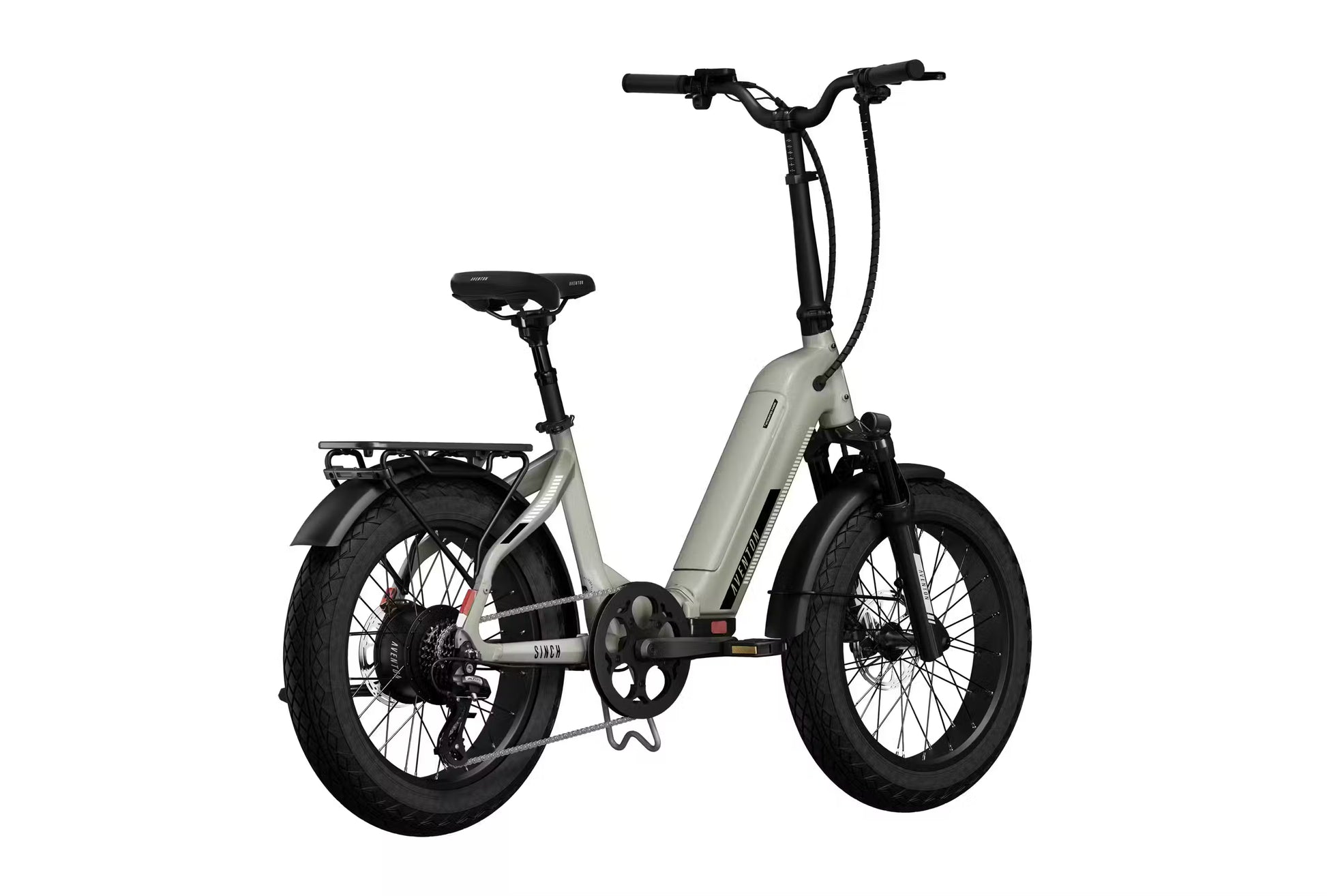

Aventon Sinch 2.5

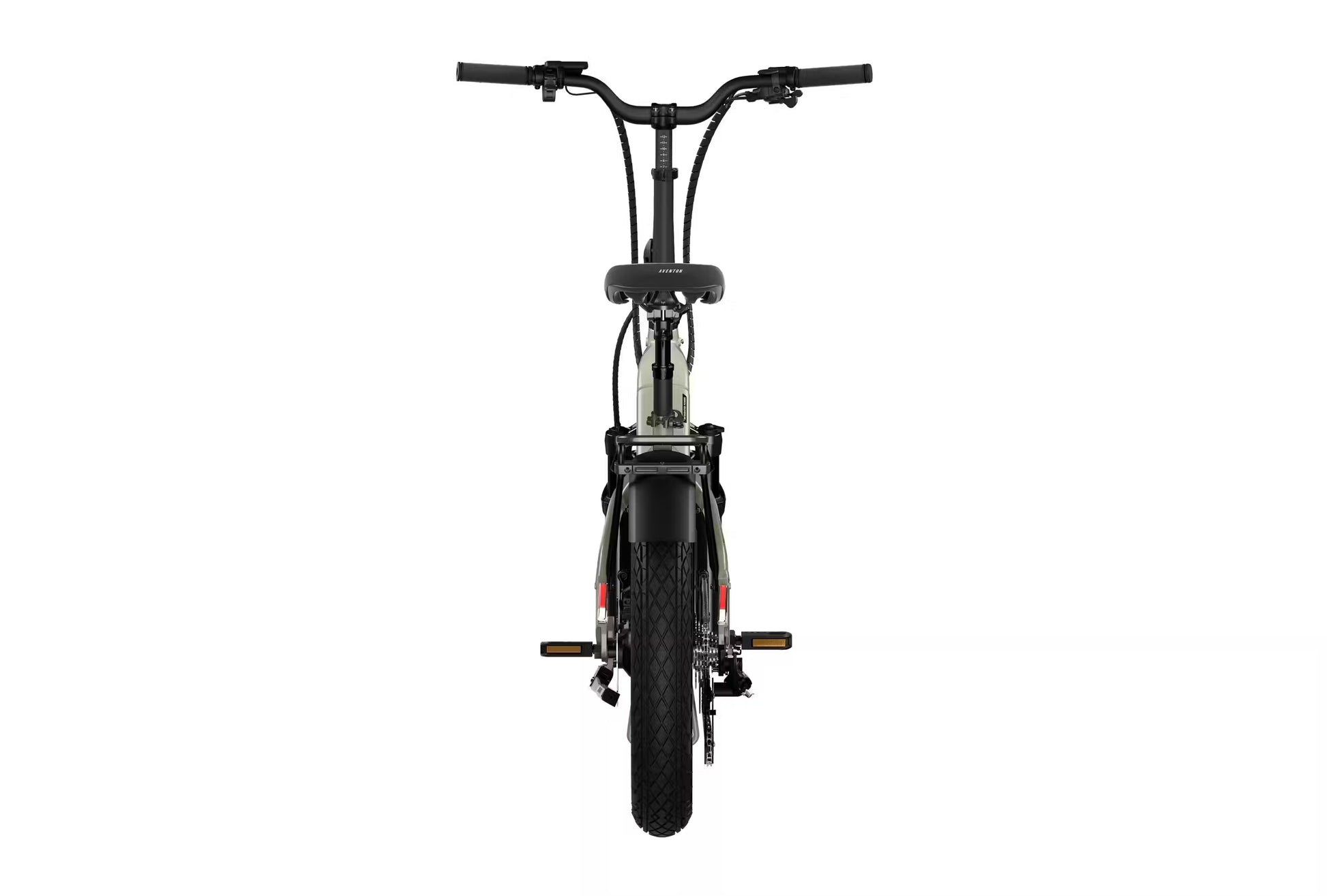

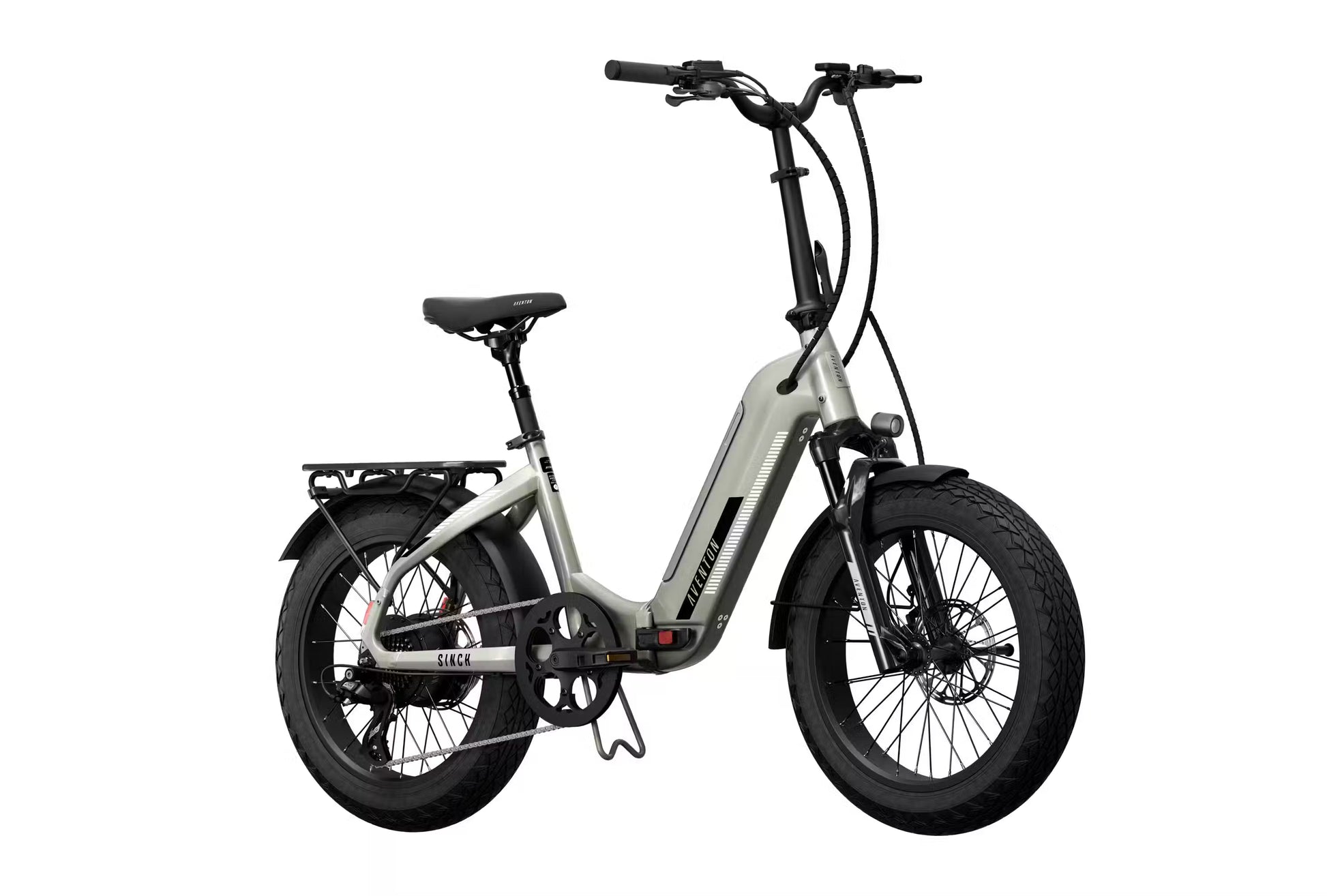

Aventon Sinch 2.5 Ebike – Step-Through

General Info

• Model: Sinch 2.5

• Bike Type: Folding, Step-Through

• Weight: 68 lbs

• Total Weight Limit: 300 lbs

• Rider Height Range: 4'11" – 6'2"

• Box Size: 43" x 24" x 33"

• Water Resistance: IPX6

• Ebike Class: Class 2

• Ideal Use: All-Terrain

• Range: Up to 55 miles

• Pedal Assist Levels: 4

• Certifications:

  • Electrical: UL 2849

  • Battery: UL 2271

Frameset

• Frame Material: 6061 Single-Butted Folding Aluminum Alloy

• Fork: Aventon Coil Fork w/ Lockout, Black Stanchions

• Frame Style: Step-Through

• Rear Spacing: 177mm

• Fork Spacing: 135mm

Wheelset

• Front Wheel:

  • Size: 20x4"

  • Double-wall aluminum fat tire rim

  • 36 spokes, 13g stainless steel (173mm NDS / 175mm DS)

  • Schrader valve, nutted axle, 135mm spacing

• Rear Wheel:

  • Size: 20x4"

  • Double-wall aluminum fat tire rim

  • 36 spokes, 12g stainless steel (128mm NDS / 127mm DS)

  • Schrader valve, 177mm spacing, hub drive motor

• Tires: Innova IA-2579 20x4.0

Ebike System

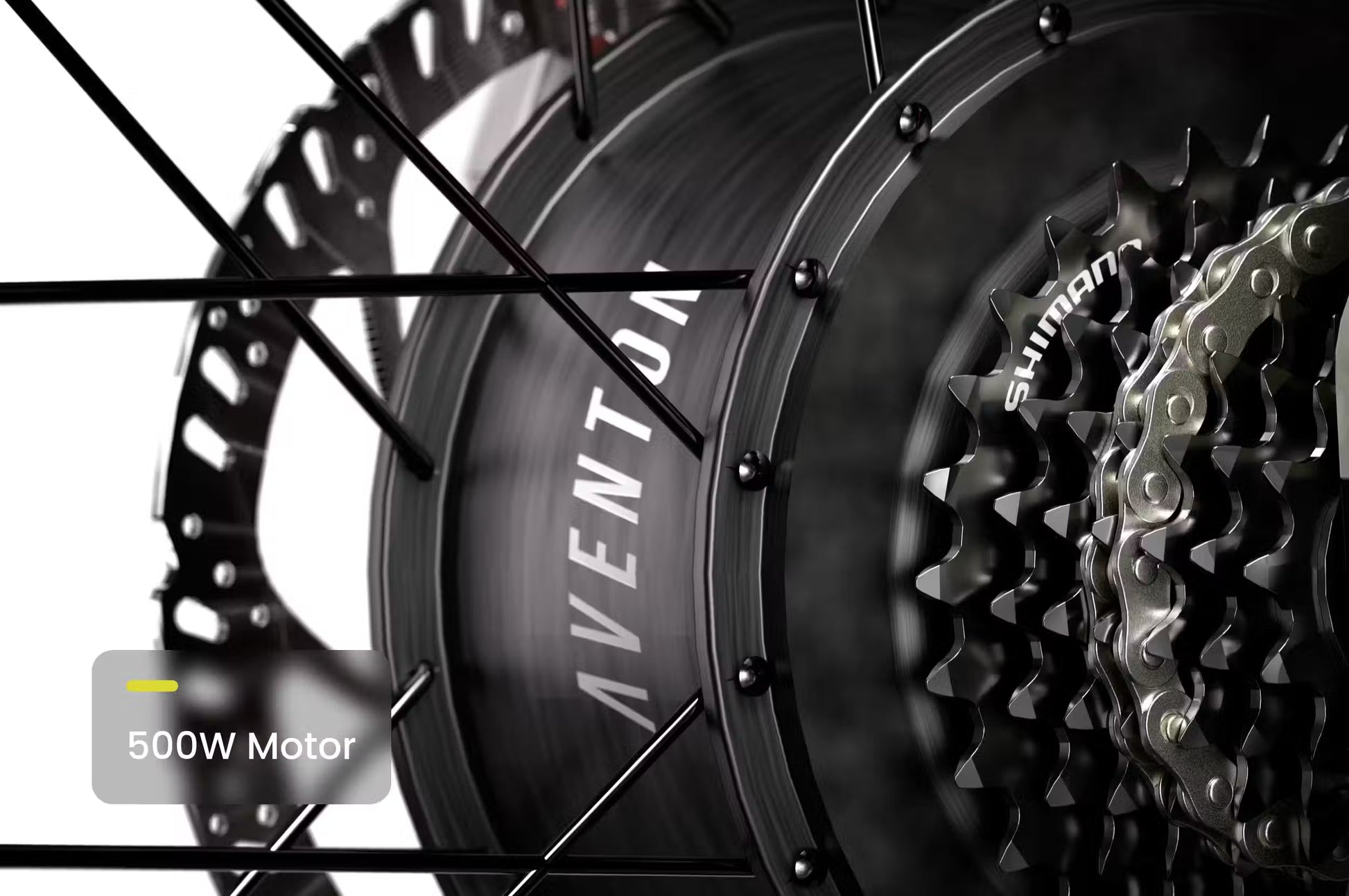

• Motor: 48V, 500W sustained / 1056W peak brushless hub motor

• Motor Torque: 60Nm

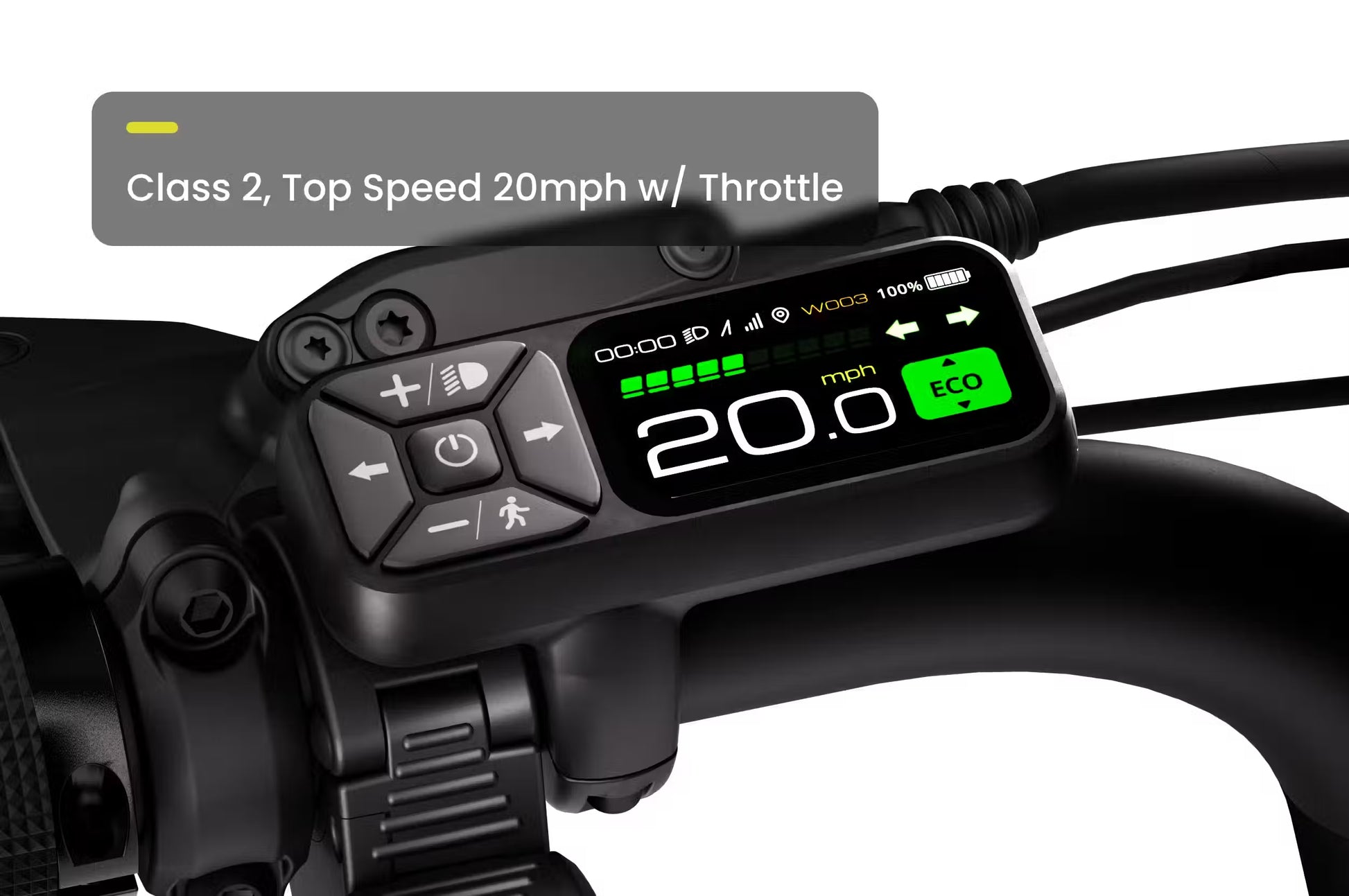

• Display: Aventon BC147

• Battery:

  • Internal, Removable

  • 48.8V, 14Ah (636.4Wh)

  • Weight: 7.6 lbs

• Controller: 48V / 22A

• Throttle: Left-hand mounted

• Torque Sensor: Dual-sided bottom bracket torque sensor

• Charger: 48V, 3 Amp Fast Charger

• Charge Time (0–100%): 4–5 hours

• Lights: Integrated front and rear

Brakes

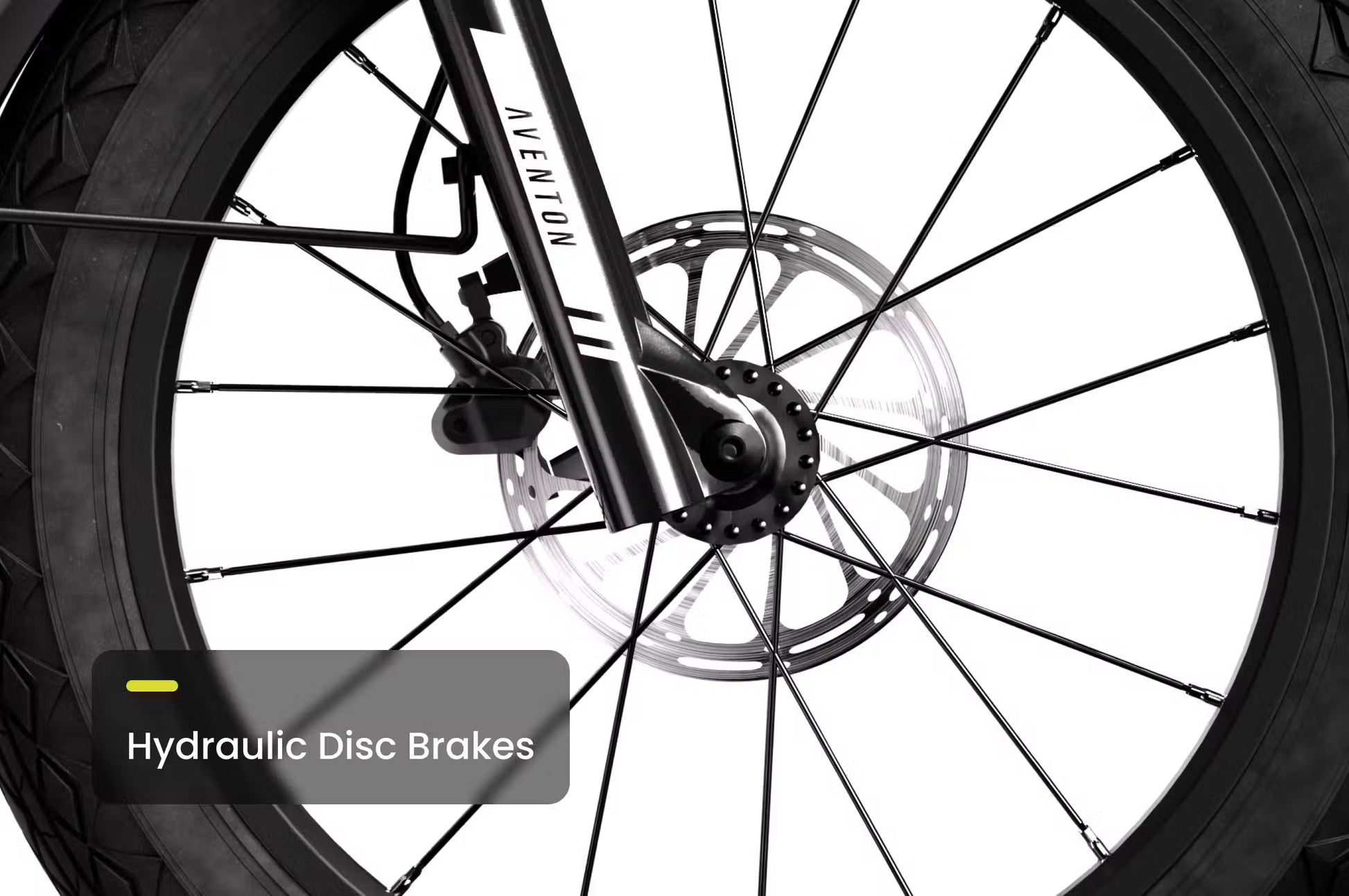

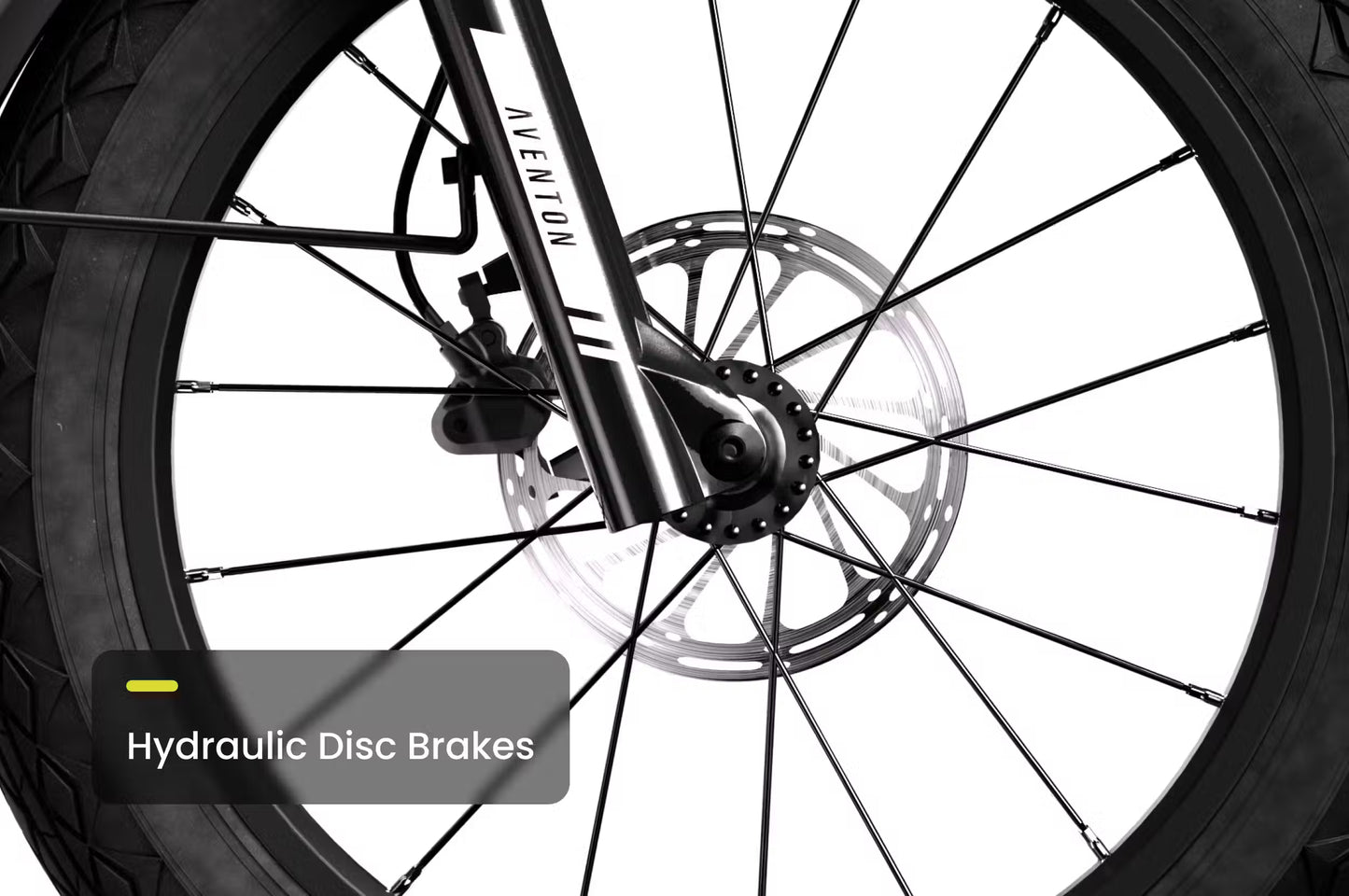

• Front & Rear Brakes: Tektro HD-T280 hydraulic disc brakes (no e-cutoff)

• Brake Rotors: 180mm, 6-bolt front and rear

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310, 8-Speed

• Shifter: Shimano 8-Speed Trigger

• Cassette: 12–32T, 8-Speed (Shimano CS-HG200-8)

• Crankset: 3-piece, 170mm arms

• Chainring: 48T, BCD 130

• Chain: 114 link, 8-Speed

• Bottom Bracket: Square taper, sealed, 100x159.5mm, dual torque sensors

• Pedals: 9/16" composite, folding

Cockpit

• Saddle: Aventon Saddle

• Seatpost:

  • Aventon Suspension

  • Diameter: 30.9mm

  • Length: 350mm

• Seat Clamp: 34.9mm quick release

• Handlebars:

  • Aluminum, 31.8mm diameter

  • Width: 620mm

• Grips: Aventon glue-on grips

• Headset: Sealed Bearing ZS44/28.6 | ZS55/40

Included Accessories

• Kickstand: Rear mount

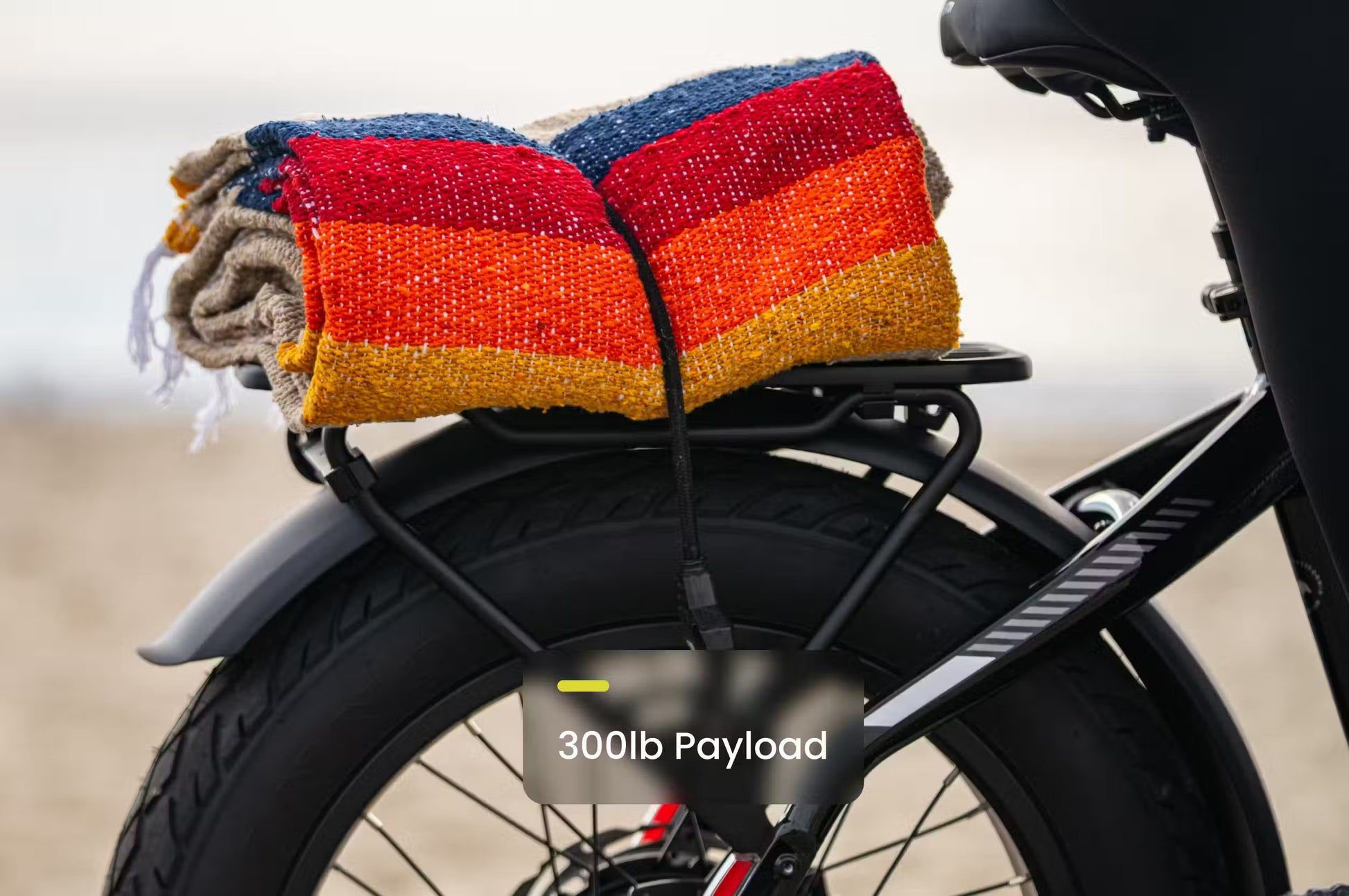

• Rear Rack: Included (Weight Limit: 55 lbs)

• Fenders: Included
