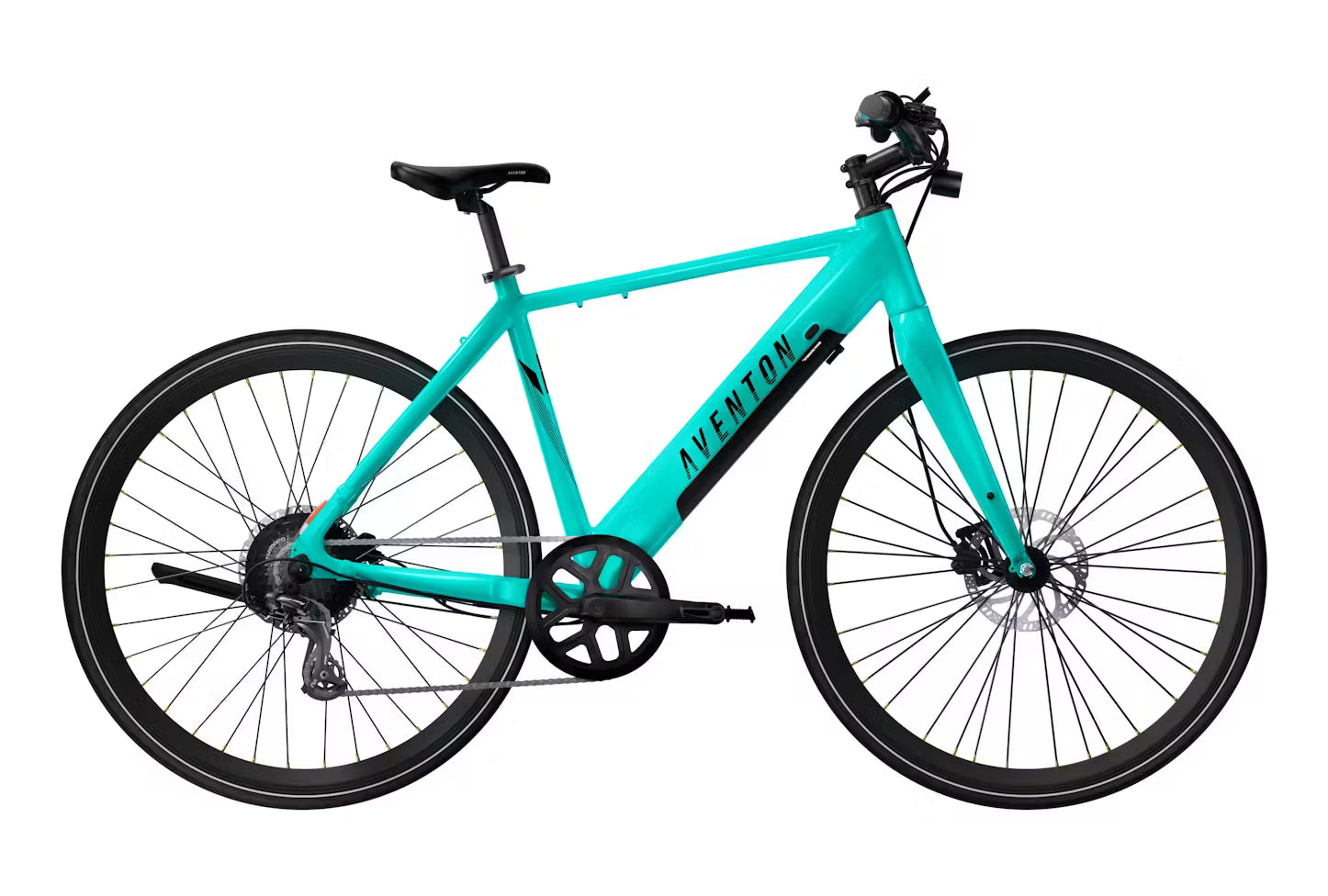

Aventon Soltera 2.5

Soltera 2.5 Ebike – Technical Specifications

Overview

• Type: Class 2 Urban Ebike

• Weight: 46 lbs

• Rider Height Options:

  • Small: 5'1"–5'5"

  • Medium: 5'5"–5'9"

  • Large: 5'10"–6'2"

• Max Total Weight Capacity: 300 lbs

• Range: Up to 46 miles

• Water Resistance: IPX6

• Warranty: 2 Years

• Returns: 14-Day Return Policy

• Certifications: UL 2849, UL 2271, TUV

Ebike System

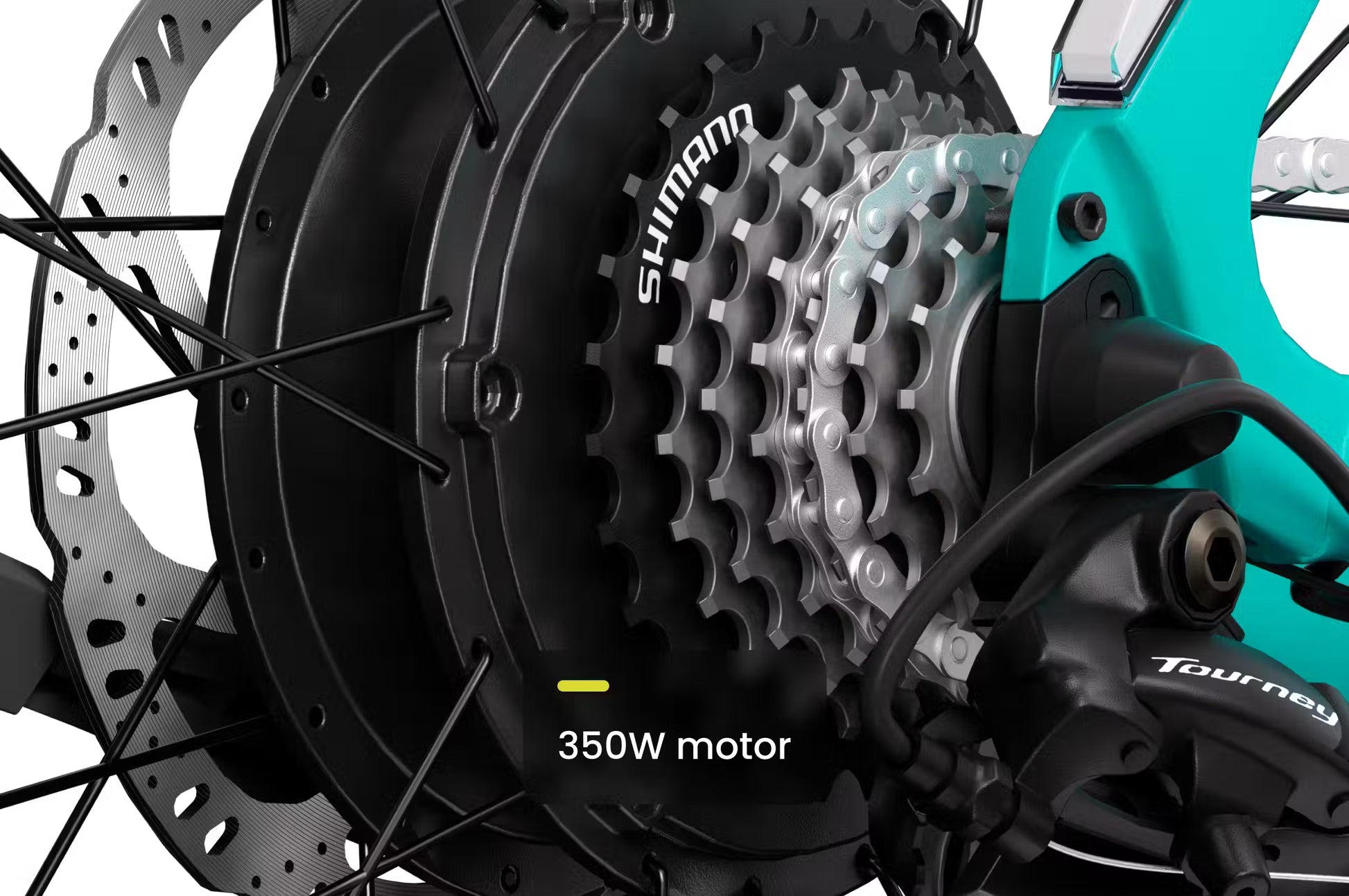

• Motor: 36V, 350W sustained / 540W peak brushless rear hub motor

• Motor Torque: 45Nm

• Speed Class: Class 2 (20 mph max with throttle)

• Throttle: Aventon left-side thumb throttle

• Pedal Assist Levels: 4

• Sensor: Dual-sided bottom bracket torque sensor

• Battery: 36V, 9.6Ah (345.6Wh), removable lithium-ion with LG cells

• Battery Weight: 4.14 lbs

• Charge Time: 4 to 5 hours

• Display: Aventon BC280

• Integrated Lights: Front and rear

Frame and Build

• Frame Material: 6061 Double-Butted Aluminum Alloy with internal battery

• Fork: AE-E09 Soltera AL

• Frame Style: Step-Over

• Fork Spacing: 100mm

• Rear Dropout Spacing: 142mm

• Box Dimensions: 59 x 11 x 33 inches

Wheelset and Tires

• Wheel Size: 700c

• Rims: Double-wall aluminum, 36-spoke, black finish

• Tires: Kenda K1085, 700x38C

• Valve Type: Presta

• Spokes: 13g stainless steel

  • Front: 267mm NDS / 269mm DS

  • Rear: 243mm NDS / 242mm DS

Braking System

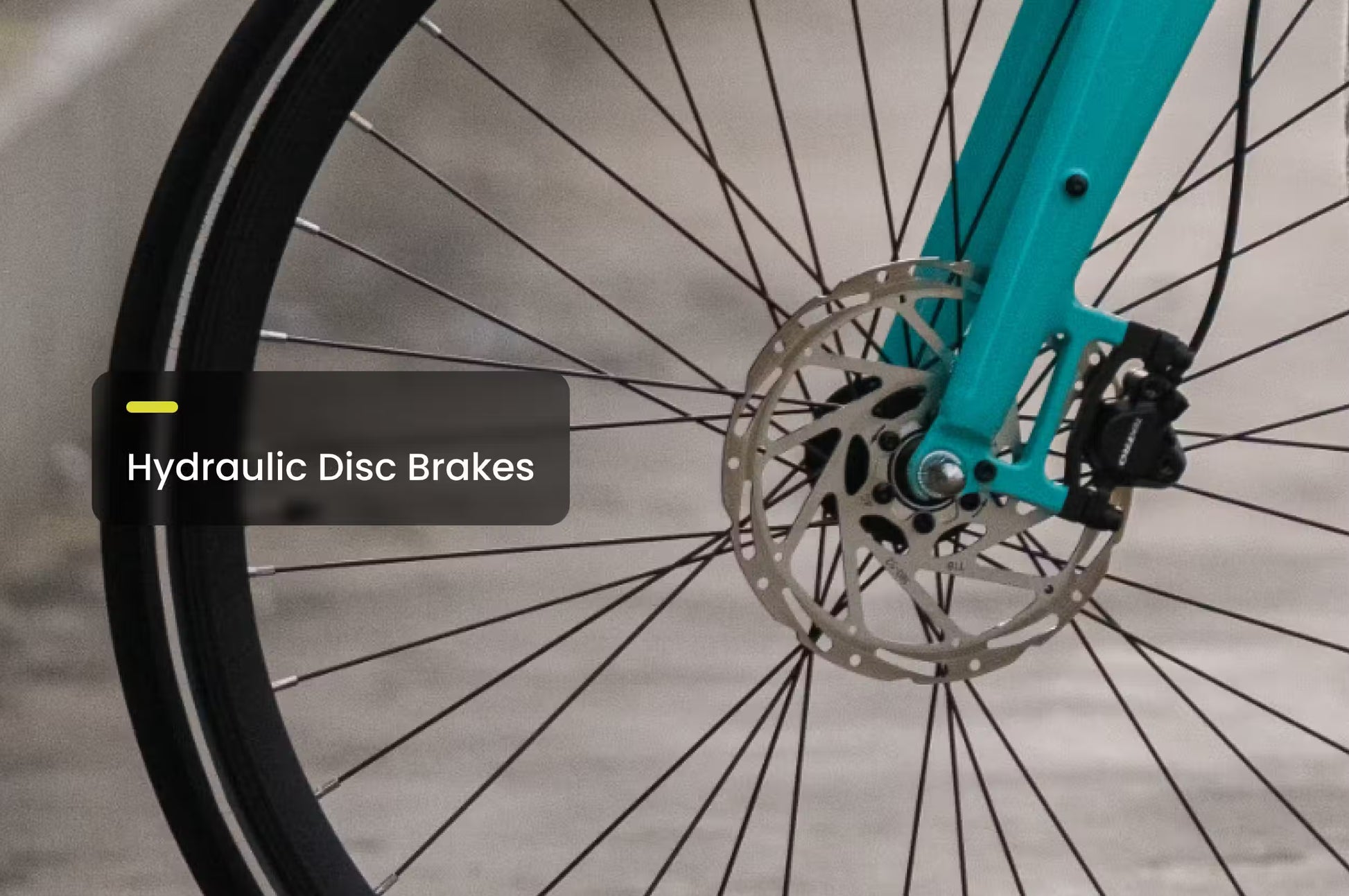

• Front Brake: Tektro HD-T280 Hydraulic Disc (no e-cutoff), 180mm rotor

• Rear Brake: Tektro HD-T280 Hydraulic Disc (no e-cutoff), 180mm rotor

Drivetrain

• Rear Derailleur: Shimano Tourney RD-TY300D (7-speed)

• Shifter: Shimano RevoShift 7-speed twist

• Freewheel: Shimano MF-TZ500-7, 14-28T

• Chain: 7/8 speed, 110-link

• Crankset: 3-piece, 170mm crank arms

• Chainring: 48T, 130 BCD

• Bottom Bracket: Square taper, sealed, dual-sided torque sensor

Cockpit and Contact Points

• Handlebars: 620mm wide, 31.8mm aluminum

• Grips: Lock-on with integrated twist shifter

• Seatpost: Aventon 27.2mm

• Seat Clamp: Aventon 31.8mm

• Saddle: Aventon branded

• Headset: Aventon integrated with cable routing

Included Accessories

• Kickstand: Rear mount

• Integrated Lights: Front and rear (powered by battery)
