Aventure M Ebike – Technical Specifications

General Info

• Model: Aventure M

• Use Case: All-Terrain Performance

• Weight: 73 lbs

• Total Weight Limit: 400 lbs

• Rider Height Ranges:

  • Regular: 5'3" – 5'10"

  • Large: 5'10" – 6'4"

• Ebike Class: Class 1

  • (Upgradeable to Class 2 with aftermarket throttle, or to Class 3 via settings)

• Range: Up to 85 miles

• Water Resistance:

  • Bike: IPX6

  • Motor: IP67

• Battery Certification: UL 2271

Frameset

• Frame: 6061 Aluminum Alloy

• Fork: Aventon/Zoom Suspension Fork, 80mm Travel, Lockout

• Rear Spacing: 190mm

• Fork Spacing: 135mm

Wheelset

• Front Wheel: 26", 36-Hole Aluminum Fat Tire Rim, Thru Axle, Schrader Valve

• Rear Wheel: 26", 36-Hole Aluminum Fat Tire Rim, Thru Axle, Schrader Valve

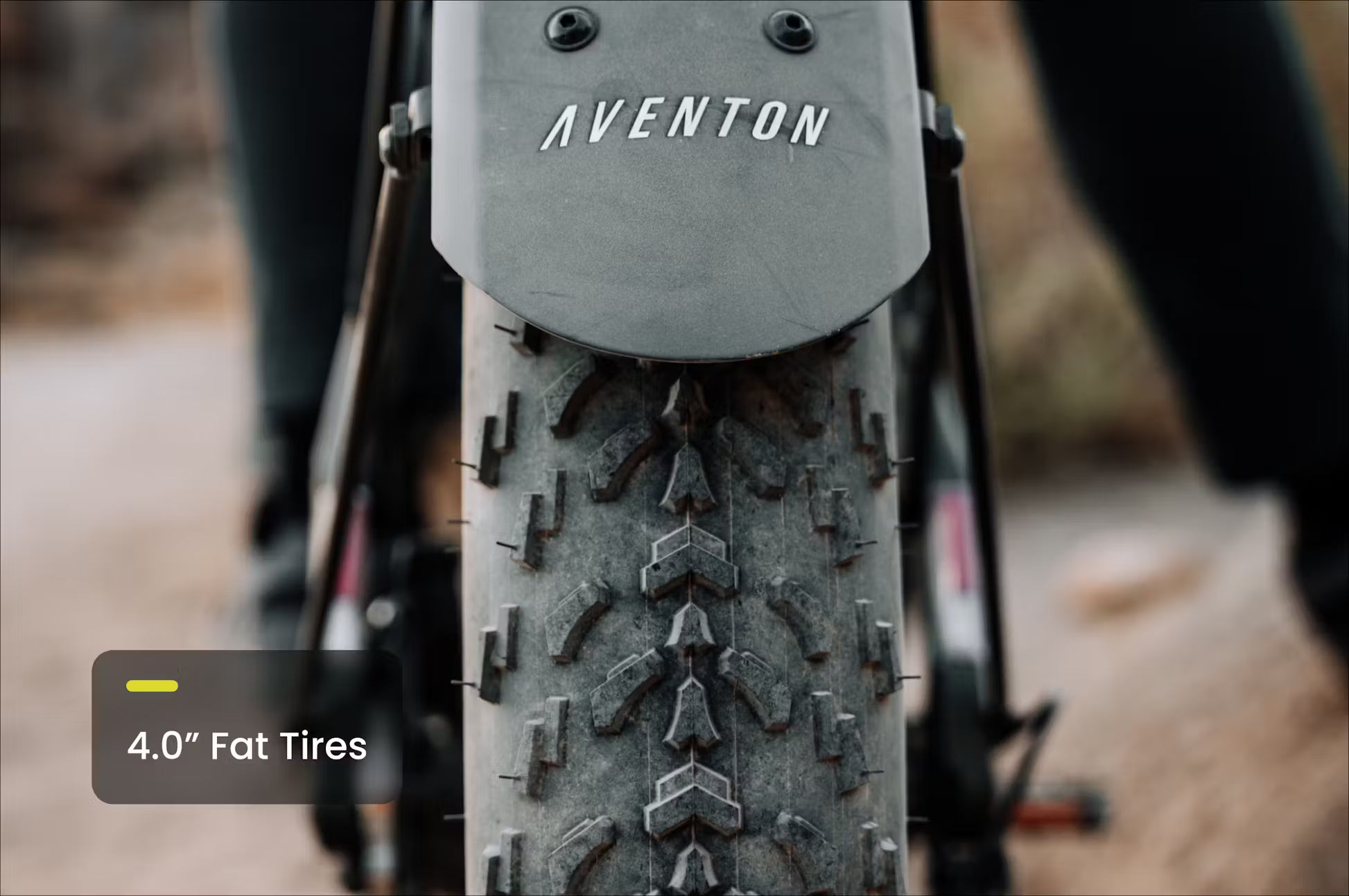

• Tires: Inova 26 x 4.0, Puncture Resistant

Ebike System

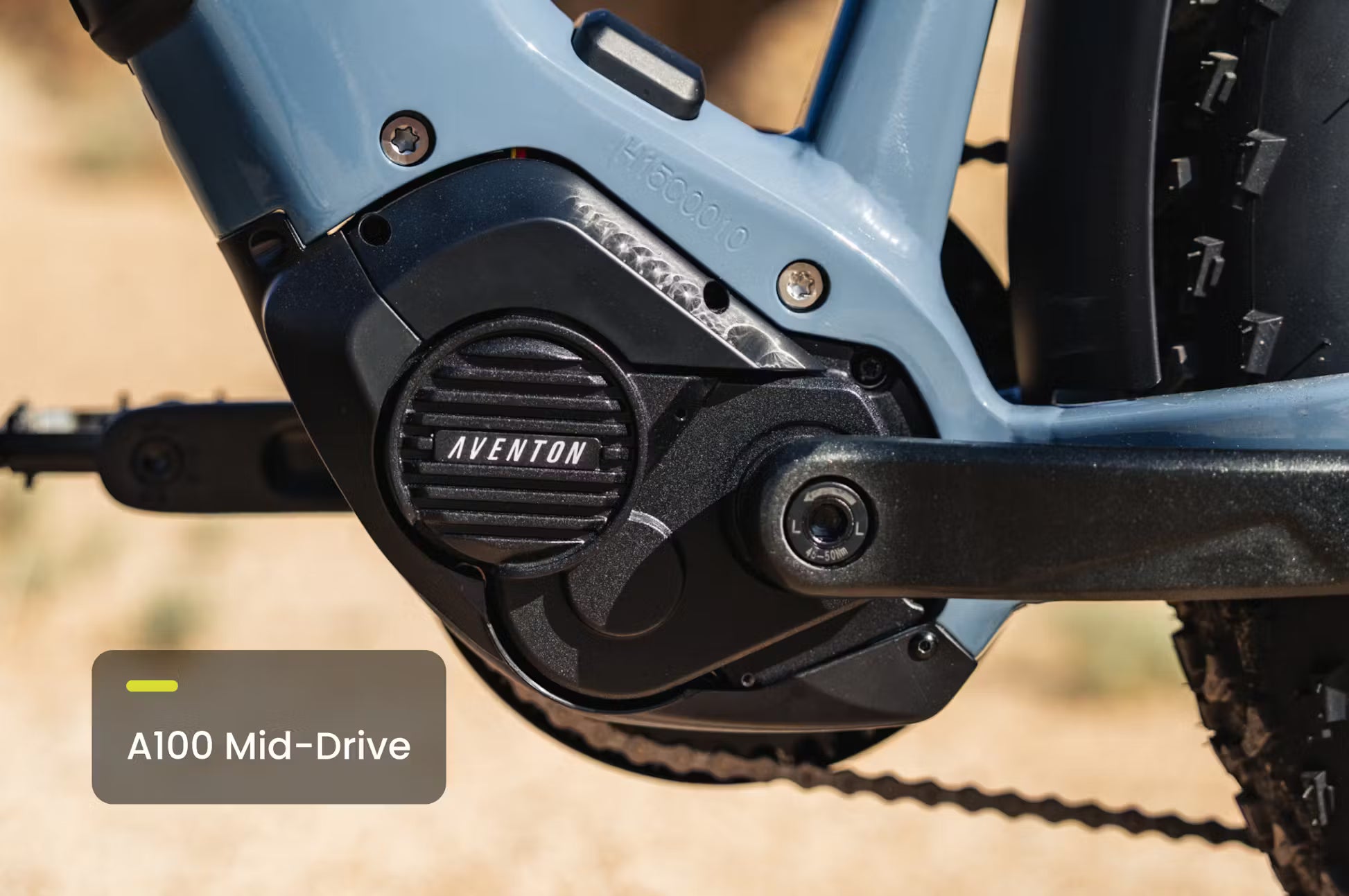

• Motor: Aventon A100 Mid-Drive Motor

  • 36V, 250W Sustained / 750W Peak

  • 100Nm Torque

  • IP67 Rating

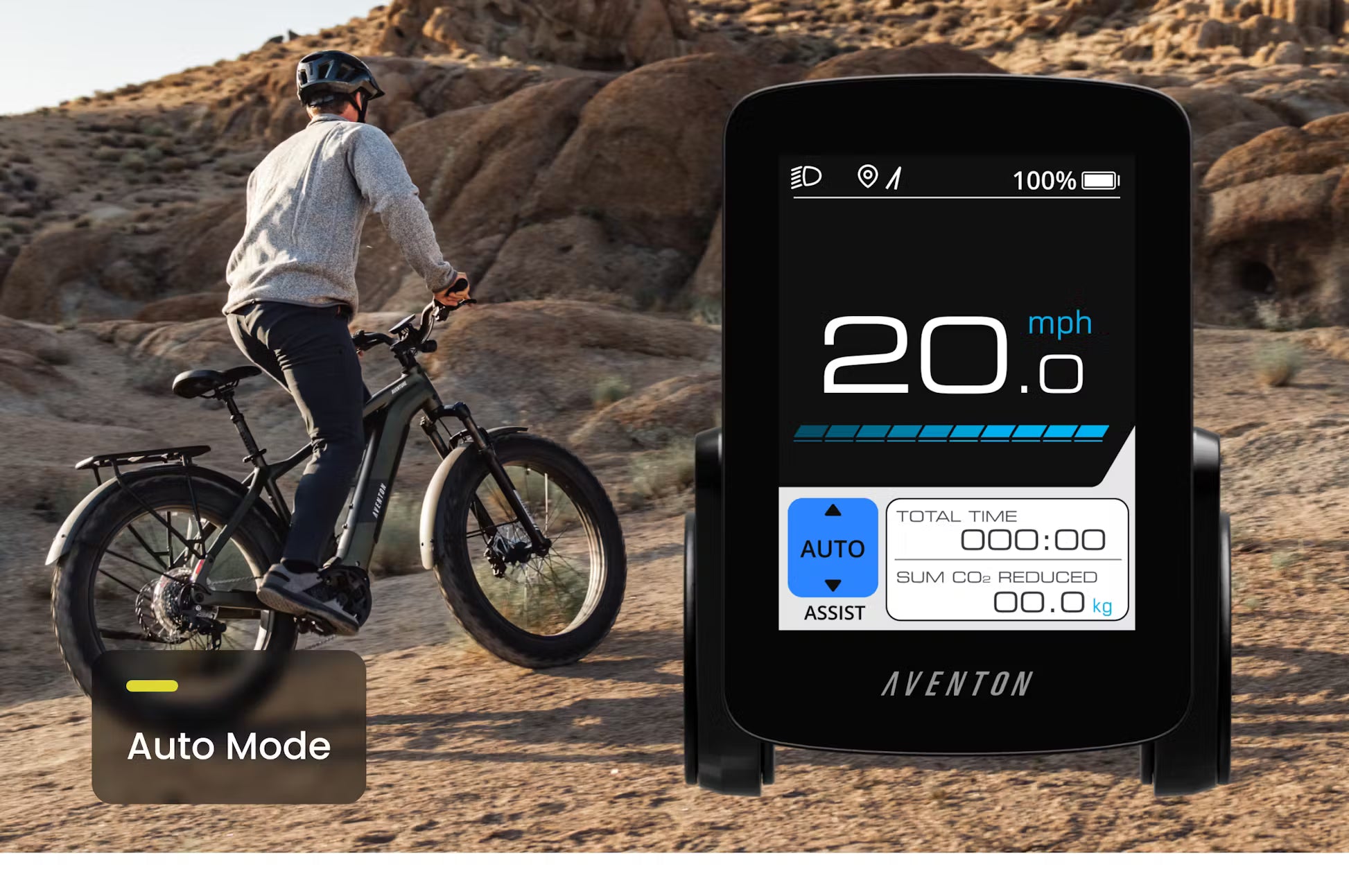

• Display: Aventon BC280

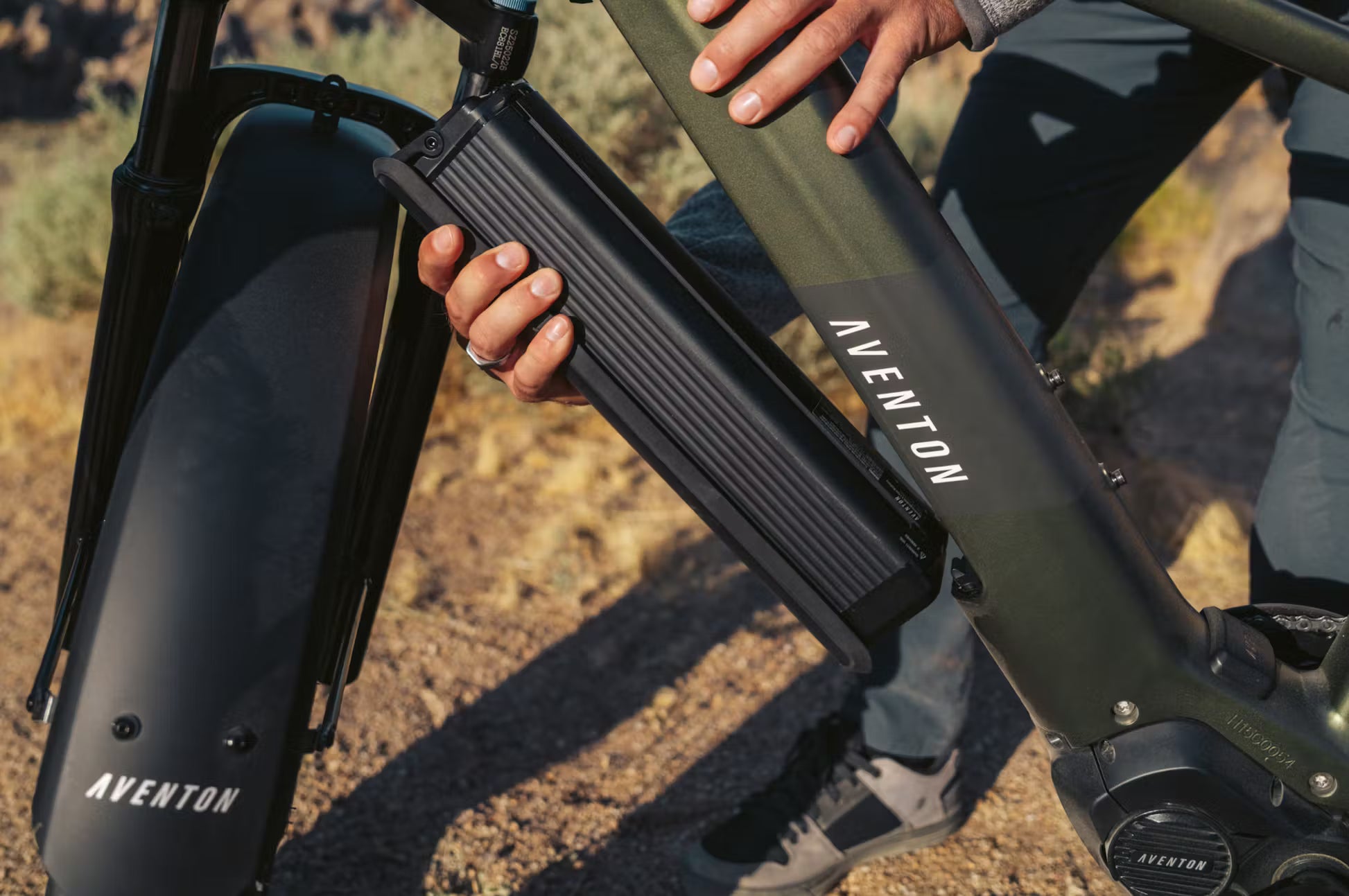

• Battery: 36V, 20Ah (733Wh), Removable Internal LG 21700 Cells

• Battery Weight: 8.7 lbs

• Controller: Integrated Inside Motor

• Throttle: Aftermarket Option Available

• Sensors: Integrated Dual-Sided Torque Sensor

• Charger: 42V / 4A

• Charging Time: Approx. 5 Hours

• Lights: Integrated Front & Rear Running Lights (No Brake Lights)

Brakes

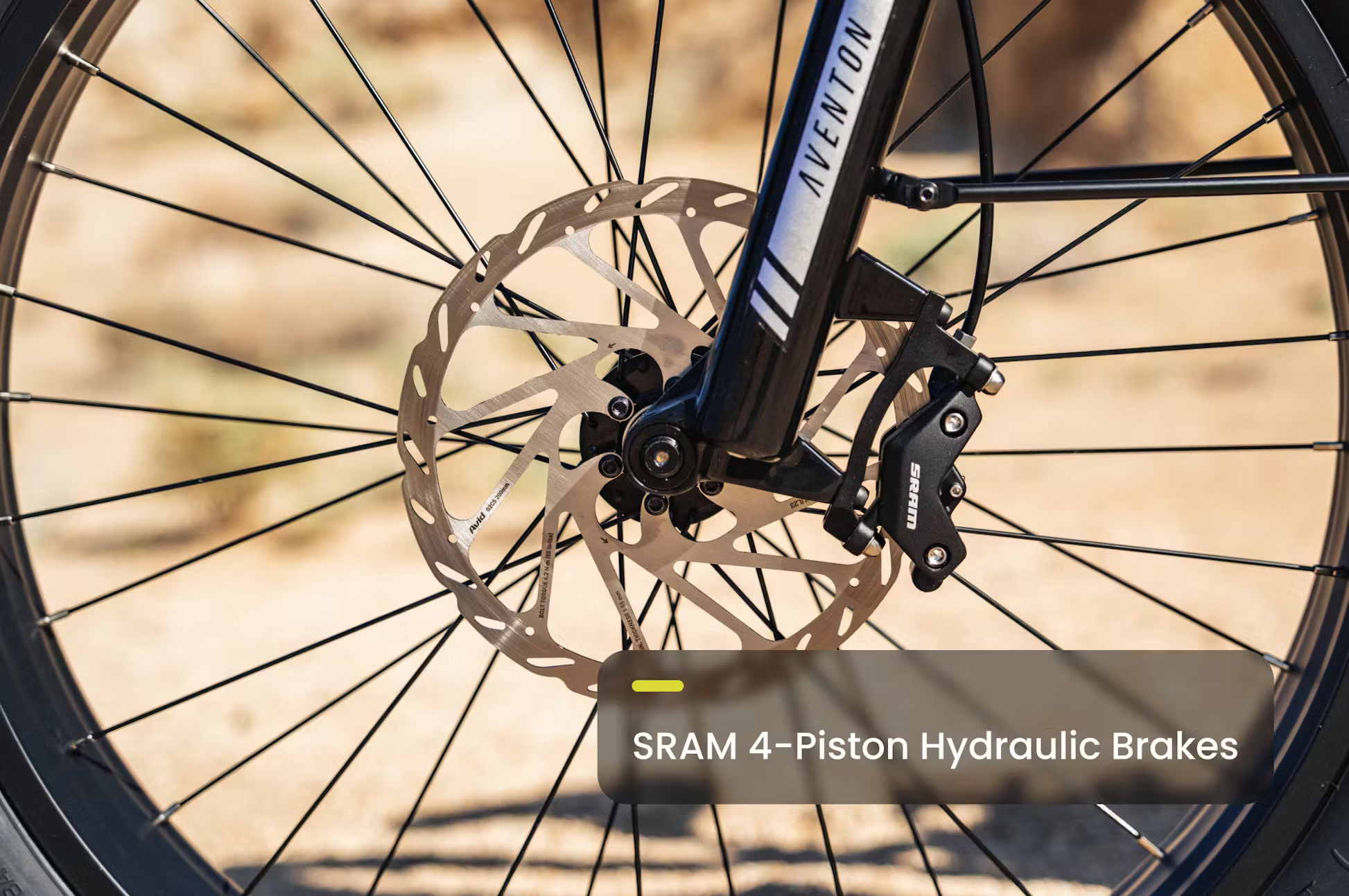

• Type: SRAM DB4 Hydraulic Disc Brakes (No Cutoff)

• Front Rotor: SRAM G2 200mm (6-Bolt)

• Rear Rotor: SRAM G2 200mm (6-Bolt)

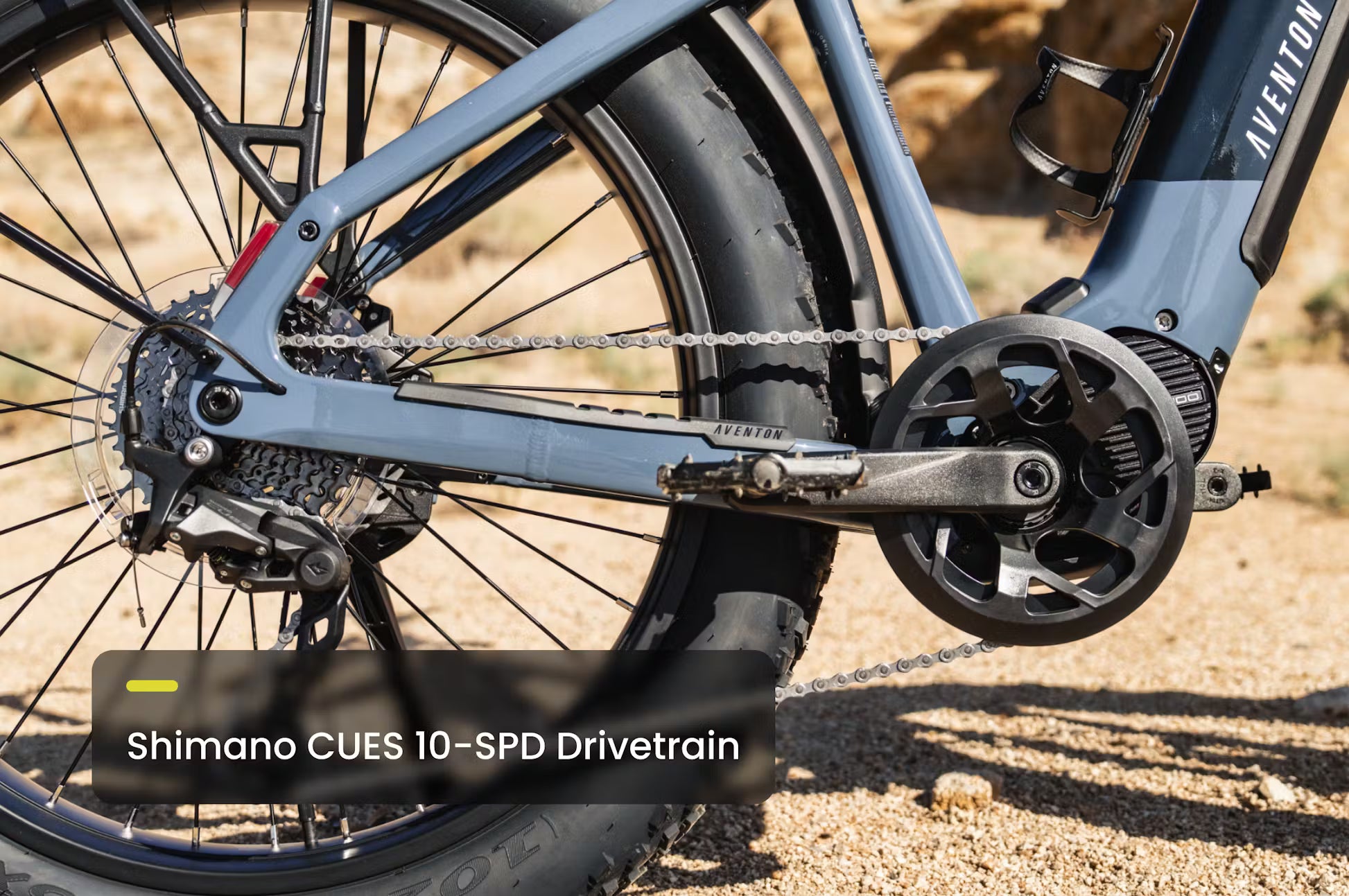

Drivetrain

• Rear Derailleur: Shimano CUES 10-Speed

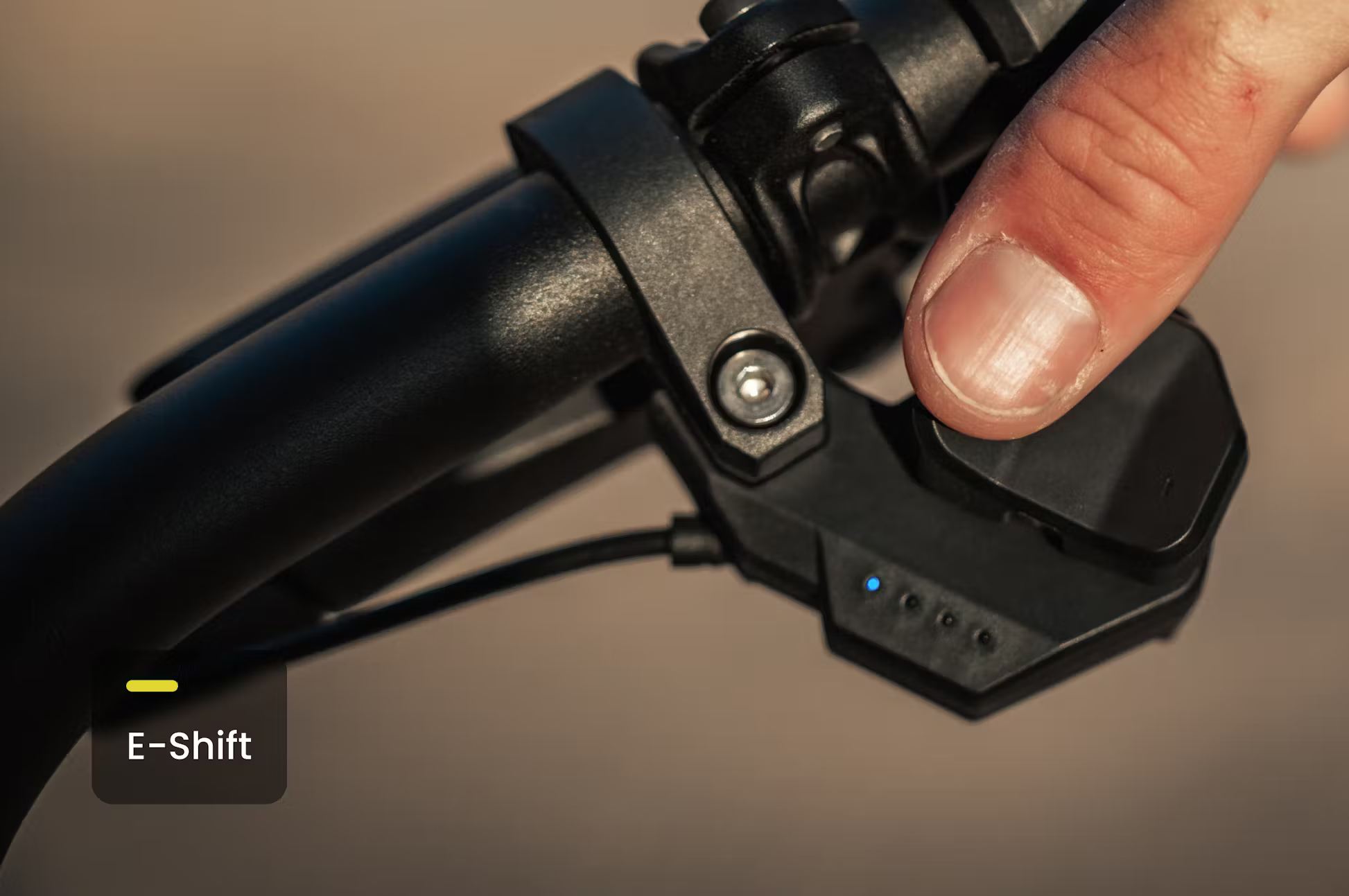

• Shifter: E-Shifter

• Cassette: Shimano CUES 11–39T (10-Speed)

• Chainring: 44T

• Crankset: Aventon 170mm ISIS Splined

• Chain: 124L (9/10/11-Speed Compatible)

• Pedals: 9/16" Alloy Platform

Cockpit

• Saddle: Aventon Saddle

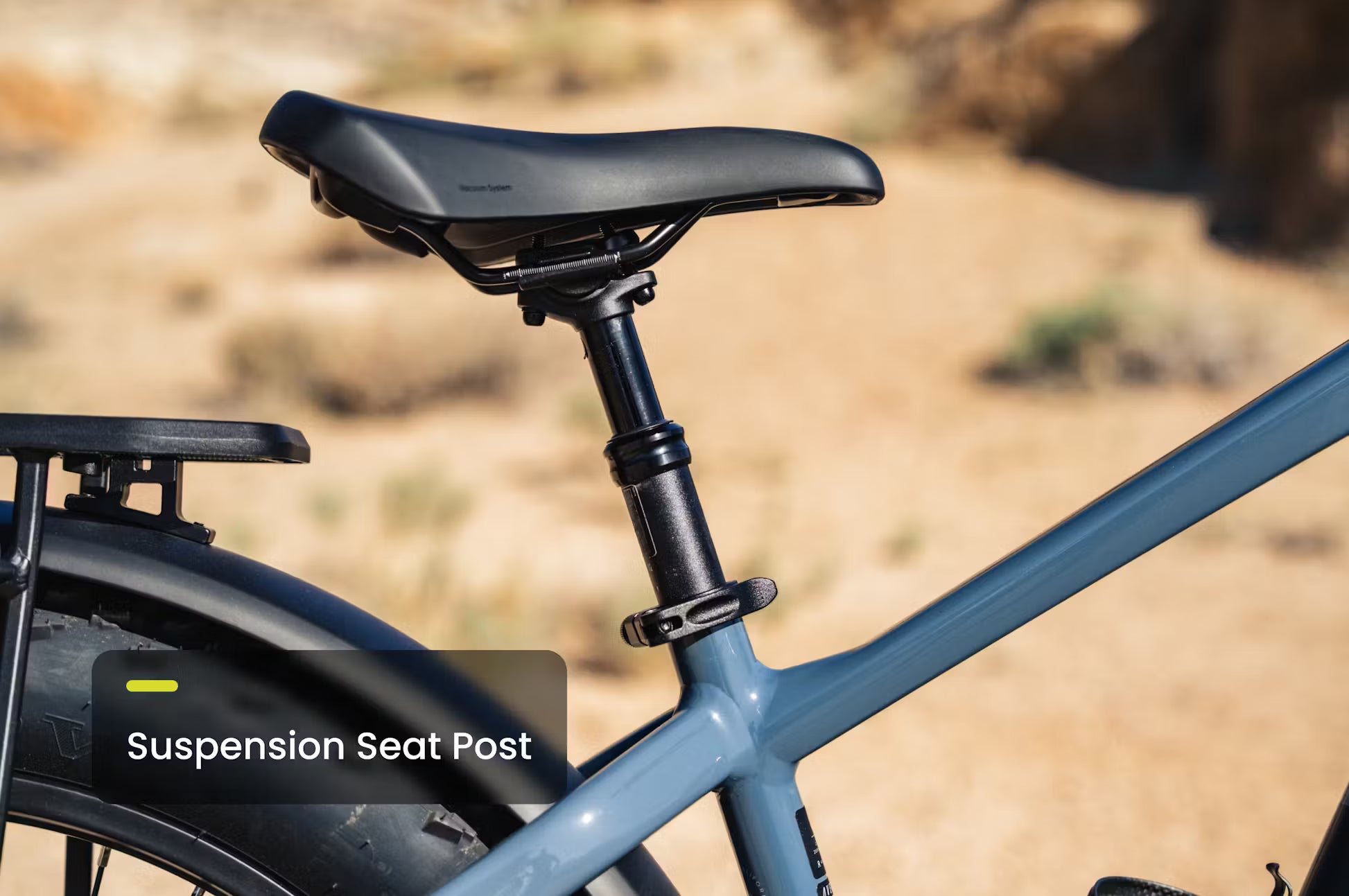

• Seatpost: 30.9mm x 350mm Aventon Suspension Seatpost, 50mm Travel

• Seatpost Clamp: 34.9mm

• Handlebars: 720mm Aluminum, 31.8mm Clamp

• Grips: Aventon Lock-On

• Headset: Sealed Bearing H887 Peilin (28.6mm x 56mm x 56mm, 7-Piece)

Included Accessories

• Kickstand: Rear Mount

• Rear Rack: Included

• Fenders: Included
