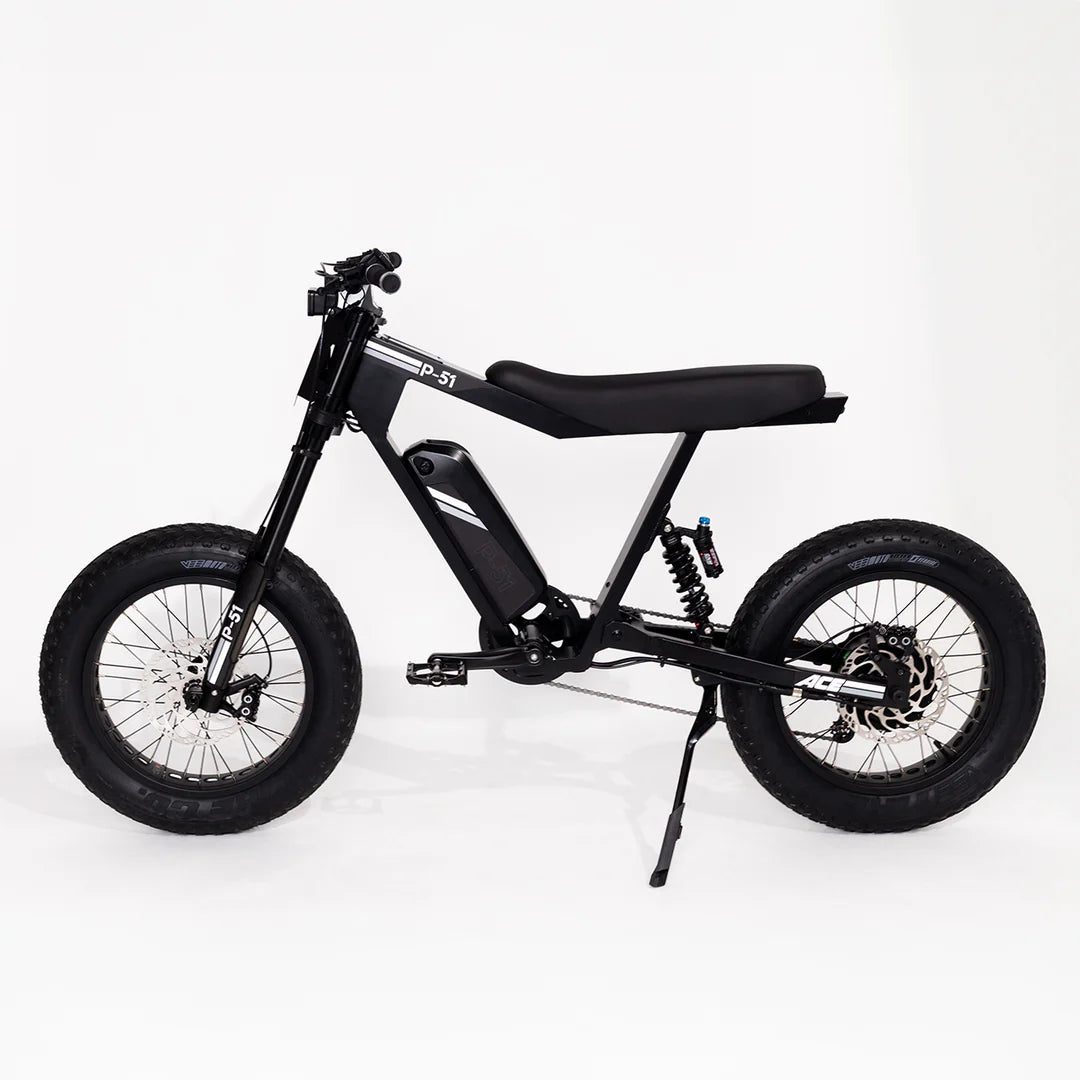

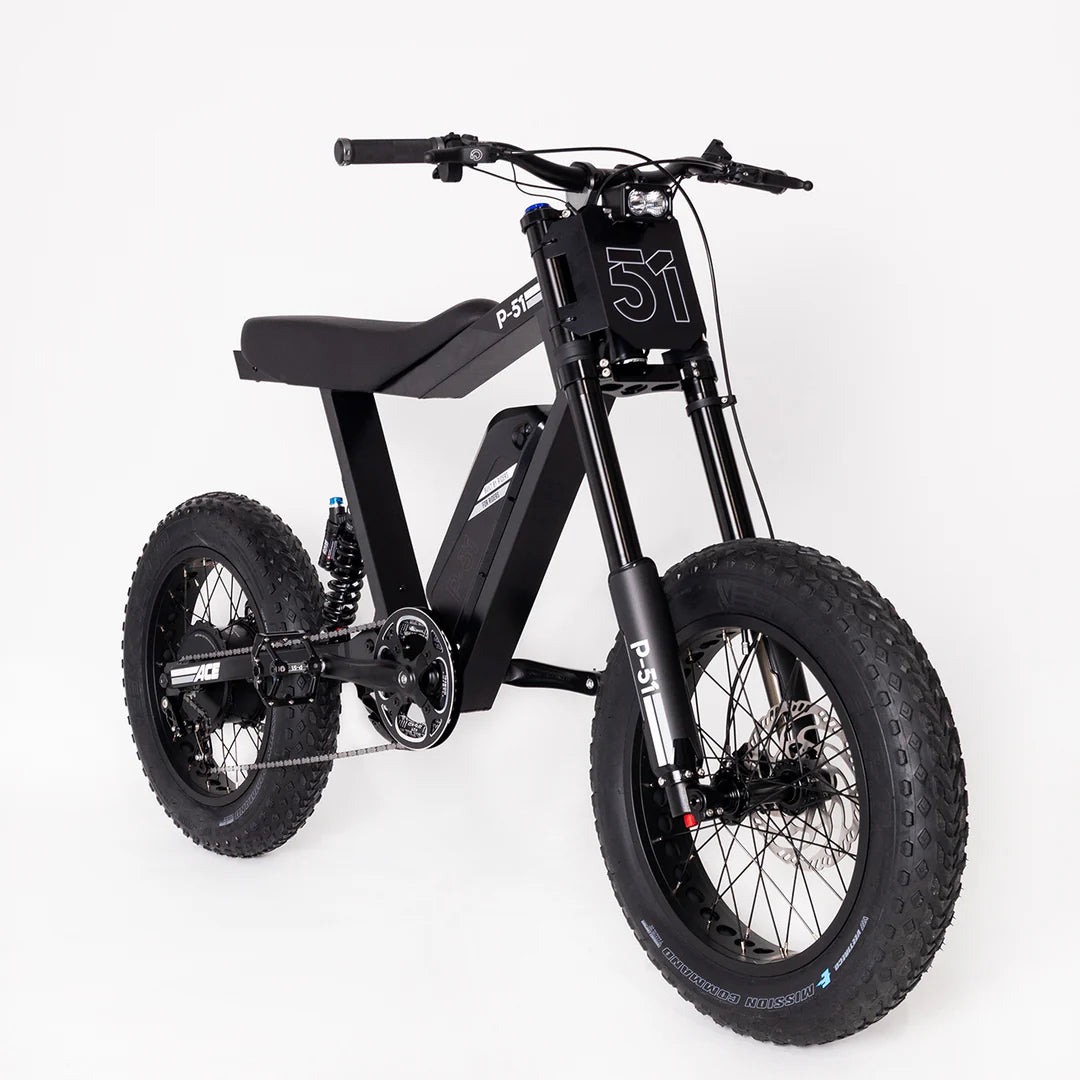

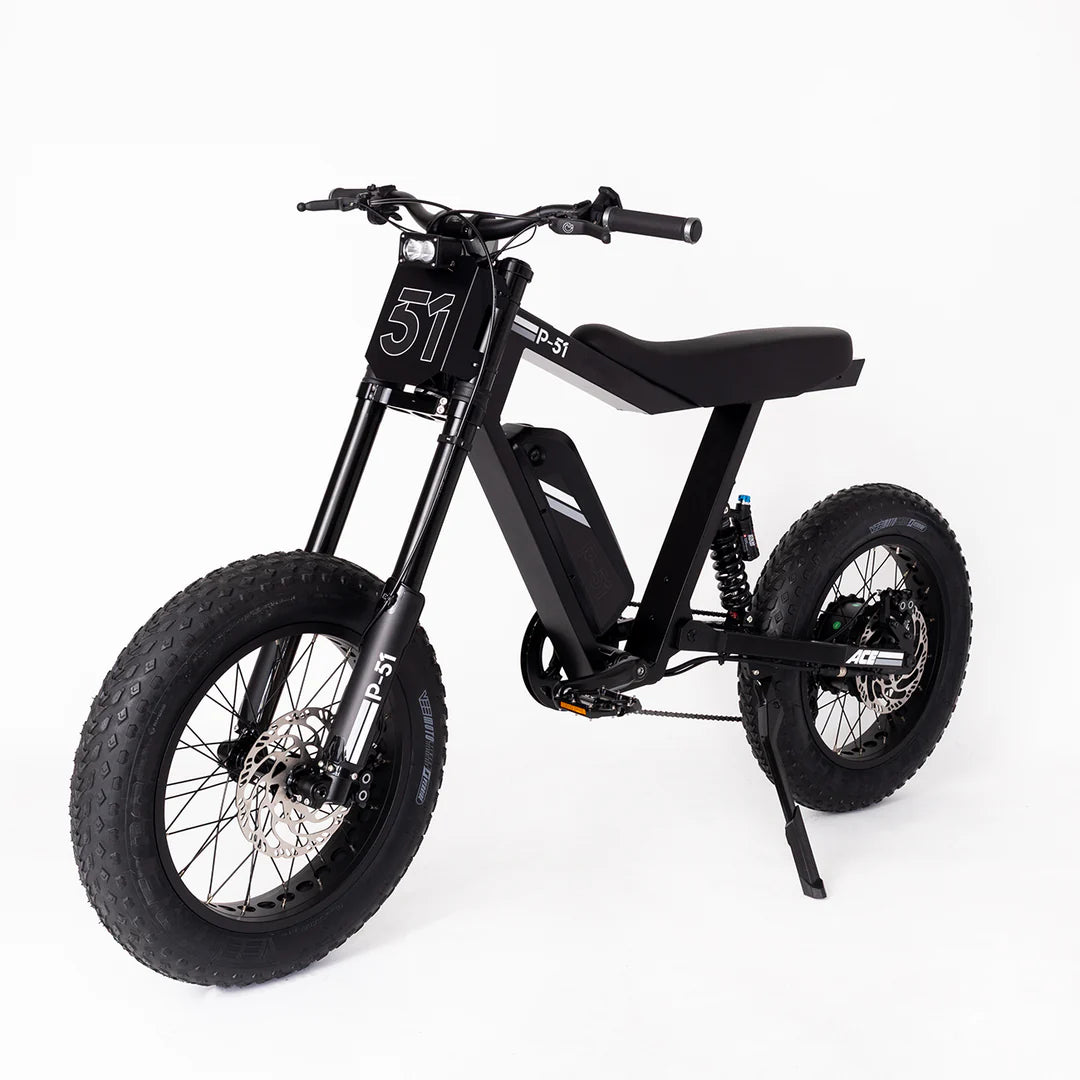

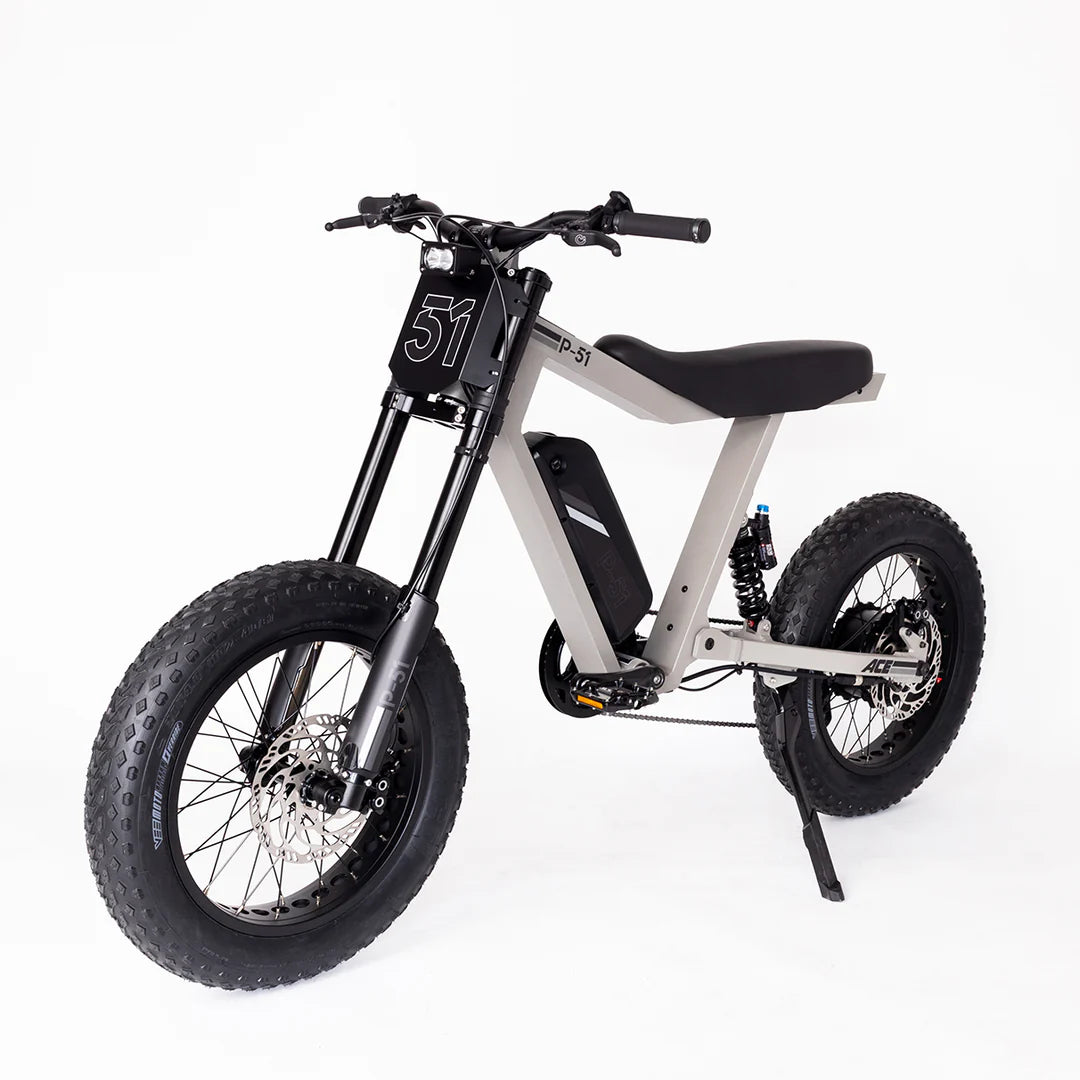

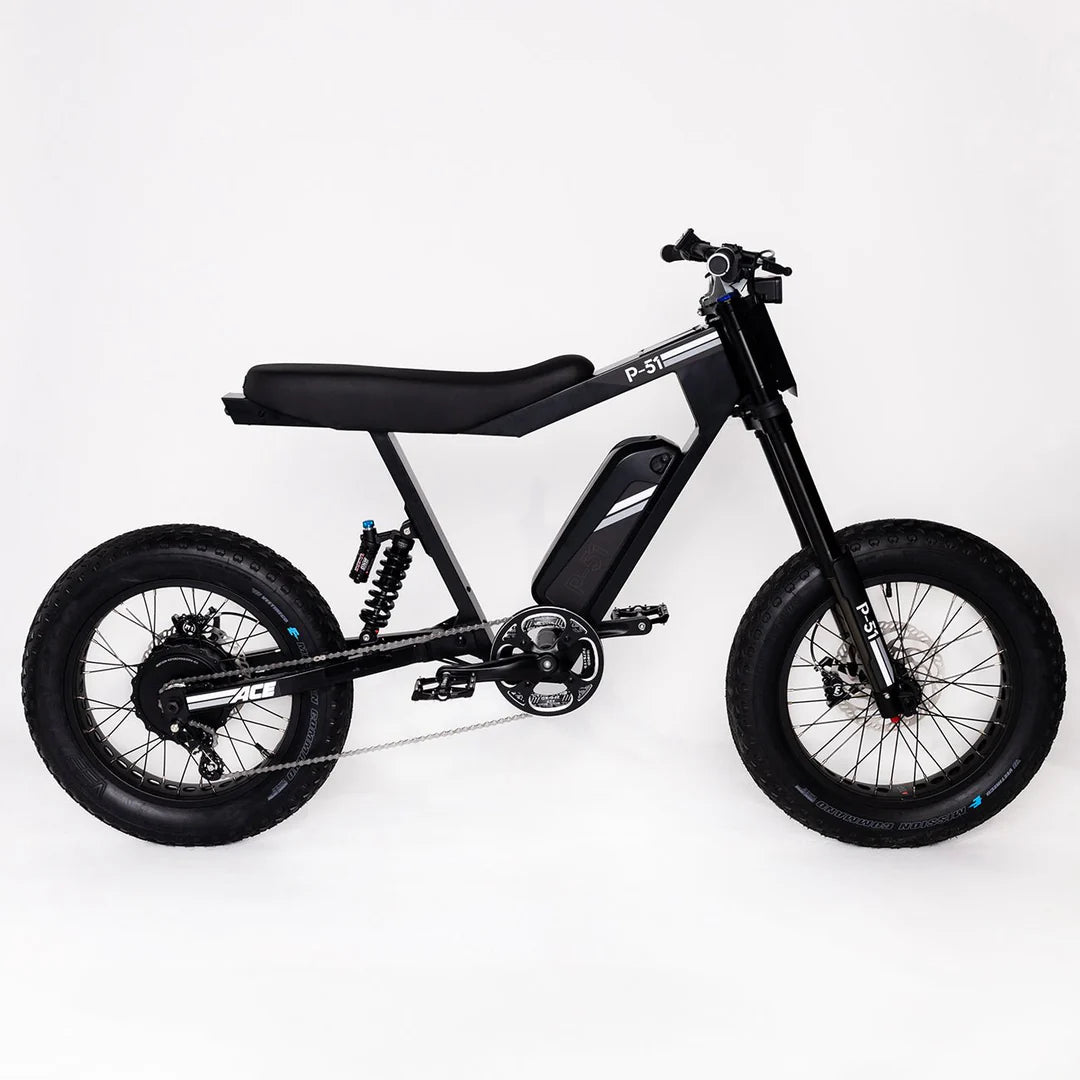

P-51 The Ace

Ace – Key Specifications

Motor

• Custom-designed 750W nominal, 1800W peak brushless geared hub motor

• 5 power settings, top speed up to 20 mph

• Adjustable amp settings for increased torque (may reduce range at higher amps)

Suspension

• Front: Adjustable triple clamp 27-inch KKE fork with 200mm travel

• Rear: Direct mount adjustable DNM piggyback coil shock with 140mm travel

Battery

• 48V 20Ah LG 21700 lithium-ion battery with powerful BMS

• 5 amp quick charger included

• Estimated throttle-only range of 40+ miles (varies with riding style)

Controller & Display

• 5-speed adjustable pedal assist

• LED display

Brakes

• Magura MT5E quad-piston hydraulic brakes front and rear

• 203mm oversized rotors for strong stopping power

Wheels & Tires

• 20” x 4” Kenda tires designed for street and dirt riding

Throttle

• 1/4 twist thumb throttle plus pedal assist

Compliance

• Class 2 electric bike; no registration required
