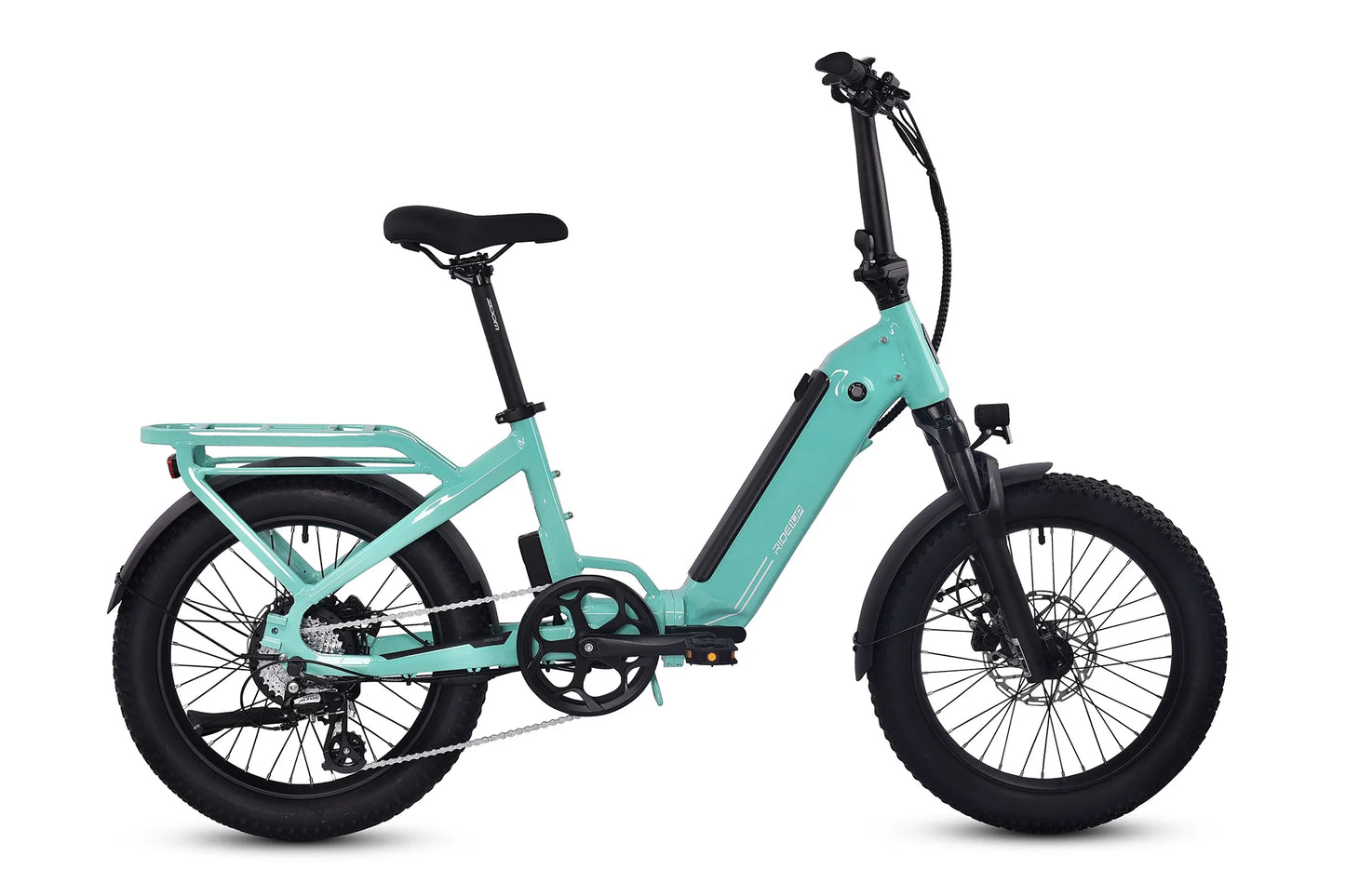

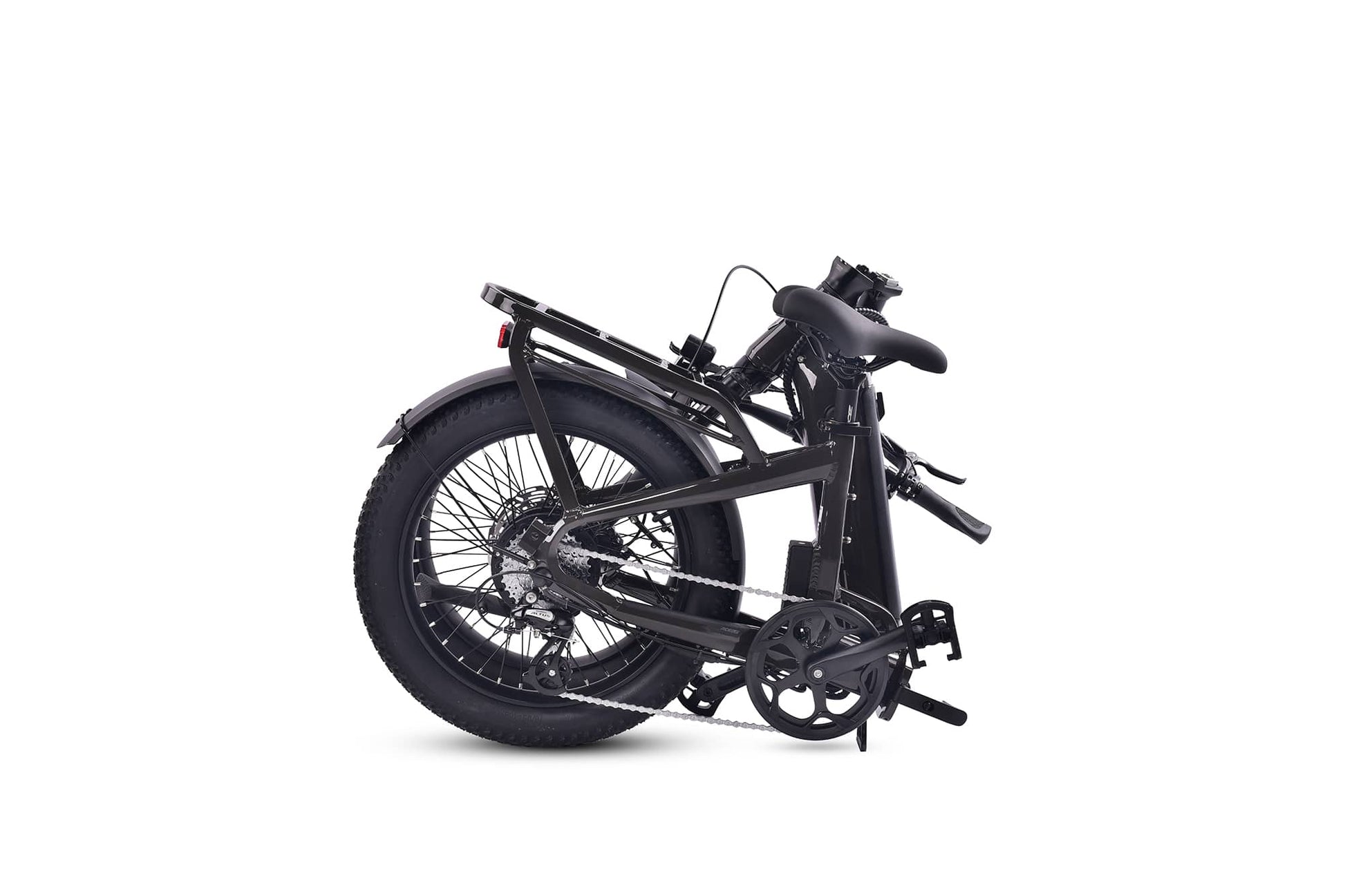

Ride 1 Up Portola

Portola – Electric Folding Bike Specifications

Electrical System

• Motor
  48V 750W geared hub motor, 65Nm torque

• Controller
  48V 20A DMHC sine-wave controller

• Display
  KD21C adjustable speed display

• Pedal Assist Sensor
  Ride1Up R1CBC (Current-Based-Cadence System)

• Throttle
  Left-hand thumb throttle

Battery Options

• Standard Model ($1,095)
  48V 10.4Ah Reention Rhino – 500Wh, UL 2271 certified

• Extended Range Model ($1,195)
  48V 13.4Ah Reention Rhino – 643Wh, UL 2271 certified

Drivetrain & Components

• Shifter
  Shimano Altus 8-speed trigger

• Derailleur
  Shimano Altus RD-M310

• Chainring
  48T front alloy chainring

• Freewheel
  11-32T R1U-approved

• Chain
  KMC professional 8-speed

Brakes & Suspension

• Brakes
  Dual piston hydraulic disc brakes, 180mm rotors, with electric cut-off sensors

• Fork
  80mm suspension travel with hydraulic lockout, 110mm dropout

Wheels & Tires

• Rims
  20" double-walled

• Spokes
  Stainless steel – 12G rear, 13G front

• Tires
  20” x 3” cross-country low-tread, puncture-resistant

Cockpit & Frame

• Frame
  Lightweight alloy with internal protected electronics

• Handlebar
  Straight bar, 600mm width, 6° sweep, 0° rise, 31.8mm clamp

• Folding Stem
  12° rise, 285mm length, 31.8mm clamp

• Grips
  Ergonomic rubber

• Seatpost
  Zoom 31.6mm x 350mm

• Saddle
  DDK city comfort

• Pedals
  Sunlite folding pedals

Accessories & Features

• Front Light
  100 Lux headlight

• Rear Light
  6V commuter brake light

• Fenders
  Hardened alloy

• Rear Rack
  Rated for 150 lbs, pannier-compatible

• Other Features
  Water bottle bosses and chainstay guard

Dimensions & Sizing – Portola

• Bike Weight: 59 lbs

• Weight Capacity: 342 lbs

• Recommended Rider Height: 4'10" – 6'4"
