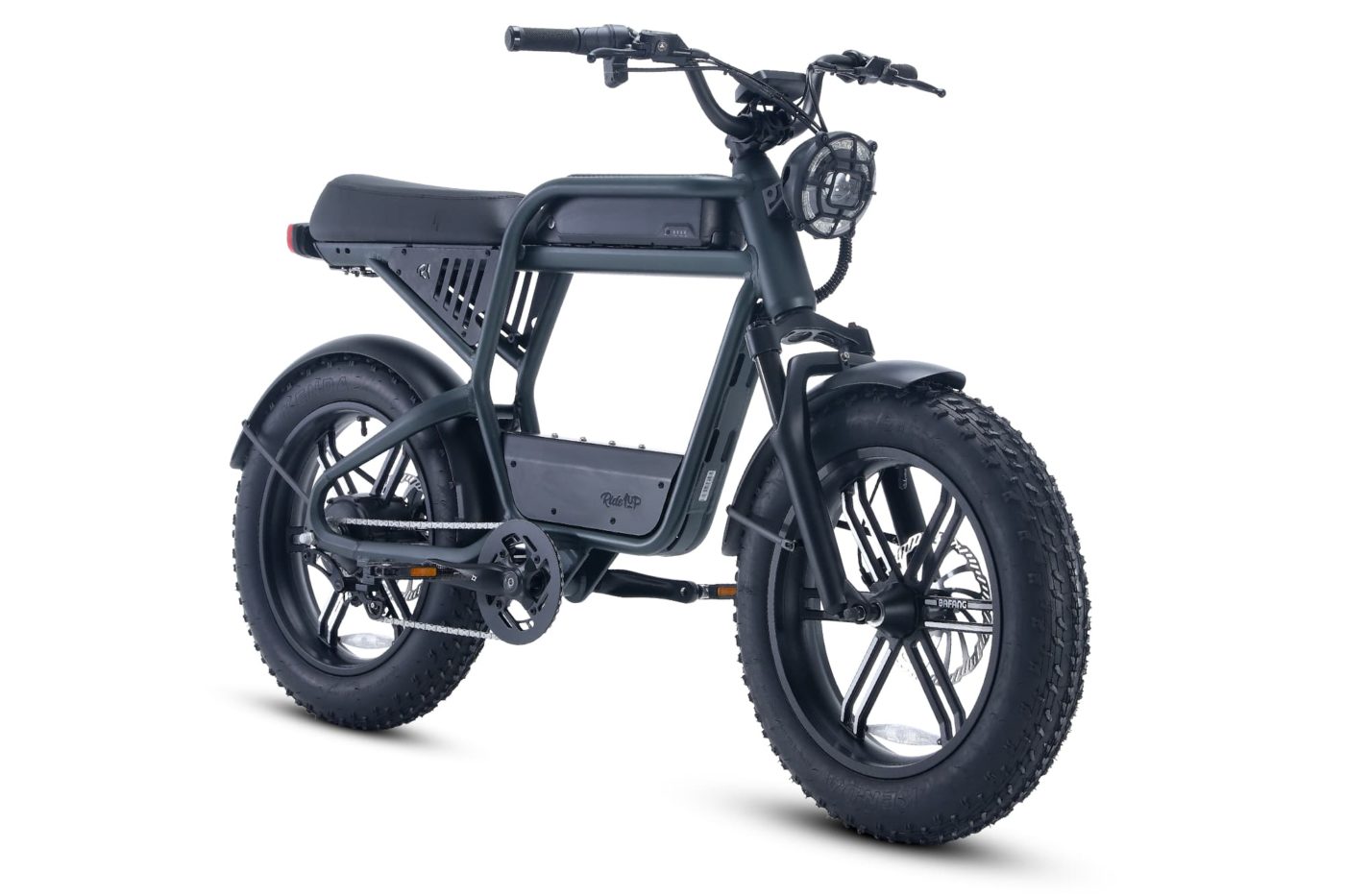

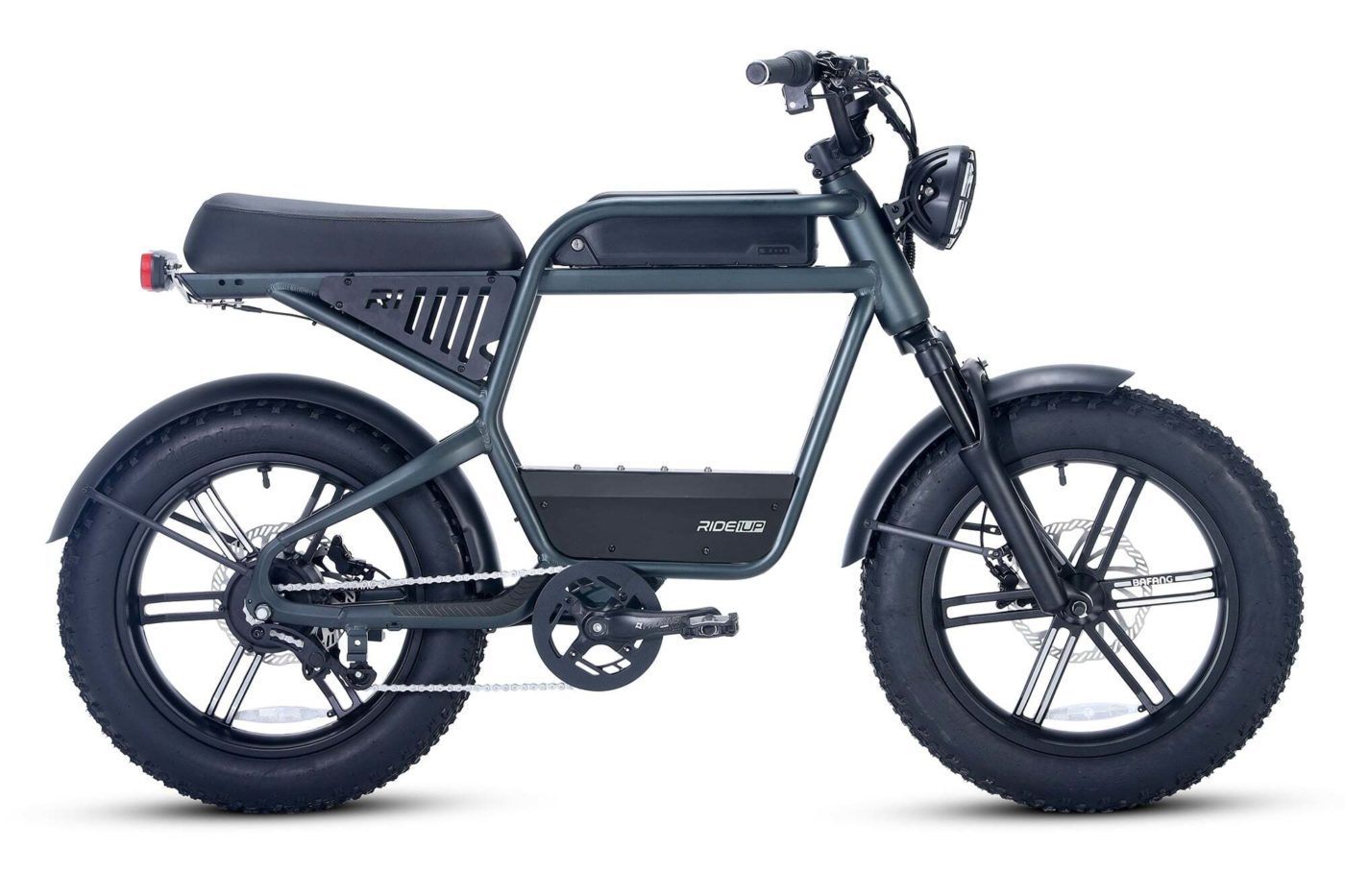

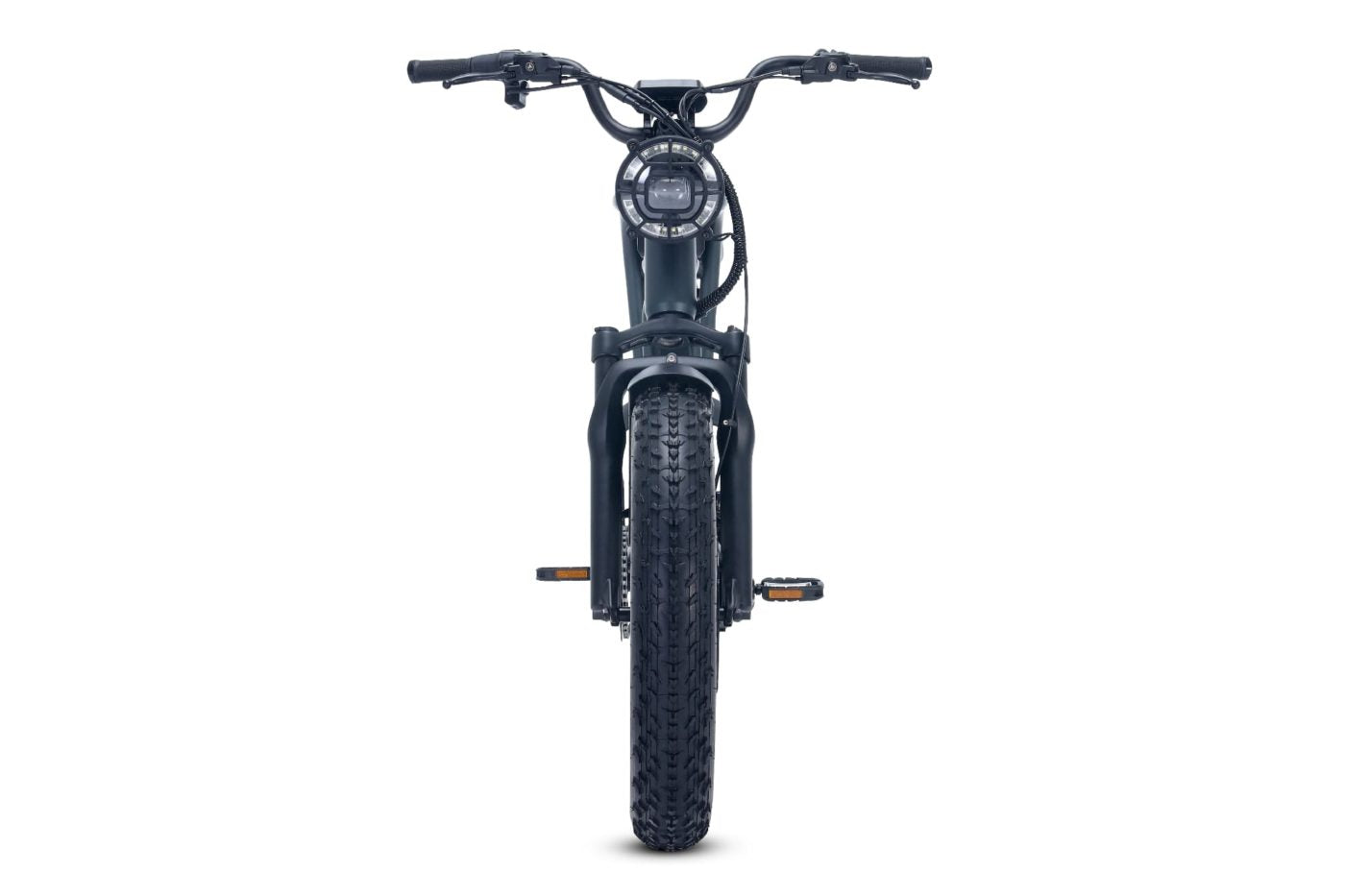

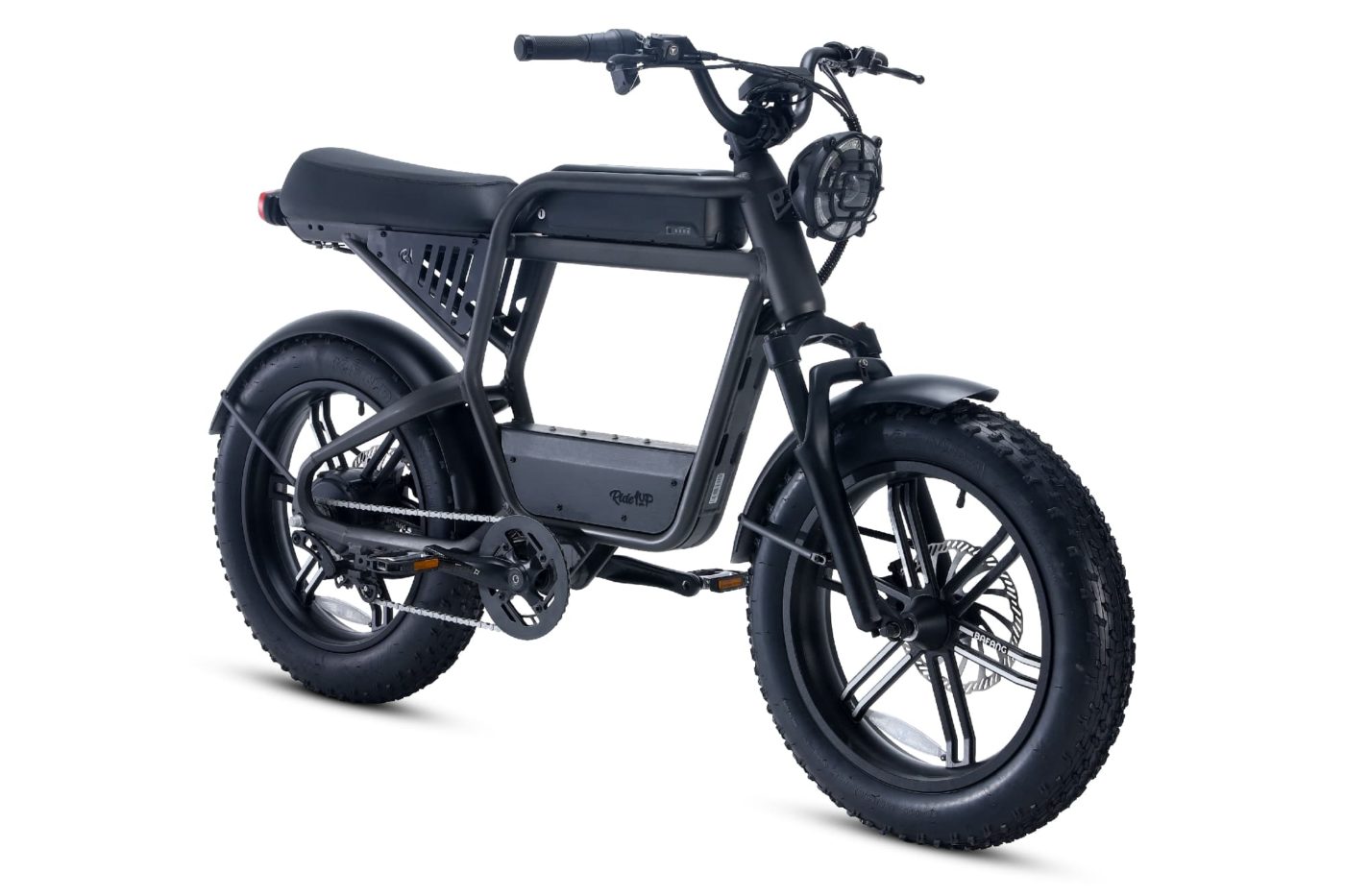

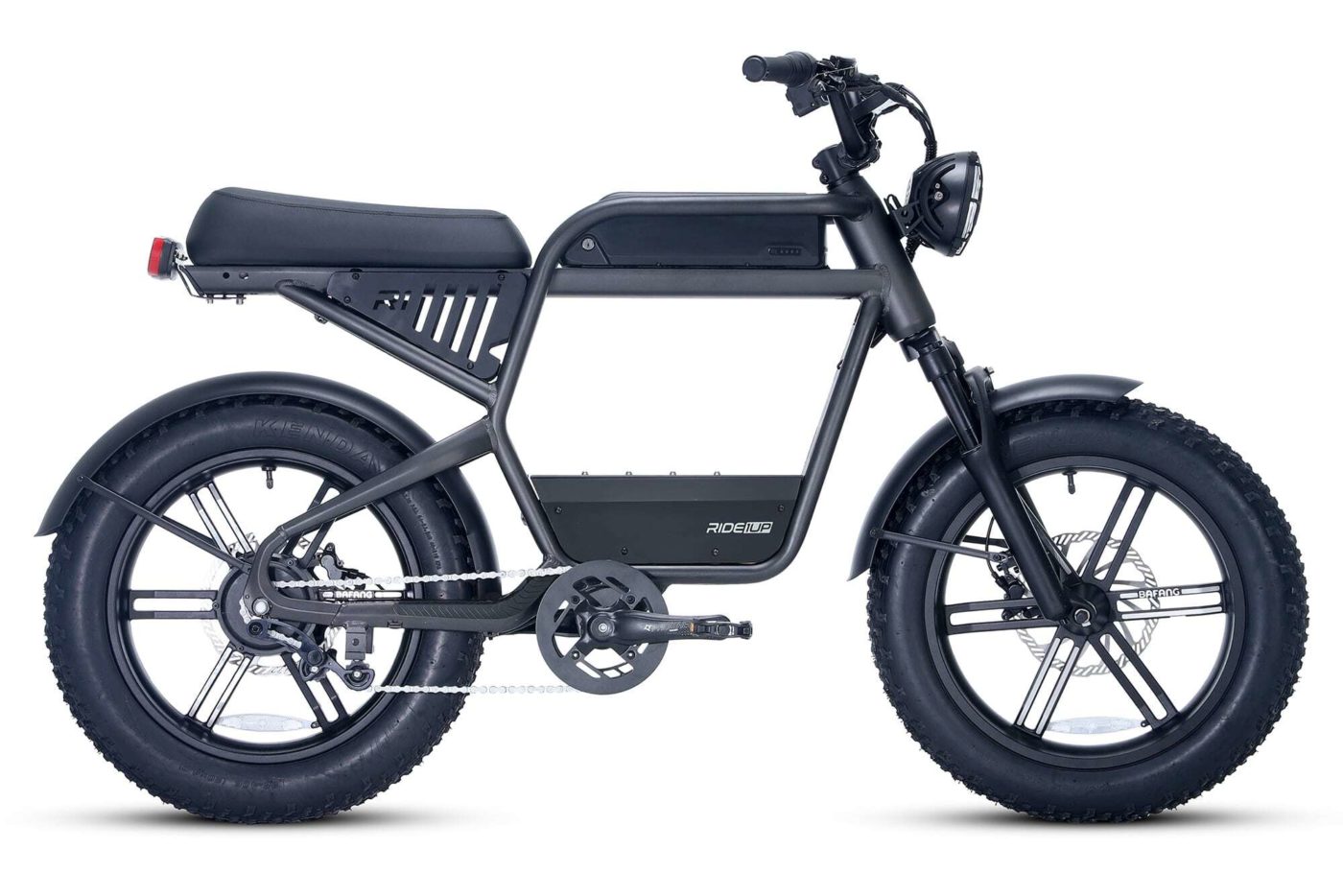

Ride 1 Up Revv 1 HT

Revv 1 HT – Key Specifications

Motor & Controller

• 52V Bafang RM G0F4.1000 mid-drive motor

• 52V 25A controller with 12 MOSFETs

Battery

• 52V 15Ah Samsung 50E 21700 cells (42 cells total)

• UL 2271 certified

Display & Sensor

• 3.5" center mount display with watt and RPM bars

• Ride1Up R1CBC (Current-Based-Cadence System) pedal assist sensor

Brakes

• 4-piston LBN hydraulic disc brakes with 203mm rotors

• Electric cut-off sensor for safety

Suspension

• Front fork with 100mm travel

• Rebound adjust and hydraulic lockout

Controls & Ergonomics

• Right-hand twist throttle

• Handlebar: 720mm wide, 25° sweep, 120mm rise

• Promax stem: 45mm height, 6° rise

• Anti-slip rubber grips

Drivetrain

• 42T chainring with 127mm cranks

• KMC Pro chain

Wheels & Tires

• Kenda Krusade tires, 20” x 4.0”

Additional Features

• Hardened alloy fenders

• Moto-style round headlight (120 LUX) with high and low beams

• StarUnion brake light

• Customized cafe-style saddle

• Alloy black pedals
