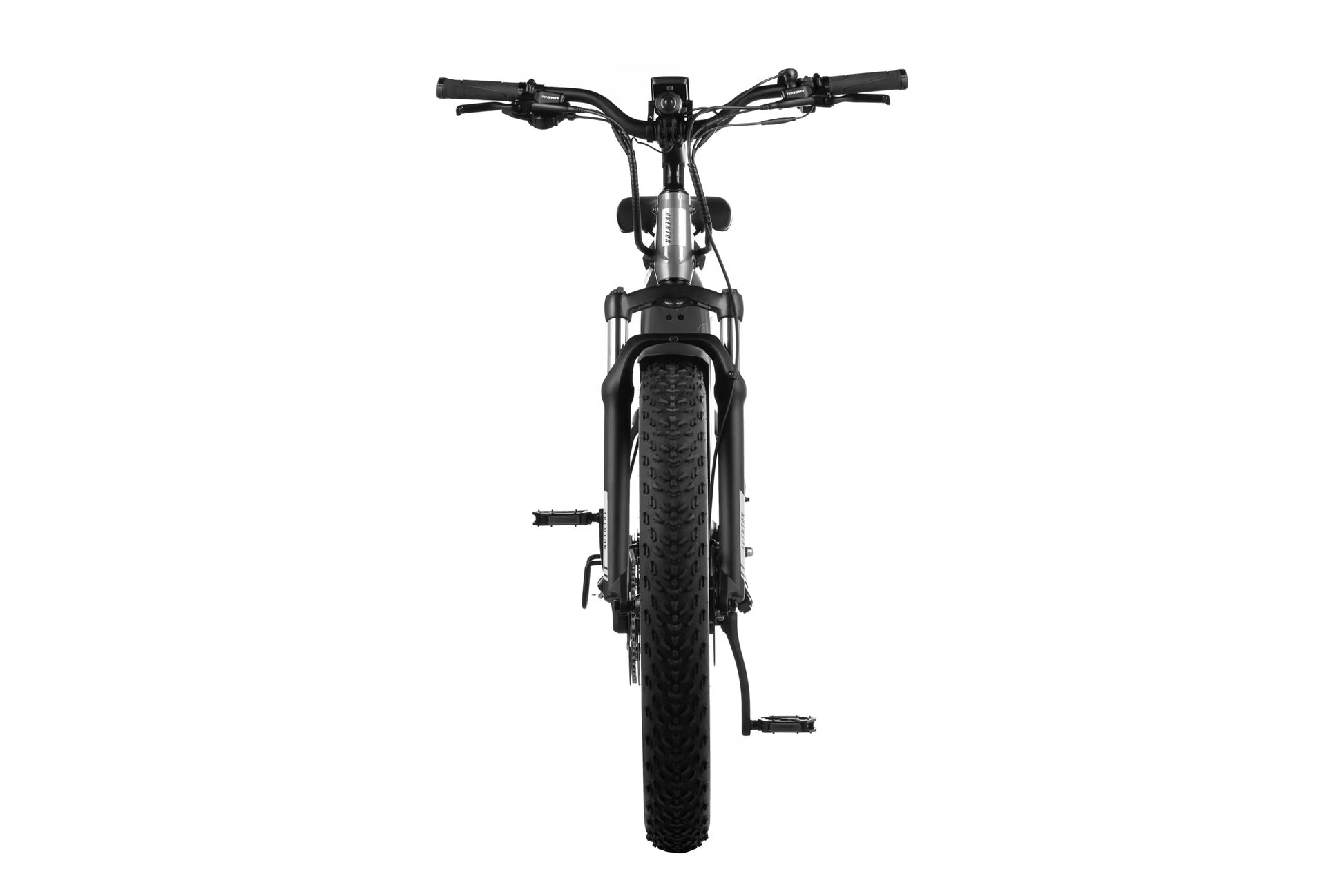

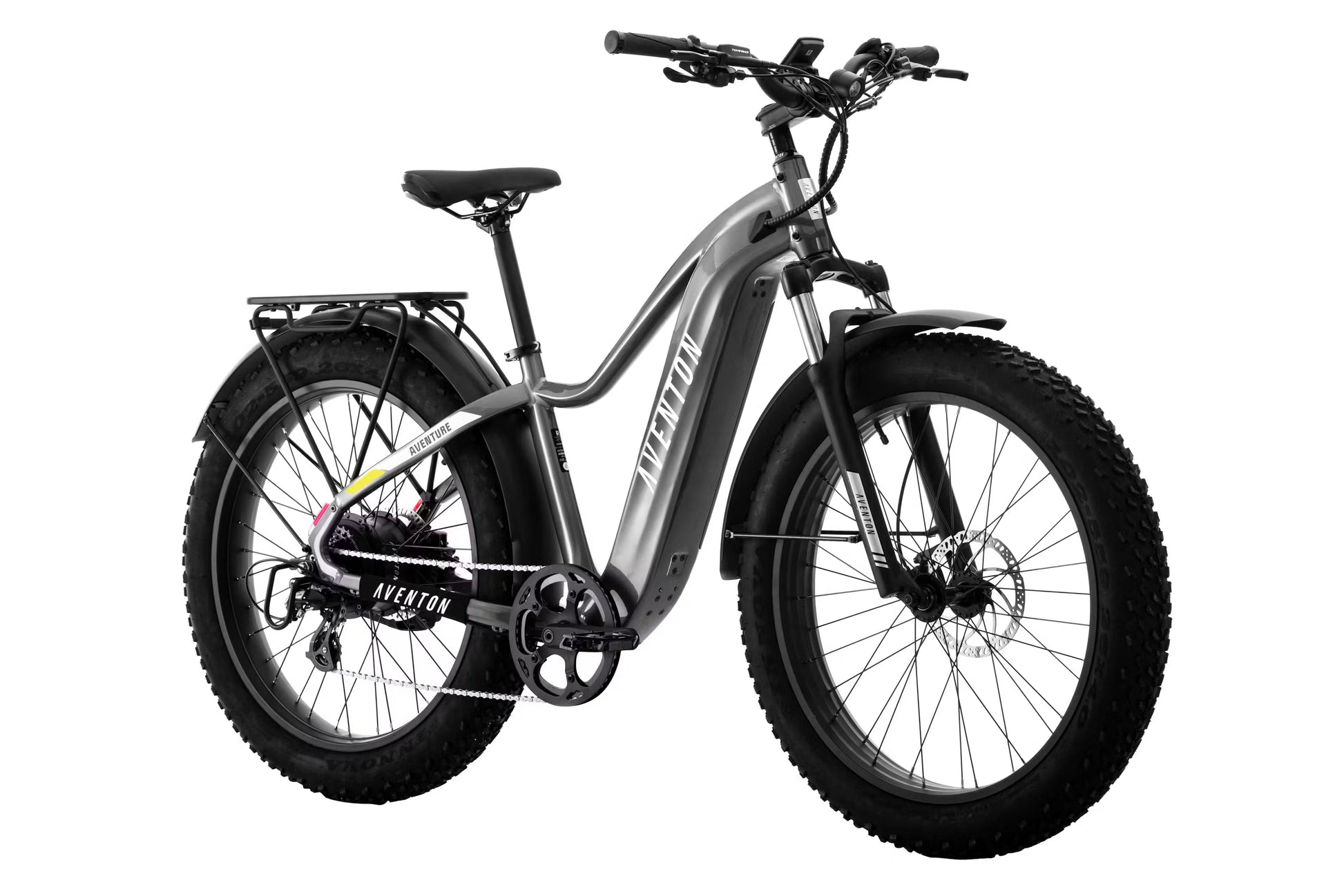

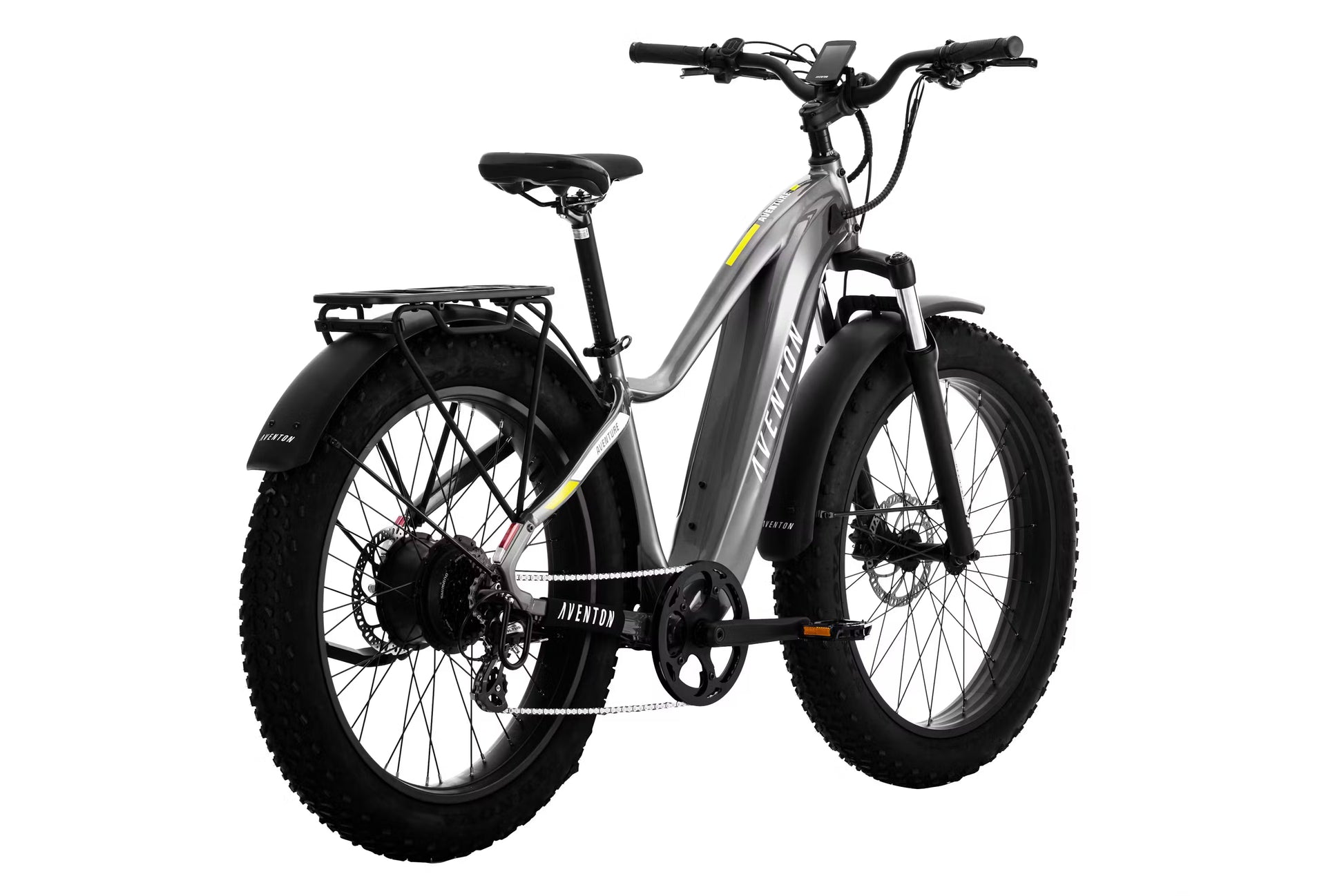

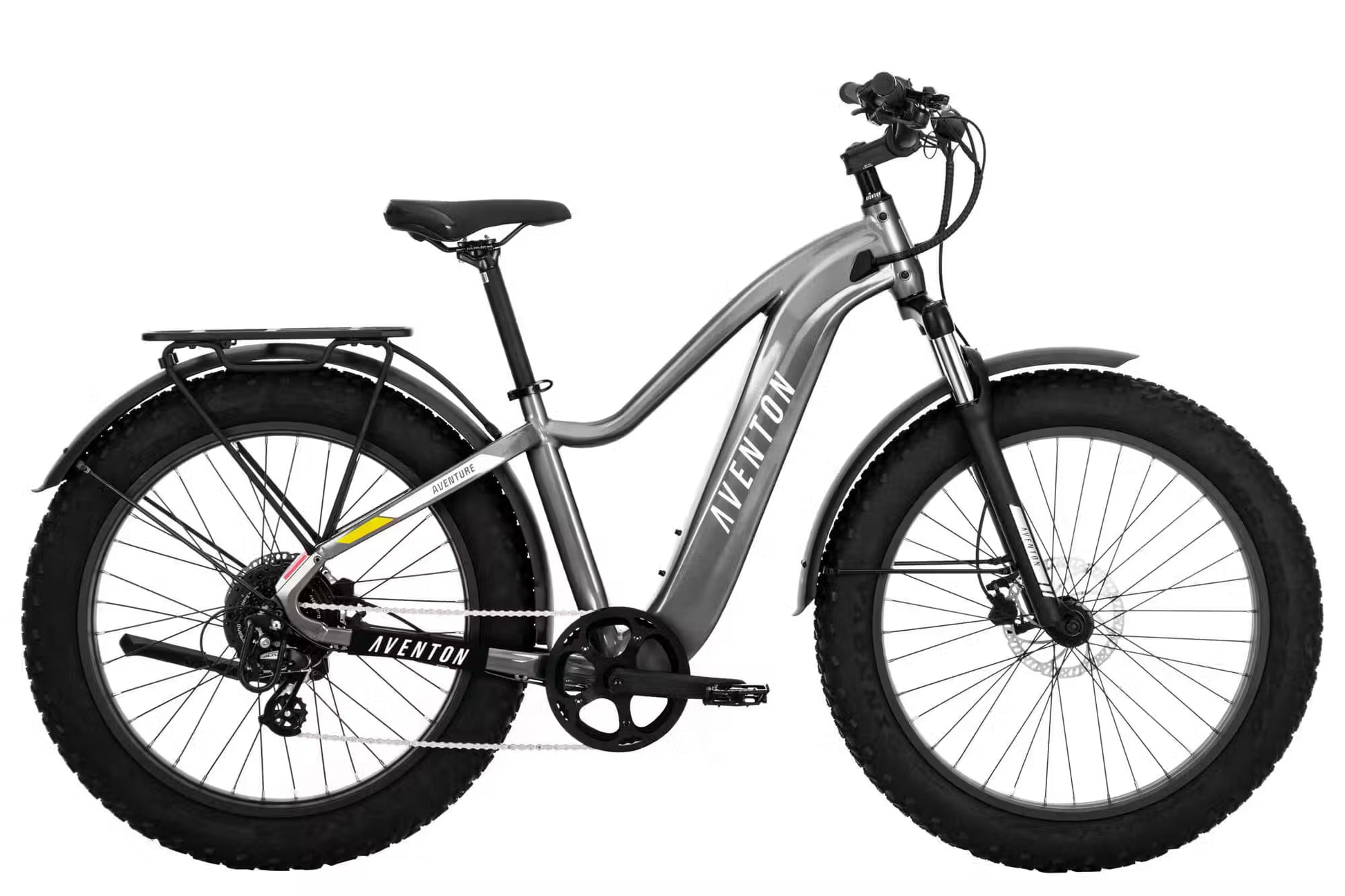

Aventon Aventure 2 Step Over

Aventon Aventure 2 Ebike – Step-Over

General Info

• Model: Aventure 2

• Weight: 77 lbs

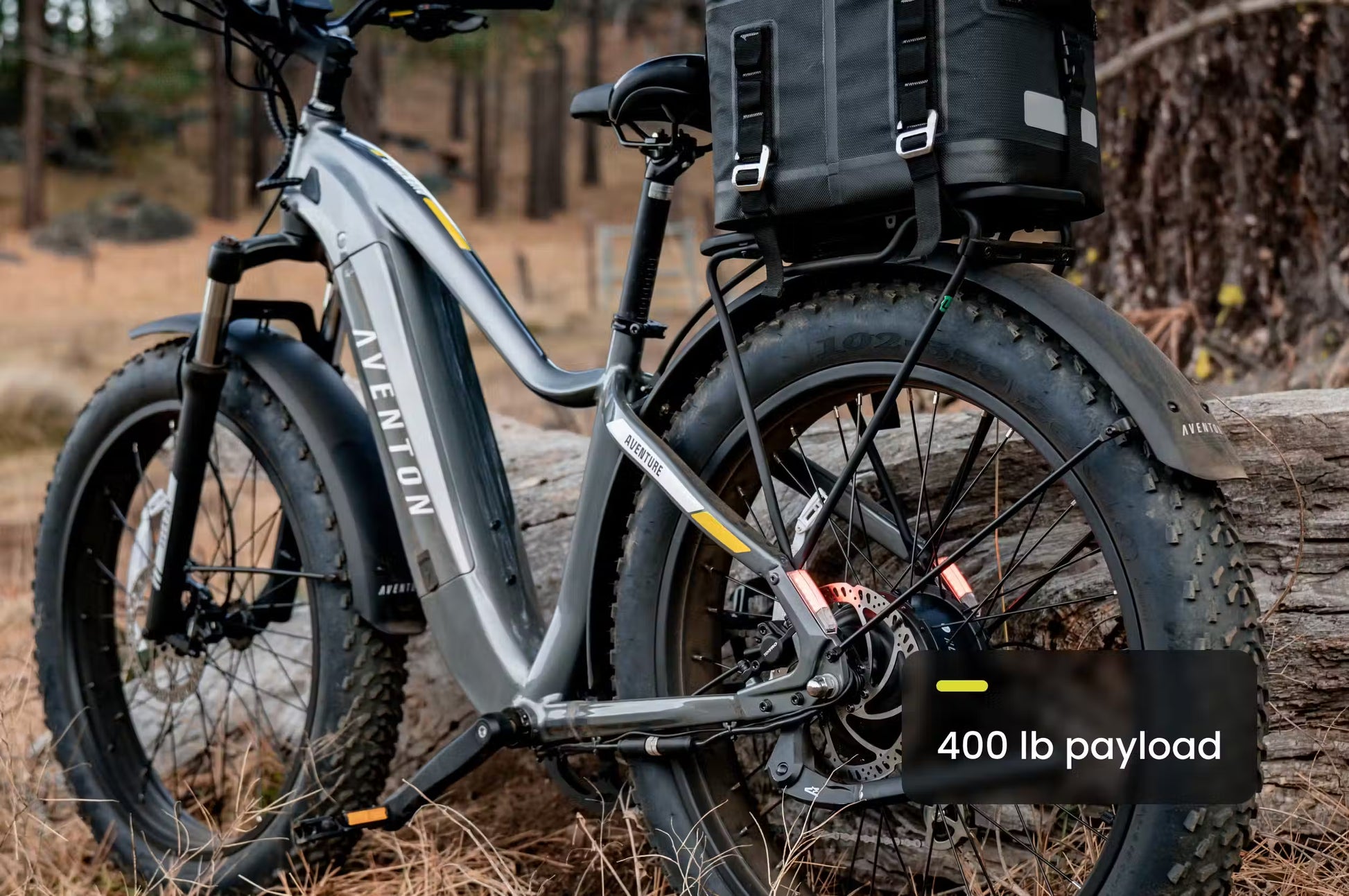

• Total Weight Limit: 400 lbs

• Rider Height: 5'3" – 6'4" (note: conflicting data lists 5'1" – 6'1"—likely an error or different frame sizes)

• Ideal Use: All-Terrain

• Folding: No

• Safety Certifications: UL 2849 / UL 2271 (UL & TUV Certified)

Frameset

• Frame Style: Step-Over

• Frame Material: Double-Butted Aluminum Alloy

• Fork: Suspension Fork, 80mm travel with lockout

Wheelset

• Rims: Double Wall Aluminum, 36h front & rear

• Tires: 26 x 4", all-terrain

• Tubes: Butyl Rubber, Schrader Valve

• Hubs: 36h Disc, Nutted Front & Rear Axles

Ebike System

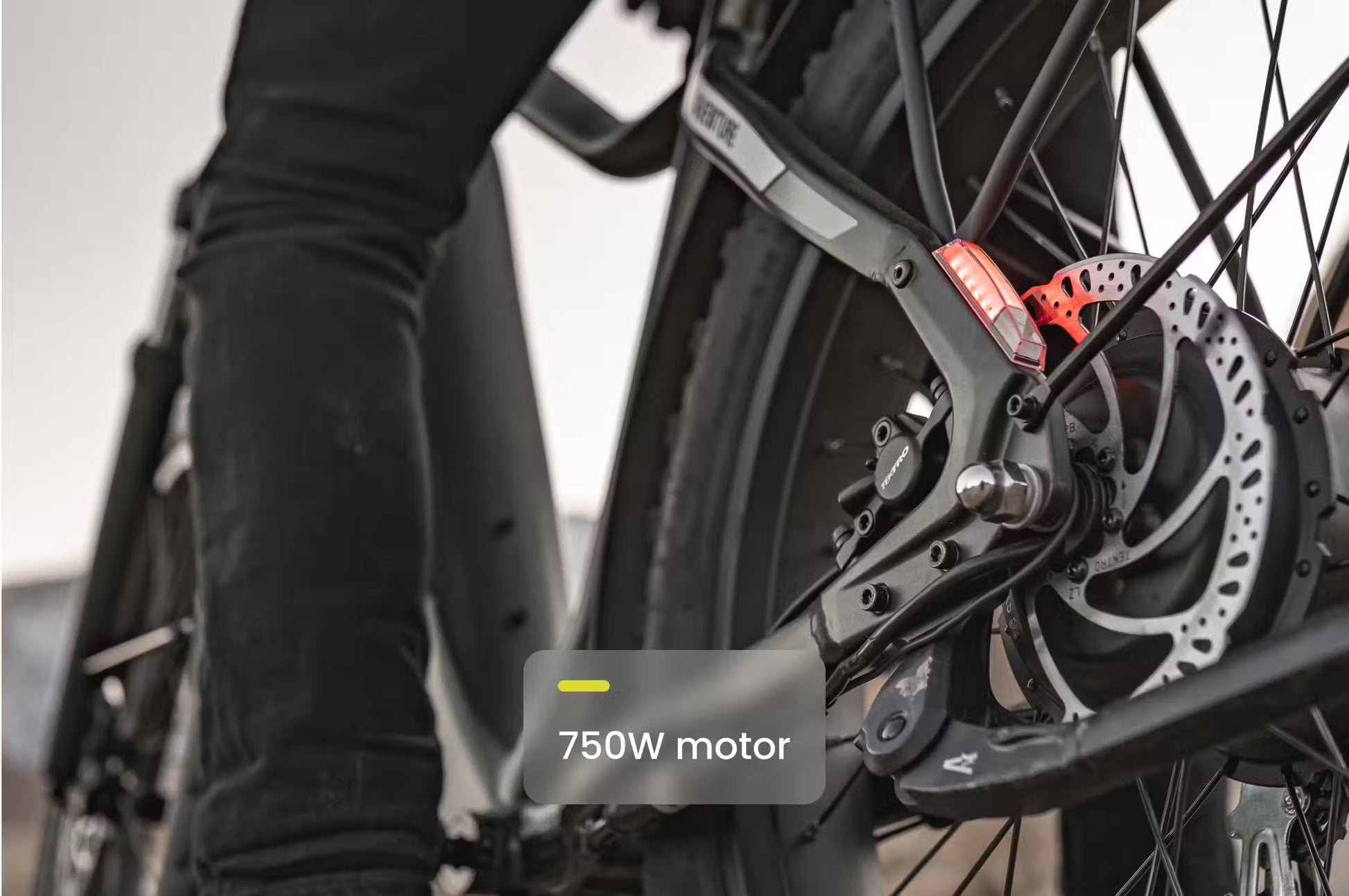

• Motor: 48V, 750W sustained (1130W peak), rear hub motor

• Pedal Assist: 4 Levels

• Throttle: Aventon LH Handlebar Mounted

• Speed Class: Class 2

• Display: LCD Smart "Easy Read"

• Battery: 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant

• Sensors: Double Sided Bottom Bracket Torque Sensor

• Charger: 48V, 3 Amp Fast Charger

• Range: Up to 60 miles

• Lights: Integrated (front & rear)

Brakes

• Type: Hydraulic Disc Brakes

Drivetrain

• Crankset: 170mm with 48T chainring

• Bottom Bracket: Square Taper, Sealed, with Torque Sensor

• Rear Derailleur: Shimano 8-Speed

• Cassette: 12-32T, 8-Speed

• Shift Lever: 8-Speed Trigger

• Chain: 122 Link, 8-Speed

• Pedals: 9/16" Alloy Platform

Cockpit

• Saddle: Aventon by Velo

• Seatpost: Forged Alloy, 30.9mm, 2-Bolt Clamp

• Seat Clamp: 34.9mm Quick Release

• Stem: Threadless, 31.8mm, 8° Rise

• Handlebars: Aluminum, 31.8mm diameter, 680mm width

• Headset: Sealed Bearing

• Grips: Ergonomic Comfort

Included Accessories

• Kickstand: Rear mount

• Fenders: Included

• Rear Rack: Included
