Velotric Discover 1 Plus

Velotric Packer 1 – Key Features & Specifications

Size & Fit

• Bike Size: One Size

• Rider Height Compatibility: 5'1" – 6'4"

Frame & Suspension

• Frame: Triple-butted aluminum alloy – durable and lightweight

• Fork: Coil suspension with 80mm travel, lock-out function, and 100mm quick-release dropout

• Water Resistance: IPX7 battery, IPX6 frame (via component ratings)

Motor & Battery

• Motor: 48V, 500W rear hub motor (900W peak), 65Nm torque – ideal for everyday hauling and hills

• Battery: 48V, 691.2Wh removable battery, UL 2271 certified (IPX7 rated)

• Battery Cells: Samsung 21700, UL 2580 certified

• Charger: 48V, 3A fast charger

• Throttle Assist: Thumb-style throttle, removable

• USB Port: USB Type-A for phone charging

• Lighting:

  • Front: Integrated high-output LED, 60 Lux brightness, adjustable angle

  • Rear: Built-in brake light indicator

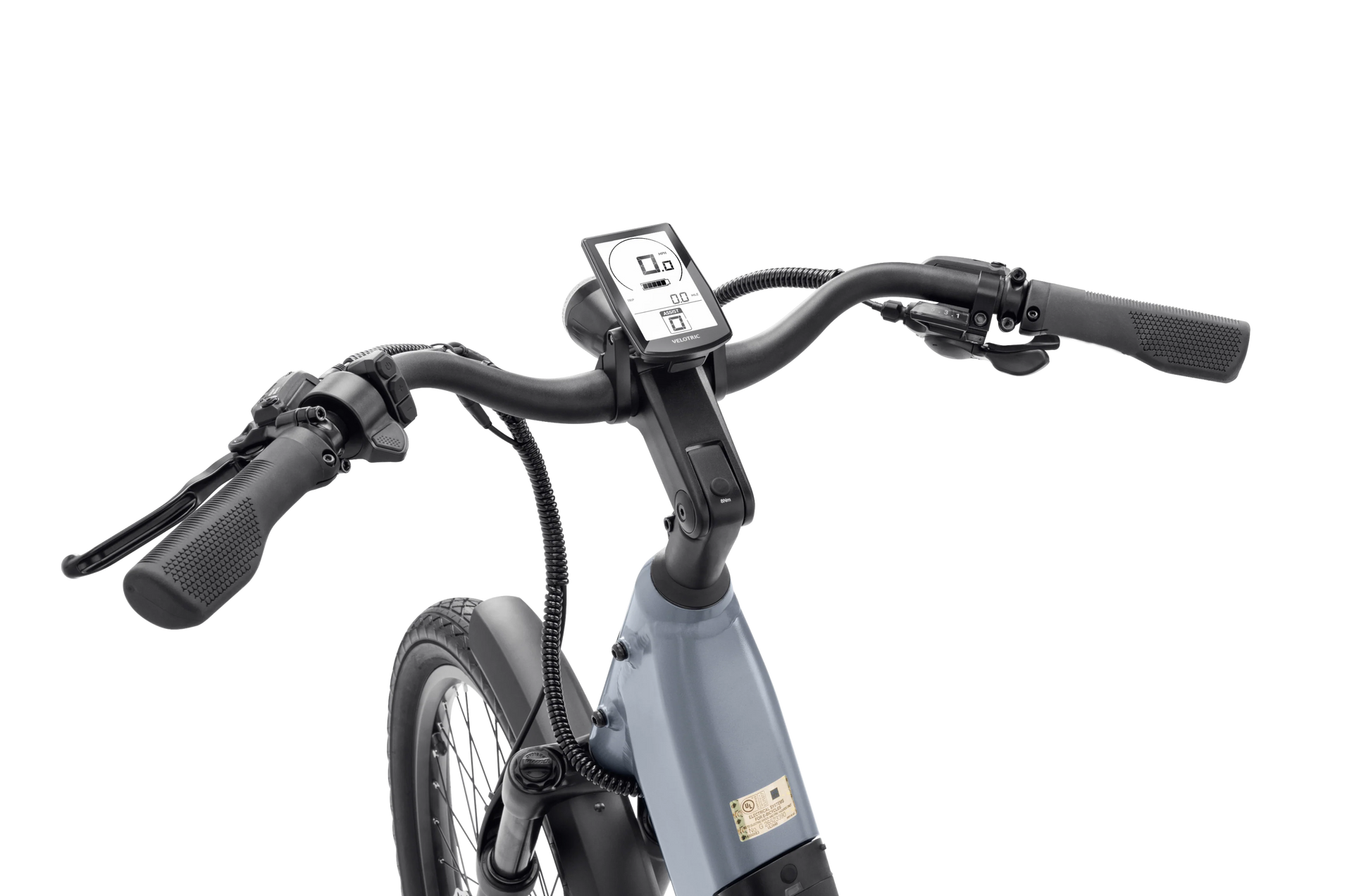

Display

• Screen: 3.5" backlit LCD

• Metrics Displayed: Speed, battery level, trip, pedal assist level, and more

Speed & Range

• Pedal Assist Range: Up to 65 miles

• Throttle Range: Up to 58 miles

• (Tested with a 187-lb rider using PAS 1 on flat terrain)

Drivetrain

• Chainring: 46T

• Crankset: 170mm aluminum alloy

• Gearing:

  • Shimano 7-speed drivetrain

  • 11–28T freewheel

  • KMC 7-speed chain

• Shifter & Derailleur: Shimano 7-speed components

Braking System

• Brakes: Hydraulic disc brakes

• Rotors: 180mm front and rear

• Brake Levers: Aluminum alloy with power cutoff for added safety

Wheels & Tires

• Rims: Double-wall aluminum alloy

• Tires: 26" × 2.5" puncture-resistant e-bike tires – wide for comfort and stability

Cockpit & Comfort

• Handlebars: 660mm wide, 31.8mm diameter aluminum alloy

• Grips: Lockable ergonomic grips

• Stem: Adjustable, 90mm aluminum alloy

• Saddle: Velotric urban comfort saddle, 215mm wide

• Seatpost: 30.9mm × 350mm aluminum alloy

Built-In Features

• Fenders: Full front and rear coverage, durable plastic

• Pedals: Sturdy plastic platform pedals

• Kickstand: Rear-mounted aluminum alloy

Weight & Capacity

• Bike Weight: 60 lbs

• Maximum Load Capacity: 440 lbs (rider + cargo)

Certifications

• UL Certified: UL 2849 (entire electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (frame safety and durability)
