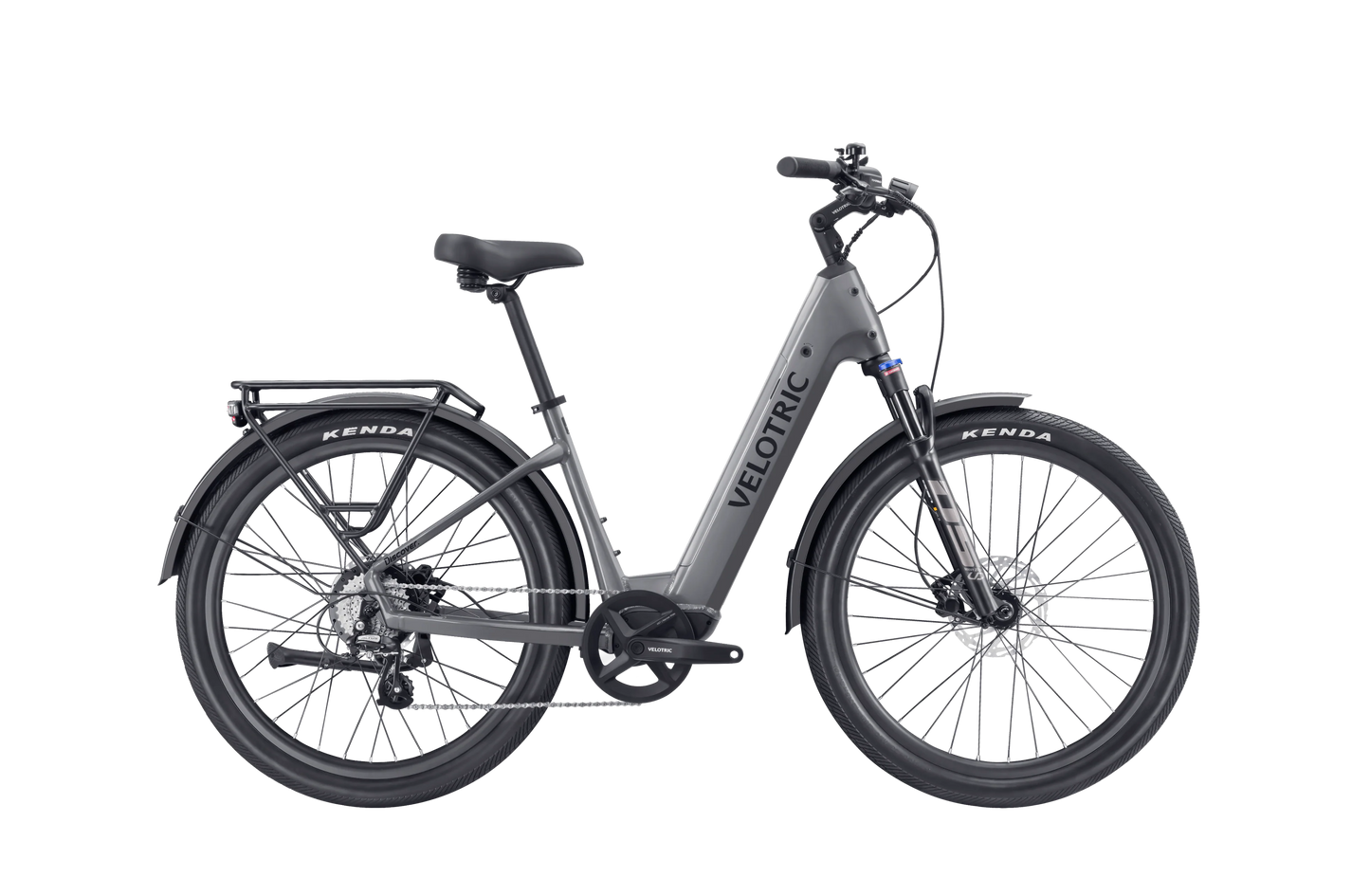

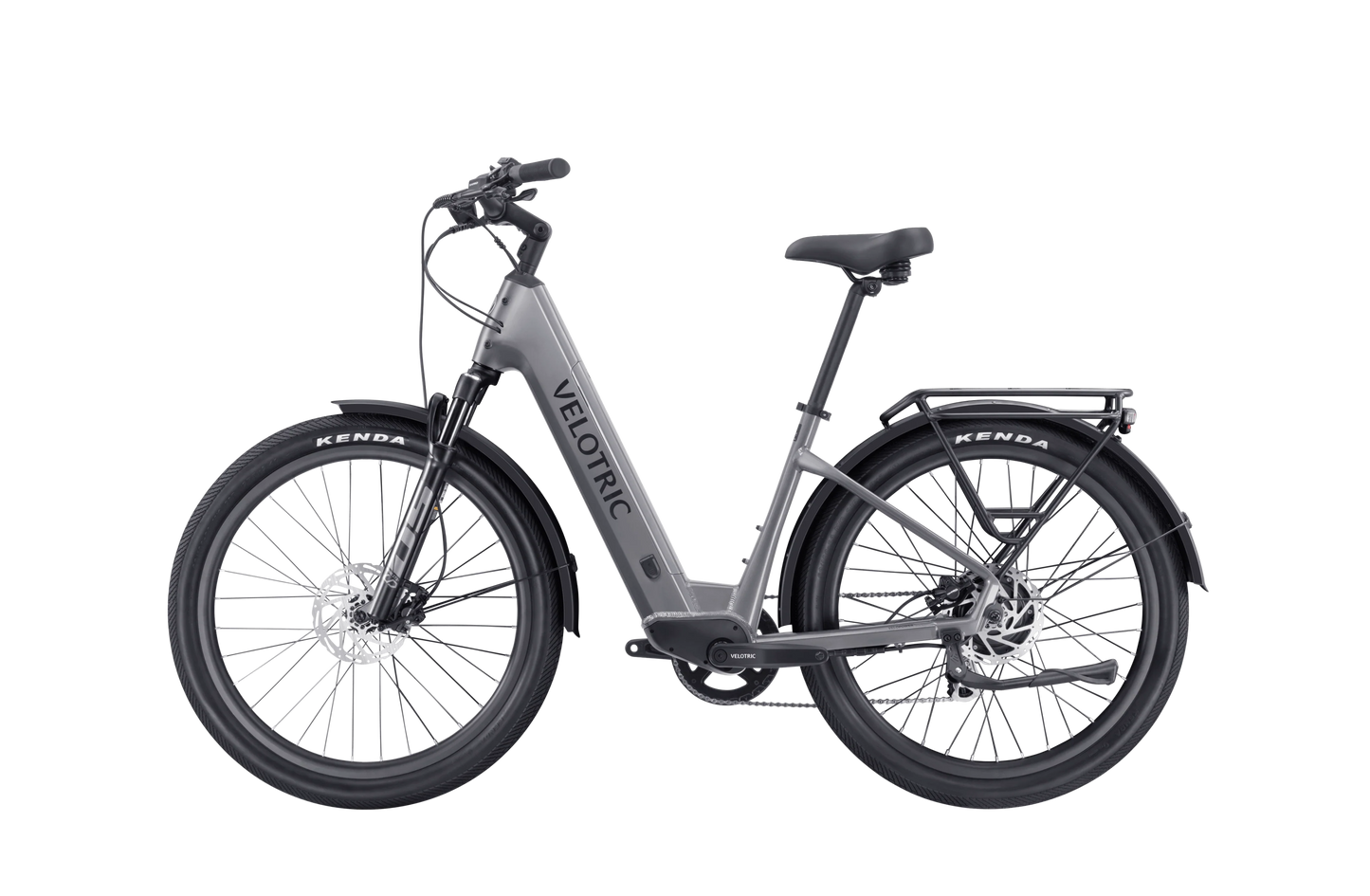

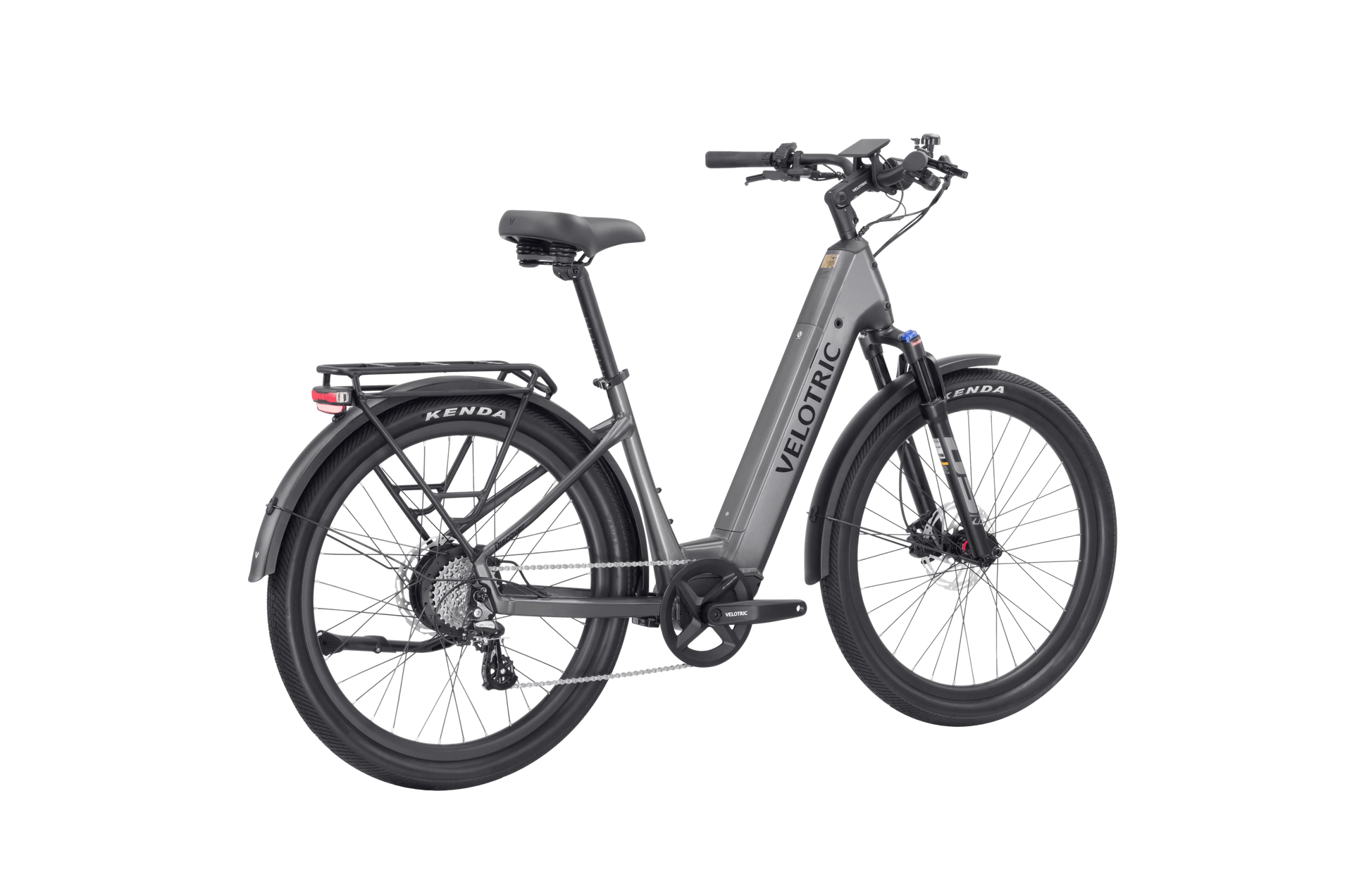

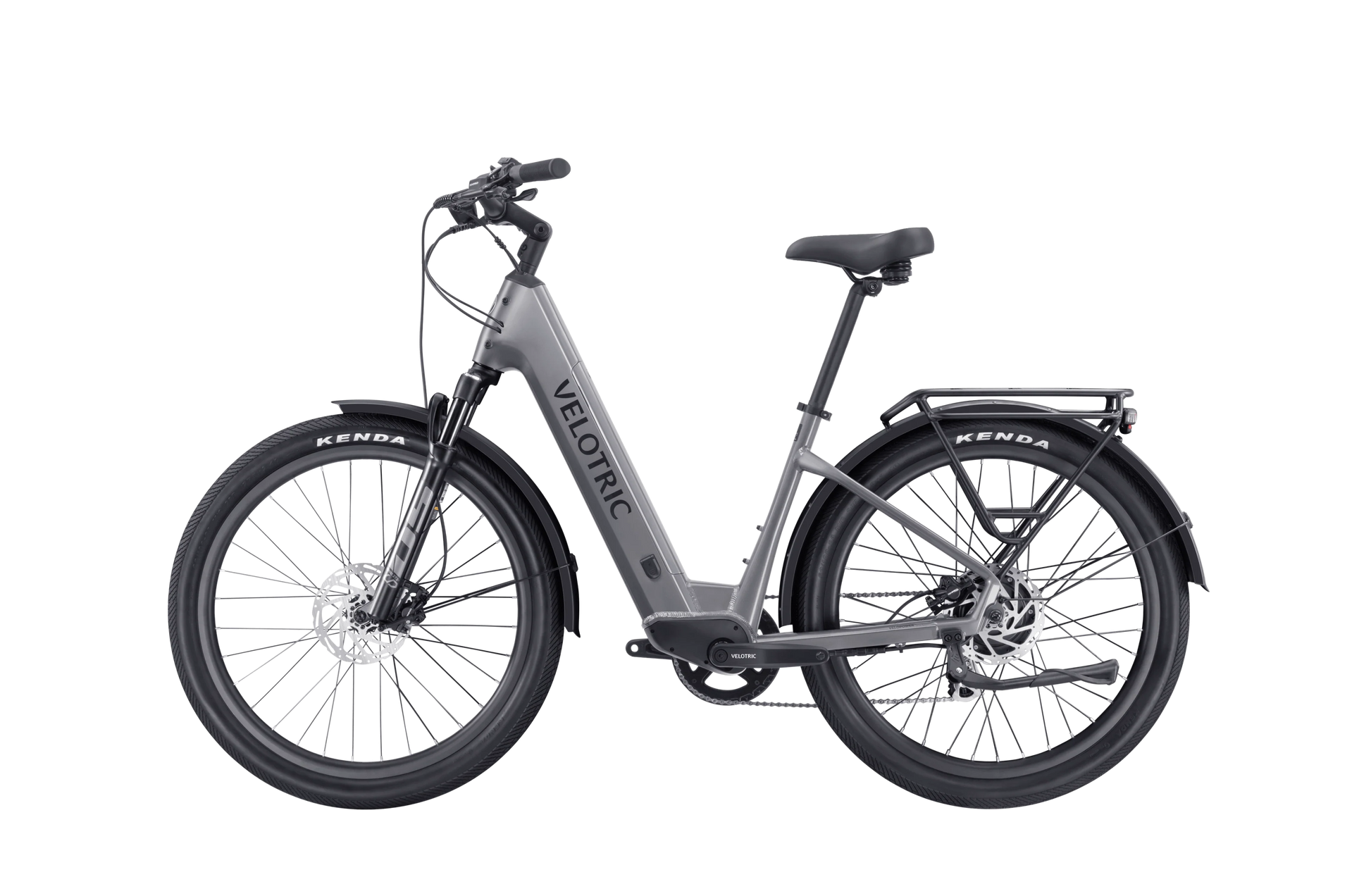

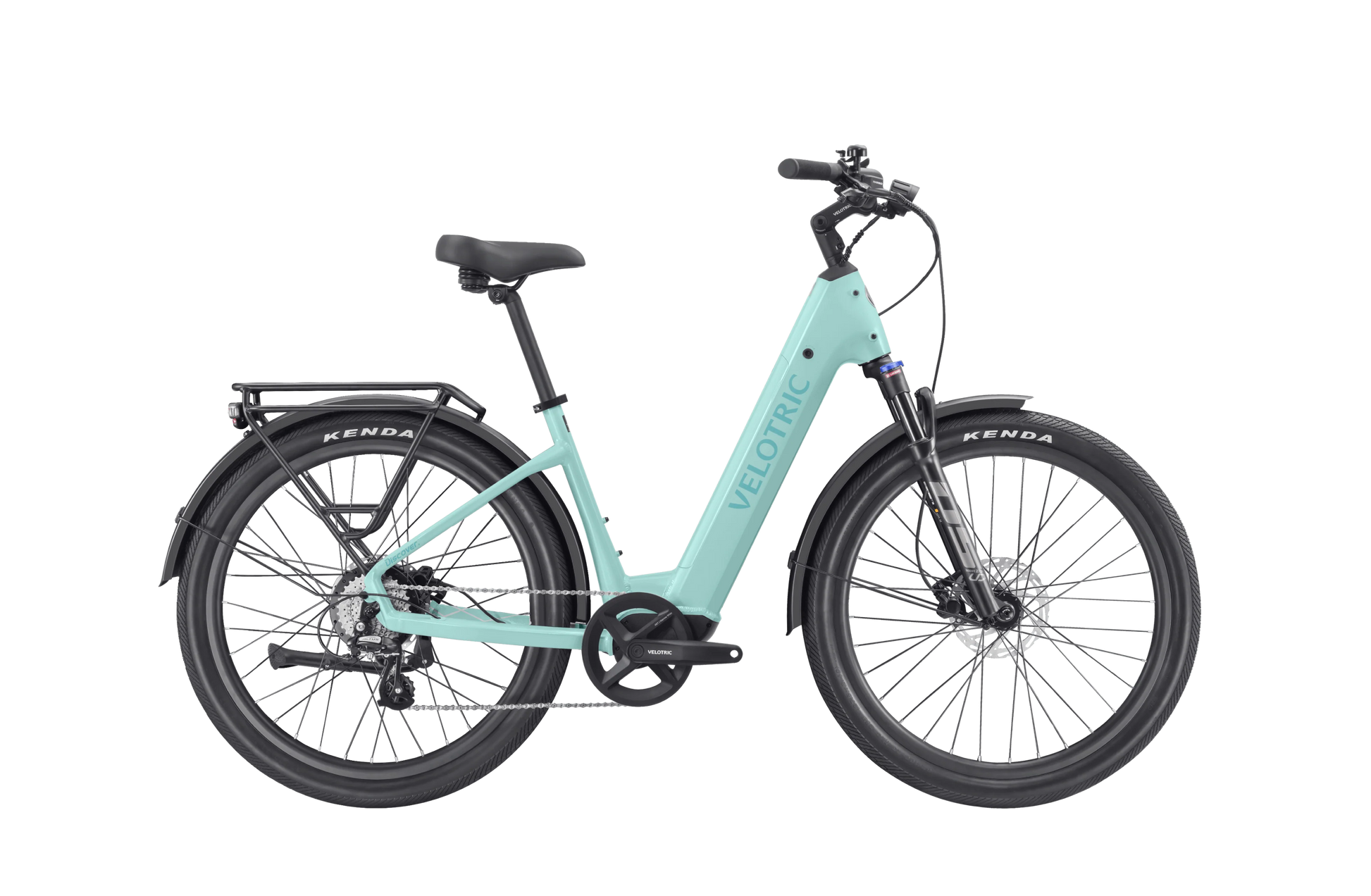

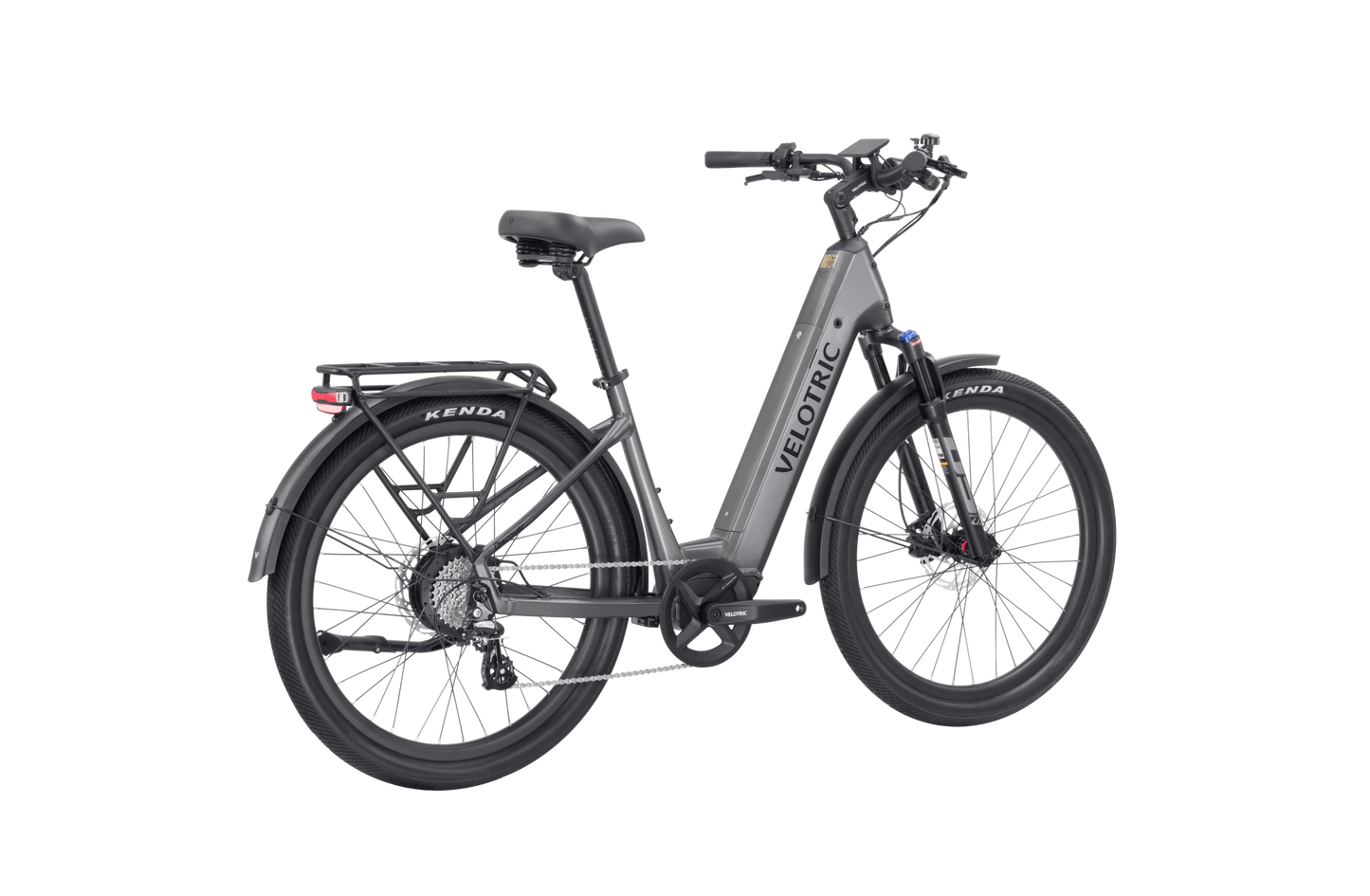

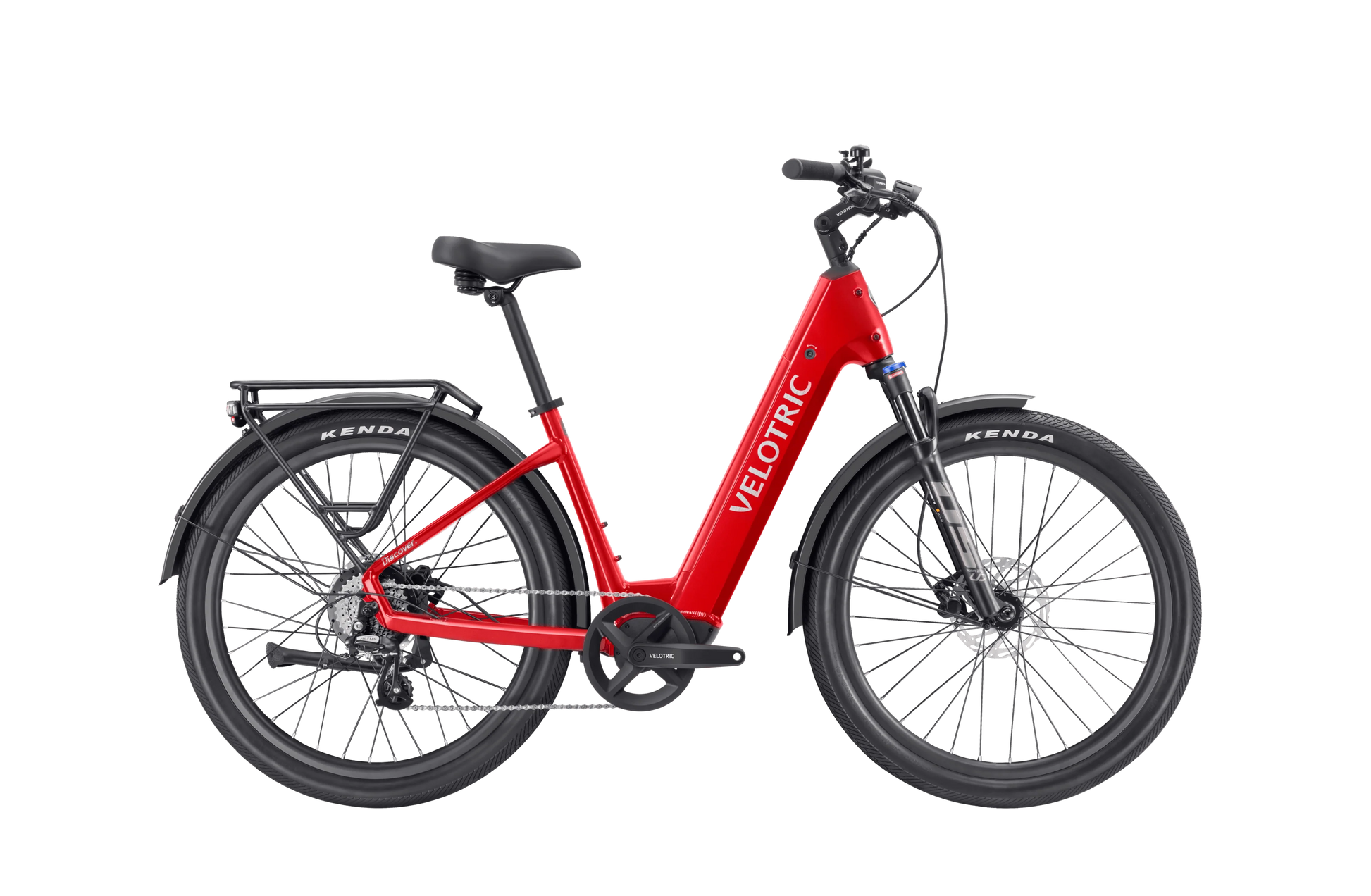

Velotric Discover 2

Velotric Discover 2 ST – Key Features & Specifications

Size & Fit

• Available Sizes: Regular / Large

• Rider Height Range:

  • Regular: 4'11" to 5'9"

  • Large: 5'6" to 6'4"

Frame & Suspension

• Frame: Triple-butted aluminum alloy – strong yet lightweight

• Fork: Hydraulic suspension fork with 80mm travel and lock-out, 15x110mm thru-axle

• Water Resistance: IPX6 (whole bike)

Motor & Battery

• Motor: 48V, 750W rear hub motor with 75Nm of torque

• Battery: 48V, 705.6Wh removable battery (IPX7 rated, UL 2271 certified)

• Battery Cells: Samsung/LG 21700 cells (UL 2580 certified)

• Charger: 48V, 3A fast charger

• Throttle: Trigger-style throttle, removable

• Pedal Assist: 3 riding modes × 5 assist levels

• Walk Assist: 2.9 MPH walk mode

• Range:

  • Up to 75 miles with pedal assist

  • Up to 60 miles using throttle only
    (Based on a 187-lb rider in Eco mode on flat terrain)

Speed & Control

• Top Speed (Default): 20 MPH

• Adjustable Speed Range: 12 – 28 MPH

• Class Modes: Supports Class 1, 2, and 3 configurations

• Sensor System: Integrated torque and cadence sensors for smooth response

• Display: 3.5" full-color screen with high brightness, Bluetooth, and adjustable viewing angle

• USB Port: USB Type-C for phone charging

• Security: Built-in Apple Find My™ compatibility for tracking

Drivetrain

• Chainring: 46T narrow-wide design for better chain retention

• Crankset: 170mm aluminum alloy

• Gearing:

  • Shimano 8-speed drivetrain

  • 11–32T freewheel

  • KMC 8-speed chain

• Shifter & Derailleur: Shimano 8-speed components

Braking System

• Brakes: Tektro hydraulic disc brakes

• Rotors: 180mm front and rear

• Brake Levers: Aluminum alloy with power cutoff for safety

Wheels & Tires

• Rims: Double-wall aluminum alloy for added durability

• Front Hub: NOVATEC aluminum alloy, 15x110mm thru-axle

• Tires: Kenda 27.5 x 2.4" e-bike rated, puncture-resistant

Comfort & Cockpit

• Handlebars:

  • Regular: 680mm wide

  • Large: 700mm wide

  • Both: 31.8mm diameter, aluminum alloy

• Grips: Ergonomic, lockable design

• Stem: Adjustable aluminum alloy, 90mm length

• Seat: Velotric urban comfort ergonomic saddle

• Seatpost: 30.9mm × 350mm aluminum alloy

• Seat Clamp: Aluminum alloy, quick-release

Built-In Accessories

• Fenders: Full front and rear coverage, aluminum alloy

• Rear Rack: Aluminum alloy, MIK HD compatible (supports up to 66 lbs)

• Kickstand: Rear-mounted, aluminum alloy

• Pedals: Durable plastic platform pedals

• Lighting:

  • Front: Integrated LED, light-sensing, 130 Lux brightness

  • Rear: Integrated brake light, turn signals, steady/flash modes

Weight & Capacity

• Bike Weight: 63 lbs

• Rear Rack Capacity: 66 lbs

• Maximum Load Capacity: 440 lbs (rider + cargo)

Safety Certifications

• UL Certified: UL 2849 (electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (frame and safety standards)
