Velotric Fold 1

Velotric Fold 1 – Key Features & Specifications

Size & Fit

• Bike Size: One Size

• Rider Height Compatibility: 4'9" – 6'5"

Frame & Suspension

• Frame Material: Aluminum alloy

• Fork: Coil suspension with 60mm travel and lock-out

• Water Resistance Rating: IPX6 (entire bike)

Motor & Battery

• Motor: 48V, 750W rear hub motor with 70Nm of torque

• Battery: 48V, 608Wh removable battery (UL 2271 certified, IPX7 rated)

• Battery Cells: 18650 cells, UL 2580 certified

• Charger: 48V, 2A fast charger

• Sensor: Cadence sensor

• Throttle: Thumb-style throttle, removable

• Pedal Assist: 5 power levels

• Walk Assist: 2.9 MPH walk mode

Speed & Range

• Top Speed (Default): 20 MPH

• Adjustable Speed Range: 12 – 28 MPH

• Class Support: Class 1, 2, and 3

• Estimated Range:

  • Up to 55 miles with pedal assist

  • Up to 45 miles on throttle only
    (Based on a 187-lb rider using PAS 1 on flat terrain)

Display & Lighting

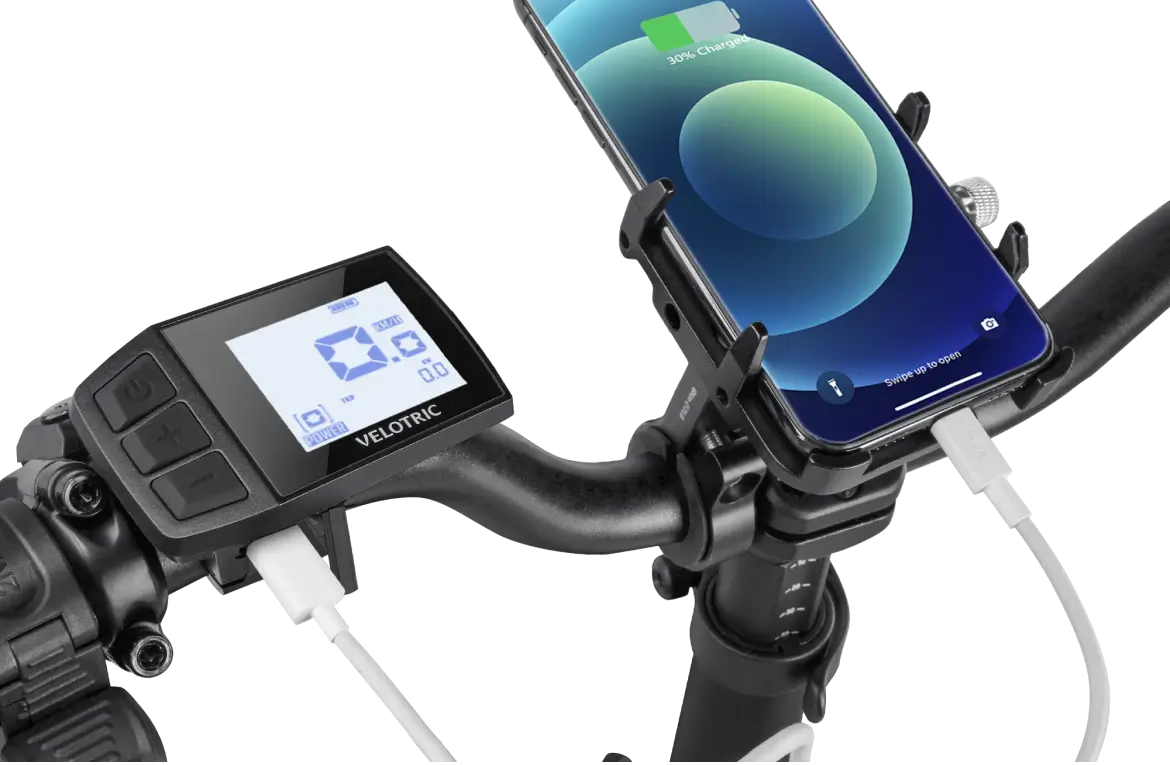

• Display: 1.8” high-brightness LCD

• USB Charging: USB Type-A port for phone charging

• Front Light: Integrated LED, 60 Lux brightness, adjustable angle

• Rear Light: Integrated brake light (steady and flashing), built into rear rack

Drivetrain

• Chainring: 52T

• Crankset: 170mm aluminum alloy

• Gearing:

  • Shimano 7-speed derailleur

  • 7-speed, 11–28T freewheel

  • KMC chain

Braking System

• Brakes: Hydraulic disc brakes

• Rotors: 180mm front and rear

• Brake Levers: Aluminum alloy with motor cutoff for added safety

Wheels & Tires

• Rims: Double-wall aluminum alloy

• Front Hub: Aluminum alloy, nutted

• Tires: 20" × 3.0" puncture-resistant e-bike tires

Comfort & Cockpit

• Handlebar: 660mm wide, 25.4mm diameter aluminum alloy

• Grips: Lockable ergonomic grips

• Saddle: Velotric urban comfort ergonomic seat

• Seatpost: 30.9mm × 350mm aluminum alloy

• Clamp: Quick-release aluminum alloy

Built-In Features

• Fenders: Steel, full front and rear coverage

• Rear Rack: Aluminum alloy, integrated with the frame (supports up to 120 lbs)

• Pedals: Foldable plastic

• Kickstand: Rear-mounted, aluminum alloy

Weight & Load

• Bike Weight: 63 lbs

• Rear Rack Capacity: 120 lbs

• Maximum Load Capacity: 440 lbs (rider + cargo)

Safety Certifications

• UL Certified: UL 2849 (electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (bike frame & mechanical safety)
