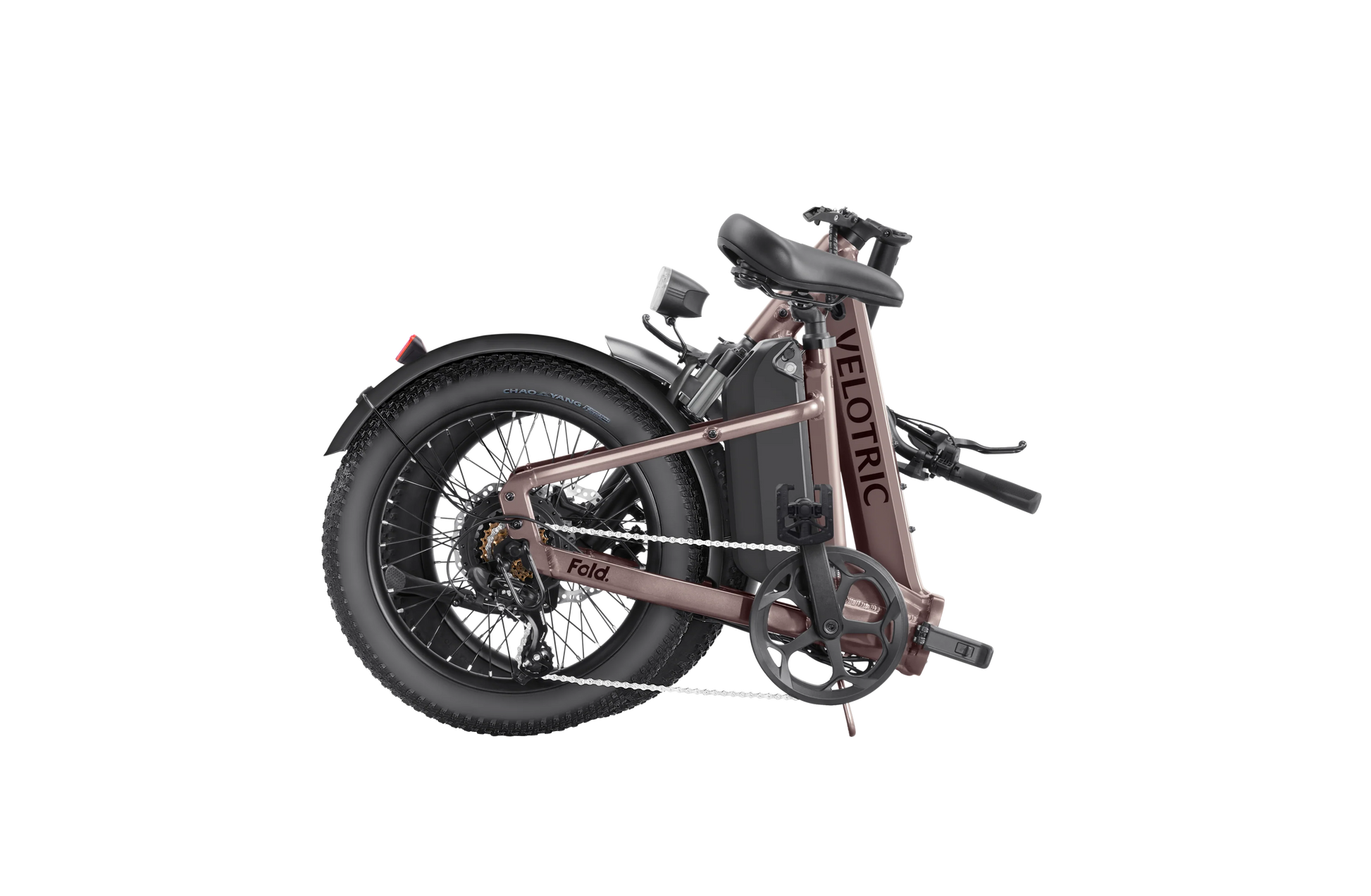

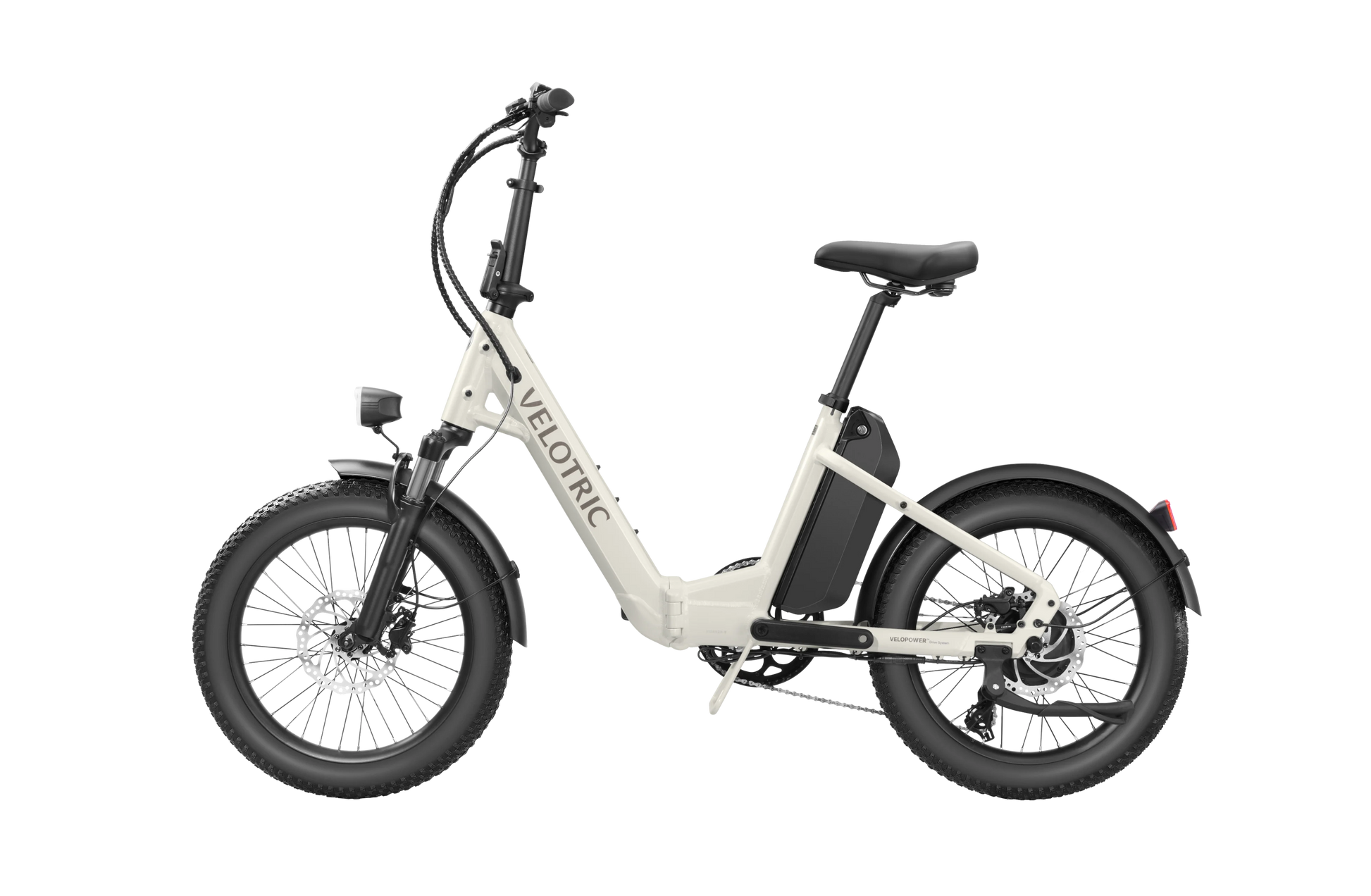

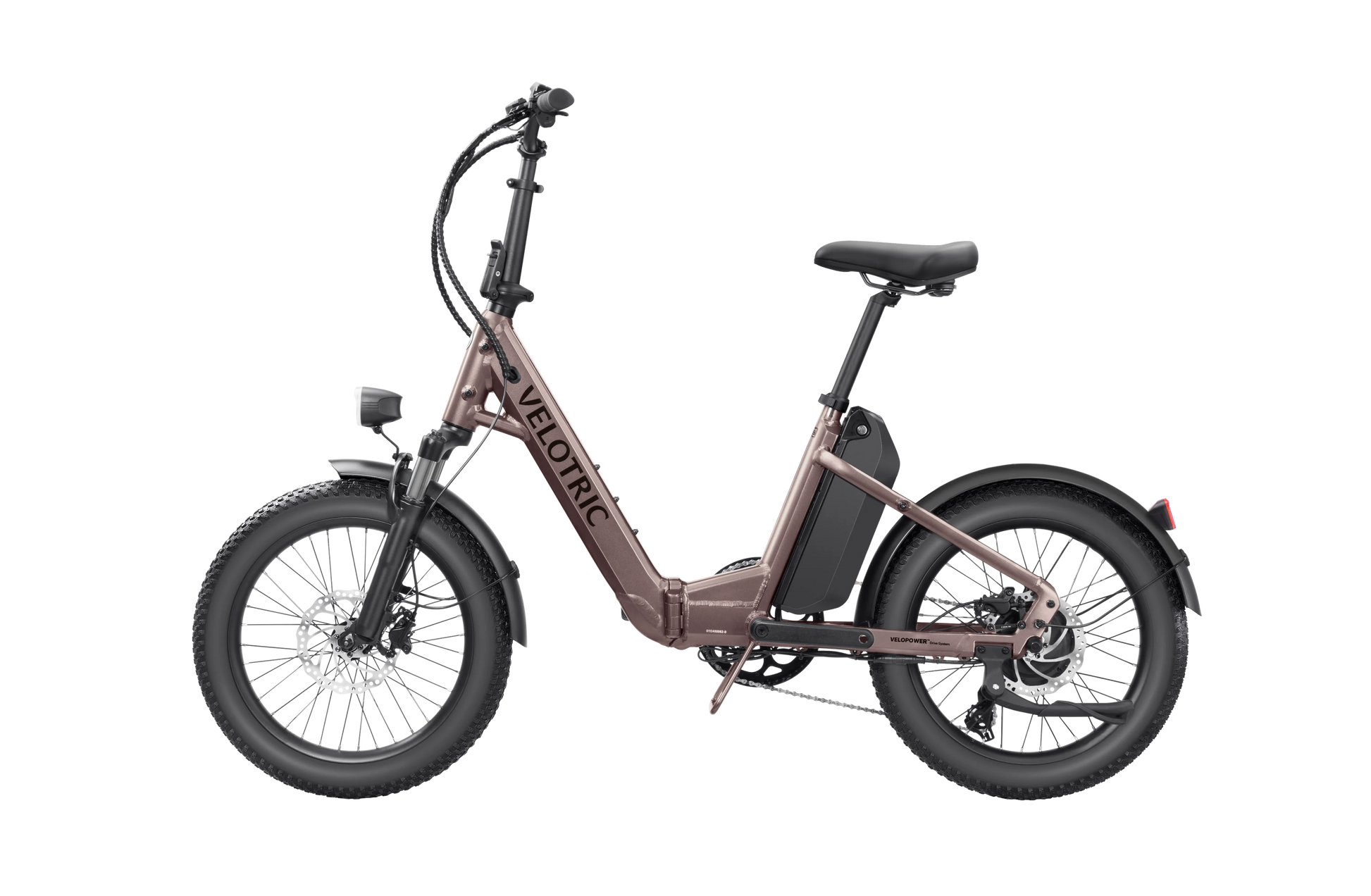

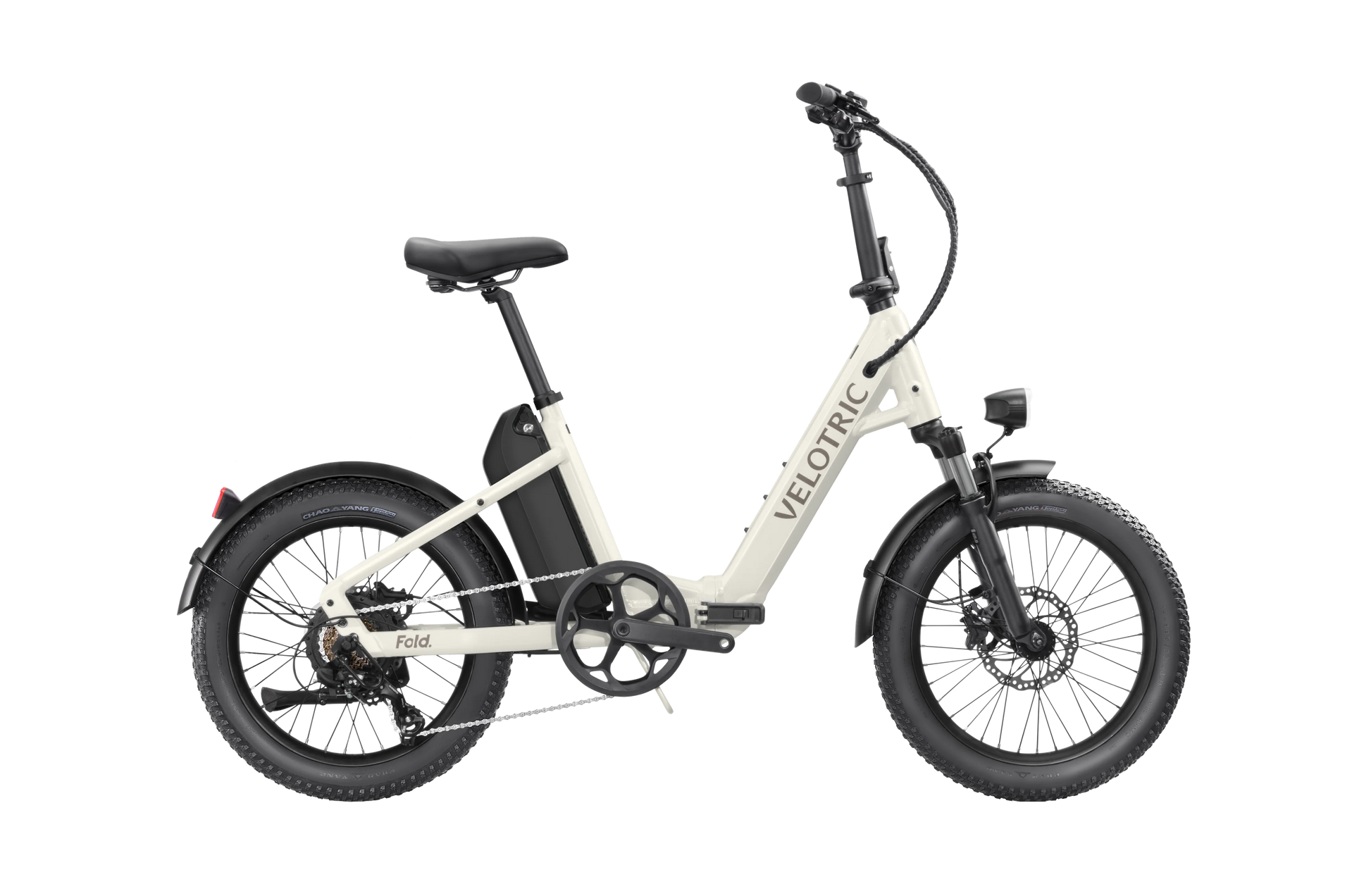

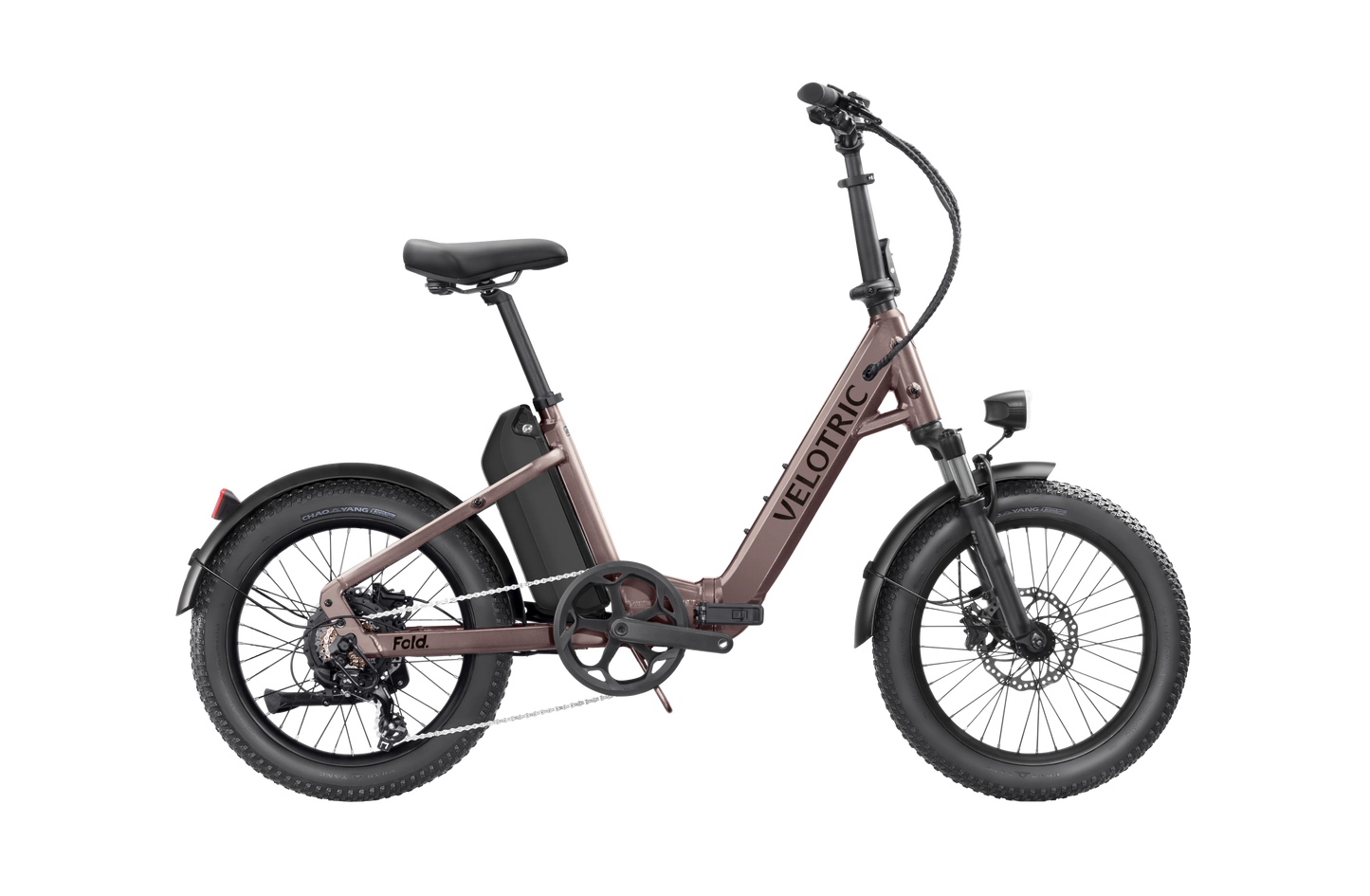

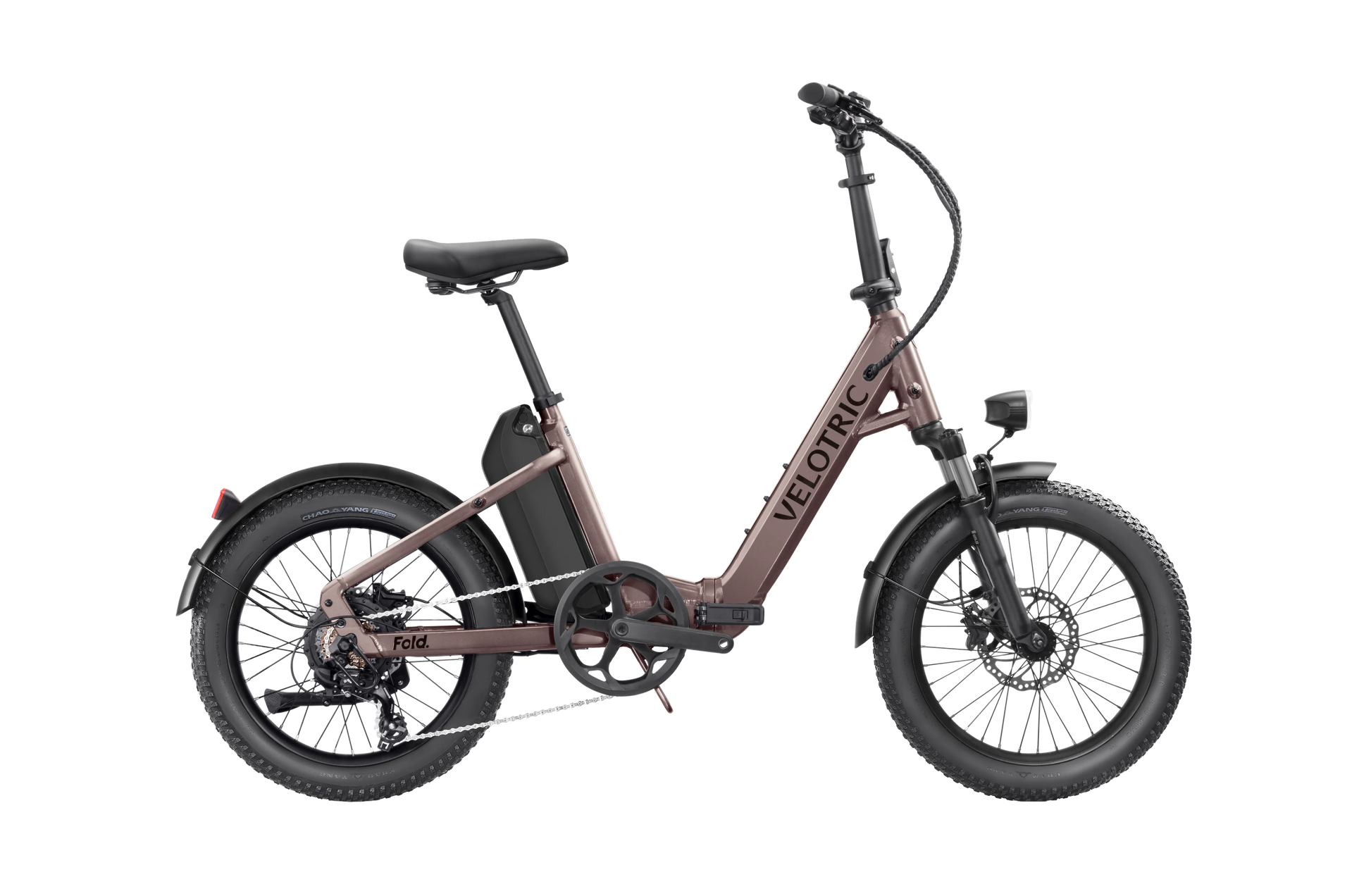

Velotric Fold 1 Lite

Velotric Fold 1 Lite – Features & Specifications

Size & Fit

• Bike Size: One Size

• Rider Height Range: 4'9" – 6'5"

Frame & Suspension

• Frame: Lightweight aluminum alloy

• Fork: Coil suspension with 60mm travel and lock-out

• Water Resistance:

  • IPX7-rated battery

  • IPX6-rated frame/components

Motor & Battery

• Motor: 48V, 500W rear hub motor (55Nm torque)

• Battery: 48V, 486Wh removable battery (UL 2271 certified)

• Battery Cells: 18650 cells, UL 2580 certified

• Charger: 48V, 2A fast charger

• Throttle: Thumb-control, removable

• Pedal Assist: 5 levels of assistance

• Walk Mode: 2.9 MPH

Speed & Range

• Top Speed (Default): 20 MPH

• Adjustable Speed Range: 12–28 MPH

• Class Support: Class 1 / 2 / 3 compatible

• Estimated Range:

  • Up to 48 miles with pedal assist

  • Up to 40 miles with throttle only
    (Tested with a 187-lb rider using PAS 1 on flat terrain)

Display & Lighting

• Display: 1.8" high-brightness LCD screen

• USB Port: USB Type-A phone charging port

• Front Light: Integrated high-output LED, 60 Lux, adjustable

• Rear Light: Integrated brake light in rear fender

Drivetrain

• Chainring: 52T

• Crankset: 170mm aluminum alloy

• Freewheel: 7-speed, 11–28T

• Rear Derailleur & Shifter: Shimano 7-speed

• Chain: KMC 7-speed

Braking System

• Brakes: Hydraulic disc brakes

• Rotors: 180mm front and rear

• Brake Levers: Aluminum alloy with motor cutoff for safety

Wheels & Tires

• Rims: Double-wall aluminum alloy

• Front Hub: Aluminum alloy, nutted

• Tires: 20" × 3.0" puncture-resistant e-bike tires

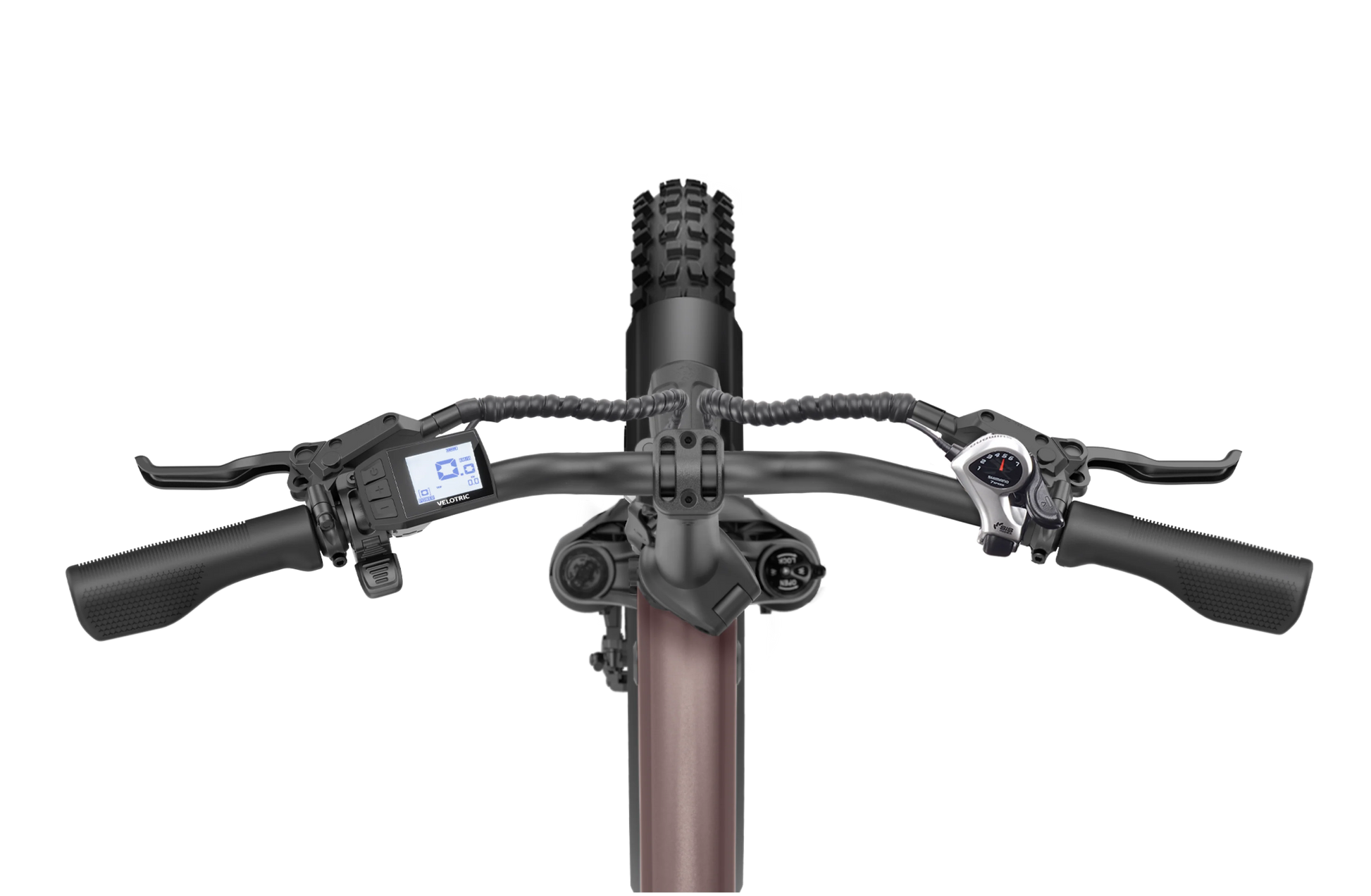

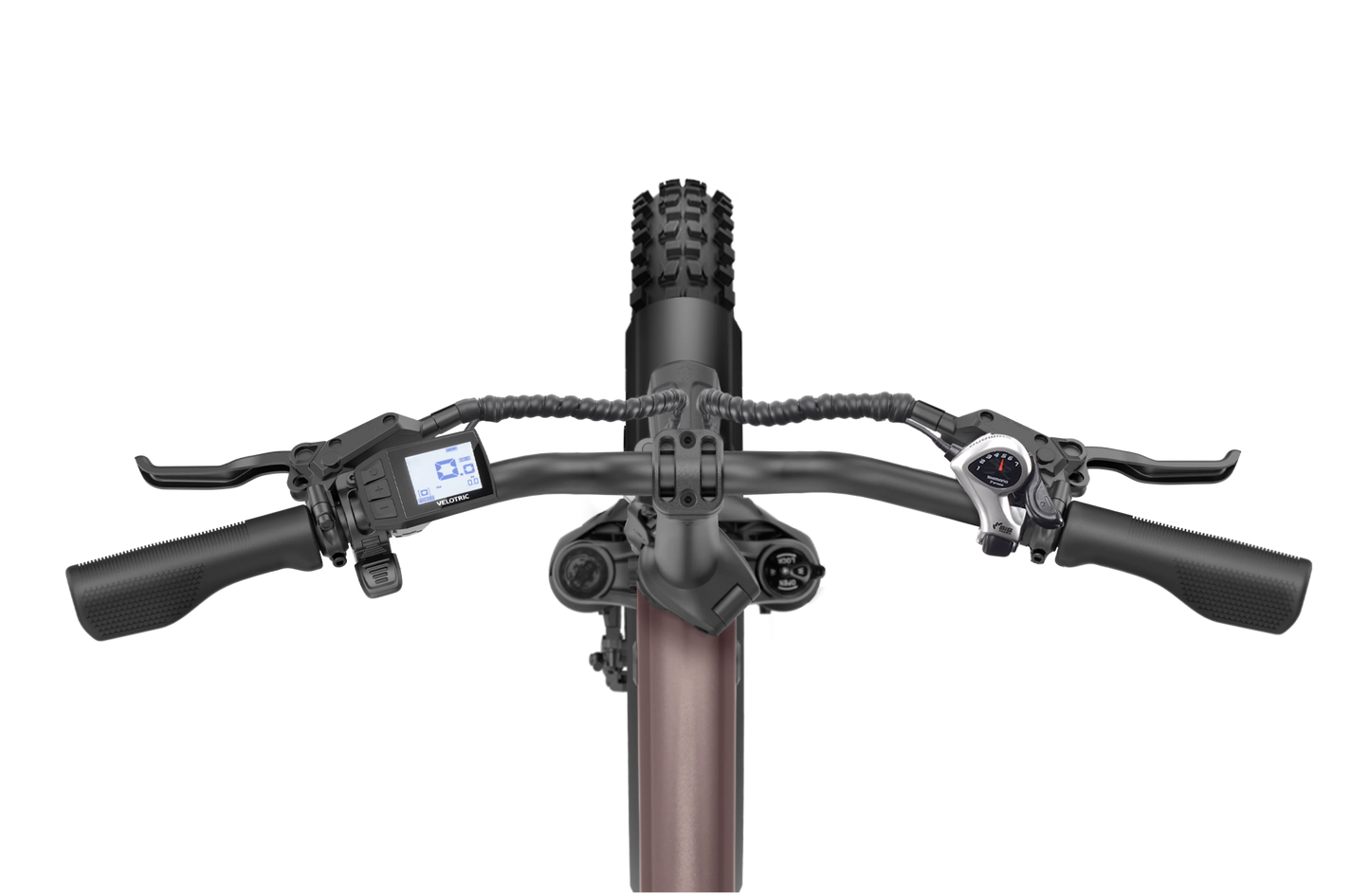

Comfort & Controls

• Handlebar: 660mm wide, 25.4mm diameter aluminum alloy

• Grips: Lockable ergonomic grips

• Saddle: Velotric urban comfort seat

• Seatpost: 30.9mm × 350mm aluminum alloy

• Clamp: Quick-release aluminum alloy

Additional Features

• Fenders: Full front and rear steel fenders

• Pedals: Foldable plastic pedals

• Kickstand: Rear-mounted aluminum alloy

Weight & Load

• Bike Weight: 61 lbs

• Max Load Capacity: 440 lbs (rider + cargo)

Safety Certifications

• UL Certified: UL 2849 (electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (bike frame safety)
