Velotric Nomad 2 Fat Tire Step Over

Velotric Nomad 2X – Specifications

Size Guide

Bike Sizes: Regular / Large
Step-Thru Frame:

• Regular: Fits riders 5'2" to 5'11"

• Large: Fits riders 5'10" to 6'5"

High-Step Frame:

• Regular: Fits riders 5'2" to 5'11"

• Large: Fits riders 5'10" to 6'5"

Frameset

Frame: Triple-butted aluminum alloy for strength and lightweight durability
Fork: RST hydraulic suspension with 100mm travel and lock-out functionality

Electronics

Motor: 48V, 750W rear hub motor with 90Nm of torque
Battery: Removable 48V 14.7Ah (705.6Wh) battery, rated IPX7 and UL 2271 certified
Battery Cells: Samsung/LG 21700 cells, UL 2580 certified
Charger: 48V 3.0A fast charger

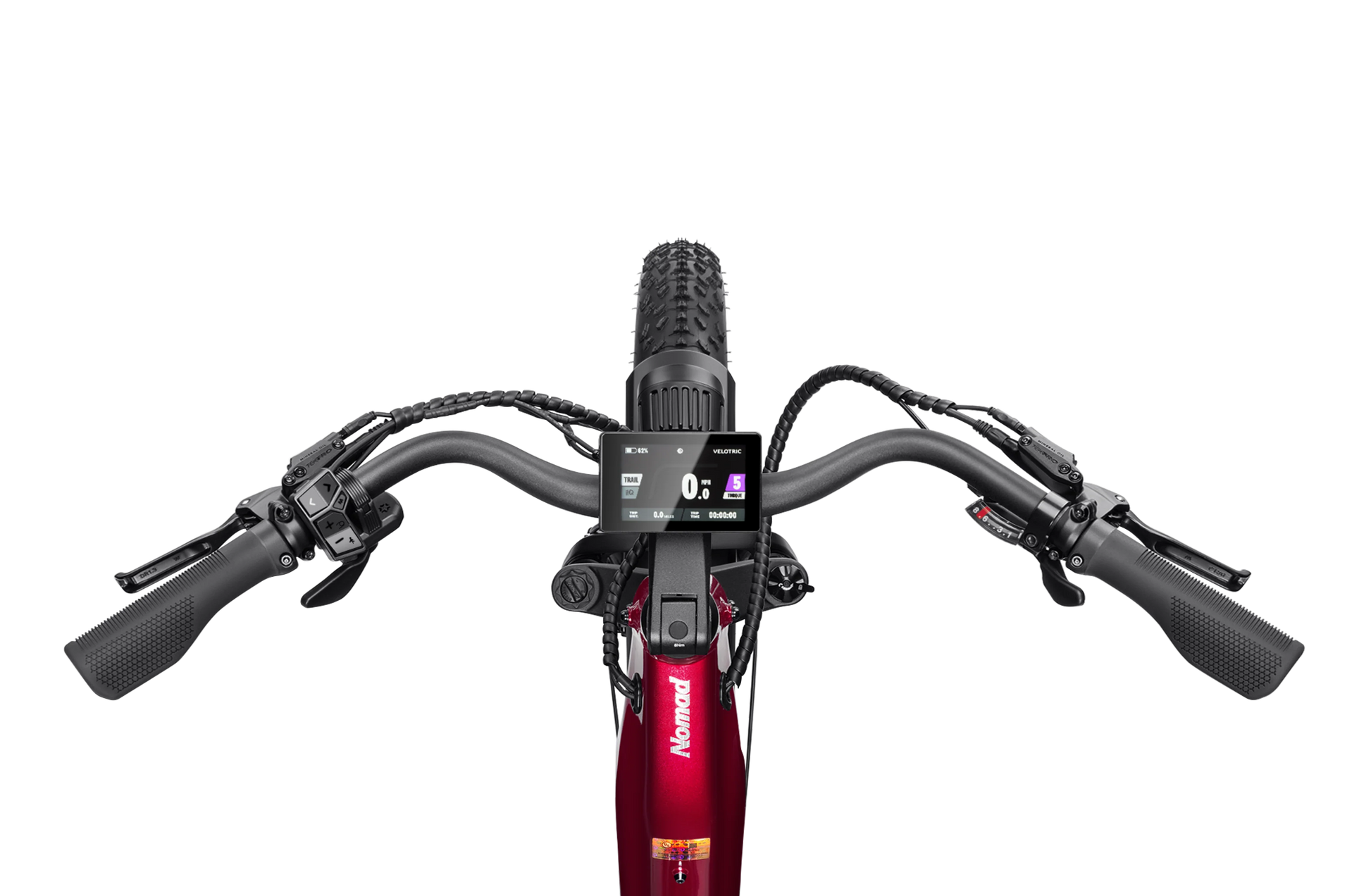

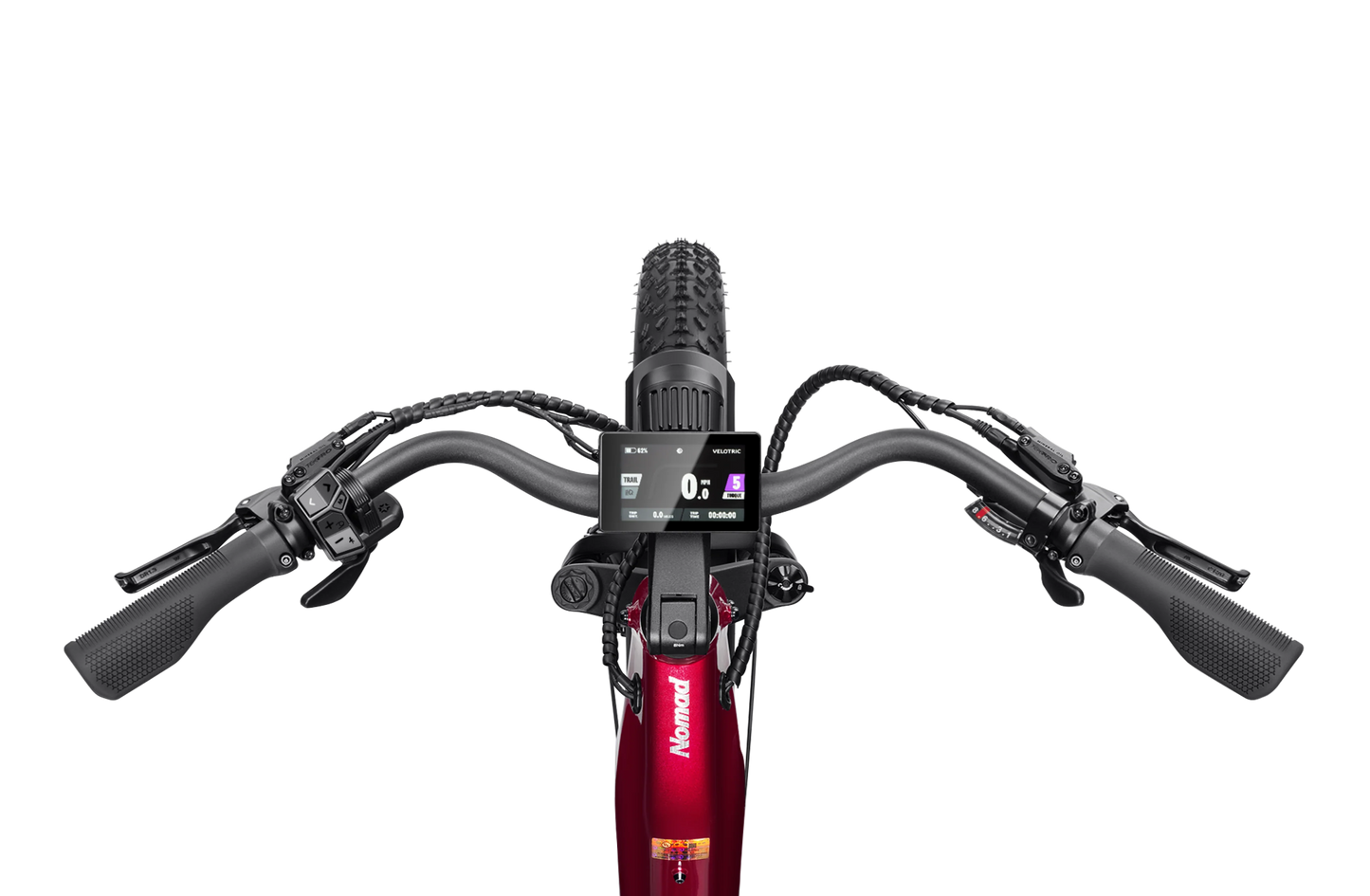

Display: 3.5" full-color, high-brightness display with Bluetooth and adjustable angle
Sensors: Integrated torque and cadence sensor
USB Port: USB Type-C phone charging port
Throttle: Trigger-control throttle (removable)
Pedal Assist: Three riding modes with five levels of pedal assistance
Walk Mode: 2.9 mph walk-assist function
Front Light: Integrated LED, light-sensing, 130 Lux (500 lumens), adjustable angle
Rear Light: Integrated rear rack lighting with brake light, turn signals, and flash/steady modes
Connectivity: Velotric app with over-the-air updates and Apple Find My™ integration

Speed & Range

Performance estimates based on a 187-lb rider using PAS 1 in Eco mode on flat terrain.
Top Speed (default): 20 mph
Adjustable Speed Range: 12 to 28 mph
Class Rating: Supports Class 1, 2, or 3 operation
Throttle Range: Up to 45 miles
Pedal Assist Range: Up to 65 miles

Drivetrain

Chainring: 48T
Crankset: 165mm aluminum alloy
Freewheel: 8-speed, 11-40T
Rear Derailleur: Shimano 8-speed
Shift Lever: Shimano 8-speed
Chain: Compatible with 8-speed system

Brakes

Brakes: Tektro hydraulic disc brakes
Rotors: 203mm front / 180mm rear
Brake Levers: Aluminum alloy levers with motor cutoff feature

Wheels and Tires

Rims: Double-wall aluminum alloy
Front Hub: Aluminum alloy, nutted
Tires: Kenda 26x4.0" puncture-resistant e-bike tires

Cockpit

Handlebars: Aluminum alloy – 680mm (Regular) / 700mm (Large), 31.8mm diameter
Grips: Ergonomic and lockable for long-ride comfort
Stem: Adjustable aluminum alloy – 60mm (Regular) / 90mm (Large)
Saddle: Velotric comfort ergonomic seat
Seatpost: Suspension seatpost, 30.9mm aluminum alloy
Seat Clamp: Aluminum alloy with quick release

Accessories and Support Features

Fenders: Full front and rear coverage
Rear Rack: MIK HD-compatible alloy rack
Pedals: Durable plastic platform pedals
Kickstand: Rear-mounted aluminum alloy

Weight and Load Capacity

Bike Weight: 75 lbs
Maximum Load Capacity: 505 lbs
Rear Rack Capacity: 66 lbs

Certifications

UL Certification: UL 2849 for electrical systems
ISO Standard: Compliant with ISO 4210 for bicycle safety and performance
