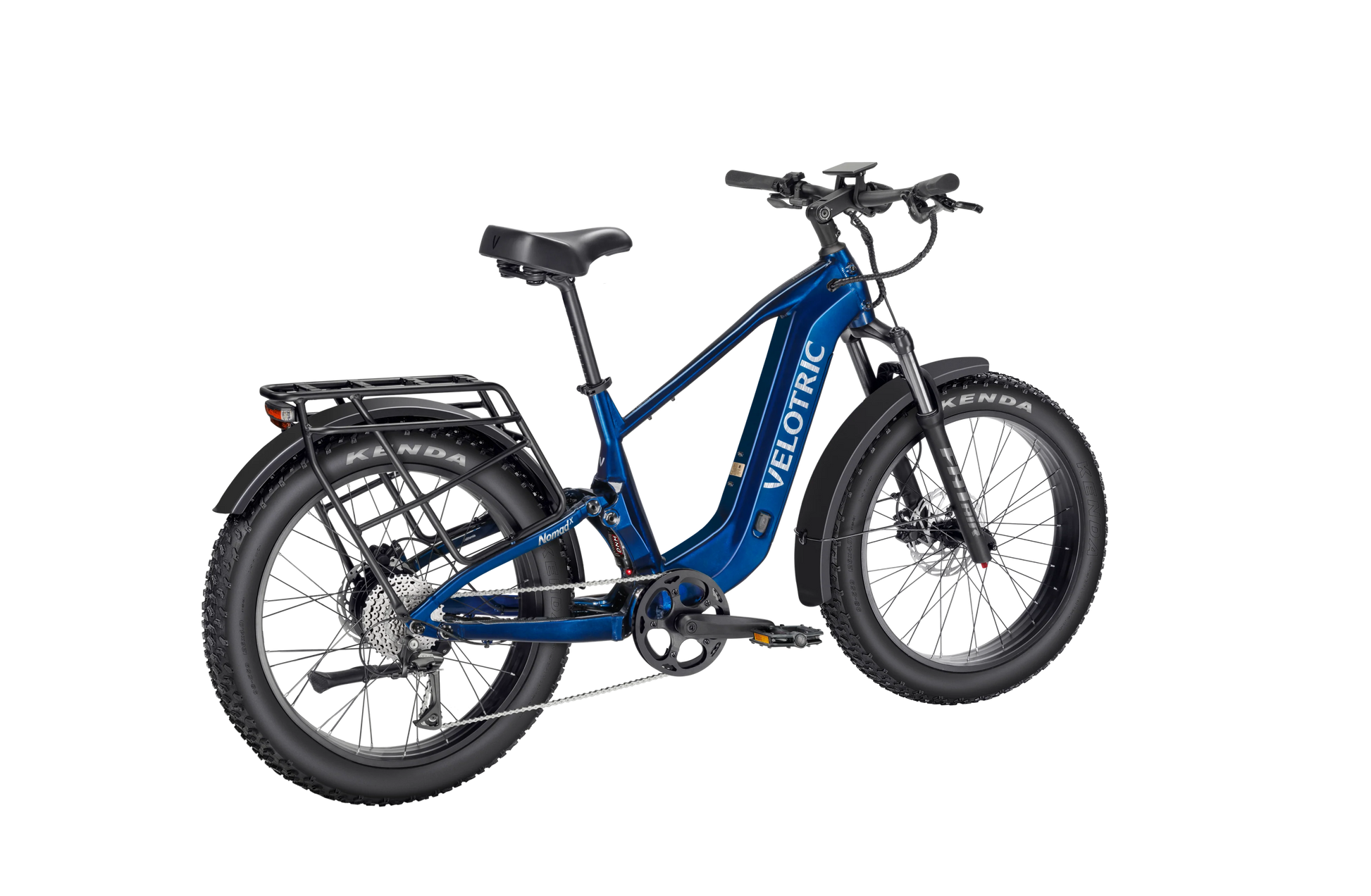

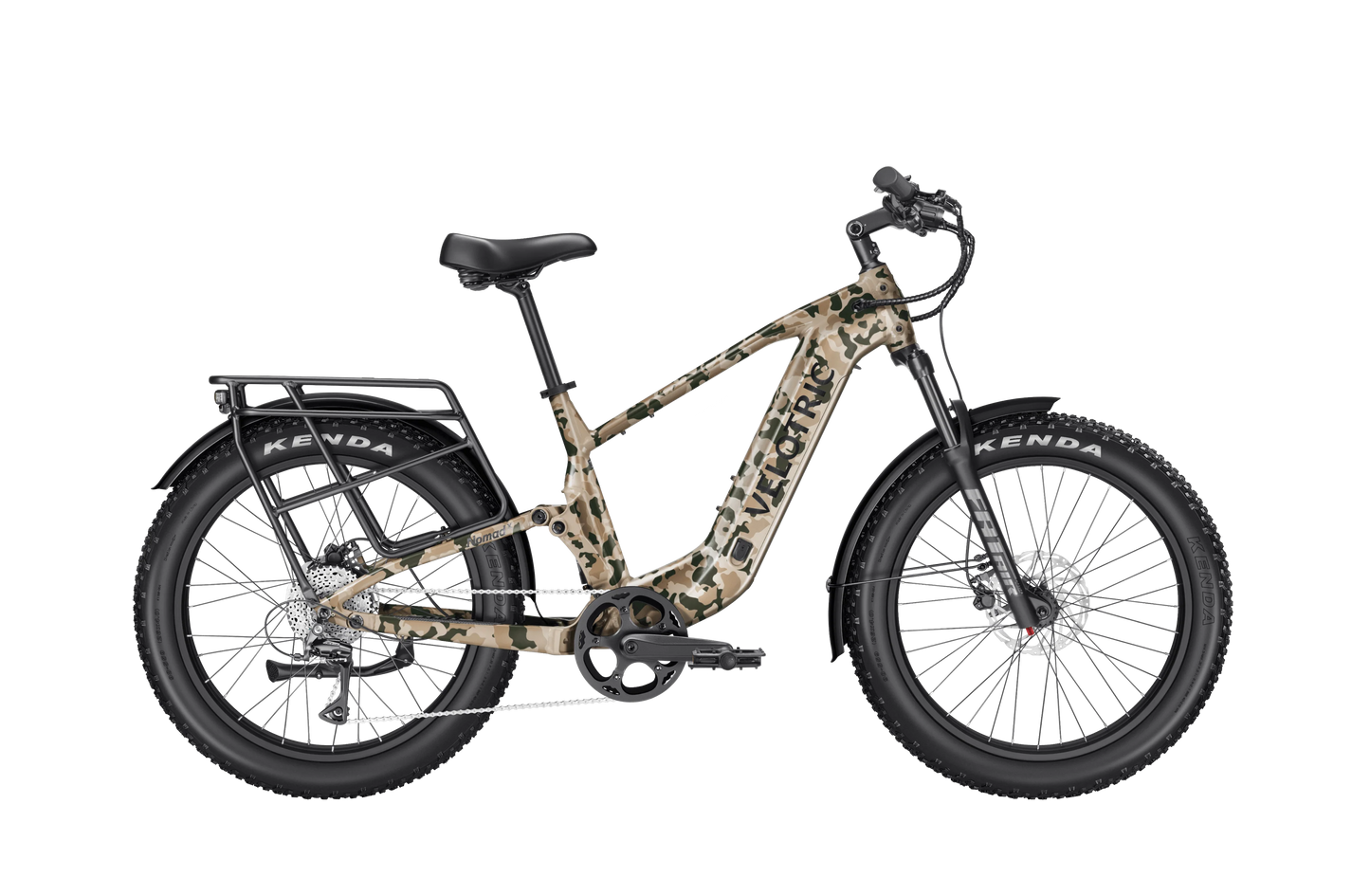

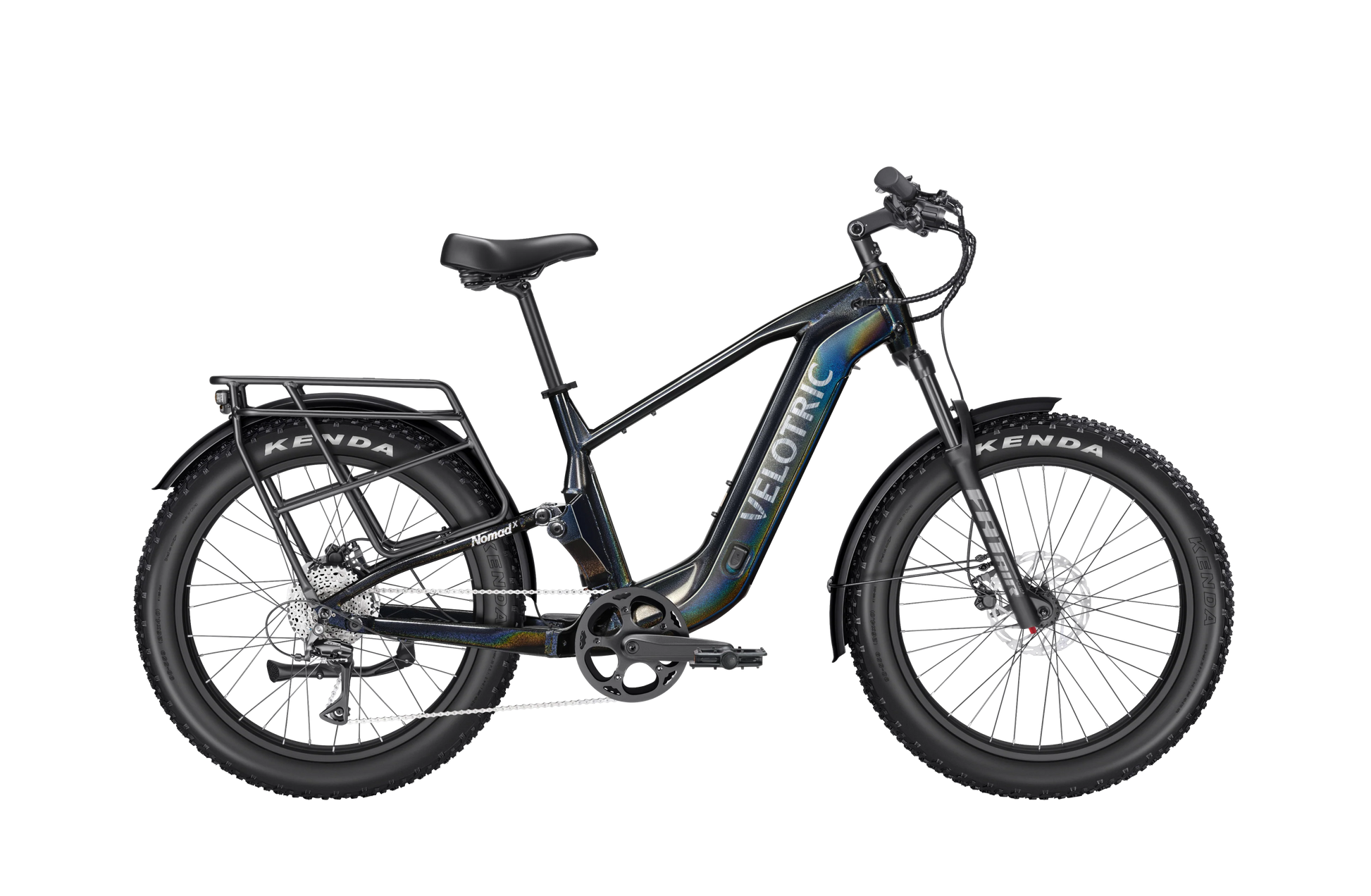

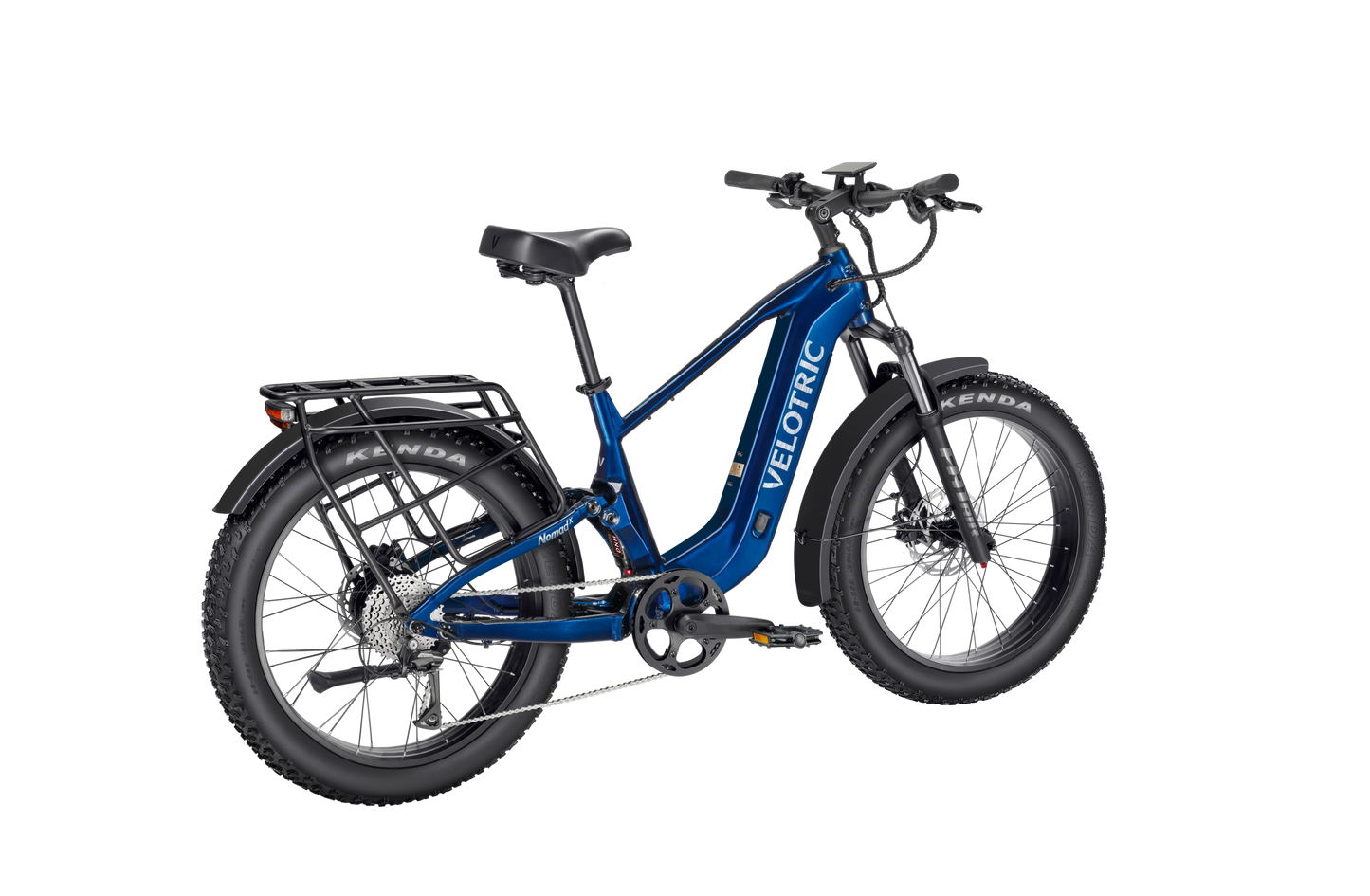

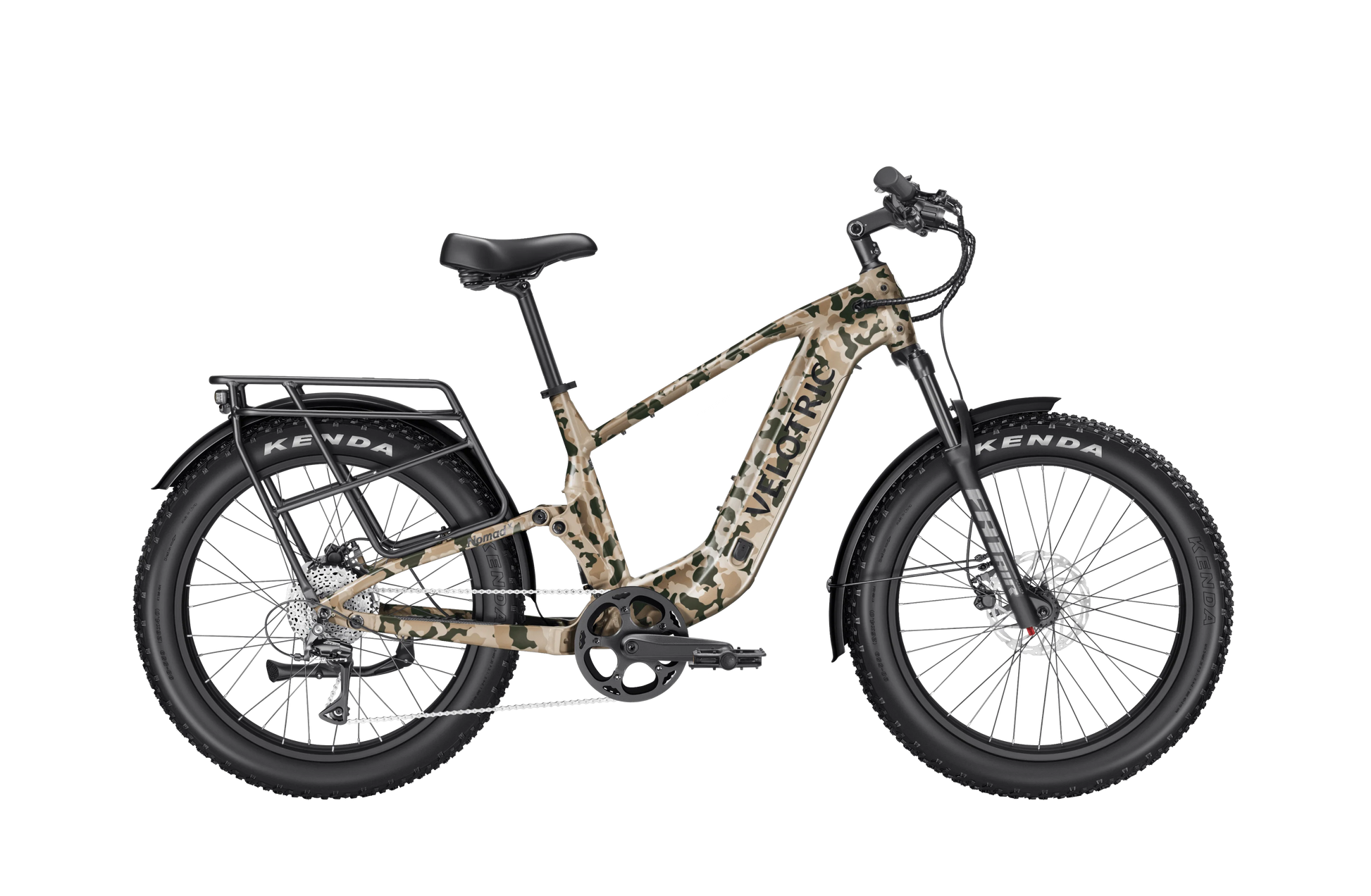

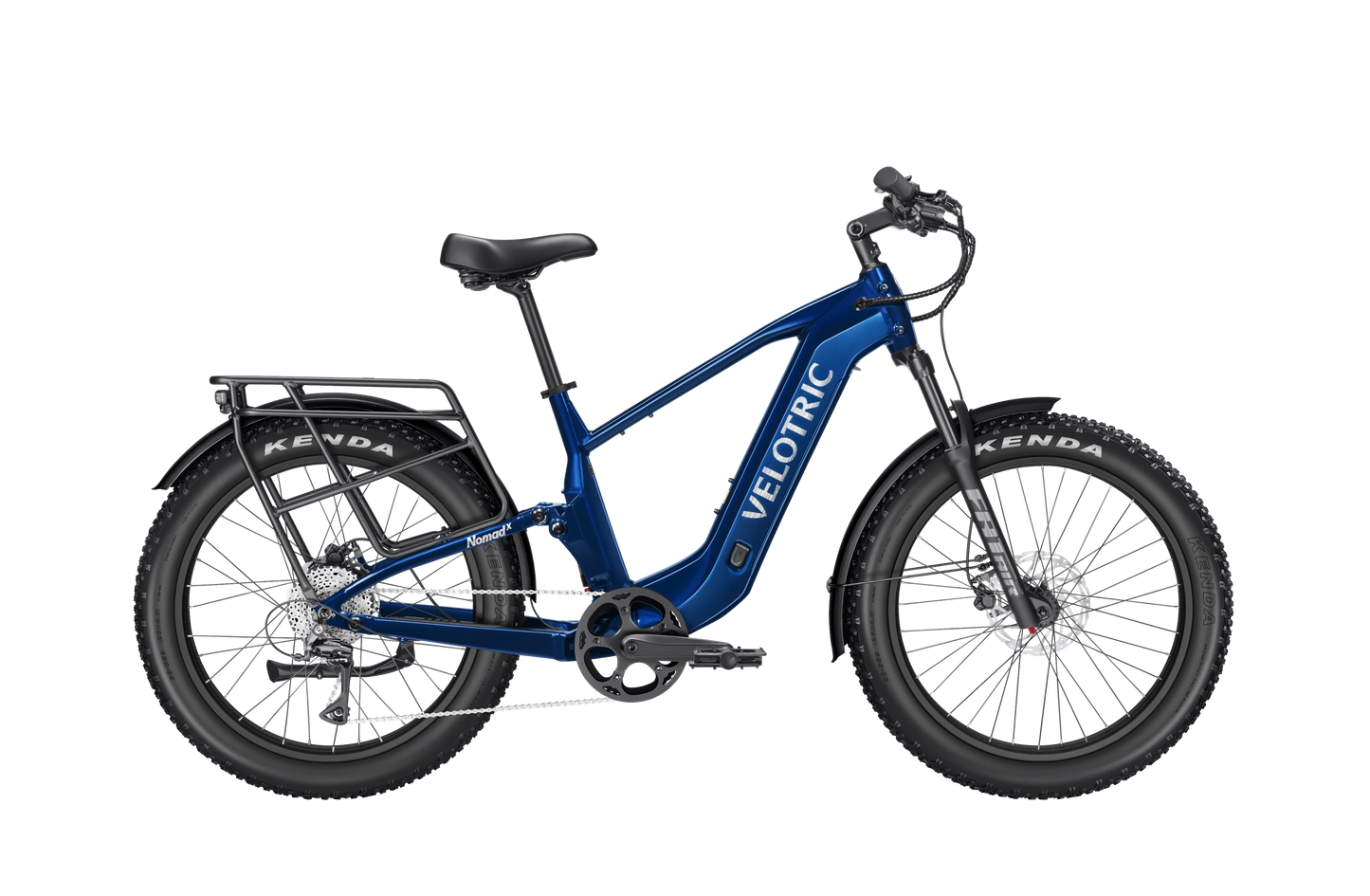

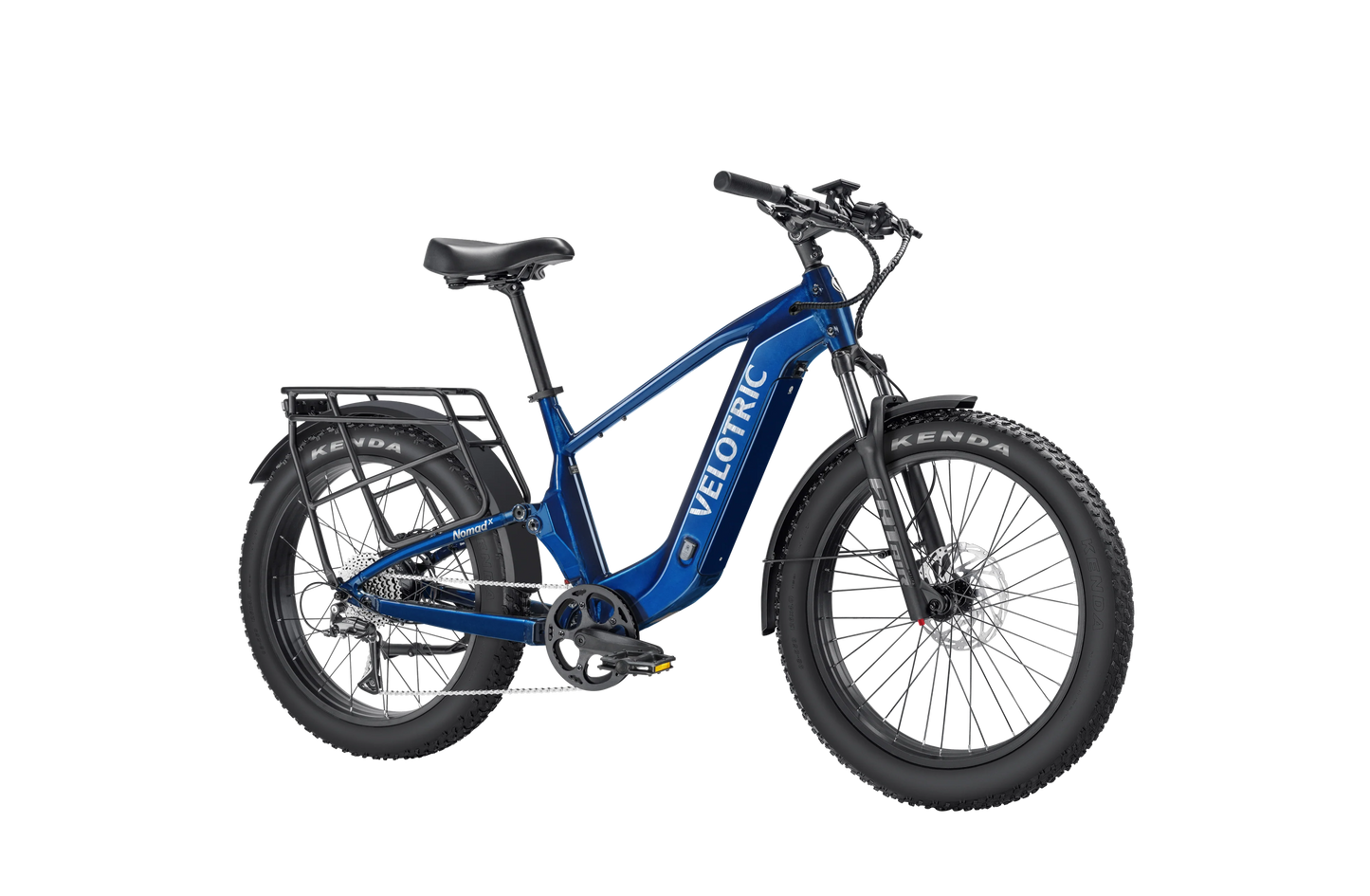

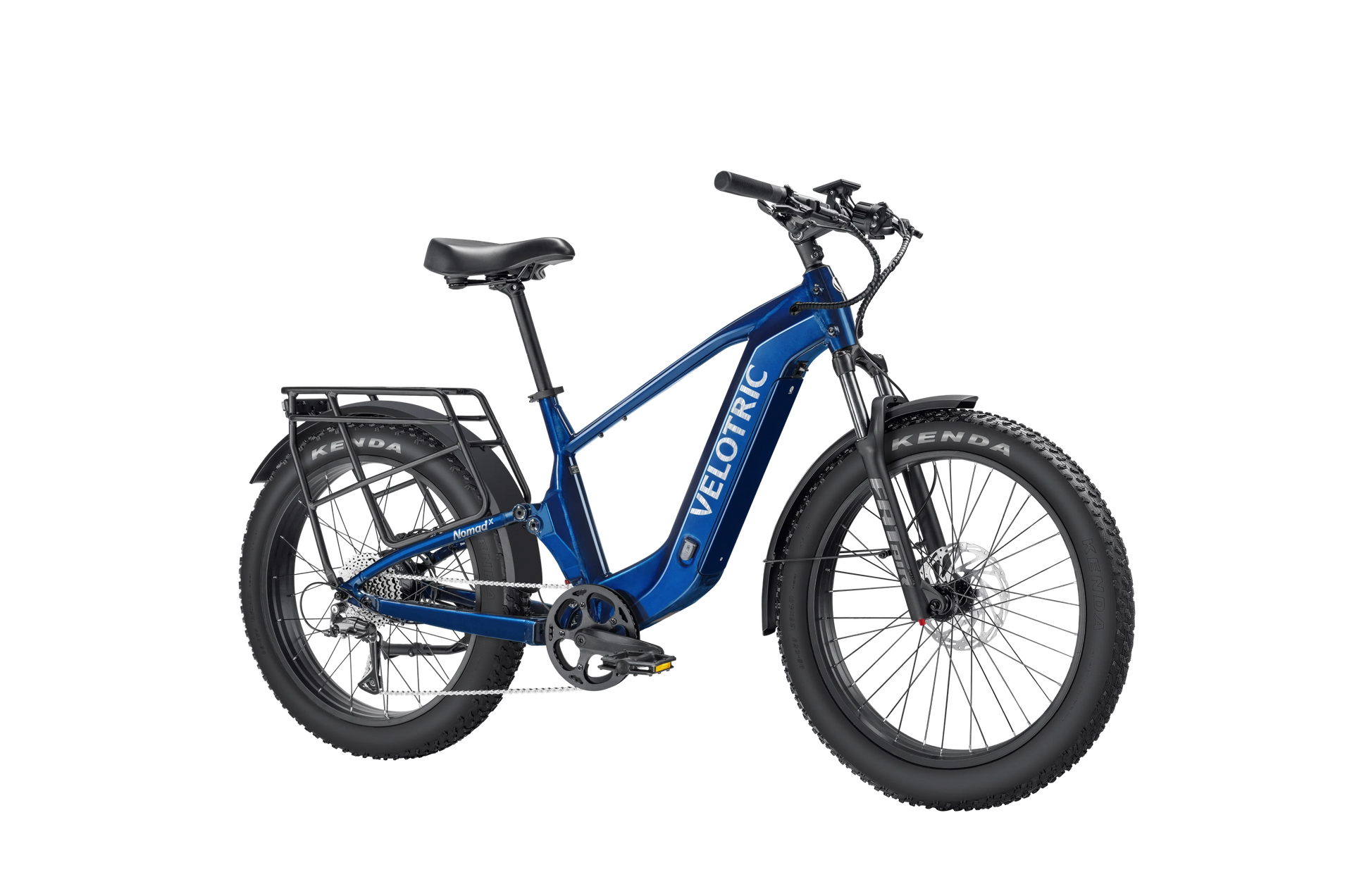

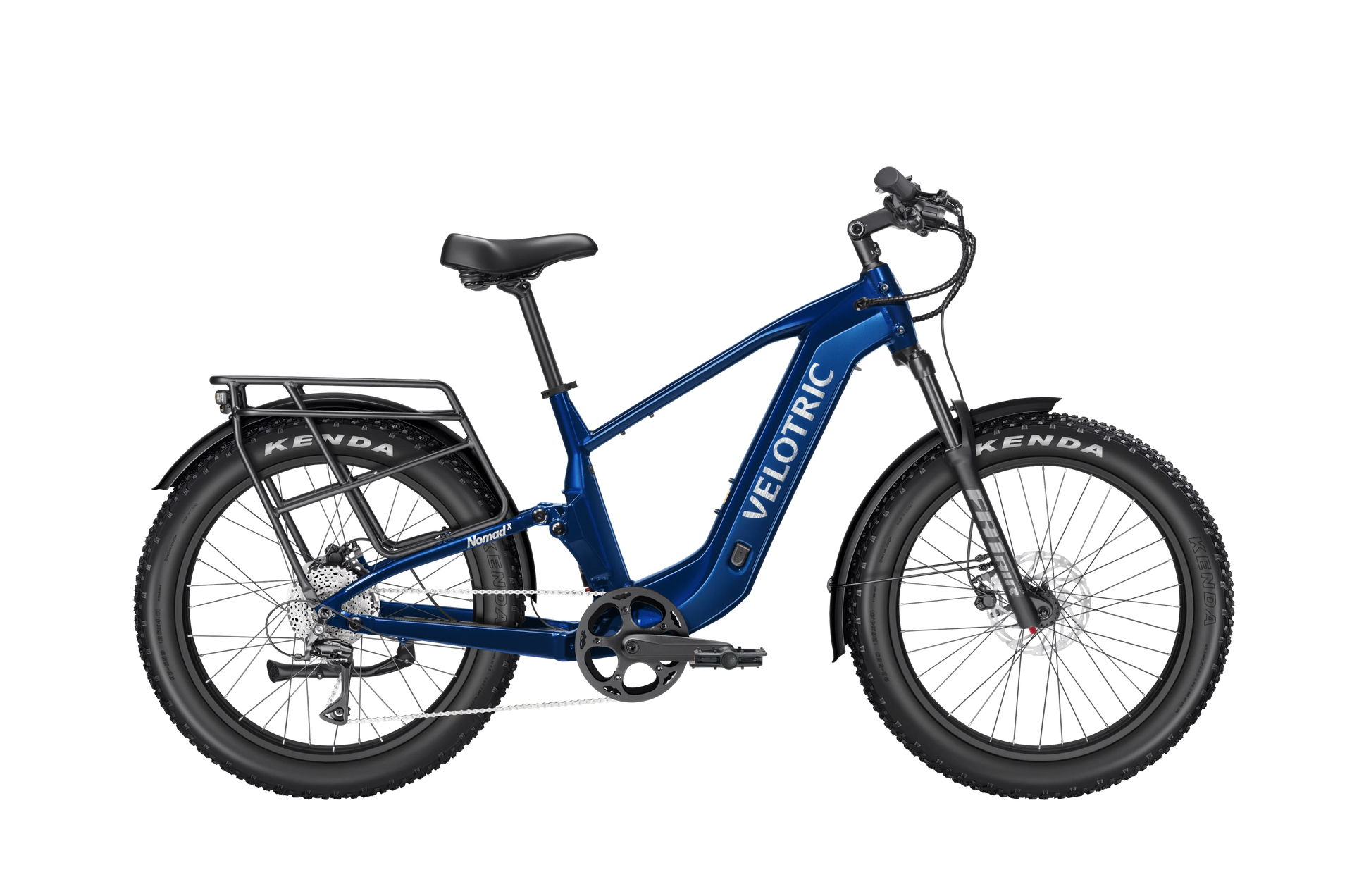

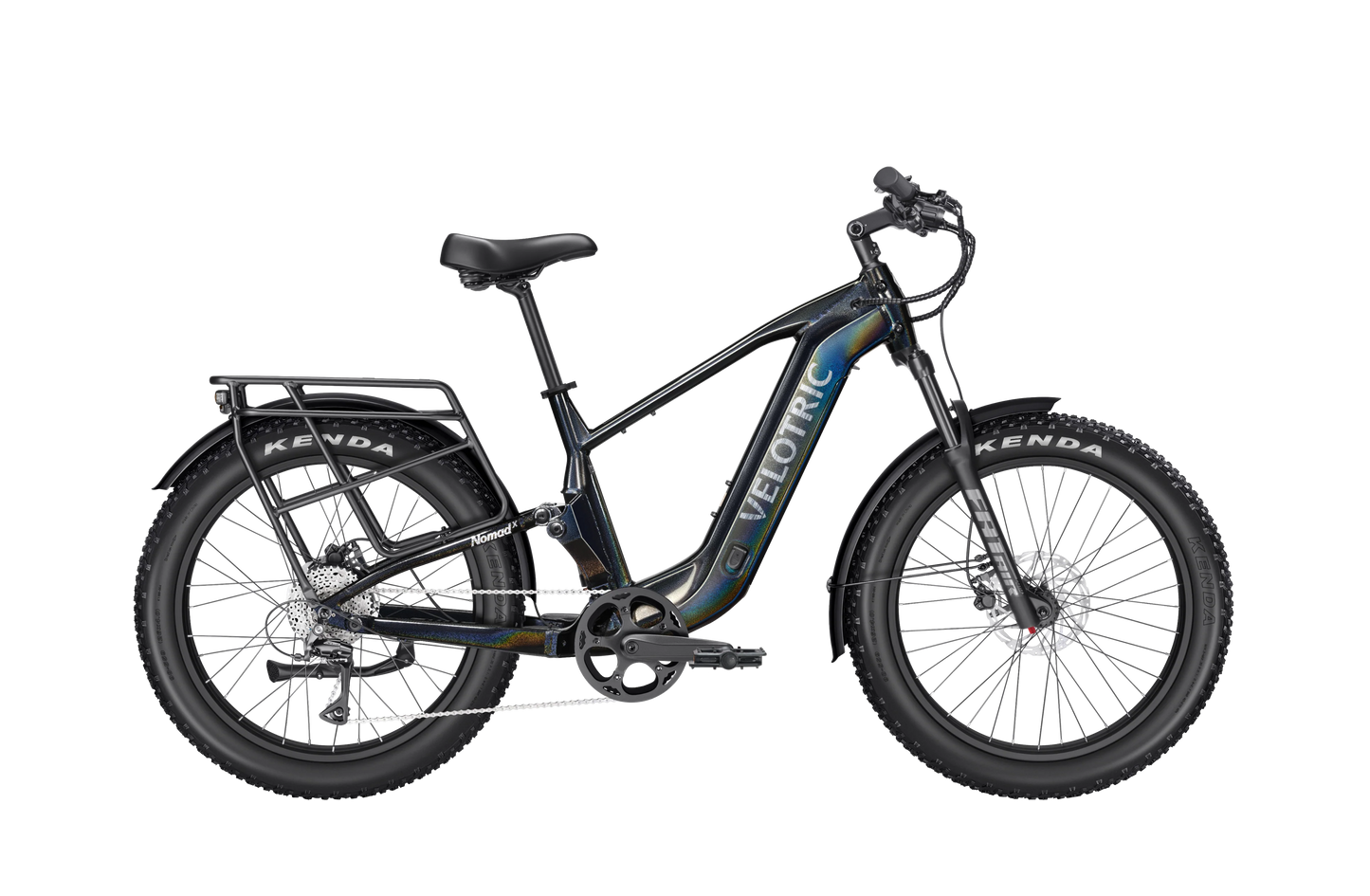

Velotric Nomad 2X Fat Tire High Step

Velotric Nomad 2X

More Features & Full Specifications

General Info

• Model Name: Velotric Nomad 2X

• Available Colors: Obsidian, Royal Blue, Fig, Sage, Multi-Terrain Camo

• Frame Options: High-Step, Step-Through

• Sizes:

  • Regular (Step-Through): Fits 4'11" – 5'10"

  • Large (High-Step): Fits 5'10" – 6'5"

Electronics

• Motor: 750W, 105Nm Torque

• Battery: Removable 48V 16.7Ah (801.6Wh)

  • IPX7 rated

  • UL 2271 certified

• Battery Cells: Samsung/LG 21700, UL 2580 certified

• Display: 3.5" full-color, high-brightness, angle adjustable

• Sensor: SensorSwap™ system (Torque & Cadence sensing)

• Throttle Assist: Trigger control, removable

• Pedal Assist: 3 Riding Modes × 5 PAS Levels

• USB Port: USB Type-C for phone charging

• Lighting:

  • Front: Integrated LED, 130 Lux / 500 LM, light-sensing

• Water Resistance: IPX6 (whole bike)

• Smart Features: Velotric App with OTA updates + Apple Find My™

Frameset & Suspension

• Frame: Triple-Butted Aluminum Alloy

  • Rear wheel travel: 80mm

• Front Fork:

  • Air Suspension, 120mm travel

  • Lock-out, rebound adjustable, nutted axle

• Rear Shock: DNM Air Suspension

  • 38mm shock with 80mm wheel travel

Speed & Range

• Max Speed: 12–28 MPH (20 MPH default)

• Class: 1 / 2 / 3 configurable

• Throttle Range: Up to 50 miles

• Pedal Assist Range: Up to 75 miles

Brakes

• Type: Tektro Hydraulic Disc Brakes

• Rotors:

  • Front: 203mm

  • Rear: 180mm

Drivetrain

• Chainring: 48T

• Crankset: Aluminum Alloy, 170mm

• Freewheel: 11–40T

• Rear Derailleur: SHIMANO 8-speed

• Shifter: SHIMANO 8-speed

Weight & Load

• Bike Weight: 80 lbs

• Max Payload: 560 lbs

• Rear Rack Capacity: 120 lbs

• Towing Capacity: 1000 lbs

Cockpit

• Handlebar: Aluminum Alloy, Ø31.8mm, 700mm width

• Grips: Ergonomic, durable, lockable

• Stem: Adjustable Aluminum Alloy

  • 60mm (Step-Through)

  • 90mm (High-Step)

• Saddle: Velotric ergonomic comfort seat

Wheels

• Rims: Aluminum Alloy

• Front Hub: Aluminum Alloy, nutted

• Tires: KENDA 26x4.0" eBike-specific, puncture resistant

Supports & Accessories

• Fenders: Full-coverage front and rear

• Rear Rack: Aluminum Alloy, MIK HD compatible

• Pedals: Plastic

• Kickstand: Rear-mount, Aluminum Alloy (included)

Certifications

• UL Certified: UL 2849 & UL 2271

• ISO Standard: ISO 4210
