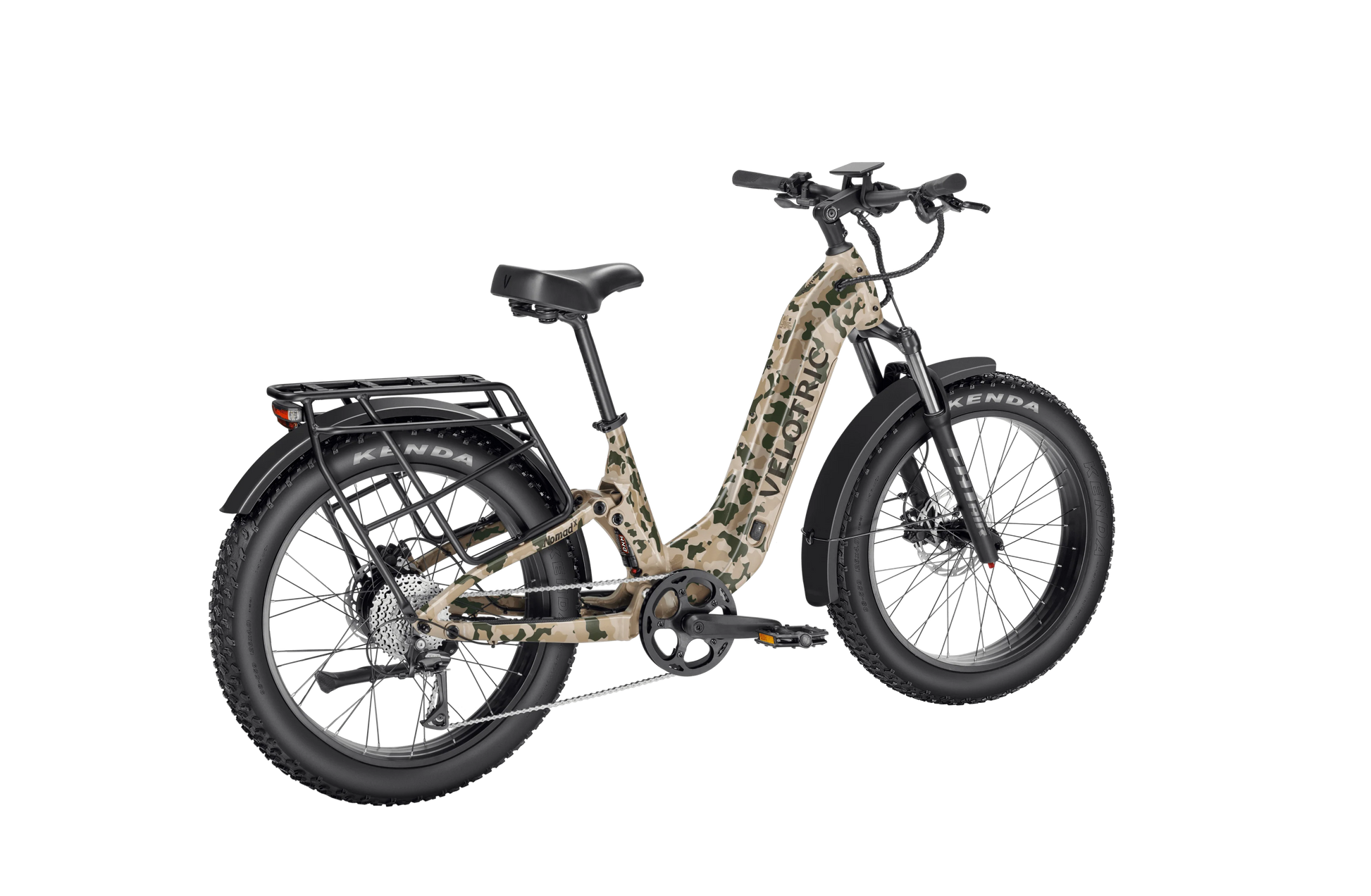

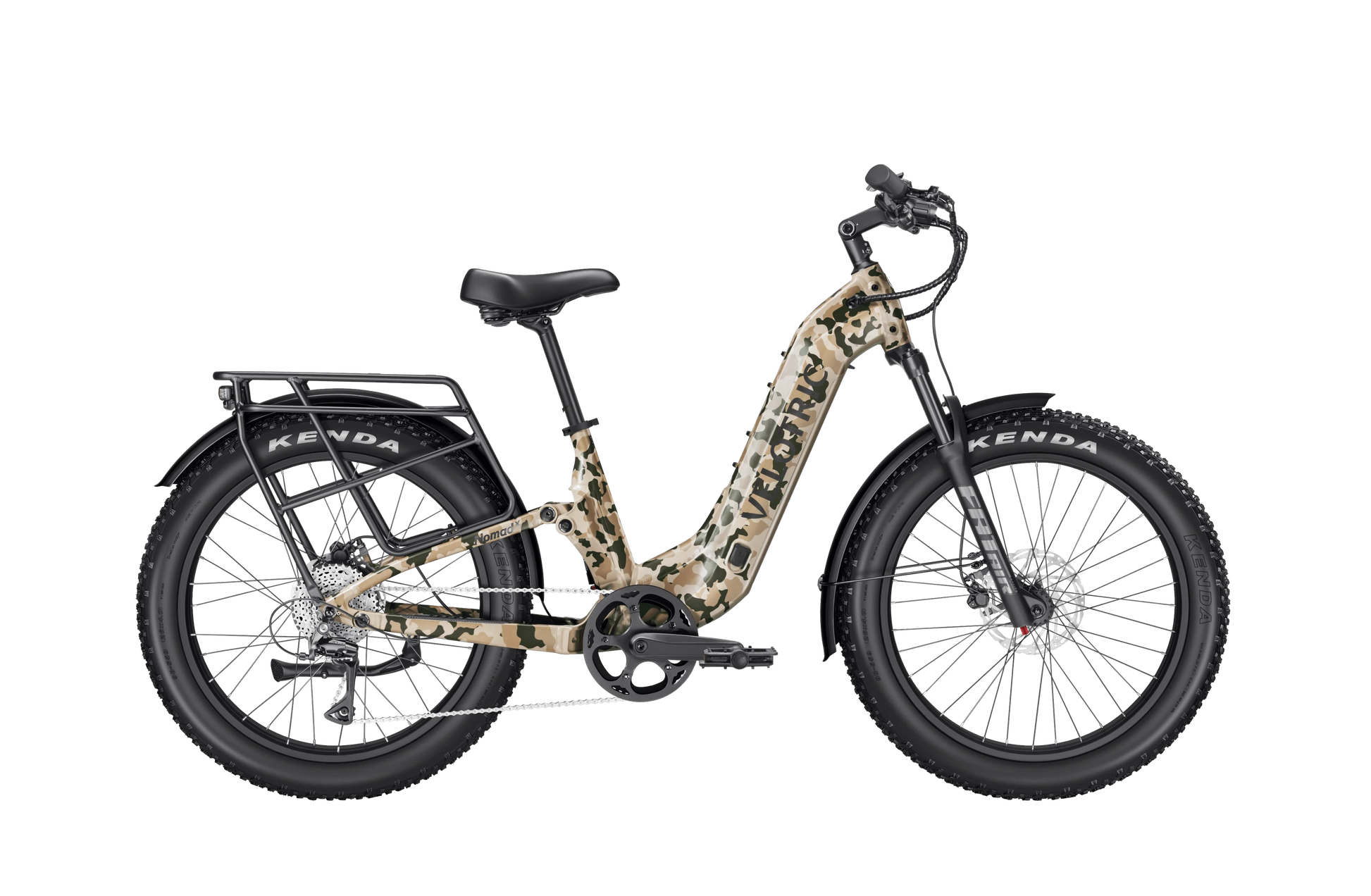

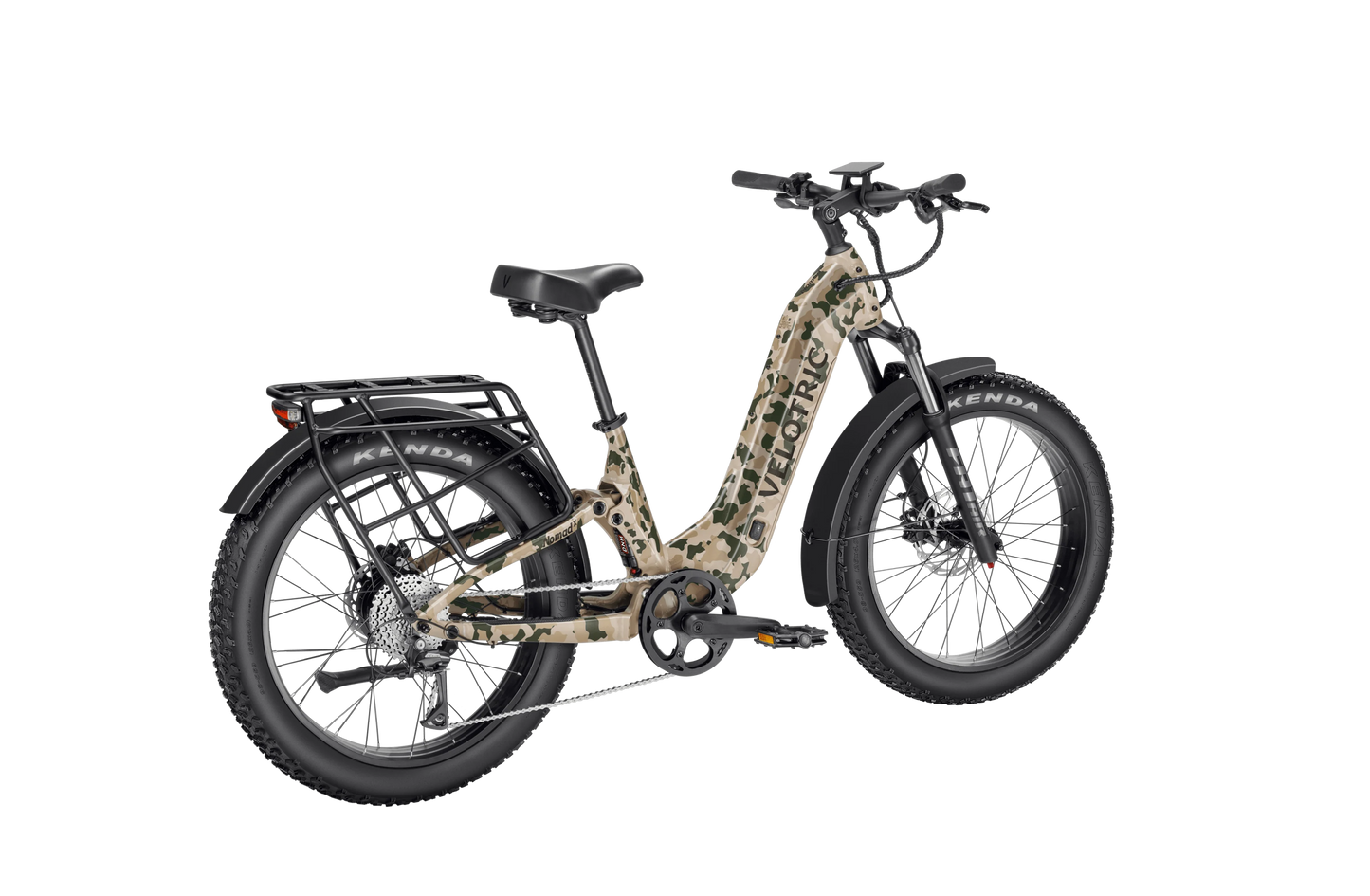

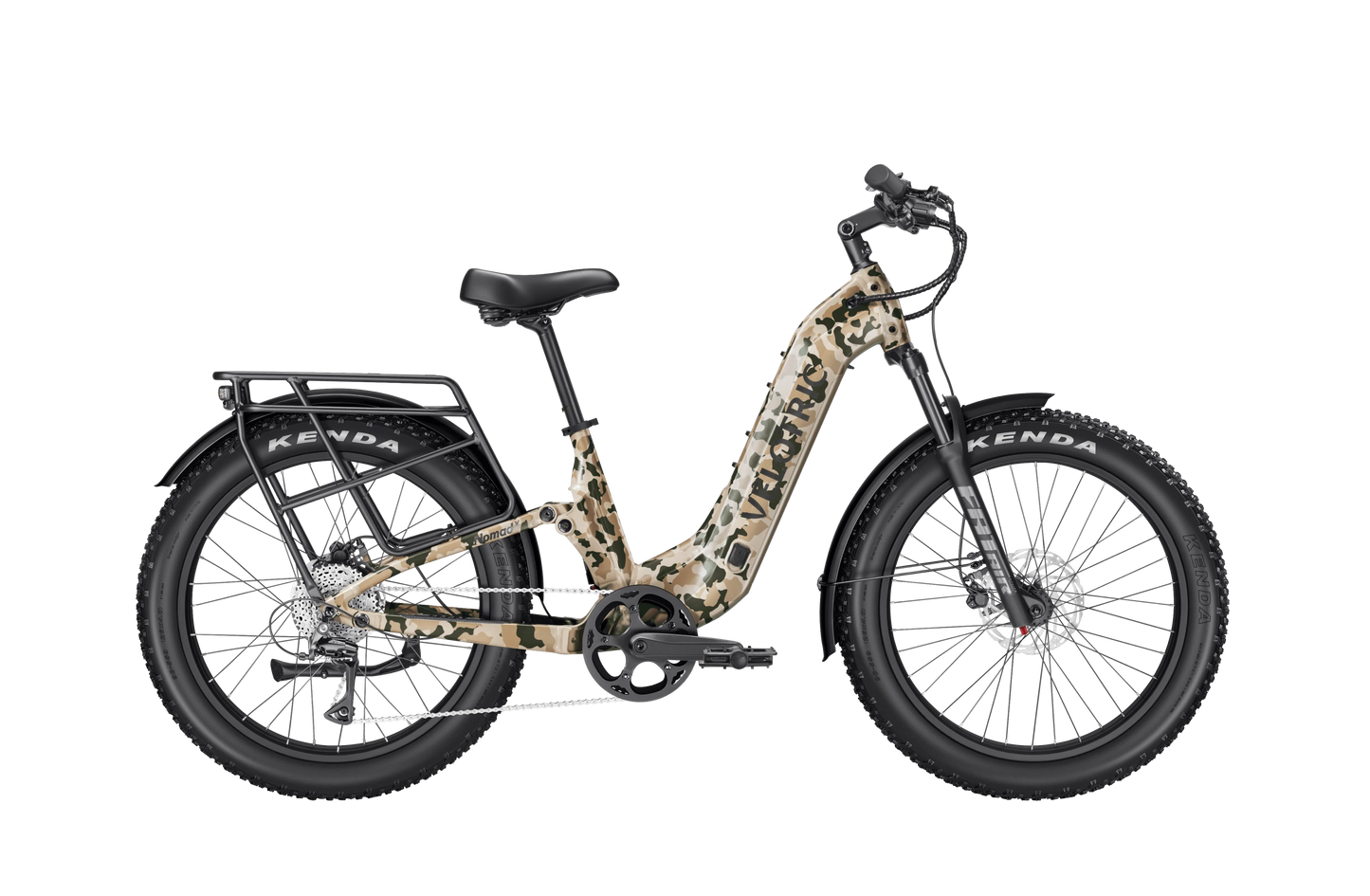

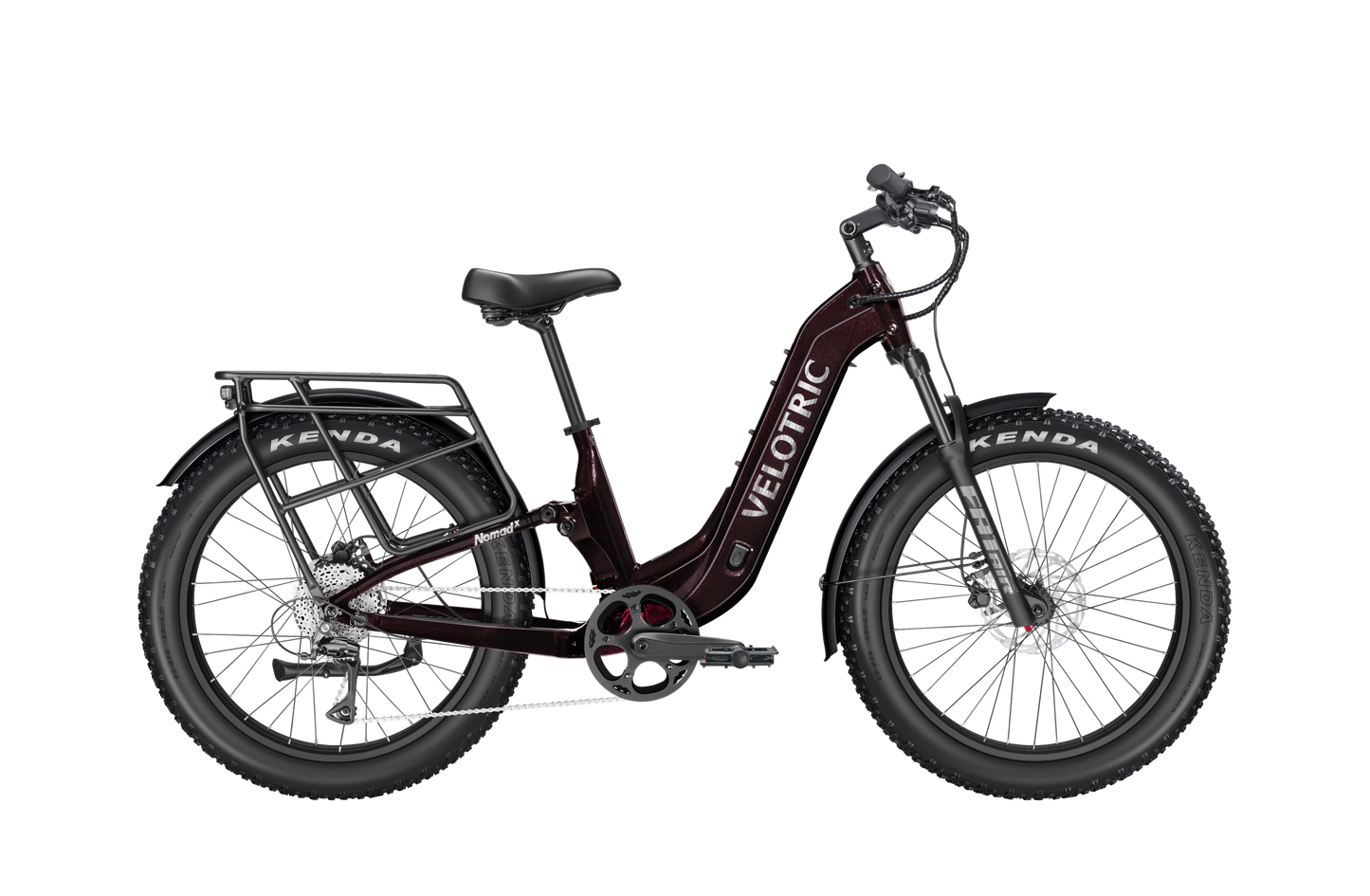

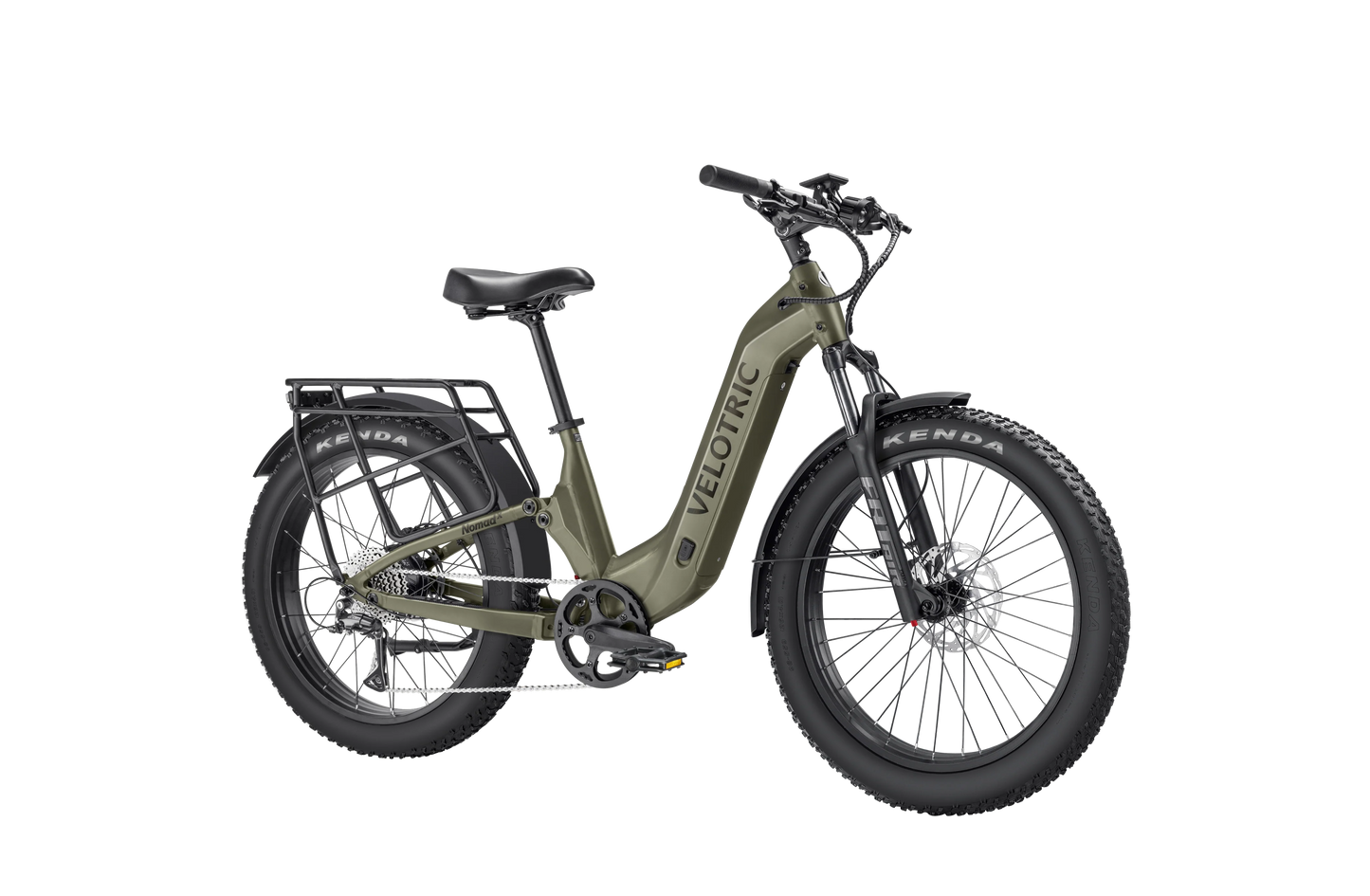

Velotric Nomad 2X Fat Tire Step-Thru

Velotric Nomad 2X

Full Features & Specifications

General Information

• Model Name: Velotric Nomad 2X

• Frame Options: High-Step, Step-Through

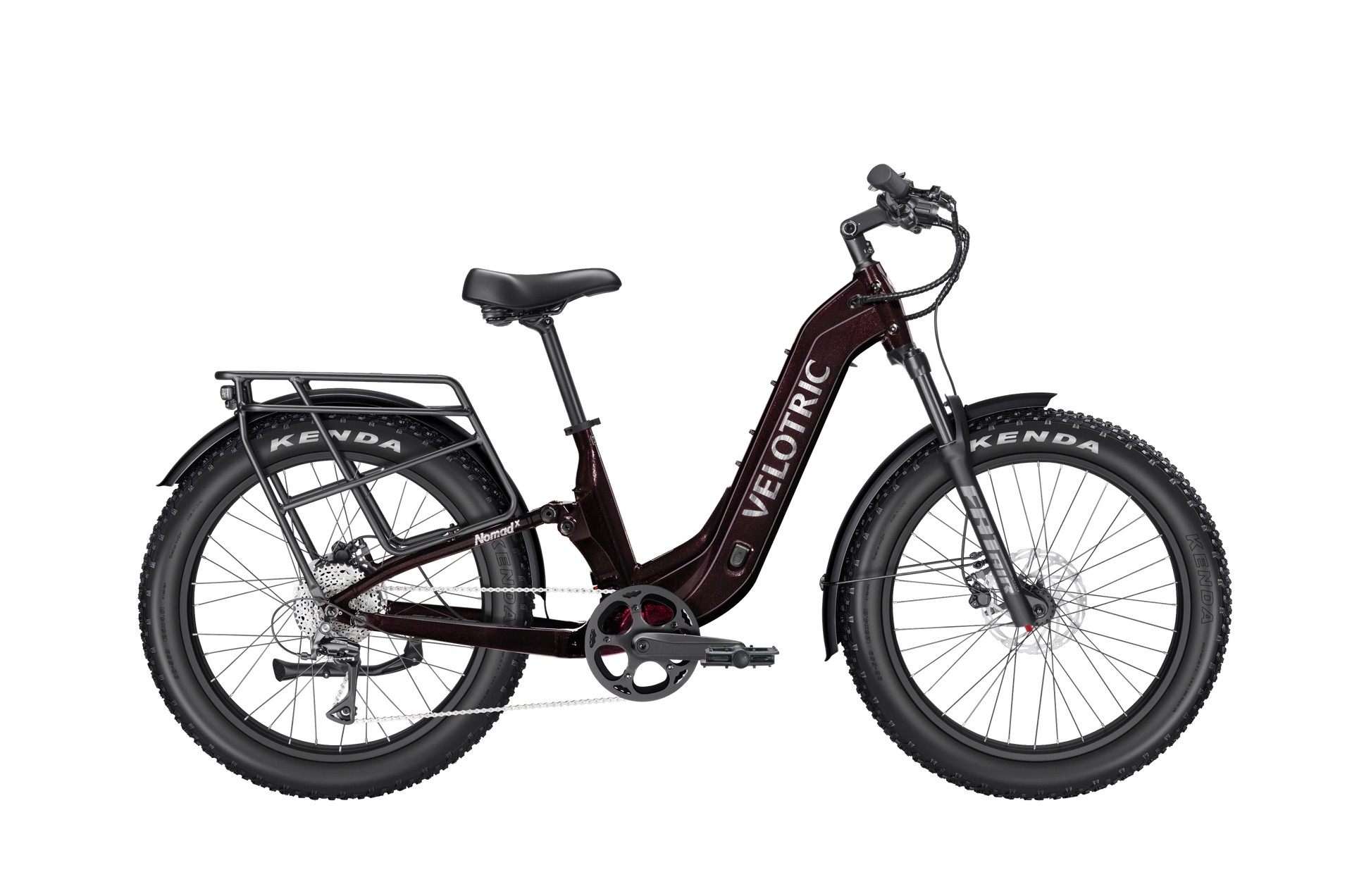

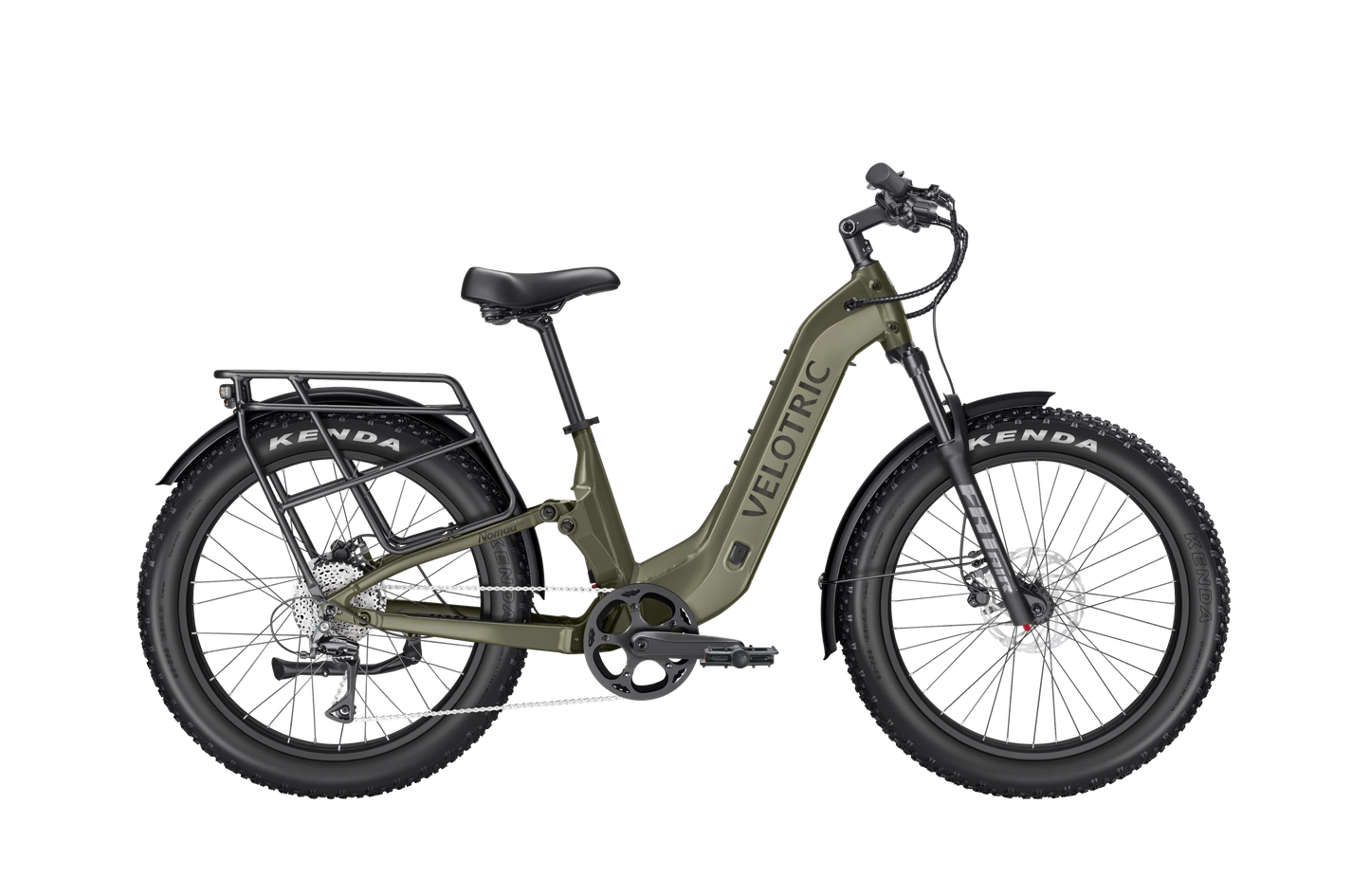

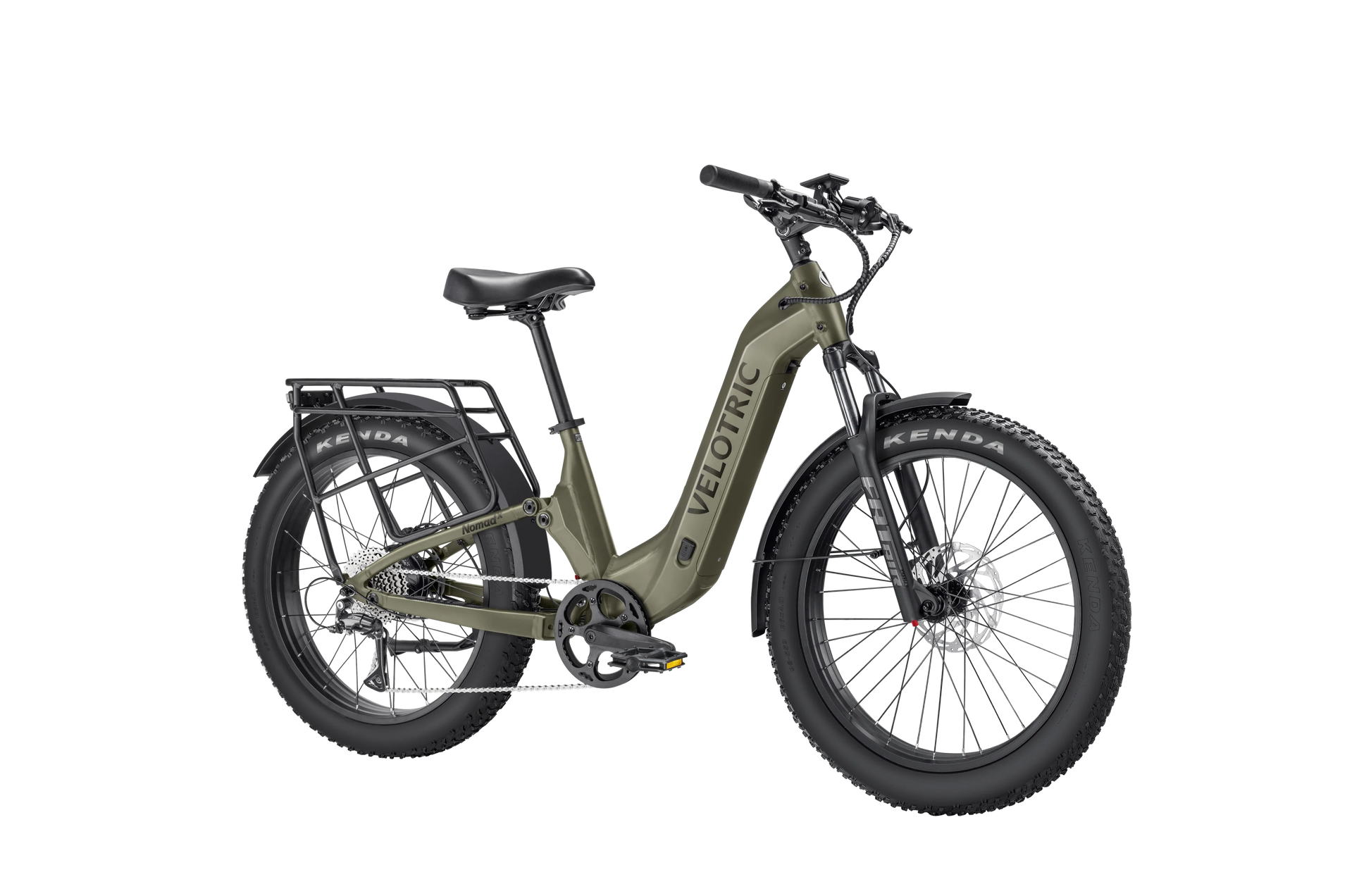

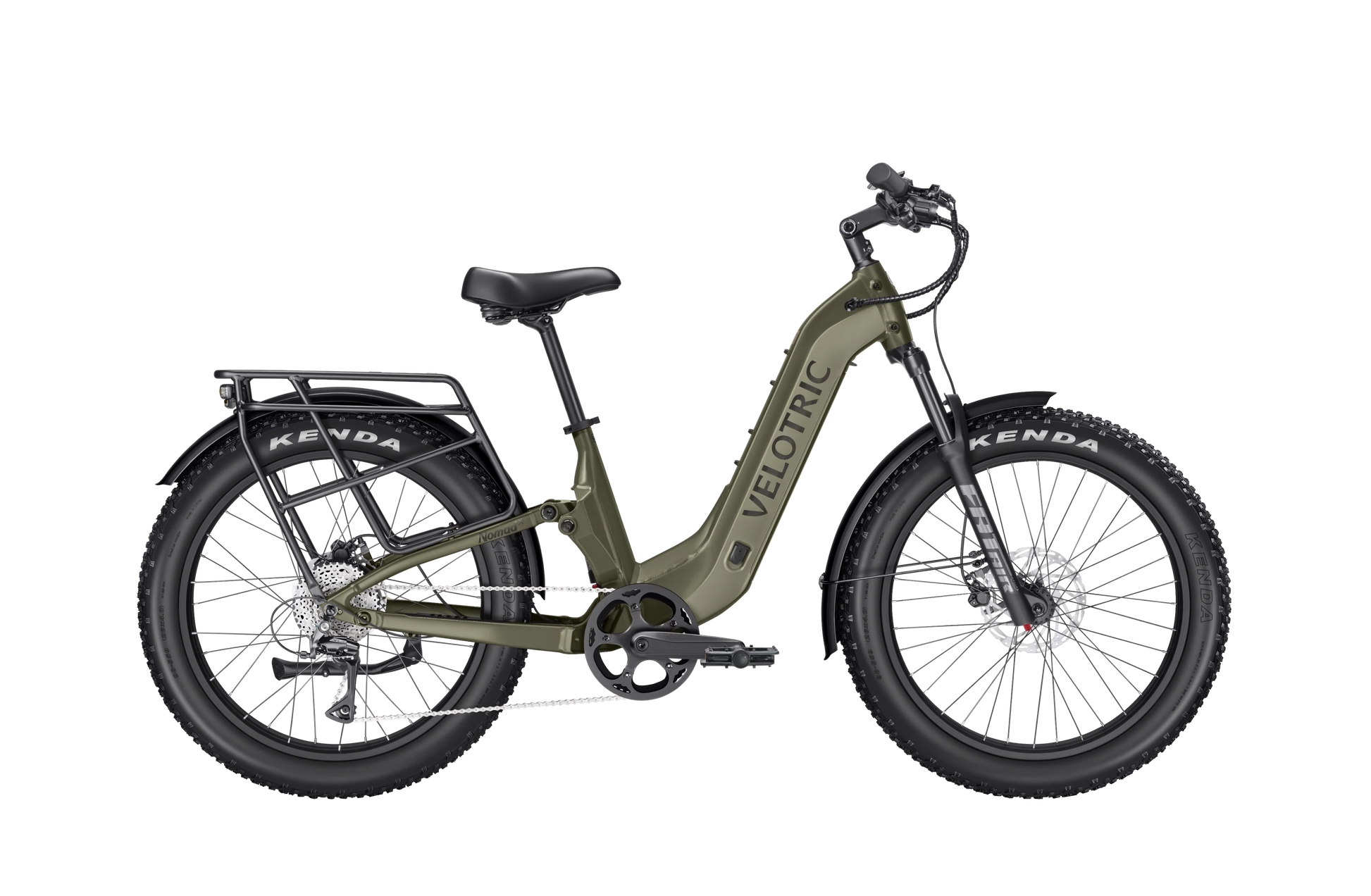

• Available Colors: Obsidian, Royal Blue, Fig, Sage, Multi-Terrain Camo

Size Guide

• Bike Sizes:

  • Regular (Step-Through)

  • Large (High-Step)

• Recommended Rider Heights:

  • Regular: 4'11" – 5'10"

  • Large: 5'10" – 6'5"

Electronics

• Motor: 750W with 105Nm torque

• Battery: 48V 16.7Ah (801.6Wh), removable

  • Certifications: IPX7, UL 2271

• Battery Cell: Samsung / LG 21700, UL 2580 certified

• Display: 3.5" full-color, high-brightness, angle-adjustable

• Sensor: SensorSwap™ – Torque / Cadence

• USB Charging Port: USB Type-C

• Throttle Assist: Trigger-control, removable

• Pedal Assist Modes: 3 Riding Modes × 5 PAS Levels

• Integrated Lighting:

  • Light-sensing 130 Lux / 500 LM LED headlight

• Water Resistance: IPX6 (whole bike)

• Smart Features: Velotric App with OTA updates, Apple Find My™ support

Frameset & Suspension

• Frame: Triple-Butted Aluminum Alloy

  • Rear wheel travel: 80mm

• Front Fork:

  • Air suspension, 120mm travel

  • Lock-out, rebound adjustable, nutted

• Rear Shock:

  • DNM 38mm air suspension

  • 80mm wheel travel

Speed & Range

• Top Speed: 12–28 MPH (default 20 MPH)

• Class: Configurable for Class 1 / 2 / 3

• Throttle Range: Up to 50 miles

• Pedal Assist Range: Up to 75 miles

Brakes

• Brakes: Tektro Hydraulic Disc Brakes

• Rotor Sizes:

  • Front: 203mm

  • Rear: 180mm

Drivetrain

• Chainring: 48T

• Crankset: Aluminum Alloy, 170mm

• Freewheel: 11–40T

• Rear Derailleur: SHIMANO 8-speed

• Shifter: SHIMANO 8-speed

Weight & Load

• Bike Weight: 80 lbs

• Maximum Load: 560 lbs

• Rear Rack Capacity: 120 lbs

• Towing Capacity: 1000 lbs

Cockpit

• Handlebar: Aluminum Alloy, Ø31.8mm, 700mm width

• Grips: Ergonomic, lockable

• Stem: Adjustable Aluminum Alloy

  • 60mm (Step-Through)

  • 90mm (High-Step)

• Saddle: Velotric Comfort Ergonomic Seat

Wheels & Tires

• Rims: Aluminum Alloy

• Front Hub: Aluminum Alloy, nutted

• Tires: KENDA 26 × 4.0", puncture-resistant, eBike-rated

Supports & Accessories

• Fenders: Full-coverage (front and rear)

• Rear Rack: Aluminum Alloy, MIK HD compatible

• Pedals: Plastic

• Kickstand: Rear-mounted, Aluminum Alloy (included)

Certifications

• UL Certified: UL 2849 & UL 2271

• ISO Compliant: ISO 4210
