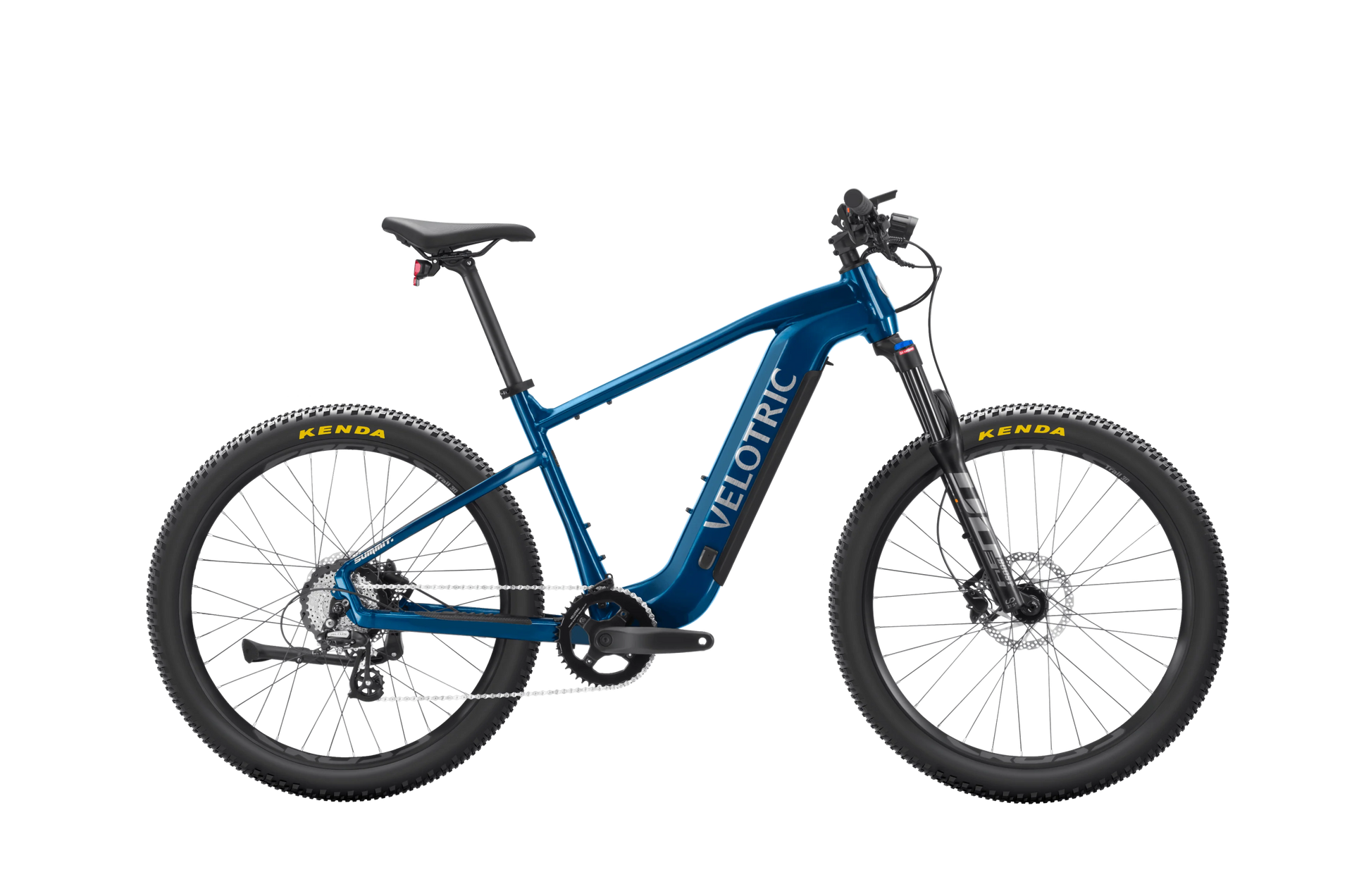

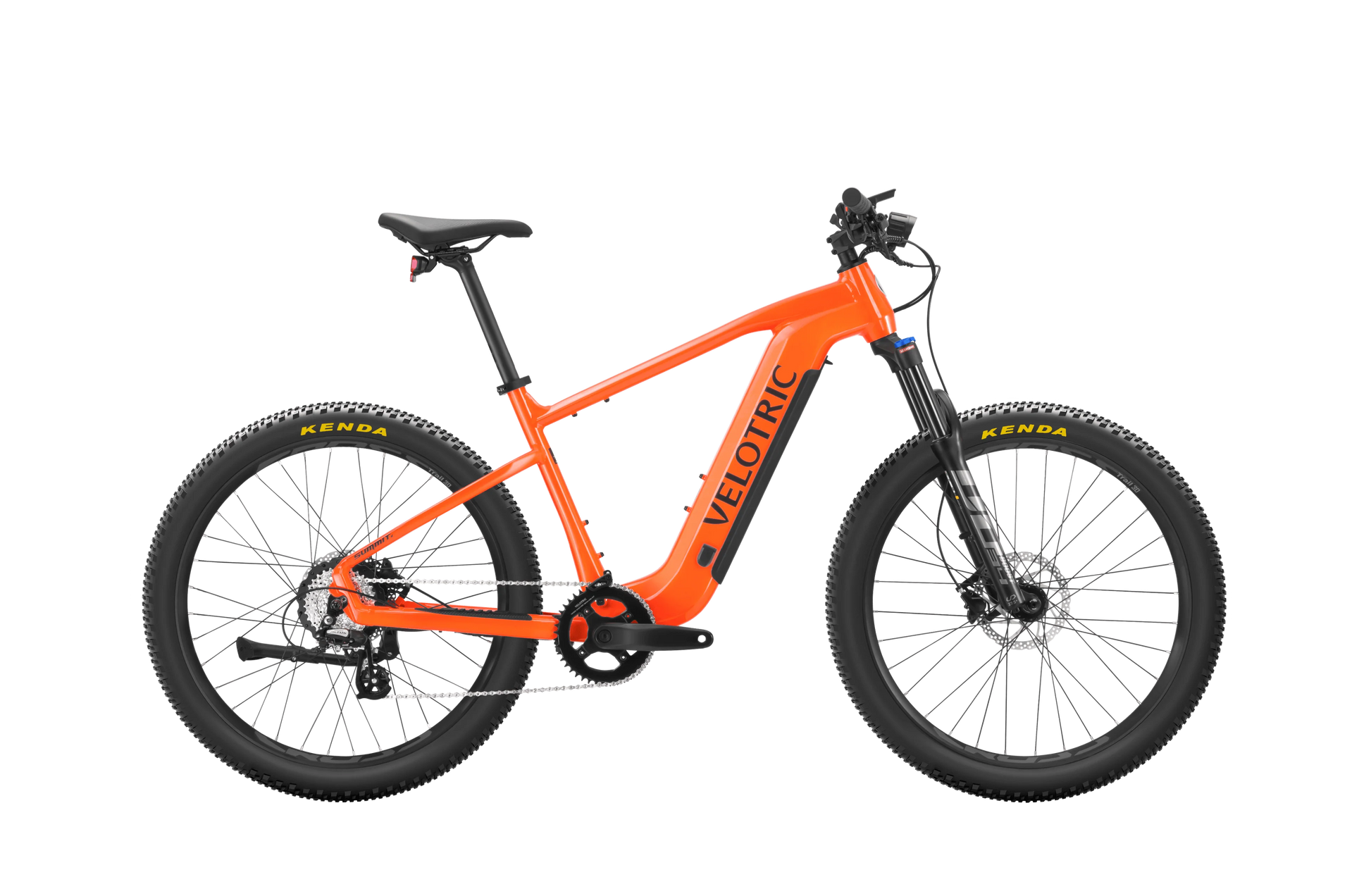

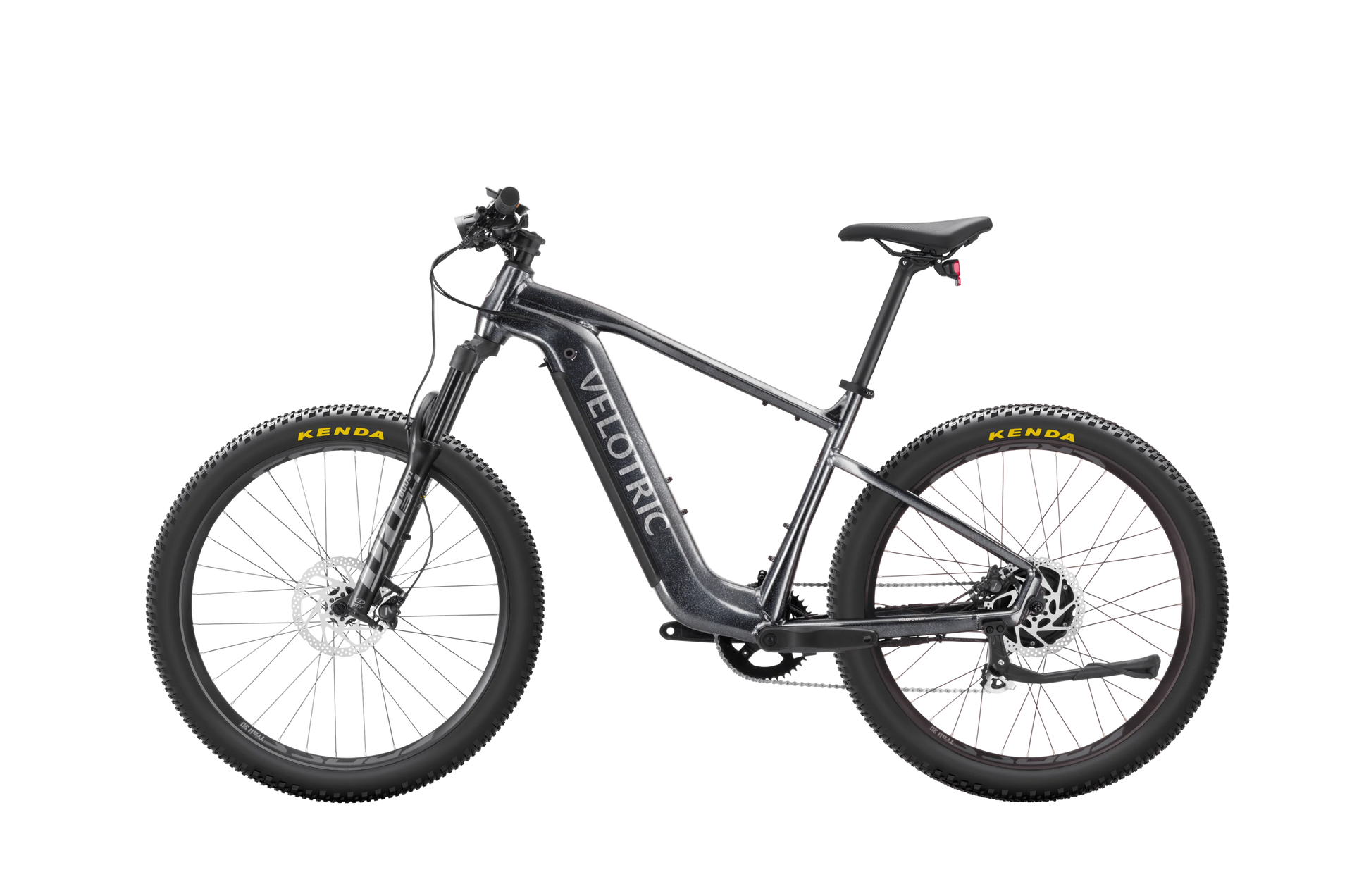

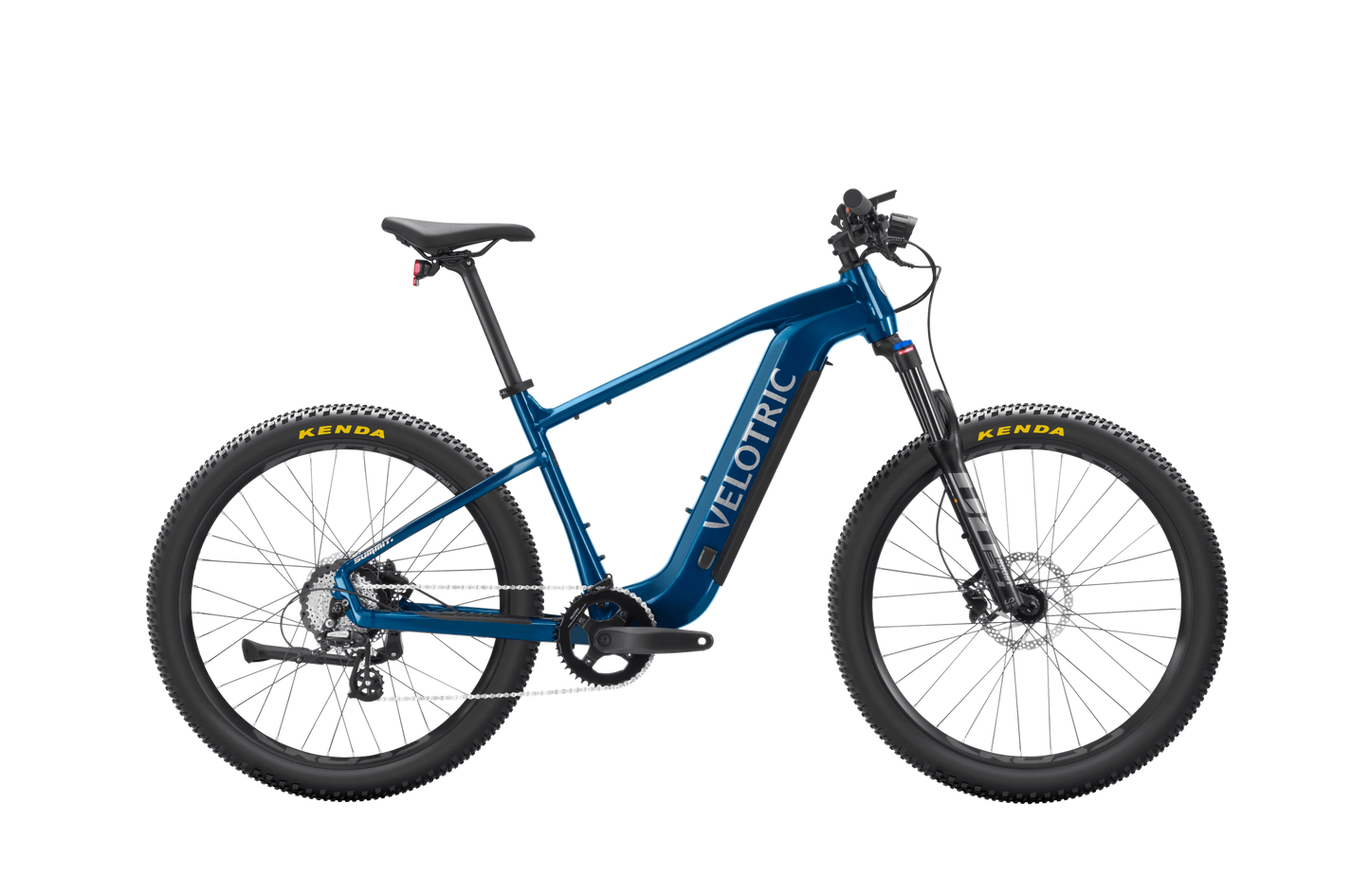

Velotric Summit 1

Velotric Nomad 2X – Key Features & Specifications

Size & Fit

• Available Sizes: Regular / Large

• Rider Height Compatibility:

  • Regular: 5'1" – 5'10"

  • Large: 5'8" – 6'6"

Frame & Suspension

• Frame: Triple-butted aluminum alloy – strong yet lightweight

• Fork: Hydraulic suspension with 120mm travel, lock-out function, 15x110mm thru-axle

• Water Resistance: IPX6 (entire bike)

Motor & Battery

• Motor: 48V, 750W rear hub motor with 90Nm of torque – great for hills and off-road

• Battery: 48V, 705.6Wh, IPX7 water-resistant, UL 2271 certified

• Battery Cells: Samsung/LG 21700 cells, UL 2580 certified

• Charger: 48V, 3A fast charger

• Sensor System: Torque and cadence sensors for smooth, responsive pedal assist

• Throttle: Trigger-style throttle, removable

• Pedal Assist: 3 riding modes × 5 assist levels

• Walk Mode: 2.9 MPH walk assist

• Security: Apple Find My™ compatibility for tracking

Speed & Range

• Top Speed (Default): 20 MPH

• Adjustable Speed Range: 12 – 28 MPH

• Class Modes: Class 1, 2, and 3 ready

• Range Estimates:

  • Up to 70 miles with pedal assist

  • Up to 60 miles on throttle only
    (Tested with a 187-lb rider on flat terrain in Eco mode)

Display & Connectivity

• Display: 2.8" full-color, high-brightness with Bluetooth and adjustable angle

• USB Charging Port: USB Type-A for phone charging

• Lighting:

  • Front: Integrated LED, 130 Lux brightness, light-sensing, adjustable angle

  • Rear: Integrated brake light with steady/flash modes

Drivetrain

• Chainring: BCD 104 narrow-wide design for better chain retention

• Crankset: 170mm aluminum alloy

• Cassette: 8-speed

• Rear Derailleur & Shifter: Shimano 8-speed

• Chain: KMC 8-speed

Braking System

• Brakes: Shimano hydraulic disc brakes

• Rotors: 180mm front and rear

• Brake Levers: Aluminum alloy with motor cutoff for safety

Wheels & Tires

• Rims: Double-wall aluminum alloy

• Front Hub: NOVATEC aluminum alloy, 15x110mm thru-axle

• Tires: Kenda 27.5 x 2.6" puncture-resistant MTB tires

Cockpit & Comfort

• Handlebar Width:

  • Regular: 760mm

  • Large: 780mm

  • Material: 31.8mm aluminum alloy

• Grips: Lockable Velotric sport grips

• Stem Length:

  • Regular: 35mm

  • Large: 50mm

• Saddle: Velotric ergonomic comfort seat

• Seatpost: 30.9mm × 350mm aluminum alloy

• Clamp: Quick-release aluminum alloy

Included Accessories

• Kickstand: Rear-mounted, aluminum alloy

• Pedals: Aluminum alloy platform

• Fenders & Rear Rack: Optional add-ons

Weight & Load Capacity

• Bike Weight: 62 lbs

• Max Load Capacity: 440 lbs (rider + cargo)

Certifications

• UL Certified: UL 2849 (electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (bike frame & safety)
