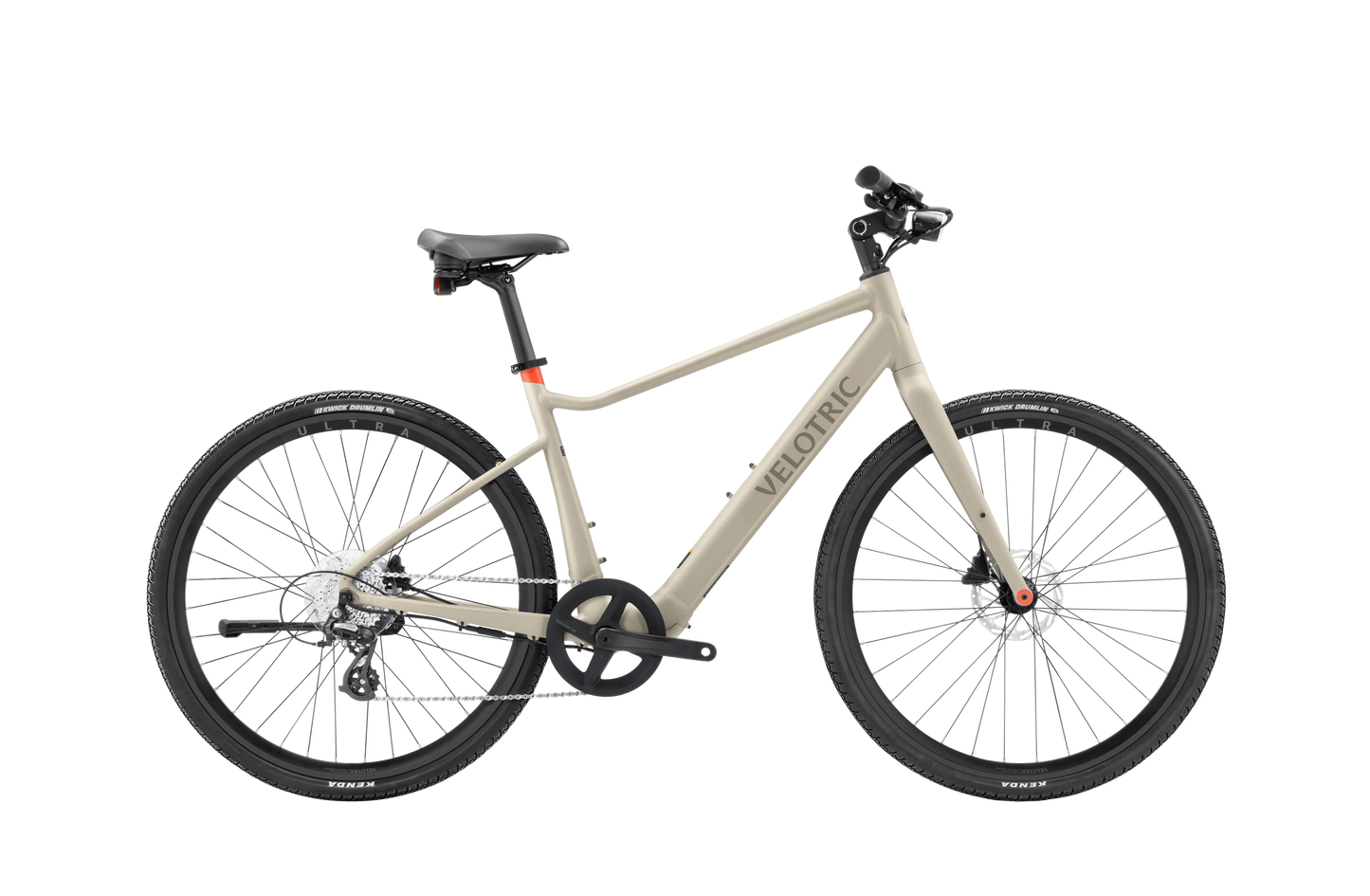

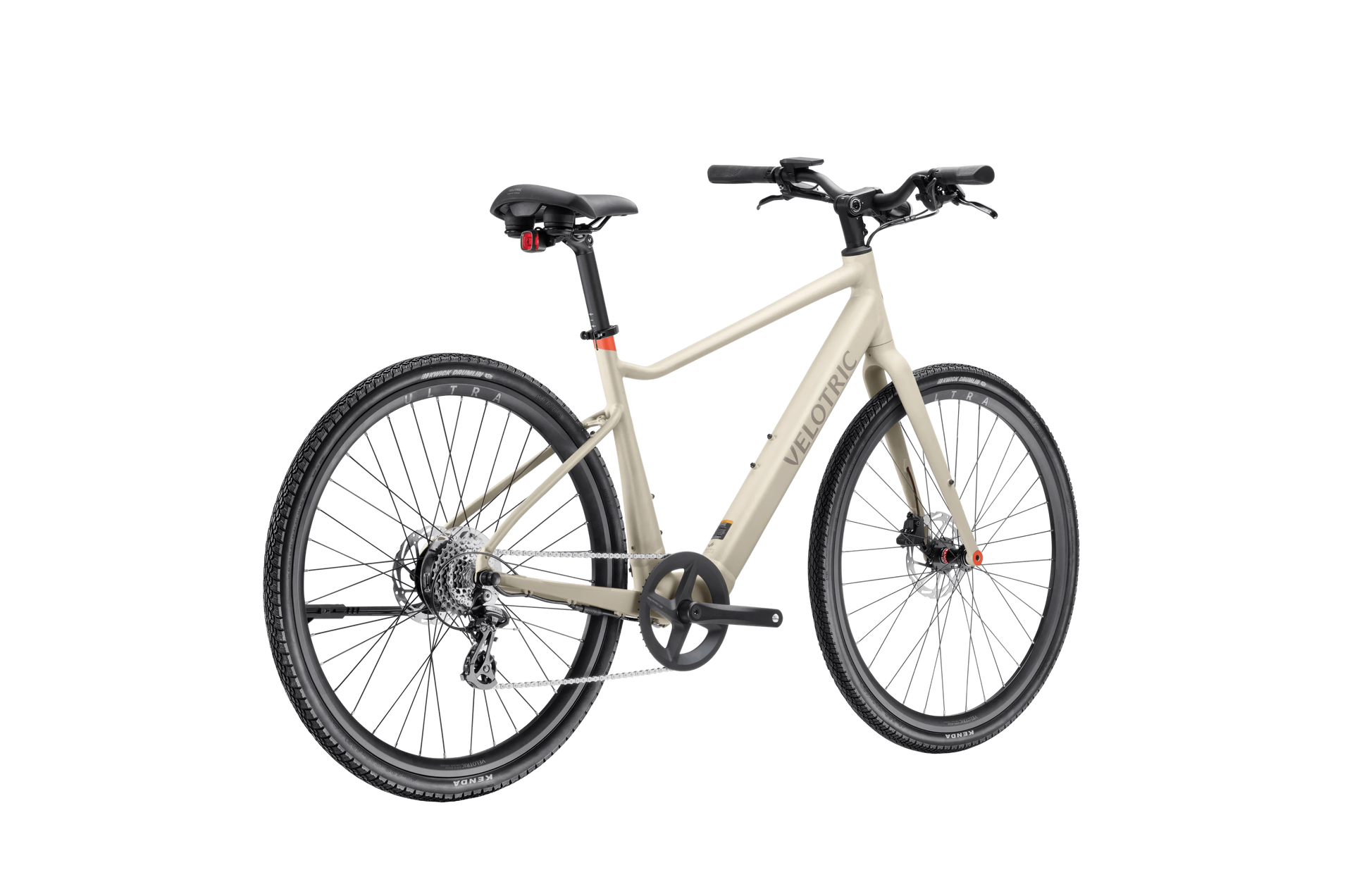

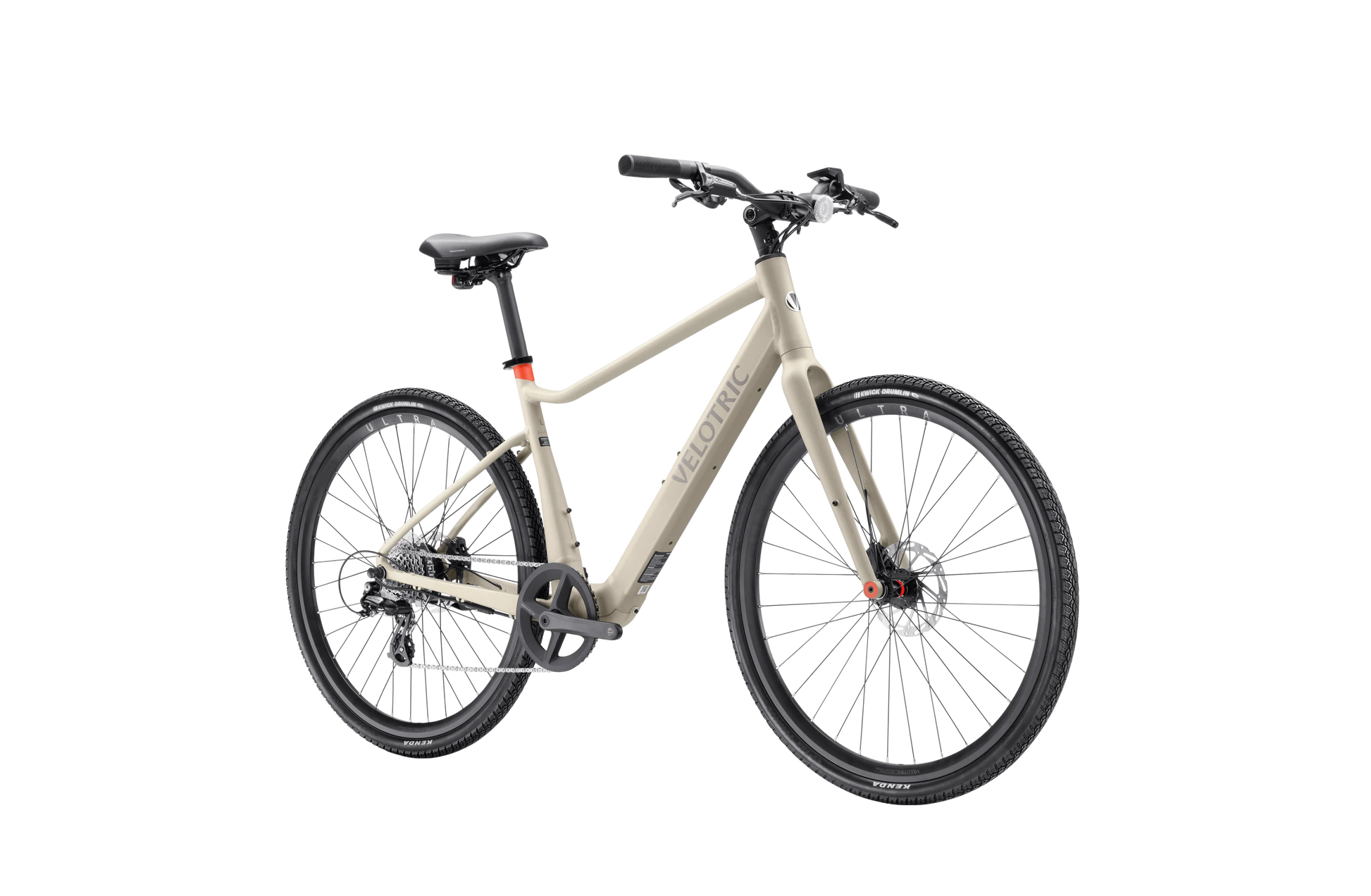

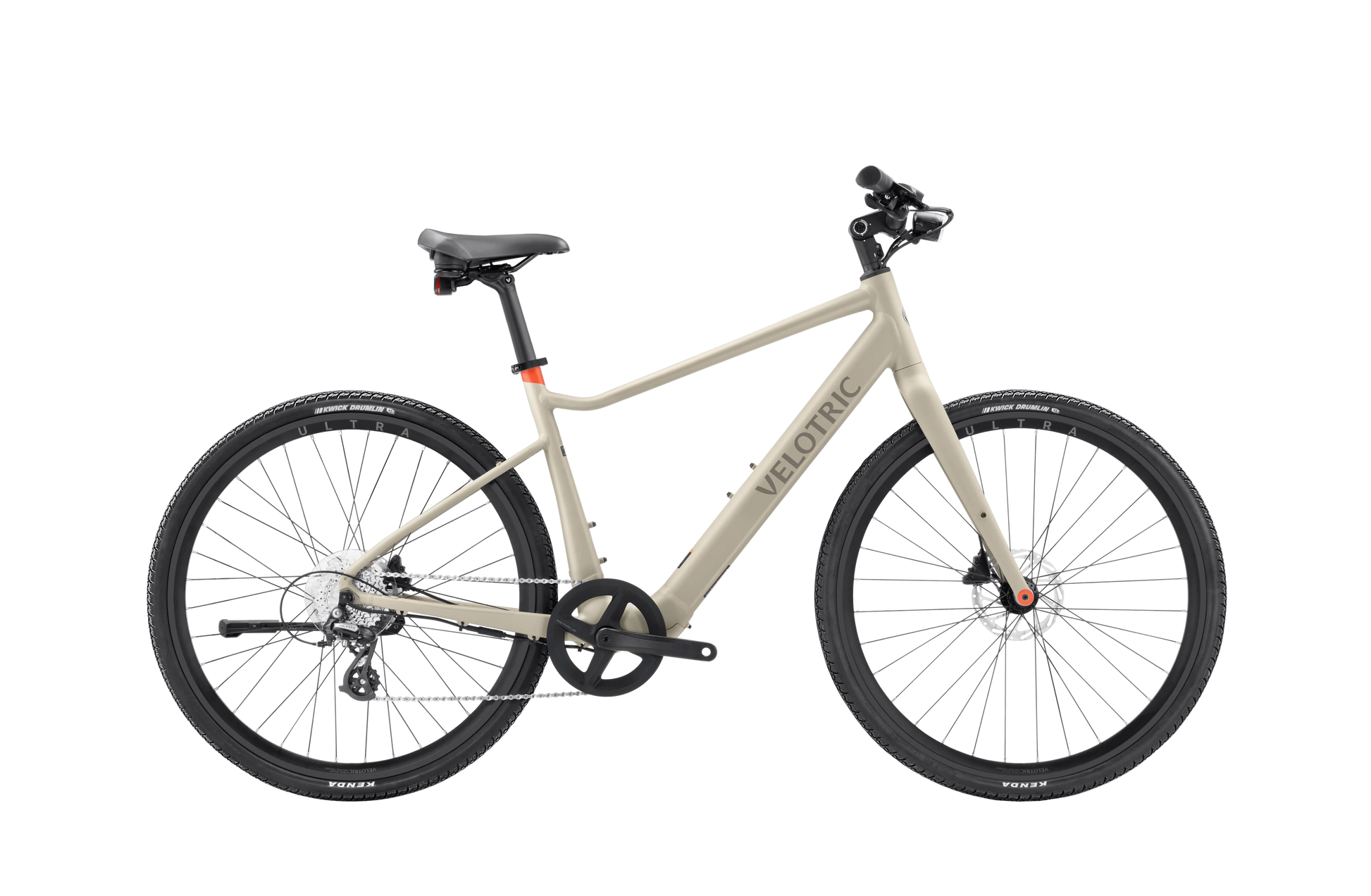

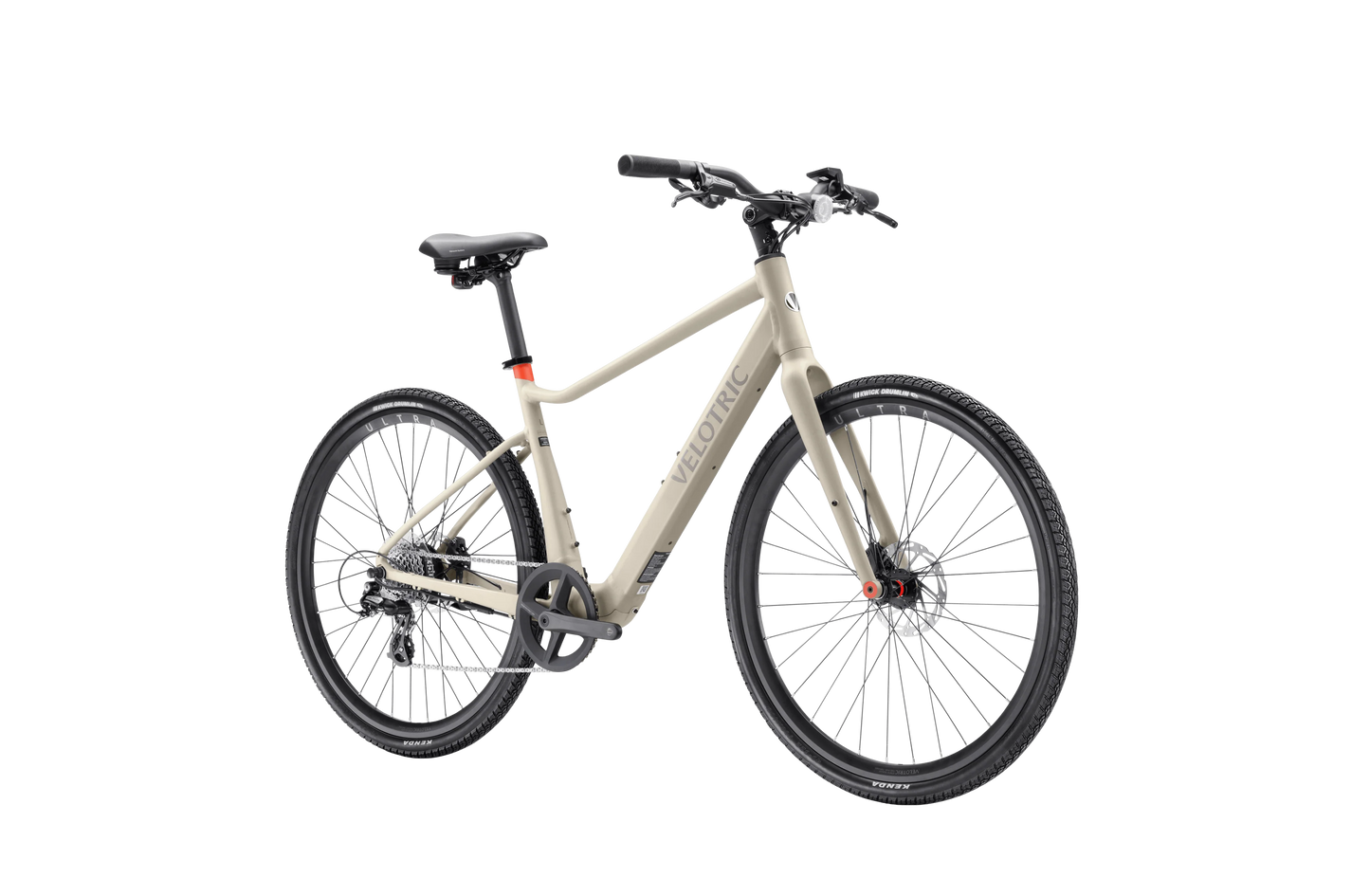

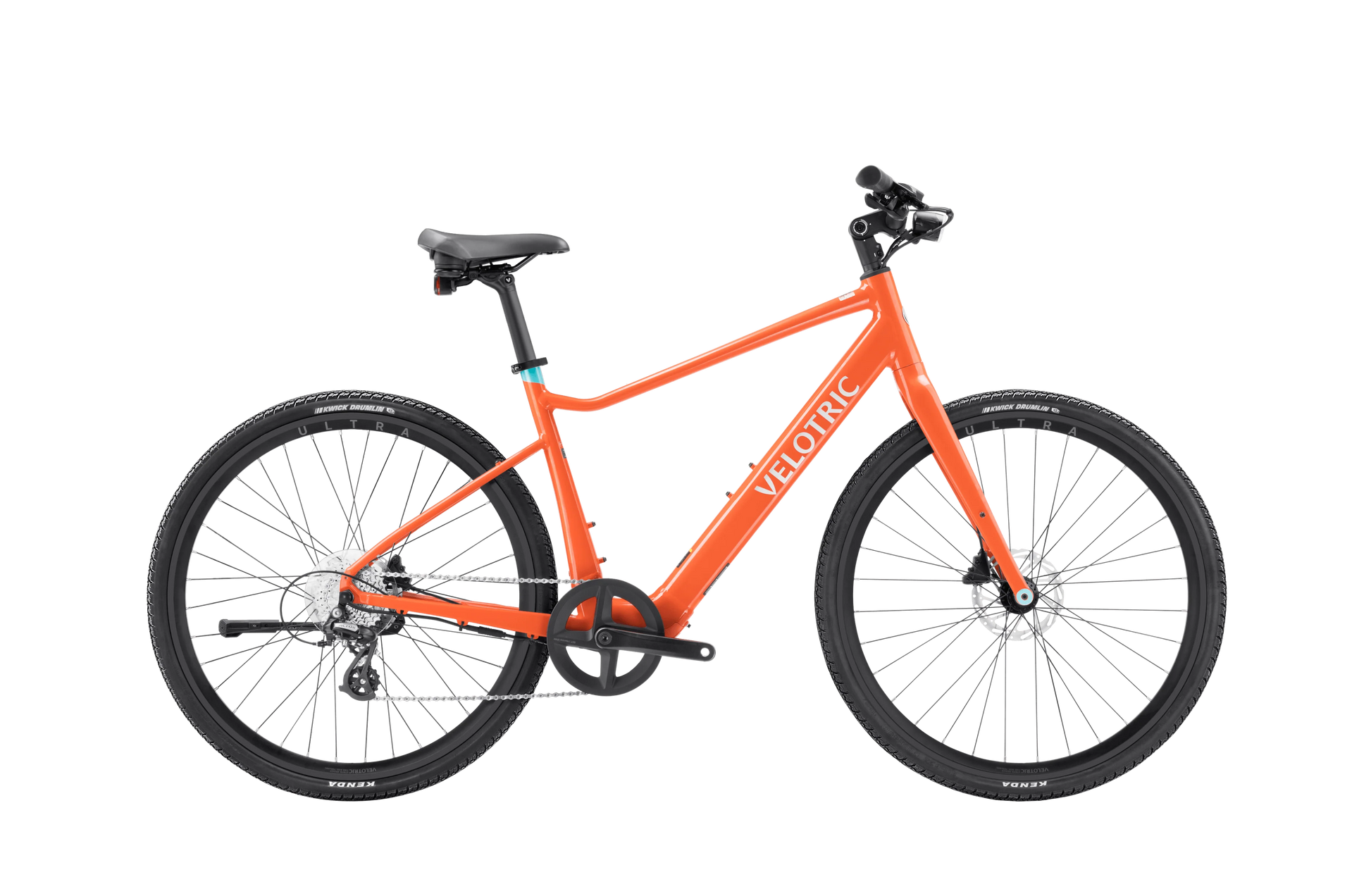

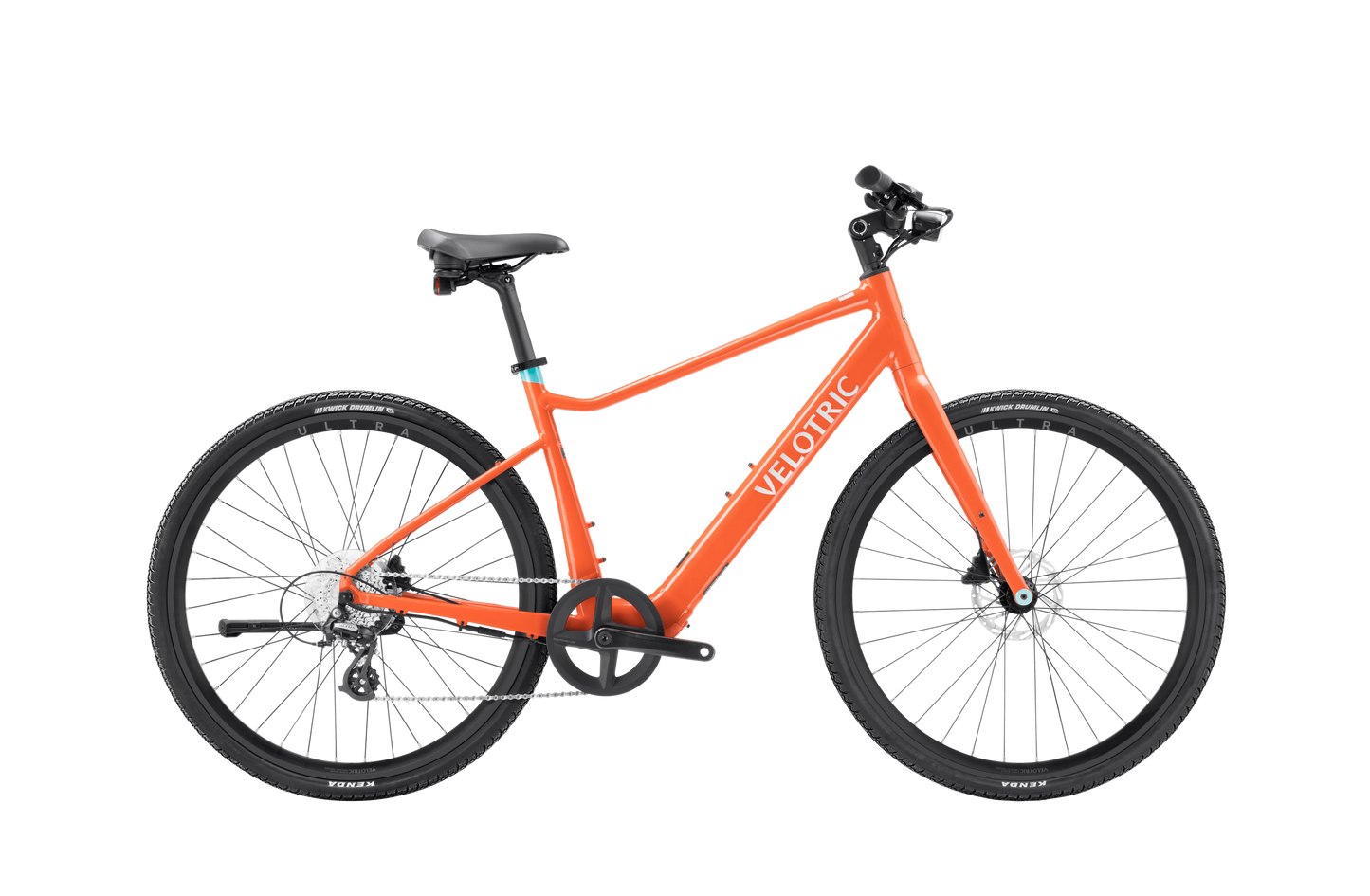

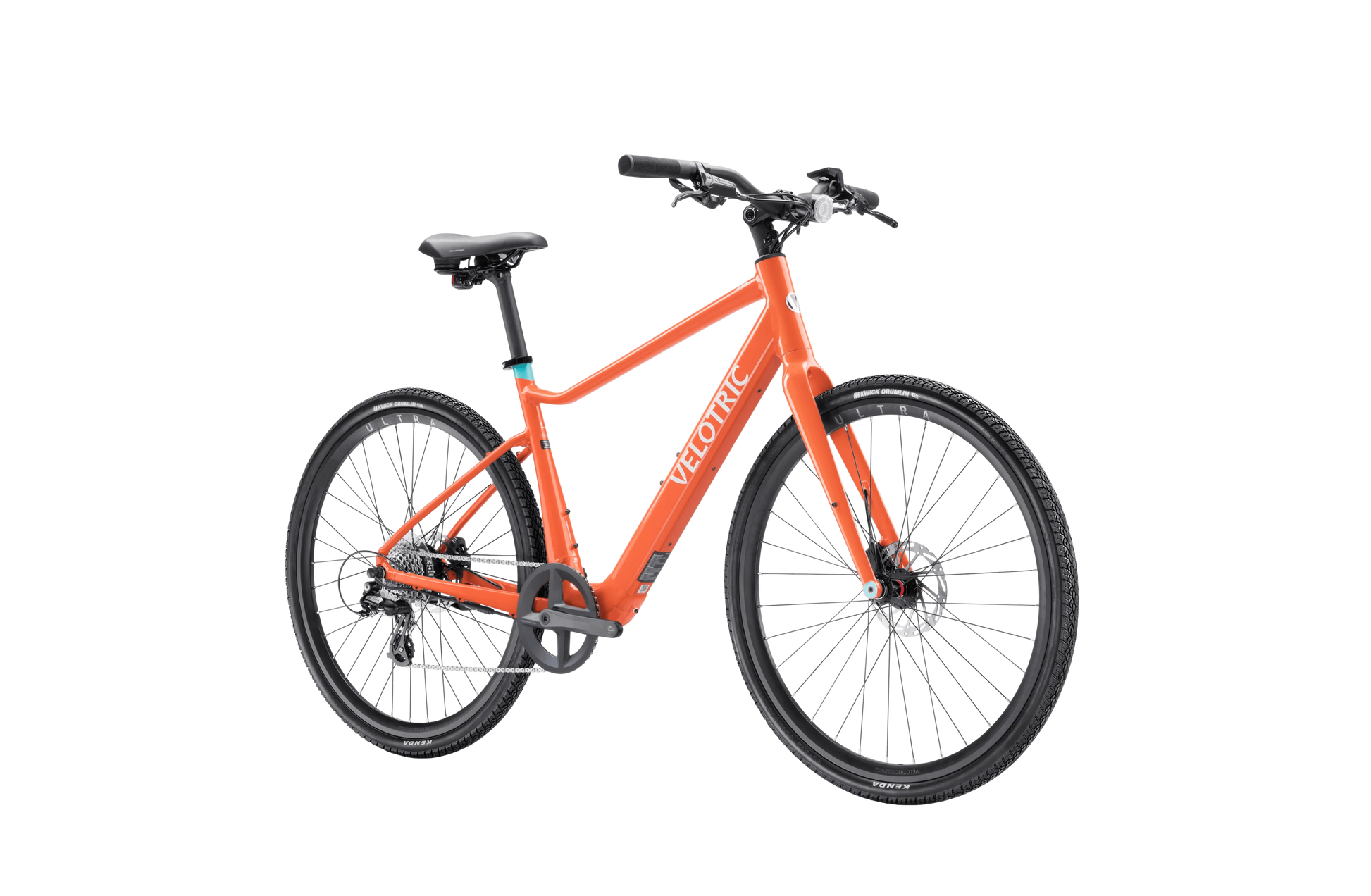

Velotric T1 ST Plus

Velotric T1 ST – Key Features & Specifications

Size & Fit

• Available Sizes: Regular / Large

• Rider Height Compatibility:

  • Regular: 4'11" – 5'9"

  • Large: 5'6" – 6'4"

Frame & Design

• Frame Material: 6061 triple-butted aluminum alloy

• Fork: Matching aluminum alloy fork with internal brake cable routing and 12x100mm thru-axle

• Water Resistance Rating: IPX6 (entire bike)

Motor & Battery

• Motor: 350W rear hub motor (600W peak), 40Nm of torque

• Battery: 36V, 352.8Wh, IPX7 water-resistant, UL 2271 certified

• Battery Cells: Samsung/LG 21700 cells, UL 2580 certified

• Charger: 36V, 2A standard charger

• Pedal Assist System:

  • 3 riding modes × 5 levels

  • Torque sensor for smooth, responsive power

• Walk Assist: 2.9 MPH

Speed & Range

• Top Speed (Default): 20 MPH

• Adjustable Speed Range: 12 – 28 MPH

• Supported Classes: Class 1 & 3

• Range: Up to 70 miles with pedal assist (based on a 187-lb rider in Eco mode on flat terrain)

Display & Connectivity

• Display: 1.8” full-color screen with high brightness, Bluetooth, and adjustable viewing angle

• USB Port: USB Type-A phone charging

• Lighting:

  • Front: Integrated high-output LED, 60 Lux, adjustable angle

  • Rear: Integrated LED tail light

Drivetrain

• Chainring: 46T

• Crankset: 170mm aluminum alloy

• Gearing:

  • Shimano 8-speed system

  • 11–32T freewheel

  • KMC 8-speed chain

• Shifter & Derailleur: Shimano 8-speed components

Brakes

• Brake System: Tektro hydraulic disc brakes

• Rotors: 160mm front and rear

• Brake Levers: Aluminum alloy

Wheels & Tires

• Rims: Double-wall aluminum alloy

• Front Hub: NOVATEC aluminum alloy, 12x100mm thru-axle

• Tires: Kenda 700×40c e-bike tires, puncture-resistant

Cockpit & Comfort

• Handlebar: 660mm wide, 31.8mm aluminum alloy

• Grips: Velotric ergonomic comfort grips

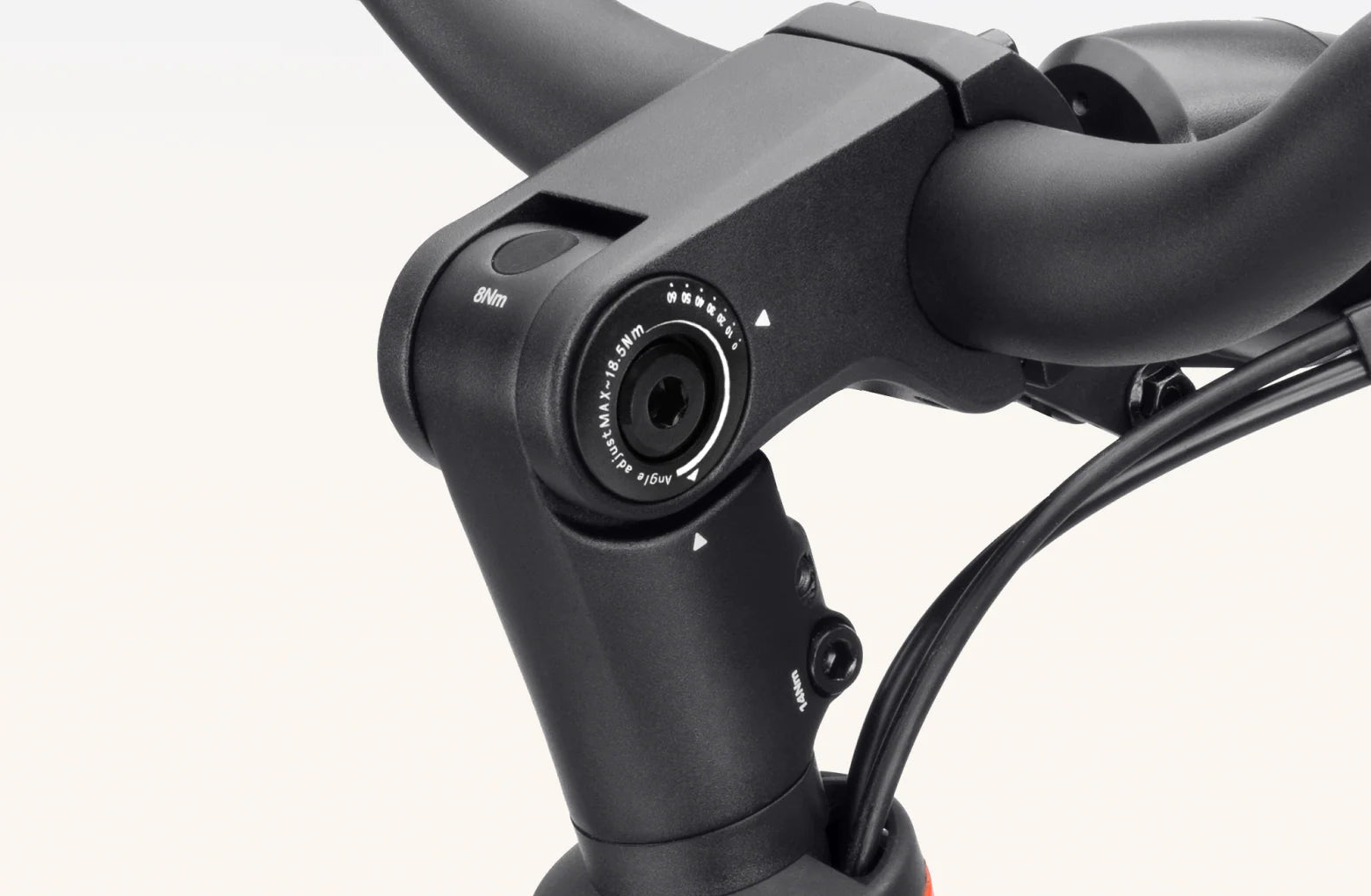

• Stem: 60mm adjustable, aluminum alloy

• Saddle: Velotric urban comfort ergonomic seat

• Seatpost: 30.9mm × 350mm aluminum alloy

• Clamp: Aluminum alloy seatpost clamp

Included Accessories

• Pedals: Durable plastic platform pedals

• Kickstand: Rear-mounted aluminum alloy kickstand

Weight & Capacity

• Bike Weight: 39 lbs

• Maximum Load Capacity: 330 lbs (including rider and cargo)

Certifications

• UL Certified: UL 2849 (electrical system), UL 2271 (battery)

• ISO Compliant: ISO 4210 (frame and safety standards)
