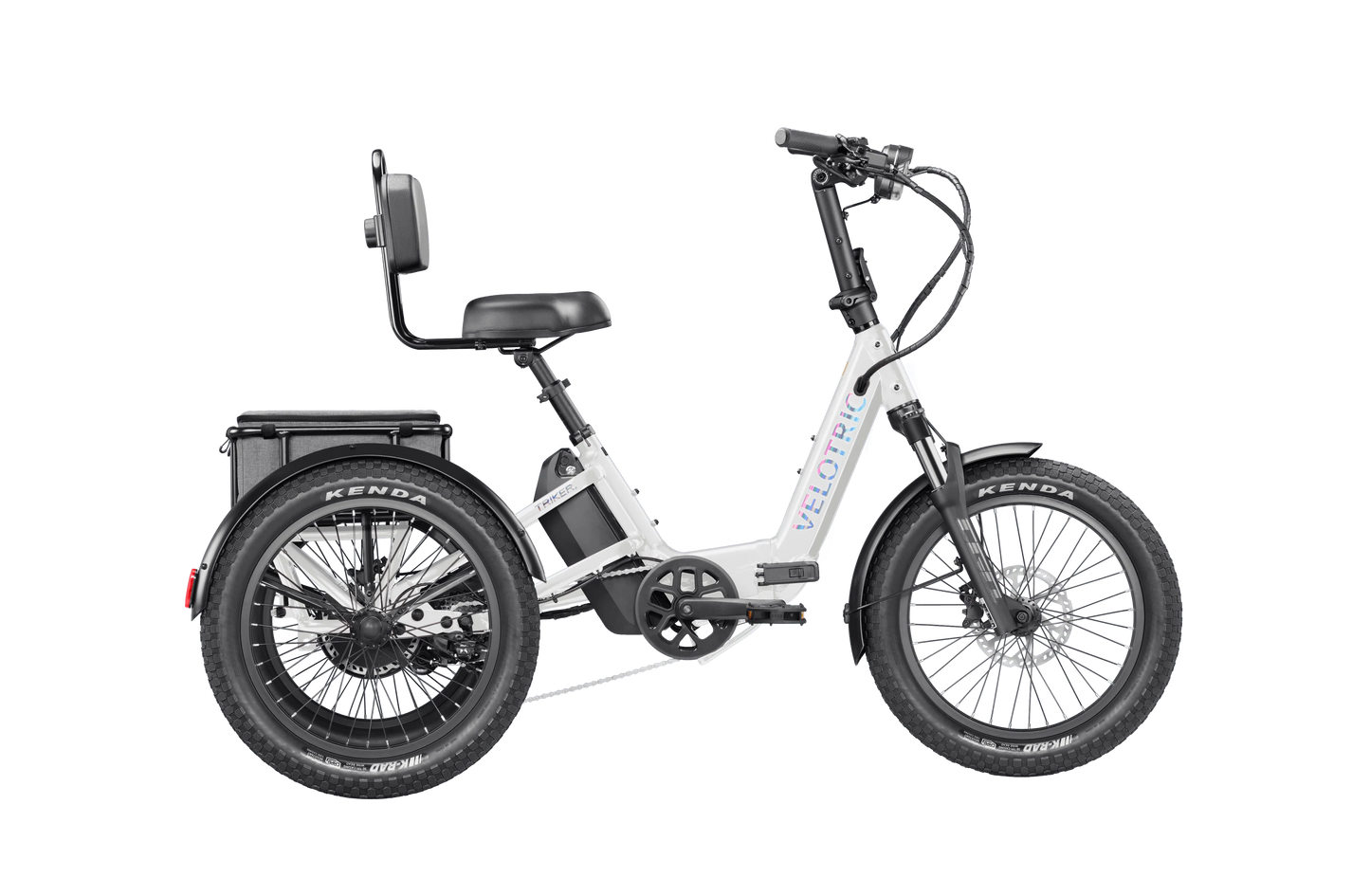

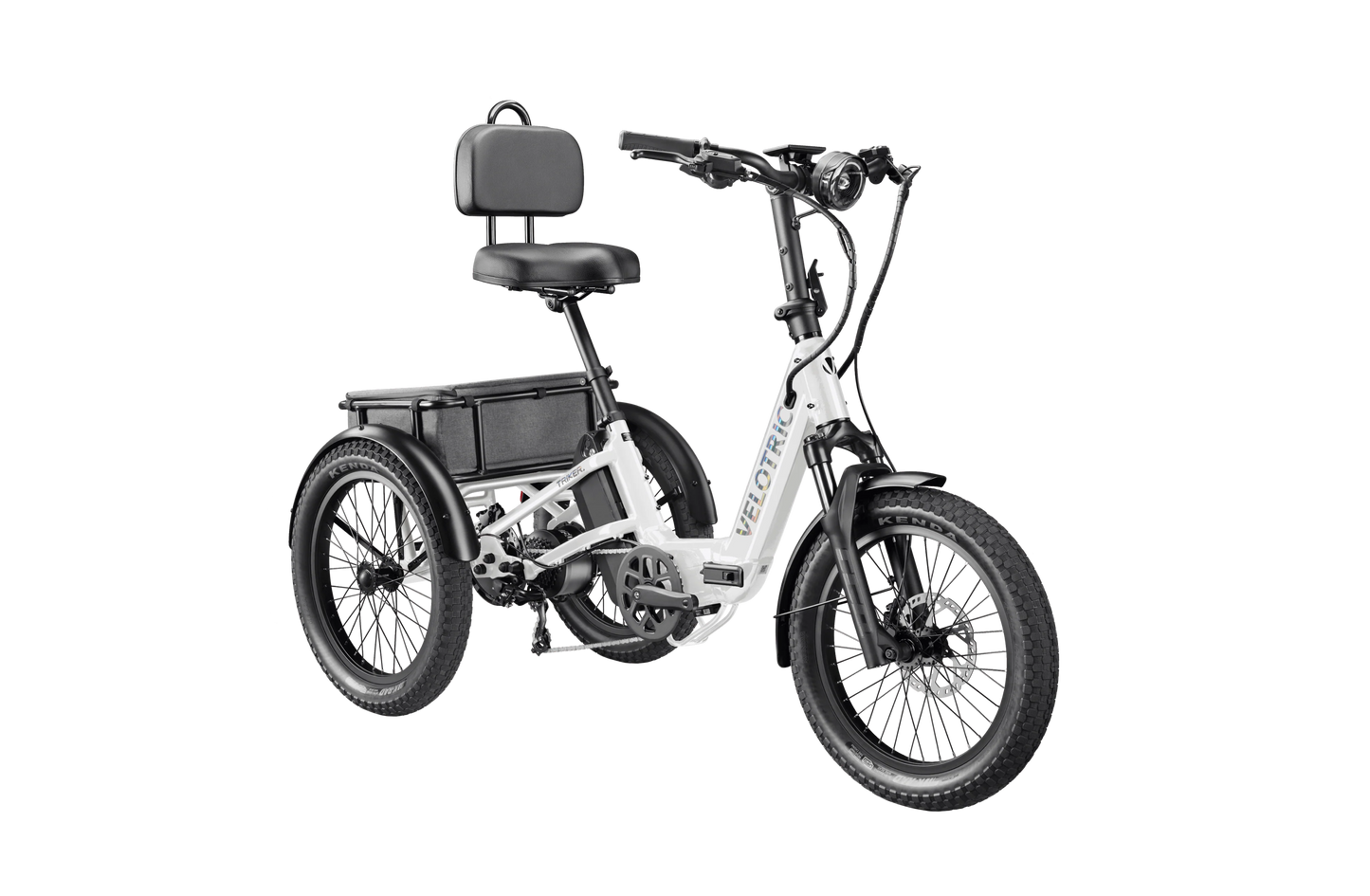

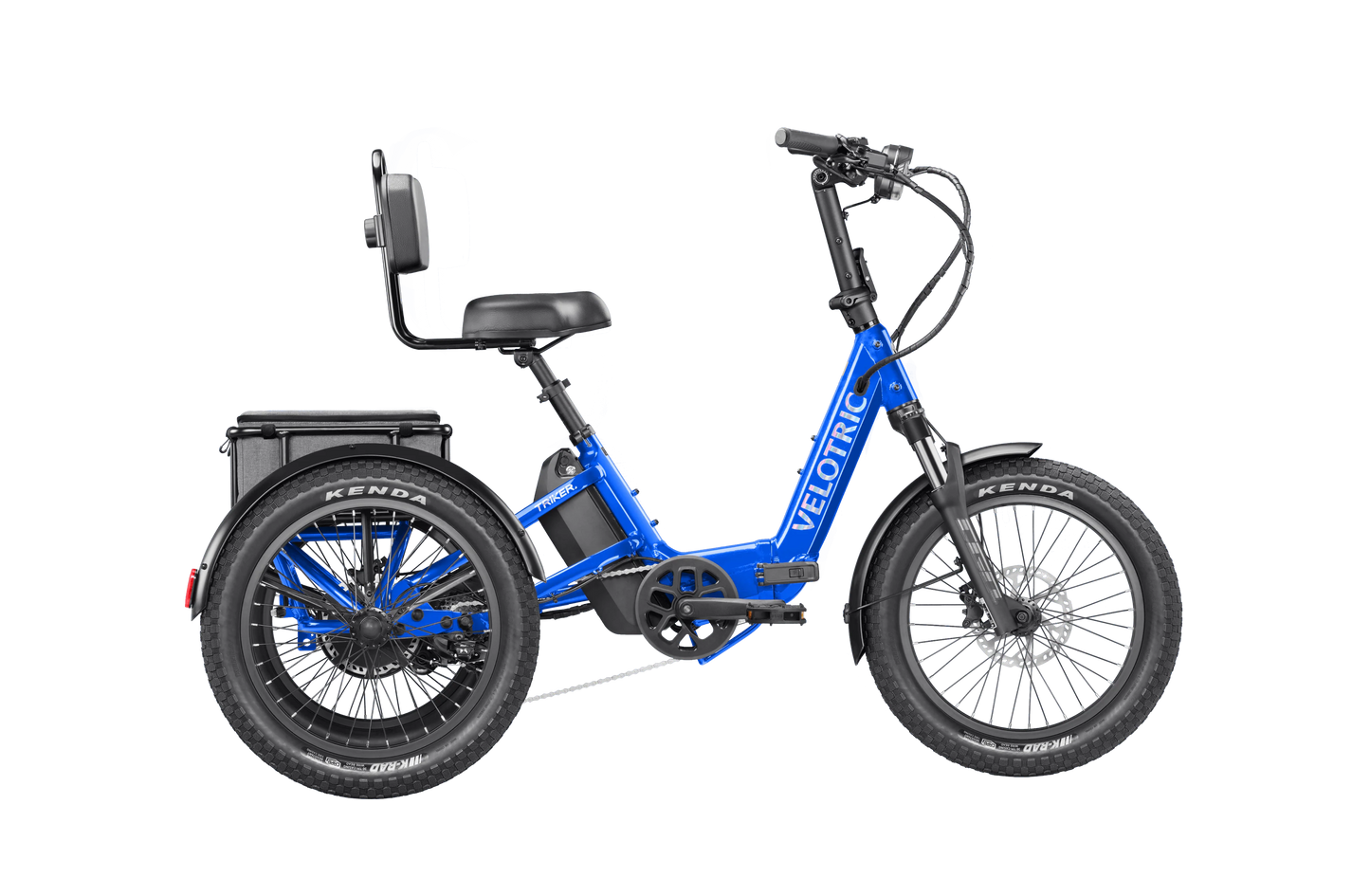

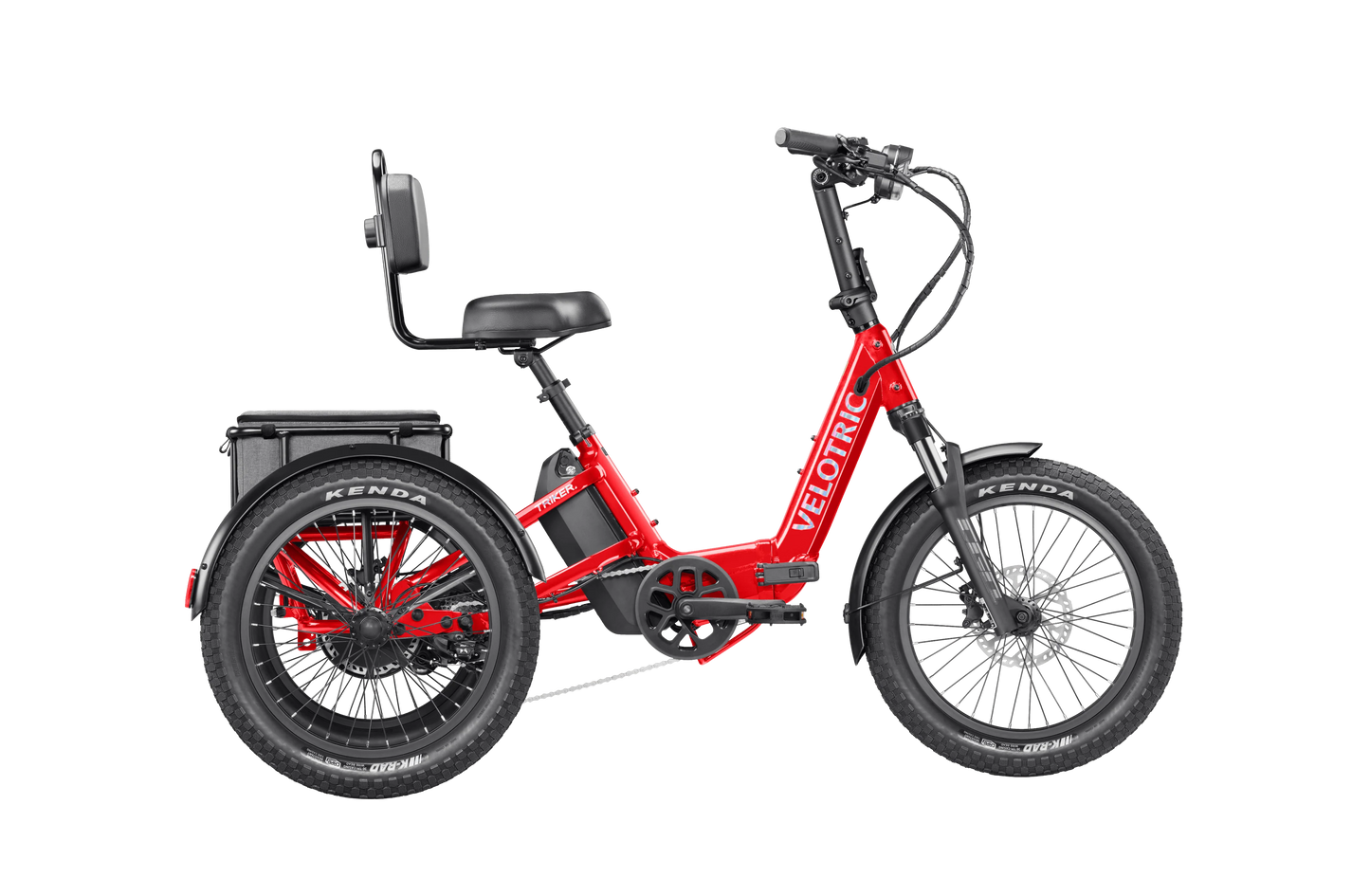

Velotric Triker – Product Specifications
General Information
Model Name: Velotric Triker

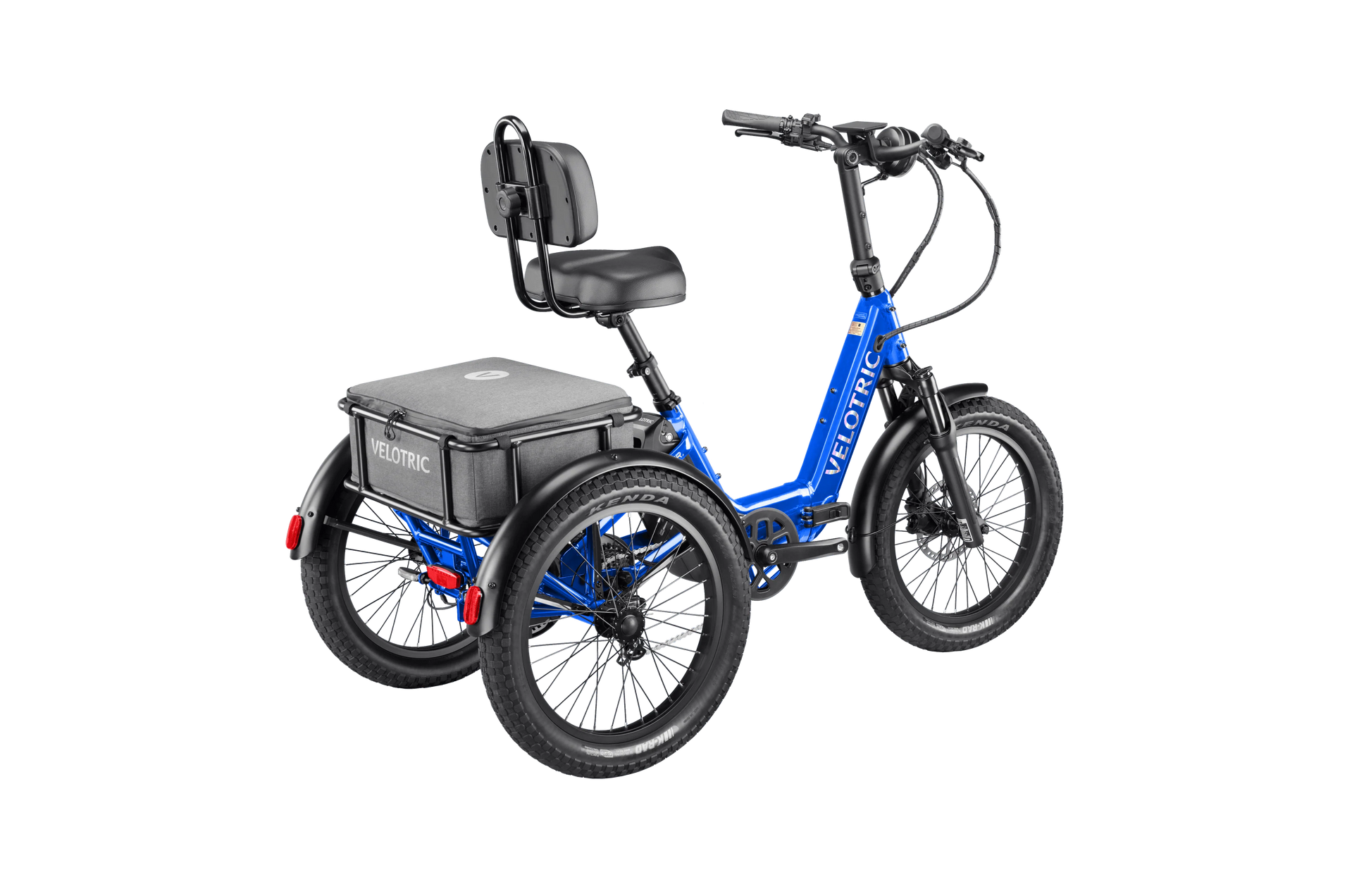

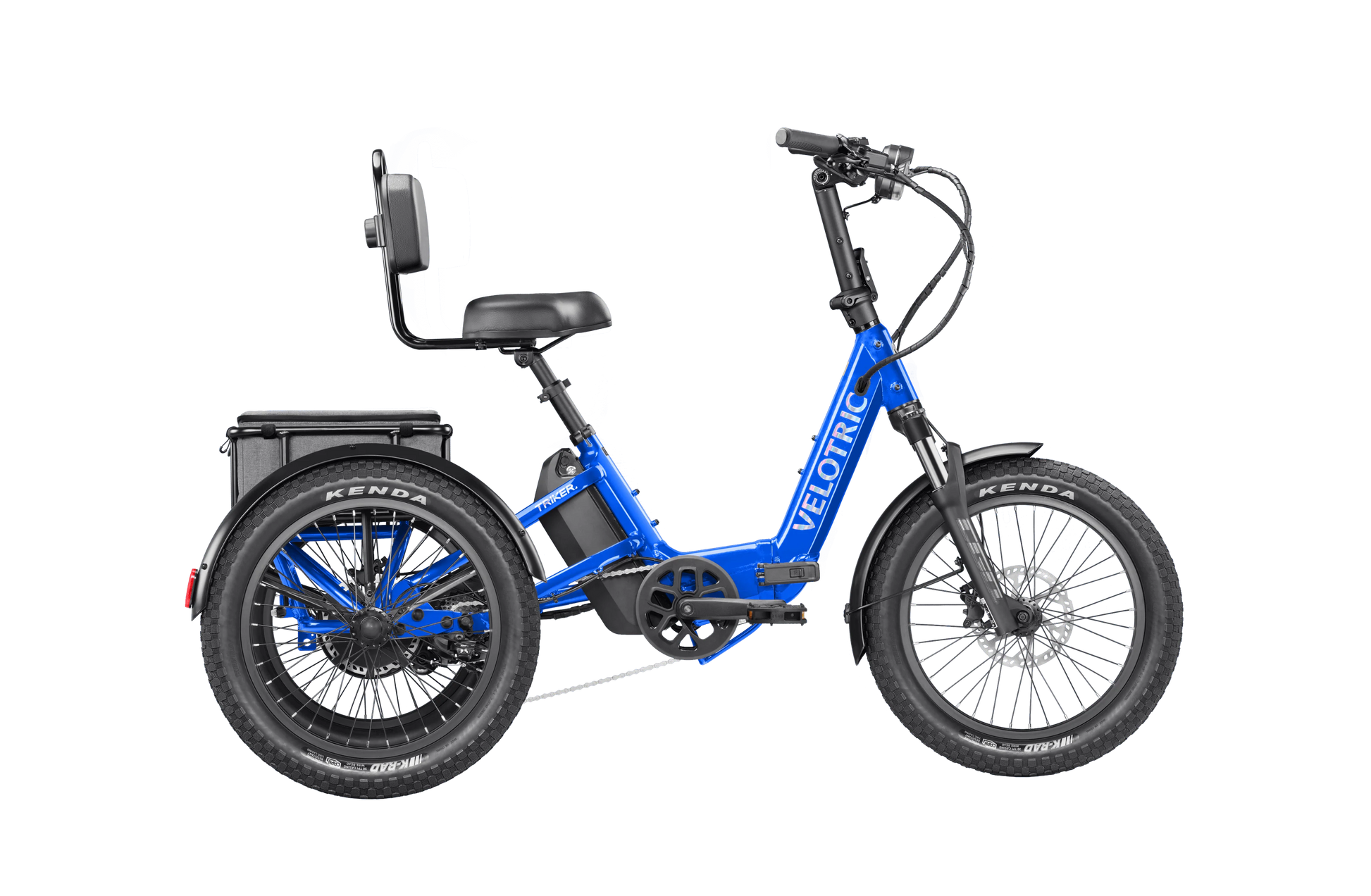

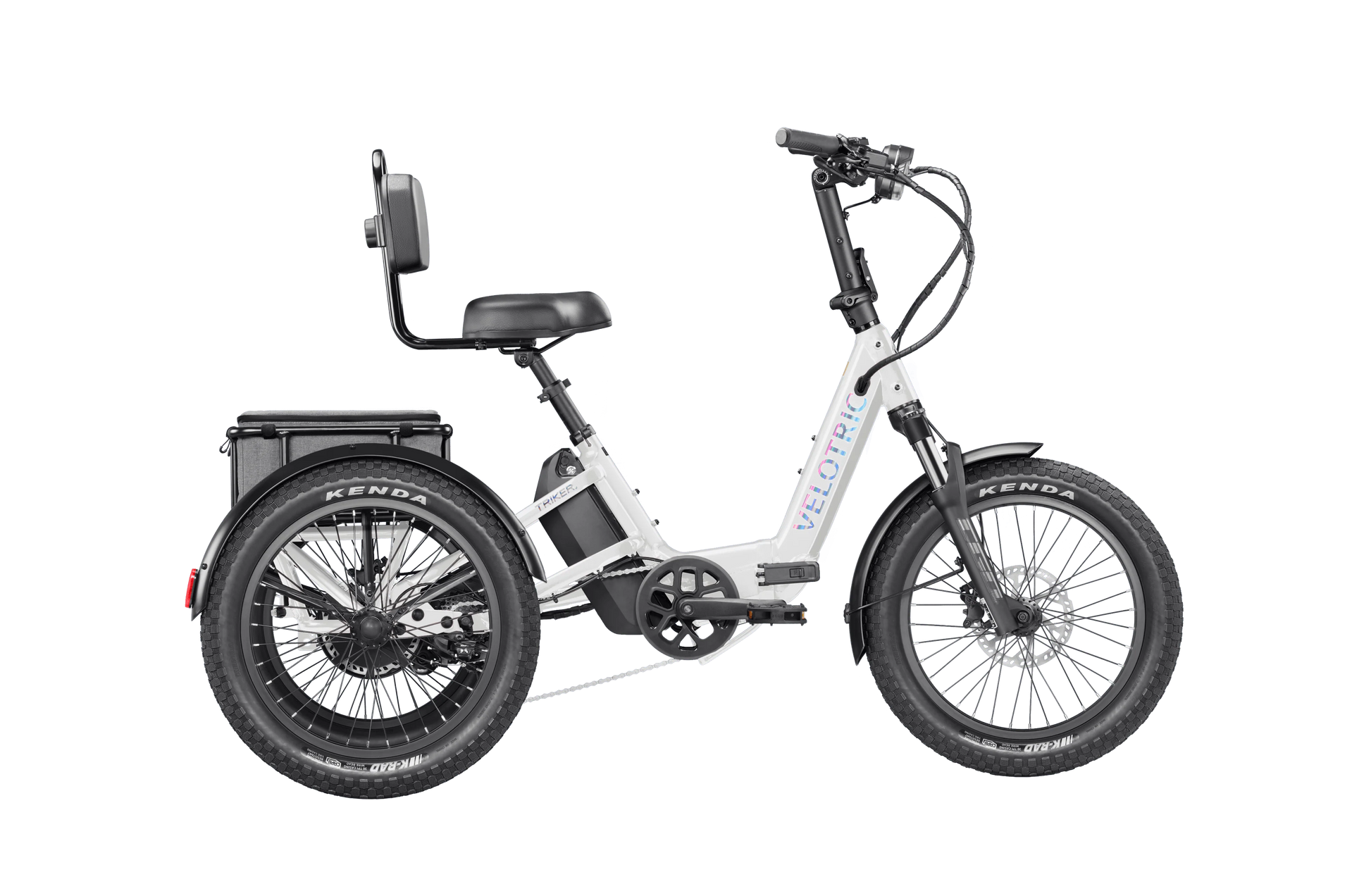

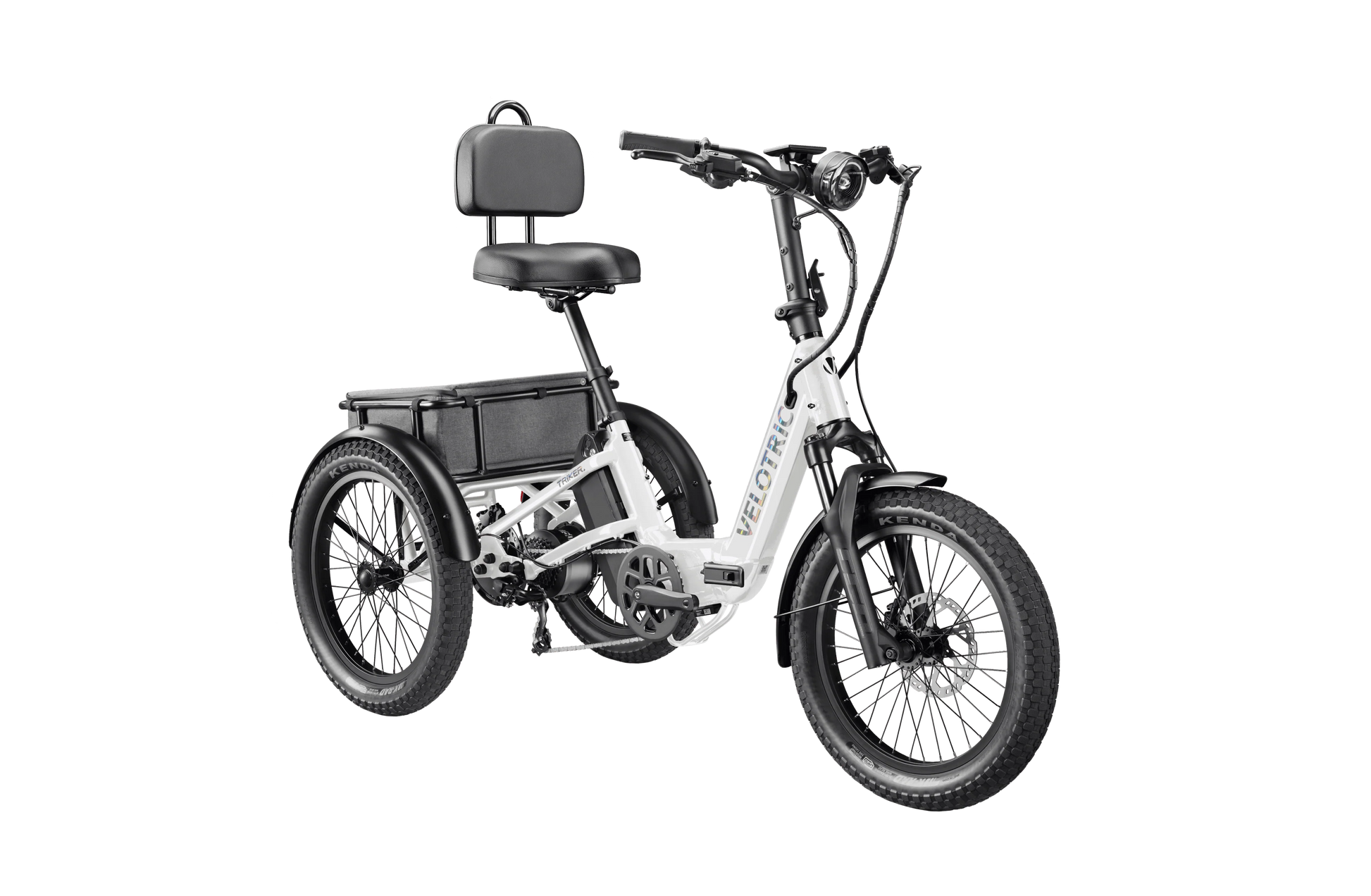

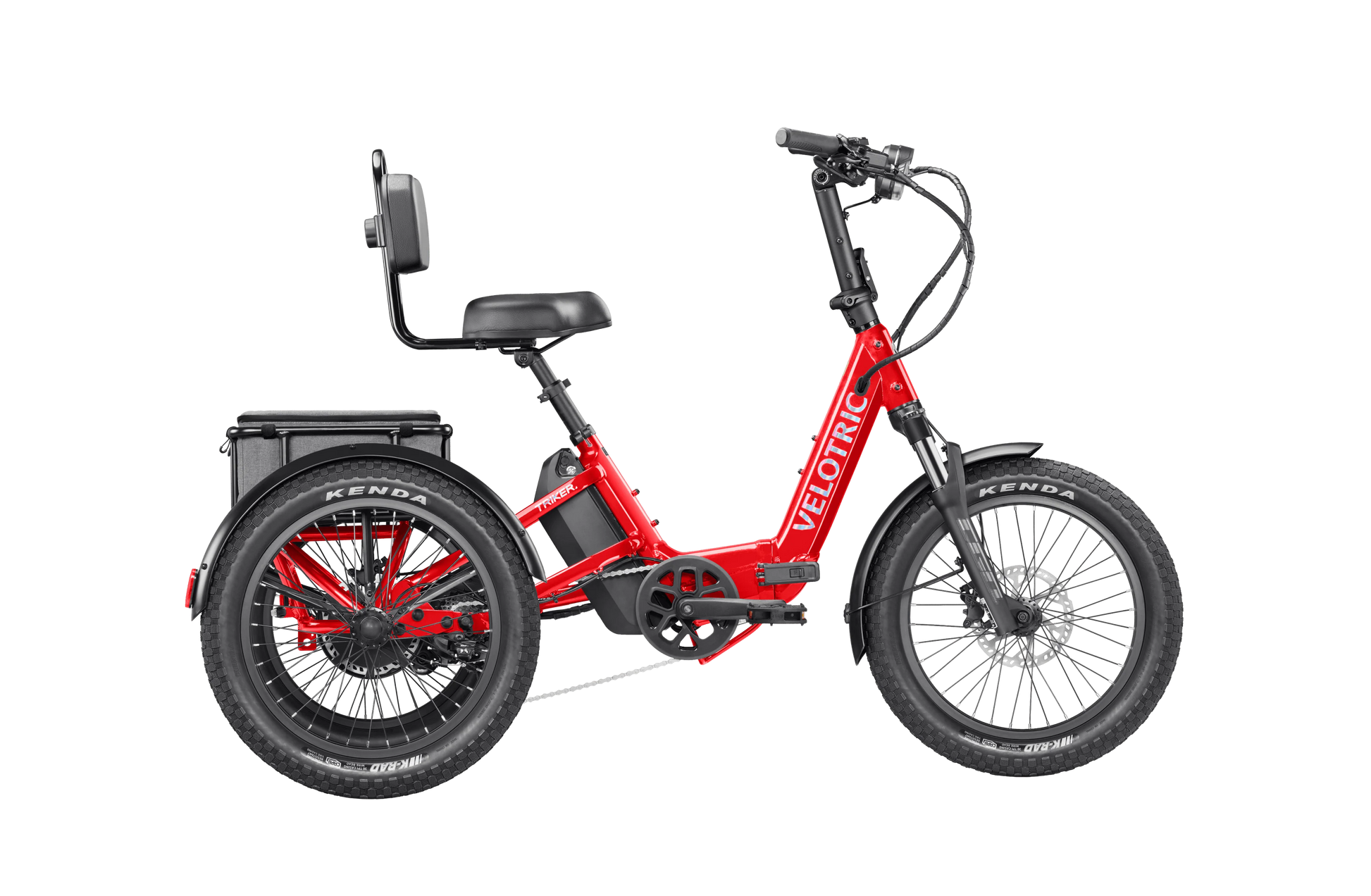

Available Colors: Electric Blue, Pearl White, Cherry Crimson
Frame Size: One Size
Rider Height Compatibility: 4'10" to 6'5"
Electronics
Motor: 48V, 750W rear hub motor (1300W peak), 90Nm torque
Battery: 48V, 16.75Ah lithium battery (IPX7 water resistance, UL 2271 certified)
Battery Cells: 18650-type, UL 2580 certified
Charger: 48V, 3A fast charger
Display: 3.5" full-color, high-brightness screen with Bluetooth and adjustable viewing angle
Sensors: SensorSwap™ system with both torque and cadence sensing
Throttle: Trigger-style throttle (removable)
Pedal Assist: 5 levels of pedal assistance
Walk Mode: 2.0 mph assisted walking speed
USB Charging: USB Type-C phone charging port
Mobile Integration: Apple Find My™ compatibility for easy tracking and updates
Lighting & Safety Features
Front Light: Integrated 130 Lux / 500 lumen LED, auto light-sensing, adjustable angle
Rear Light: Integrated with rear rack; includes brake light, turn signal, and flash/steady modes
Turn Signals: Left and right turn signals with tactile click feedback
Horn: Built-in electric horn, 90 dB, integrated with front light
Water Resistance: IPX6 rating for the entire bike
Frameset
Frame Material: Lightweight aluminum alloy
Front Suspension: Hydraulic fork with 80mm travel and lock-out option
Speed & Range
Top Speed (Factory Default): 12 mph
Adjustable Speed Range: 8 to 20 mph
Class Rating: Supports Class 1 and Class 2 operation
Throttle Range: Up to 50 miles
Pedal Assist Range: Up to 60 miles (depending on terrain and rider conditions)
Braking System
Brakes: Hydraulic disc brakes (front and rear)
Rotors: 180mm diameter
Brake Levers: Aluminum alloy with integrated motor cutoff and parking brake function
Drivetrain
Chainring: 40T narrow-wide chainring
Crankset: 152mm aluminum alloy arms
Freewheel: 7-speed, 11–28T gear range
Rear Derailleur: Shimano 7-speed
Shifter: Shimano 7-speed thumb shifter
Chain: KMC 7-speed chain
Cockpit & Controls
Handlebar: Aluminum alloy, 660mm width, 31.8mm diameter
Grips: Ergonomic, lockable grips
Stem: Foldable and adjustable aluminum alloy stem (60mm reach, 31.8mm diameter)
Seat: Velotric comfort seat with adjustable backrest
Seatpost:
-
Front: 30.9mm diameter, 350mm length
-
Rear: 34.9mm diameter, 260mm length
Seat Clamp: Quick release (front) / Nutted (rear)
Wheels & Tires
Rims: Double-wall aluminum alloy for added strength
Front Hub: Nutted aluminum alloy
Tires: Kenda 20x3.0" puncture-resistant tires
Differential: Equipped (for improved handling in trike configuration)
Utility & Accessories
Fenders: Full coverage front and rear fenders included
Rear Basket: Durable aluminum alloy construction
Pedals: Standard plastic platform pedals
Weight & Load Capacity
Total Bike Weight: 85.8 lbs
Maximum Payload: 500 lbs total
Rear Basket Capacity: 120 lbs
Certifications
UL Certification: UL 2849 certified electrical system
ISO Compliance: ISO 4210 standard for bicycle safety
